meshx_cwww_server.c File Reference

Implementation of the CW-WW server model for BLE Mesh. More...

#include <meshx_cwww_server_element.h>
#include <meshx_nvs.h>
#include <meshx_api.h>
#include "meshx_config_server.h"

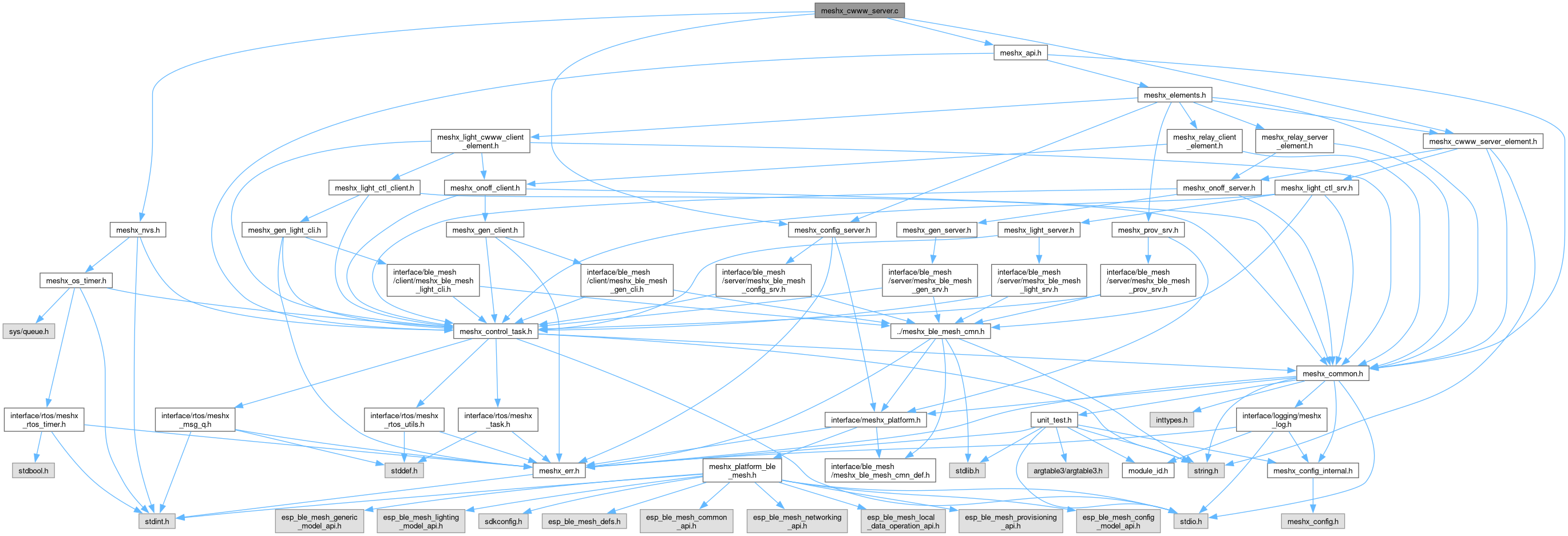

Include dependency graph for meshx_cwww_server.c:

Go to the source code of this file.

Macros
#define	CONFIG_SERVER_CB_MASK
	Configuration server callback event mask for relay server.
#define	CONTROL_TASK_EVT_MASK
#define	CONTROL_TASK_MSG_EVT_TO_BLE_GEN_SRV_MASK
#define	GET_RELATIVE_EL_IDX(_element_id)
#define	IS_EL_IN_RANGE(_element_id)
#define	CWWW_SRV_EL(_el_id)
#define	CWWW_TEMP_MIN   2700
#define	CWWW_TEMP_MAX   6500

Functions
static meshx_err_t	cwww_server_config_srv_cb (const dev_struct_t *pdev, control_task_msg_evt_t evt, const meshx_config_srv_cb_param_t *params)
	Callback function for configuration server events.
static meshx_err_t	meshx_element_struct_init (uint16_t n_max)
	Initializes the mesh element structure by freeing allocated memory.
static meshx_err_t	meshx_element_struct_deinit ()
	Deinitializes the mesh element structure by freeing allocated memory.
static meshx_err_t	meshx_dev_create_cwww_model_space (uint16_t n_max)
	Create space for CW-WW models.
static meshx_err_t	meshx_restore_model_states (uint16_t element_id)
	Restore saved CW-WW model states.
static meshx_err_t	meshx_add_cwww_srv_model_to_element_list (dev_struct_t *pdev, uint16_t *start_idx, uint16_t n_max)
	Add CW-WW server models to the element list.
static meshx_err_t	meshx_api_control_task_handler (const dev_struct_t *pdev, const control_task_msg_evt_t evt, const void *params)
	CW-WW server model event handler.
static meshx_err_t	cwww_prov_control_task_handler (dev_struct_t const *pdev, control_task_msg_evt_t evt, void const *params)
	Callback function for relay server model events for Provisioning events.
static meshx_err_t	meshx_cwww_srv_msg_send_handler (const dev_struct_t *pdev, control_task_msg_evt_to_ble_t evt, void *params)
	Handler for sending messages from the CW-WW server model to BLE.
meshx_err_t	meshx_create_cwww_elements (dev_struct_t *pdev, uint16_t element_cnt)
	Create Dynamic CWWW Server Model Elements.
	REG_MESHX_ELEMENT_FN (cwww_srv_el, MESHX_ELEMENT_TYPE_LIGHT_CWWW_SERVER, meshx_create_cwww_elements)

Variables
static meshx_cwww_elements_ctrl_t	cwww_element_init_ctrl

Detailed Description

Implementation of the CW-WW server model for BLE Mesh.

Copyright © 2024 - 2025 MeshX

This file contains the implementation of the CW-WW server model for BLE Mesh, including initialization, configuration, and event handling.

Author

Pranjal Chanda

Definition in file meshx_cwww_server.c.

Macro Definition Documentation

CONFIG_SERVER_CB_MASK

#define CONFIG_SERVER_CB_MASK

Value:

    CONTROL_TASK_MSG_EVT_PUB_ADD \
    | CONTROL_TASK_MSG_EVT_SUB_ADD | CONTROL_TASK_MSG_EVT_APP_KEY_BIND

Configuration server callback event mask for relay server.

Definition at line 25 of file meshx_cwww_server.c.

#define CONFIG_SERVER_CB_MASK    \
    CONTROL_TASK_MSG_EVT_PUB_ADD \
    | CONTROL_TASK_MSG_EVT_SUB_ADD | CONTROL_TASK_MSG_EVT_APP_KEY_BIND

CONTROL_TASK_EVT_MASK

#define CONTROL_TASK_EVT_MASK

Value:

    CONTROL_TASK_MSG_EVT_EL_STATE_CH_SET_ON_OFF \
    | CONTROL_TASK_MSG_EVT_EL_STATE_CH_SET_CTL

Definition at line 30 of file meshx_cwww_server.c.

#define CONTROL_TASK_EVT_MASK                   \
    CONTROL_TASK_MSG_EVT_EL_STATE_CH_SET_ON_OFF \
    | CONTROL_TASK_MSG_EVT_EL_STATE_CH_SET_CTL

CONTROL_TASK_MSG_EVT_TO_BLE_GEN_SRV_MASK

#define CONTROL_TASK_MSG_EVT_TO_BLE_GEN_SRV_MASK

Value:

    CONTROL_TASK_MSG_EVT_TO_BLE_SET_ON_OFF_SRV   \
    | CONTROL_TASK_MSG_EVT_TO_BLE_SET_CTL_SRV

Definition at line 34 of file meshx_cwww_server.c.

#define CONTROL_TASK_MSG_EVT_TO_BLE_GEN_SRV_MASK \
    CONTROL_TASK_MSG_EVT_TO_BLE_SET_ON_OFF_SRV   \
    | CONTROL_TASK_MSG_EVT_TO_BLE_SET_CTL_SRV

CWWW_SRV_EL

#define CWWW_SRV_EL

(

_el_id

)

Value:

cwww_element_init_ctrl.el_list[_el_id]

Definition at line 40 of file meshx_cwww_server.c.

CWWW_TEMP_MAX

#define CWWW_TEMP_MAX   6500

Definition at line 43 of file meshx_cwww_server.c.

CWWW_TEMP_MIN

#define CWWW_TEMP_MIN   2700

Definition at line 42 of file meshx_cwww_server.c.

GET_RELATIVE_EL_IDX

#define GET_RELATIVE_EL_IDX

(

_element_id

)

Value:

_element_id - cwww_element_init_ctrl.element_id_start

Definition at line 38 of file meshx_cwww_server.c.

IS_EL_IN_RANGE

#define IS_EL_IN_RANGE

(

_element_id

)

Value:

(_element_id >= cwww_element_init_ctrl.element_id_start && _element_id < cwww_element_init_ctrl.element_id_end)

Definition at line 39 of file meshx_cwww_server.c.

Function Documentation

cwww_prov_control_task_handler()

static meshx_err_t cwww_prov_control_task_handler ( dev_struct_t const * pdev, control_task_msg_evt_t evt, void const * params )

static

Callback function for relay server model events for Provisioning events.

Parameters

[in]	pdev	Pointer to the device structure.
[in]	evt	Relay server event type.
[in]	params	Pointer to the parameters for the event.

Returns

MESHX_SUCCESS on success, error code otherwise.

Definition at line 455 of file meshx_cwww_server.c.

{
    MESHX_UNUSED(params);

    size_t rel_el_id = 0;
    meshx_err_t err = MESHX_SUCCESS;
    meshx_gen_srv_cb_param_t gen_srv_send;
    meshx_lighting_server_cb_param_t light_srv_send;

    switch(evt)
    {
        case CONTROL_TASK_MSG_EVT_EN_NODE_PROV:
            for (size_t el_id = cwww_element_init_ctrl.element_id_start; el_id < cwww_element_init_ctrl.element_id_end; el_id++)
            {
                rel_el_id = GET_RELATIVE_EL_IDX(el_id);

                err = meshx_gen_on_off_srv_send_pack_create(
                        CWWW_SRV_EL(rel_el_id).onoff_srv_model->meshx_sig,
                        (uint16_t)el_id,
                        pdev->meshx_store.net_key_id,
                        CWWW_SRV_EL(rel_el_id).srv_ctx->app_id,
                        CWWW_SRV_EL(rel_el_id).srv_ctx->pub_addr,
                        CWWW_SRV_EL(rel_el_id).srv_ctx->prev_state.on_off,
                        &gen_srv_send
                    );

                if ((err != MESHX_SUCCESS)
                || (gen_srv_send.ctx.dst_addr == MESHX_ADDR_UNASSIGNED)
                || (gen_srv_send.ctx.app_idx == MESHX_KEY_UNUSED))
                    continue;

                err = meshx_gen_srv_send_msg_to_ble(
                    CONTROL_TASK_MSG_EVT_TO_BLE_SET_ON_OFF_SRV,
                    &gen_srv_send
                );

                if (err)
                {
                    MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Failed to send ONOFF status message (Err: %x)", err);
                    return err;
                }

                err = meshx_light_ctl_srv_send_pack_create(
                        CWWW_SRV_EL(rel_el_id).ctl_srv_model->meshx_sig,
                        (uint16_t)el_id,
                        pdev->meshx_store.net_key_id,
                        CWWW_SRV_EL(rel_el_id).srv_ctx->app_id,
                        CWWW_SRV_EL(rel_el_id).srv_ctx->pub_addr,
                        CWWW_SRV_EL(rel_el_id).srv_ctx->prev_ctl_state,
                        &light_srv_send
                    );

                if ((err != MESHX_SUCCESS)
                || (light_srv_send.ctx.dst_addr == MESHX_ADDR_UNASSIGNED)
                || (light_srv_send.ctx.app_idx == MESHX_KEY_UNUSED))
                    continue;

                err = meshx_gen_light_srv_send_msg_to_ble(
                    CONTROL_TASK_MSG_EVT_TO_BLE_SET_CTL_SRV,
                    &light_srv_send
                );
                if (err)
                {
                    MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Failed to send CTL status message (Err: %x)", err);
                    return err;
                }
            }
            break;
        default:
            MESHX_LOGW(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Unhandled event: %d", evt);
            err = MESHX_INVALID_STATE;
            break;
    }

    return err;
}

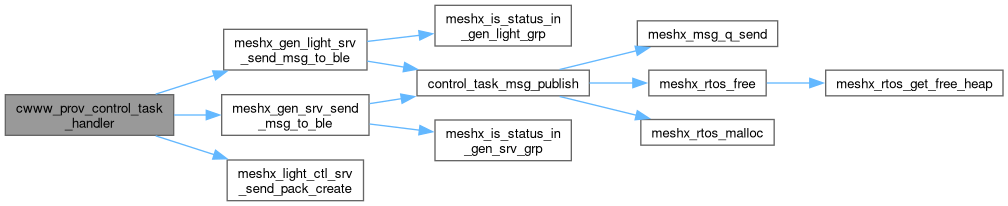

Here is the call graph for this function:

Here is the caller graph for this function:

cwww_server_config_srv_cb()

static meshx_err_t cwww_server_config_srv_cb ( const dev_struct_t * pdev, control_task_msg_evt_t evt, const meshx_config_srv_cb_param_t * params )

static

Callback function for configuration server events.

This function handles events from the configuration server, such as model publication and application binding events.

Parameters

[in]	pdev	Pointer to device struct
[in]	evt	Configuration event type.
[in]	params	Pointer to the callback parameter structure.

Definition at line 58 of file meshx_cwww_server.c.

{
    MESHX_UNUSED(pdev);
    meshx_cwww_server_ctx_t *el_ctx = NULL;
    size_t rel_el_id = 0;
    uint16_t element_id = 0;
    bool nvs_save = false;
    uint16_t base_el_id = 0;
    meshx_get_base_element_id(&base_el_id);

    switch (evt)
    {
    case CONTROL_TASK_MSG_EVT_APP_KEY_BIND:
        element_id = params->state_change.mod_app_bind.element_addr - base_el_id;
        if (!IS_EL_IN_RANGE(element_id))
            break;
        rel_el_id = GET_RELATIVE_EL_IDX(element_id);
        el_ctx = CWWW_SRV_EL(rel_el_id).srv_ctx;
        el_ctx->app_id = params->state_change.appkey_add.app_idx;
        nvs_save = true;

        break;
    case CONTROL_TASK_MSG_EVT_PUB_ADD:
    case CONTROL_TASK_MSG_EVT_PUB_DEL:
        element_id = params->state_change.mod_pub_set.element_addr - base_el_id;
        if (!IS_EL_IN_RANGE(element_id))
            break;
        rel_el_id = GET_RELATIVE_EL_IDX(element_id);
        el_ctx = CWWW_SRV_EL(rel_el_id).srv_ctx;
        el_ctx->pub_addr = evt == CONTROL_TASK_MSG_EVT_PUB_ADD ? params->state_change.mod_pub_set.pub_addr
                                                               : MESHX_ADDR_UNASSIGNED;
        el_ctx->app_id = params->state_change.mod_pub_set.app_idx;
        nvs_save = true;
        MESHX_LOGI(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "PUB_ADD: %d, %d, 0x%X, 0x%X", element_id, rel_el_id, el_ctx->pub_addr, el_ctx->app_id);
        break;
    default:
        break;
    }
    if (nvs_save)
    {
        meshx_err_t err = meshx_nvs_element_ctx_set(element_id, el_ctx, sizeof(meshx_cwww_server_ctx_t));
        if (err != MESHX_SUCCESS)
        {
            MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Failed to set cwww server element context: (%d)", err);
        }
    }
    return MESHX_SUCCESS;
}

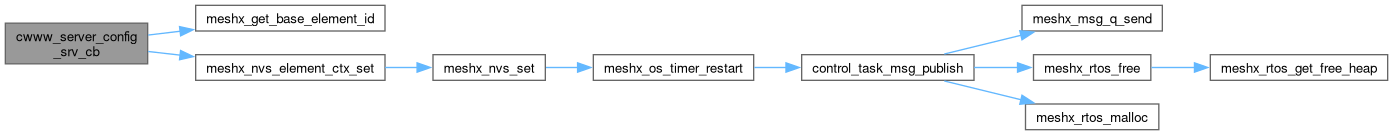

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_add_cwww_srv_model_to_element_list()

static meshx_err_t meshx_add_cwww_srv_model_to_element_list ( dev_struct_t * pdev, uint16_t * start_idx, uint16_t n_max )

static

Add CW-WW server models to the element list.

This function adds the CW-WW server models to the specified element list.

Parameters

pdev	Pointer to the device structure.
start_idx	Pointer to the starting index.
n_max	Maximum number of models.

Returns

MESHX_SUCCESS on success, or an error code on failure.

Definition at line 296 of file meshx_cwww_server.c.

{
    if (!pdev)
        return MESHX_INVALID_STATE;

    if (!start_idx || (n_max + *start_idx) > CONFIG_MAX_ELEMENT_COUNT)
    {
        MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "No of elements limit reached");
        return MESHX_NO_MEM;
    }
    meshx_err_t err = MESHX_SUCCESS;
    cwww_element_init_ctrl.element_id_start = *start_idx;

    for (uint16_t i = *start_idx; i < (n_max + *start_idx); i++)
    {
        if (i == 0)
            continue;

        err = meshx_plat_add_element_to_composition(
            i,
            pdev->elements,
            CWWW_SRV_EL(i - *start_idx).cwww_srv_model_list,
            NULL,
            CWWW_SRV_MODEL_SIG_CNT,
            CWWW_SRV_MODEL_VEN_CNT);
        if (err)
        {
            MESHX_LOGE(MODULE_ID_MODEL_SERVER, "Failed to add element to composition: (%d)", err);
            return err;
        }

        err = meshx_nvs_element_ctx_get(
            i,
            CWWW_SRV_EL(i - *start_idx).srv_ctx,
            sizeof(meshx_cwww_server_ctx_t));
        if (err != MESHX_SUCCESS)
        {
            MESHX_LOGW(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Failed to get cwww element context: (0x%x)", err);
        }
        else
        {
            err = meshx_restore_model_states(i - *start_idx);
            if (err != MESHX_SUCCESS)
            {
                MESHX_LOGW(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Failed to restore cwww model states: (0x%x)", err);
            }
        }
    }
    /* Increment the index for further registrations */
    cwww_element_init_ctrl.element_id_end = *start_idx += n_max;
    return MESHX_SUCCESS;
}

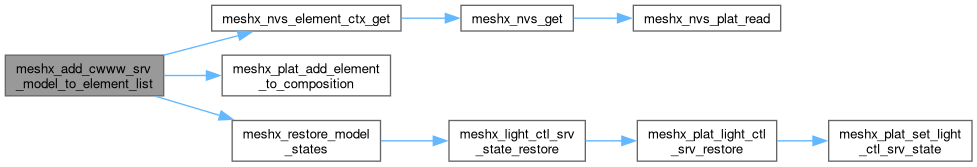

Here is the call graph for this function:

Here is the caller graph for this function:

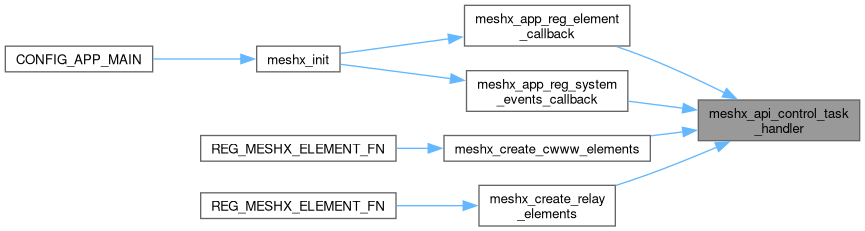

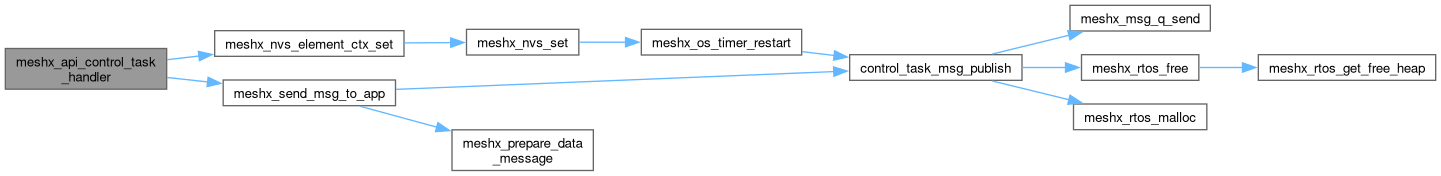

meshx_api_control_task_handler()

static meshx_err_t meshx_api_control_task_handler ( const dev_struct_t * pdev, const control_task_msg_evt_t evt, const void * params )

static

CW-WW server model event handler.

This function handles events from the CW-WW server model.

Event Types:

• CONTROL_TASK_MSG_EVT_EL_STATE_CH_SET_ON_OFF: Handles on/off state changes.
  • params: Pointer to MESHX_GEN_ONOFF_SRV containing the new on/off state.
  • Updates the on/off state of the corresponding element context.
• CONTROL_TASK_MSG_EVT_EL_STATE_CH_SET_CTL: Handles CTL (Color Temperature Lightness) state changes.
  • params: Pointer to MESHX_LIGHT_CTL_SRV containing the new CTL state.
  • Updates the delta UV, lightness, temperature, and temperature range of the corresponding element context.

If the element ID is out of range, the function exits without making any changes.

Parameters

[in]	pdev	Pointer to the device structure.
[in]	evt	Event type.
[in]	params	Pointer to the event parameters.

Returns

MESHX_SUCCESS on success, or an error code on failure.

Definition at line 369 of file meshx_cwww_server.c.

{
    MESHX_UNUSED(pdev);
    meshx_err_t err = MESHX_SUCCESS;
    uint16_t element_id = 0;
    size_t rel_el_id;
    meshx_cwww_server_ctx_t *el_ctx = NULL;
    meshx_api_light_cwww_server_evt_t app_msg;
    cwww_sig_id_t sig_func = CWWW_SIG_ONOFF_MODEL_ID;

    switch (evt)
    {
    case CONTROL_TASK_MSG_EVT_EL_STATE_CH_SET_ON_OFF:
    {
        const meshx_on_off_srv_el_msg_t *p_onoff_srv = (const meshx_on_off_srv_el_msg_t *)params;
        element_id = p_onoff_srv->model.el_id;
        if (!IS_EL_IN_RANGE(element_id))
            goto el_ctrl_task_hndlr_exit;

        rel_el_id = GET_RELATIVE_EL_IDX(element_id);
        el_ctx = CWWW_SRV_EL(rel_el_id).srv_ctx;
        if (el_ctx->prev_state.on_off == p_onoff_srv->on_off_state)
            goto el_ctrl_task_hndlr_exit;

        sig_func = CWWW_SIG_ONOFF_MODEL_ID;
        el_ctx->prev_state.on_off = p_onoff_srv->on_off_state;
        app_msg.state_change.on_off.state = el_ctx->prev_state.on_off;
        break;
    }

    case CONTROL_TASK_MSG_EVT_EL_STATE_CH_SET_CTL:
    {
        const meshx_light_ctl_srv_t *p_ctl_srv = (const meshx_light_ctl_srv_t *)params;
        element_id = p_ctl_srv->model.el_id;
        if (!IS_EL_IN_RANGE(element_id))
            goto el_ctrl_task_hndlr_exit;

        rel_el_id = GET_RELATIVE_EL_IDX(element_id);
        el_ctx = CWWW_SRV_EL(rel_el_id).srv_ctx;

        if (memcmp(&el_ctx->prev_ctl_state, &p_ctl_srv->state, sizeof(meshx_light_ctl_srv_state_t)) == 0)
            goto el_ctrl_task_hndlr_exit;

        el_ctx->prev_ctl_state.delta_uv              = p_ctl_srv->state.delta_uv;
        el_ctx->prev_ctl_state.lightness             = p_ctl_srv->state.lightness;
        el_ctx->prev_ctl_state.temperature           = p_ctl_srv->state.temperature;
        el_ctx->prev_ctl_state.temperature_range_min = p_ctl_srv->state.temperature_range_min;
        el_ctx->prev_ctl_state.temperature_range_max = p_ctl_srv->state.temperature_range_max;

        sig_func = CWWW_SIG_L_CTL_MODEL_ID;
        app_msg.state_change.ctl.delta_uv            = el_ctx->prev_ctl_state.delta_uv;
        app_msg.state_change.ctl.lightness           = el_ctx->prev_ctl_state.lightness;
        app_msg.state_change.ctl.temperature         = el_ctx->prev_ctl_state.temperature;
        app_msg.state_change.ctl.temp_range_min      = el_ctx->prev_ctl_state.temperature_range_min;
        app_msg.state_change.ctl.temp_range_max      = el_ctx->prev_ctl_state.temperature_range_max;
        break;
    }
    default:
        break;
    }

    err = meshx_nvs_element_ctx_set(element_id, el_ctx, sizeof(meshx_cwww_server_ctx_t));
    if (err != MESHX_SUCCESS)
        MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Failed to set relay element context: (%d)", err);

    err = meshx_send_msg_to_app(element_id,
                                MESHX_ELEMENT_TYPE_LIGHT_CWWW_SERVER,
                                (uint16_t)sig_func,
                                sizeof(meshx_api_light_cwww_server_evt_t),
                                &app_msg);

    if (err != MESHX_SUCCESS)
        MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Failed to send relay state change message: (%d)", err);

el_ctrl_task_hndlr_exit:
    return MESHX_SUCCESS;
}

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_create_cwww_elements()

meshx_err_t meshx_create_cwww_elements	(	dev_struct_t *	pdev,
		uint16_t	element_cnt )

Create Dynamic CWWW Server Model Elements.

This function creates dynamic CWWW server model elements for the given device structure.

Parameters

[in]	pdev	Pointer to device structure
[in]	element_cnt	Maximum number of CWWW server models

Returns

meshx_err_t Returns MESHX_SUCCESS on success or an error code on failure

Definition at line 613 of file meshx_cwww_server.c.

{
    meshx_err_t err;
    err = meshx_dev_create_cwww_model_space(element_cnt);
    if (err)
    {
        MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "CWWW Model create failed: (%d)", err);
        return err;
    }
    err = meshx_add_cwww_srv_model_to_element_list(pdev, (uint16_t *)&pdev->element_idx, element_cnt);
    if (err)
    {
        MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "CWWW Model create failed: (%d)", err);
        return err;
    }
#if CONFIG_ENABLE_CONFIG_SERVER
    err = meshx_config_server_cb_reg(
        (config_srv_cb_t)&cwww_server_config_srv_cb, CONFIG_SERVER_CB_MASK);
    if (err)
    {
        MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Relay Model configserver callback reg failed: (%d)", err);
        return err;
    }
#endif /* CONFIG_ENABLE_CONFIG_SERVER */
    err = control_task_msg_subscribe(
        CONTROL_TASK_MSG_CODE_EL_STATE_CH,
        CONTROL_TASK_EVT_MASK,
        (control_task_msg_handle_t)&meshx_api_control_task_handler);
    if (err)
    {
        MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Failed to register control task callback: (%d)", err);
        return err;
    }

    err = meshx_prov_srv_reg_el_server_cb((prov_srv_cb_t)&cwww_prov_control_task_handler);
    if (err)
    {
        MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Failed to register control task callback: (%d)", err);
        return err;
    }
    err = control_task_msg_subscribe(
        CONTROL_TASK_MSG_CODE_TO_BLE,
        CONTROL_TASK_MSG_EVT_TO_BLE_GEN_SRV_MASK,
        (control_task_msg_handle_t)&meshx_cwww_srv_msg_send_handler);
    if (err)
    {
        MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Failed to register control task callback: (%d)", err);
        return err;
    }
    err = meshx_on_off_server_init();
    if (err)
    {
        MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "meshx_on_off_server_init failed: (%d)", err);
        return err;
    }
    err = meshx_light_ctl_server_init();
    if (err)
    {
        MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "meshx_light_ctl_server_init failed: (%d)", err);
        return err;
    }
    return MESHX_SUCCESS;
}

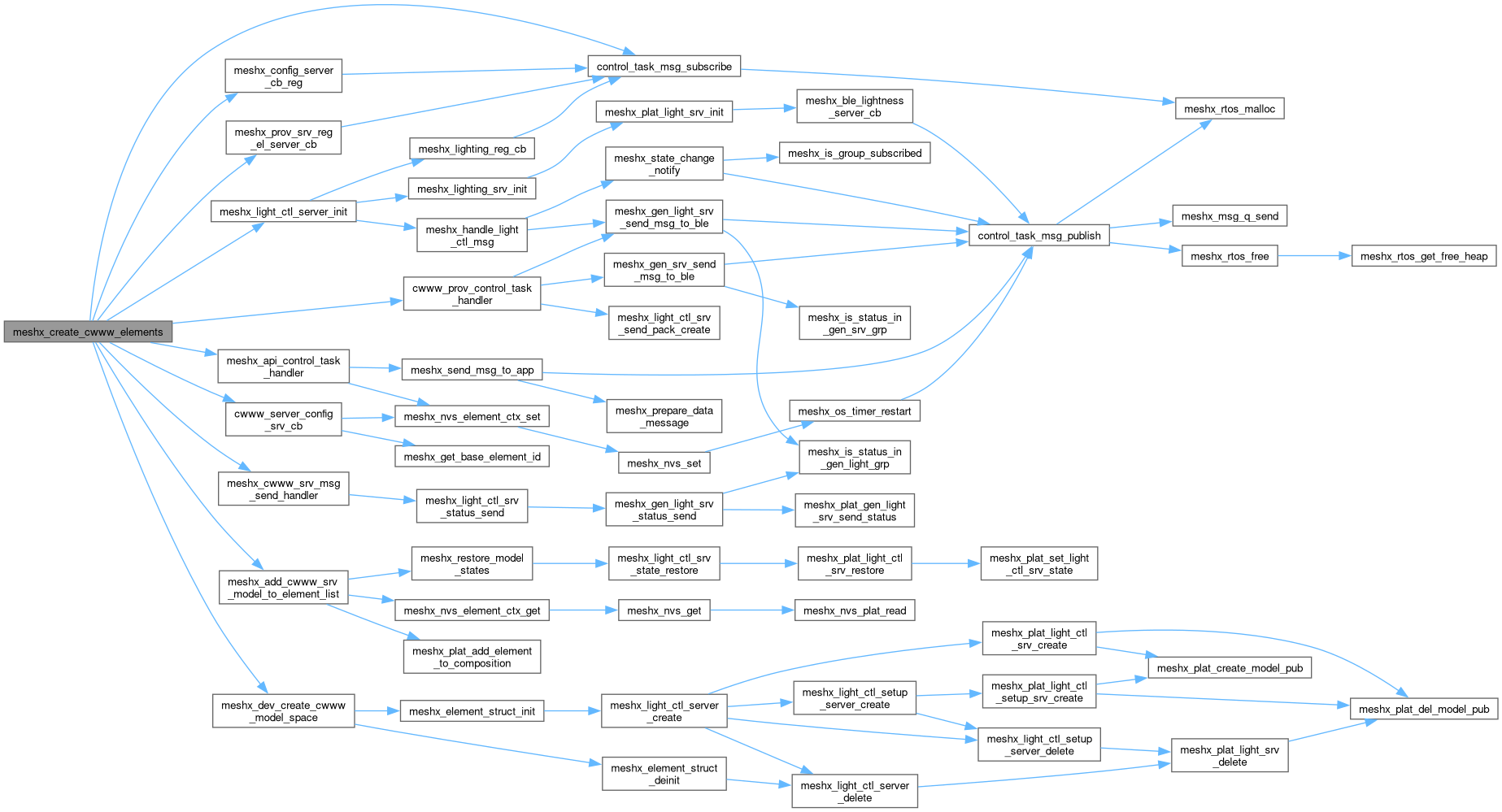

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_cwww_srv_msg_send_handler()

static meshx_err_t meshx_cwww_srv_msg_send_handler ( const dev_struct_t * pdev, control_task_msg_evt_to_ble_t evt, void * params )

static

Handler for sending messages from the CW-WW server model to BLE.

This function handles the sending of messages from the CW-WW server model to BLE. It processes different events and sends the appropriate status messages based on the event type.

Parameters

[in]	pdev	Pointer to the device structure.
[in]	evt	Event type to handle.
[in]	params	Pointer to the parameters for the event.

Returns

MESHX_SUCCESS on success, or an error code on failure.

Definition at line 543 of file meshx_cwww_server.c.

{
    MESHX_UNUSED(pdev);
    if((evt & (CONTROL_TASK_MSG_EVT_TO_BLE_GEN_SRV_MASK)) == 0)
        return MESHX_SUCCESS;
    uint16_t element_id = 0;
    meshx_err_t err = MESHX_SUCCESS;
    static meshx_gen_srv_cb_param_t *gen_srv_send = NULL;
    static meshx_lighting_server_cb_param_t *light_srv_send = NULL;
    switch (evt)
    {
        case CONTROL_TASK_MSG_EVT_TO_BLE_SET_ON_OFF_SRV:
        {
            gen_srv_send = (meshx_gen_srv_cb_param_t *)params;
            element_id = gen_srv_send->model.el_id;
            if (!IS_EL_IN_RANGE(element_id))
                goto cwww_srv_msg_handler_exit;
            err = meshx_gen_on_off_srv_status_send(
                &gen_srv_send->model,
                &gen_srv_send->ctx,
                gen_srv_send->state_change.onoff_set.onoff
            );
            if (err)
            {
                MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Failed to send ONOFF status message (Err: %x)", err);
                return err;
            }
        }
        break;
        case CONTROL_TASK_MSG_EVT_TO_BLE_SET_CTL_SRV:
        {
            light_srv_send = (meshx_lighting_server_cb_param_t *)params;
            element_id = light_srv_send->model.el_id;
            if (!IS_EL_IN_RANGE(element_id))
                goto cwww_srv_msg_handler_exit;
            err = meshx_light_ctl_srv_status_send(
                &light_srv_send->model,
                &light_srv_send->ctx,
                light_srv_send->state_change.ctl_set.delta_uv,
                light_srv_send->state_change.ctl_set.lightness,
                light_srv_send->state_change.ctl_set.temperature
            );
            if (err)
            {
                MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Failed to send CTL status message (Err: %x)", err);
                return err;
            }
        }
        break;
        default:
            MESHX_LOGW(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Unhandled event: %d", evt);
            err = MESHX_INVALID_STATE;
        }
cwww_srv_msg_handler_exit:
    return err;
}

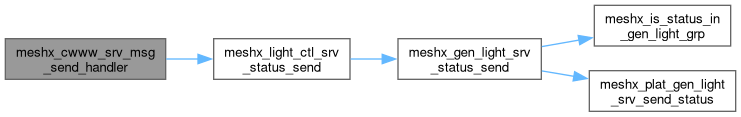

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_dev_create_cwww_model_space()

static meshx_err_t meshx_dev_create_cwww_model_space ( uint16_t n_max )

static

Create space for CW-WW models.

This function allocates and initializes the space required for CW-WW models.

Parameters

n_max

Maximum number of models.

Returns

MESHX_SUCCESS on success, or an error code on failure.

Definition at line 232 of file meshx_cwww_server.c.

{
    meshx_err_t err = meshx_element_struct_init(n_max);
    if (err)
    {
        MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Failed to initialize cwww element structures: (%d)", err);
        meshx_element_struct_deinit();
        return err;
    }
    return err;
}

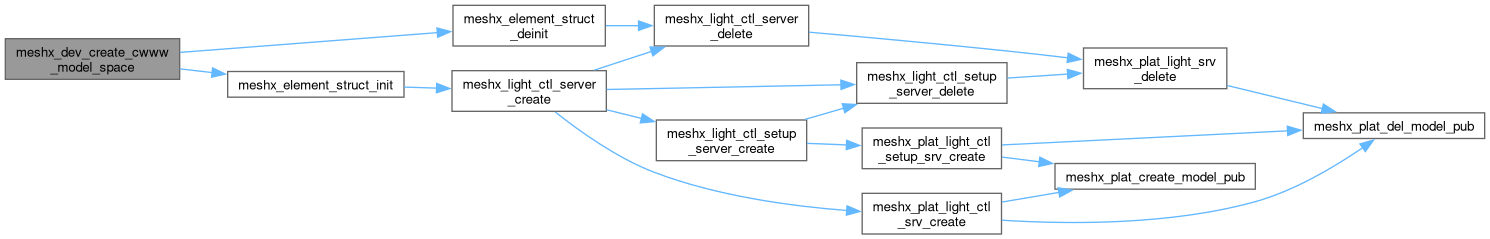

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_element_struct_deinit()

static meshx_err_t meshx_element_struct_deinit ( void )

static

Deinitializes the mesh element structure by freeing allocated memory.

This function deallocates memory for various components of the mesh element structure, including server context, server signature model list, server publication list, server on/off generic list, server light control list, and light control state. It ensures that all pointers are set to NULL after freeing the memory to avoid dangling pointers..

Returns

• MESHX_SUCCESS: Successfully deinitialized the mesh element structure.

Definition at line 189 of file meshx_cwww_server.c.

{
    if (!cwww_element_init_ctrl.element_cnt || !cwww_element_init_ctrl.el_list)
        return MESHX_INVALID_STATE;

    meshx_err_t err = MESHX_SUCCESS;

    for (size_t i = 0; i < cwww_element_init_ctrl.element_cnt; i++)
    {
        if (CWWW_SRV_EL(i).srv_ctx)
        {
            MESHX_FREE(CWWW_SRV_EL(i).srv_ctx);
            CWWW_SRV_EL(i).srv_ctx = NULL;
        }

        err = meshx_on_off_server_delete(&CWWW_SRV_EL(i).onoff_srv_model);
        if (err)
        {
            MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Meshx On Off Server create failed (Err : 0x%x)", err);
            return err;
        }

        err = meshx_light_ctl_server_delete(&CWWW_SRV_EL(i).ctl_srv_model);
        if (err)
        {
            MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Meshx CTL Server create failed (Err : 0x%x)", err);
            return err;
        }
    }

    MESHX_FREE(cwww_element_init_ctrl.el_list);
    cwww_element_init_ctrl.el_list = NULL;

    return MESHX_SUCCESS;
}

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_element_struct_init()

static meshx_err_t meshx_element_struct_init ( uint16_t n_max )

static

Initializes the mesh element structure by freeing allocated memory.

This function allocates memory for various components of the mesh element structure, including server context, server signature model list, server publication list, server on/off generic list, server light control list, and light control state. It ensures that all pointers are set to NULL after freeing the memory to avoid dangling pointers.

Parameters

[in]

n_max

The maximum number of elements in the server signature model list and server publication list.

Returns

• MESHX_SUCCESS: Successfully deinitialized the mesh element structure.

Definition at line 126 of file meshx_cwww_server.c.

{
    if (!n_max)
        return MESHX_INVALID_ARG;

    if (cwww_element_init_ctrl.el_list)
    {
        MESHX_LOGW(MODULE_ID_MODEL_SERVER, "CWWW element list already initialized");
        return MESHX_INVALID_STATE;
    }
    meshx_err_t err = MESHX_SUCCESS;

    cwww_element_init_ctrl.element_cnt = n_max;
    cwww_element_init_ctrl.element_id_end = 0;
    cwww_element_init_ctrl.element_id_start = 0;

    cwww_element_init_ctrl.el_list =
        (meshx_cwww_element_t *)MESHX_CALOC(cwww_element_init_ctrl.element_cnt, sizeof(meshx_cwww_element_t));

    if (!cwww_element_init_ctrl.el_list)
        return MESHX_NO_MEM;

    for (size_t i = 0; i < cwww_element_init_ctrl.element_cnt; i++)
    {
        CWWW_SRV_EL(i).srv_ctx =
            (meshx_cwww_server_ctx_t *)MESHX_CALOC(1, sizeof(meshx_cwww_server_ctx_t));

        if (!CWWW_SRV_EL(i).srv_ctx)
            return MESHX_NO_MEM;

        err = meshx_on_off_server_create(&CWWW_SRV_EL(i).onoff_srv_model,
                                         &CWWW_SRV_EL(i).cwww_srv_model_list[CWWW_SIG_ONOFF_MODEL_ID]);
        if (err)
        {
            MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Meshx On Off Server create failed (Err : 0x%x)", err);
            return err;
        }
        err = meshx_light_ctl_server_create(&CWWW_SRV_EL(i).ctl_srv_model,
                                            &CWWW_SRV_EL(i).cwww_srv_model_list[CWWW_SIG_L_CTL_MODEL_ID]);
        if (err)
        {
            MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Meshx CTL Server create failed (Err : 0x%x)", err);
            return err;
        }
        CWWW_SRV_EL(i).onoff_srv_model->meshx_sig = &CWWW_SRV_EL(i).cwww_srv_model_list[CWWW_SIG_ONOFF_MODEL_ID];
        CWWW_SRV_EL(i).ctl_srv_model->meshx_sig = &CWWW_SRV_EL(i).cwww_srv_model_list[CWWW_SIG_L_CTL_MODEL_ID];
    }
    return MESHX_SUCCESS;
}

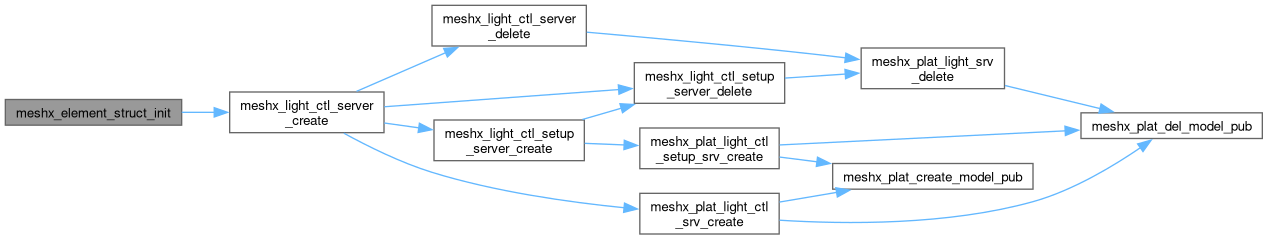

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_restore_model_states()

static meshx_err_t meshx_restore_model_states ( uint16_t element_id )

static

Restore saved CW-WW model states.

This function restores the CW-WW model states from the NVS.

Parameters

element_id

Relative Element ID.

Returns

MESHX_SUCCESS on success, or an error code on failure.

Definition at line 252 of file meshx_cwww_server.c.

{
    meshx_err_t err = MESHX_SUCCESS;
    meshx_cwww_server_ctx_t const *el_ctx = CWWW_SRV_EL(element_id).srv_ctx;

    for (size_t i = 0; i < CWWW_SRV_MODEL_SIG_CNT; i++)
    {
        if (i == CWWW_SIG_ONOFF_MODEL_ID)
        {
            err = meshx_gen_on_off_srv_state_restore(CWWW_SRV_EL(element_id).onoff_srv_model->meshx_sig,
                                                     el_ctx->prev_state);
            if (err)
            {
                MESHX_LOGE(MODULE_ID_MODEL_SERVER, "Failed to restore on-off server state (err: 0x%x)", err);
                return err;
            }
        }
        else if (i == CWWW_SIG_L_CTL_MODEL_ID)
        {
            err = meshx_light_ctl_srv_state_restore(CWWW_SRV_EL(element_id).ctl_srv_model,
                                                    el_ctx->prev_ctl_state);
            if (err)
            {
                MESHX_LOGE(MODULE_ID_MODEL_SERVER, "Failed to restore on-off server state (err: 0x%x)", err);
                return err;
            }
        }
        else
        {
            MESHX_DO_NOTHING;
        }
    }
    return err;
}

Here is the call graph for this function:

Here is the caller graph for this function:

REG_MESHX_ELEMENT_FN()

REG_MESHX_ELEMENT_FN	(	cwww_srv_el	,
		MESHX_ELEMENT_TYPE_LIGHT_CWWW_SERVER	,
		meshx_create_cwww_elements	)

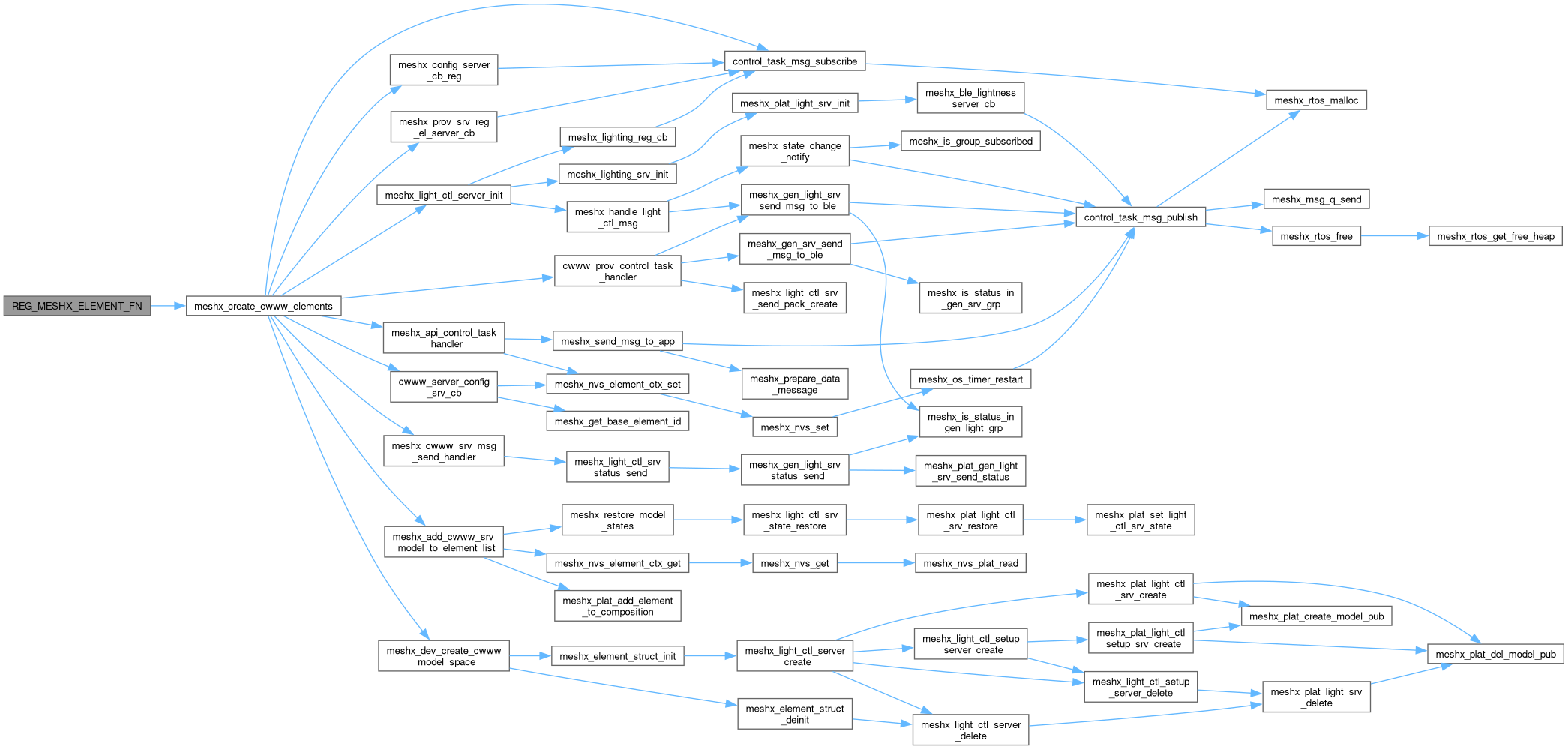

Here is the call graph for this function:

Variable Documentation

cwww_element_init_ctrl

meshx_cwww_elements_ctrl_t cwww_element_init_ctrl

static

Definition at line 45 of file meshx_cwww_server.c.
