meshx_common.h File Reference

Common application definitions and includes for BLE Mesh Node. More...

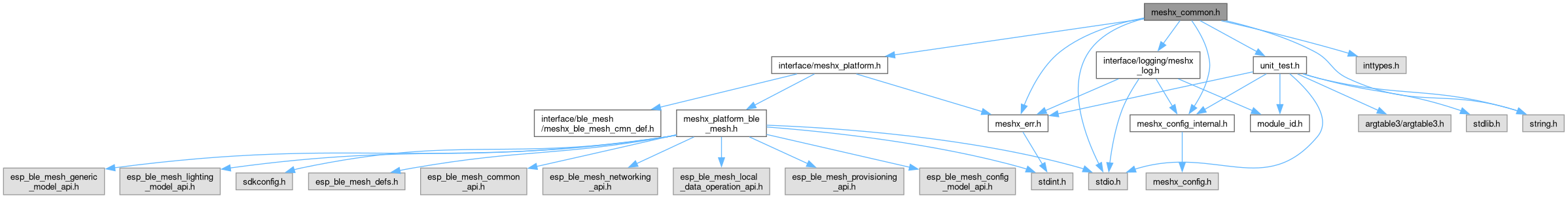

#include <stdio.h>
#include <string.h>
#include <inttypes.h>
#include <meshx_err.h>
#include <meshx_config_internal.h>
#include <interface/logging/meshx_log.h>
#include "interface/meshx_platform.h"

Go to the source code of this file.

Data Structures
struct	meshx_app_store
	Structure to store mesh application data. More...
struct	dev_struct
	Structure representing the device composition and elements. More...
struct	meshx_model_interface
struct	element_comp_table
	Structure to store element composition functions. More...

Macros
#define	CONFIG_SECTION_ENABLE_ELEMENT_TABLE   0
	Enable Element Table registration using Linker script.
#define	MAX_ELE_CNT   CONFIG_MAX_ELEMENT_COUNT
#define	MESHX_NVS_STORE   "meshx_store"
#define	REG_MESHX_ELEMENT_FN(_name, _type, _fn)
	Register an element composition function.

Typedefs
typedef struct meshx_app_store	meshx_app_store_t
	Structure to store mesh application data.
typedef struct dev_struct	dev_struct_t
	Structure representing the device composition and elements.
typedef struct meshx_model_interface	meshx_model_interface_t
typedef meshx_err_t(*	element_comp_fn_t) (dev_struct_t *pdev, uint16_t element_cnt)
	MeshX Compostion init Function Pointer.
typedef struct element_comp_table	element_comp_table_t

Enumerations
enum	meshx_ctrl_evt_t {   MESHX_CTRL_EVT_NODE_RESET = 0x01 ,   MESHX_CTRL_EVT_PROV_COMP ,   MESHX_CTRL_EVT_PROV_FAILED ,   MESHX_CTRL_EVT_PROV_START ,   MESHX_CTRL_EVT_IDENTIFY_START ,   MESHX_CTRL_EVT_IDENTIFY_STOP }
	Enumeration for the BLE Mesh application control event. More...

Detailed Description

Common application definitions and includes for BLE Mesh Node.

Copyright © 2024 - 2025 MeshX

This header file contains common definitions, includes, and data structures used across the BLE Mesh Node application.

Author

Pranjal Chanda

Macro Definition Documentation

CONFIG_SECTION_ENABLE_ELEMENT_TABLE

#define CONFIG_SECTION_ENABLE_ELEMENT_TABLE   0

Enable Element Table registration using Linker script.

Note

This feature is disabled by default.

MAX_ELE_CNT

#define MAX_ELE_CNT   CONFIG_MAX_ELEMENT_COUNT

MESHX_NVS_STORE

#define MESHX_NVS_STORE   "meshx_store"

REG_MESHX_ELEMENT_FN

#define REG_MESHX_ELEMENT_FN	(		_name,
			_type,
			_fn )

Register an element composition function.

Note

Currently feature is disabled using CONFIG_SECTION_ENABLE_ELEMENT_TABLE

This macro registers an element composition function to the element table.

Parameters

_name	Name of the element composition function.
_type	Type of the element.
_fn	Element composition function.

Typedef Documentation

dev_struct_t

typedef struct dev_struct dev_struct_t

Structure representing the device composition and elements.

element_comp_fn_t

typedef meshx_err_t(* element_comp_fn_t) (dev_struct_t *pdev, uint16_t element_cnt)

MeshX Compostion init Function Pointer.

Parameters

[in]	pdev	Pointer to the device structure.
[in]	element_cnt	Number of elements.

Returns

meshx_err_t

element_comp_table_t

typedef struct element_comp_table element_comp_table_t

meshx_app_store_t

typedef struct meshx_app_store meshx_app_store_t

Structure to store mesh application data.

meshx_model_interface_t

typedef struct meshx_model_interface meshx_model_interface_t

Enumeration Type Documentation

meshx_ctrl_evt_t

enum meshx_ctrl_evt_t

Enumeration for the BLE Mesh application control event.

Enumerator
MESHX_CTRL_EVT_NODE_RESET	0x01
MESHX_CTRL_EVT_PROV_COMP
MESHX_CTRL_EVT_PROV_FAILED
MESHX_CTRL_EVT_PROV_START
MESHX_CTRL_EVT_IDENTIFY_START
MESHX_CTRL_EVT_IDENTIFY_STOP

             {
    MESHX_CTRL_EVT_NODE_RESET = 0x01,   /* Node Reset */
    MESHX_CTRL_EVT_PROV_COMP,           /* Provisioning Completed */
    MESHX_CTRL_EVT_PROV_FAILED,         /* Provisioning Failed */
    MESHX_CTRL_EVT_PROV_START,          /* Provisioning Started */
    MESHX_CTRL_EVT_IDENTIFY_START,      /* Identification Started */
    MESHX_CTRL_EVT_IDENTIFY_STOP,       /* Identification Stopped */
} meshx_ctrl_evt_t;
