meshx_log.h File Reference

Logging interface for MeshX with color-coded output. More...

#include <stdio.h>
#include "meshx_config_internal.h"
#include "module_id.h"
#include "meshx_err.h"

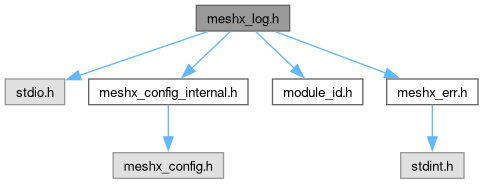

Include dependency graph for meshx_log.h:

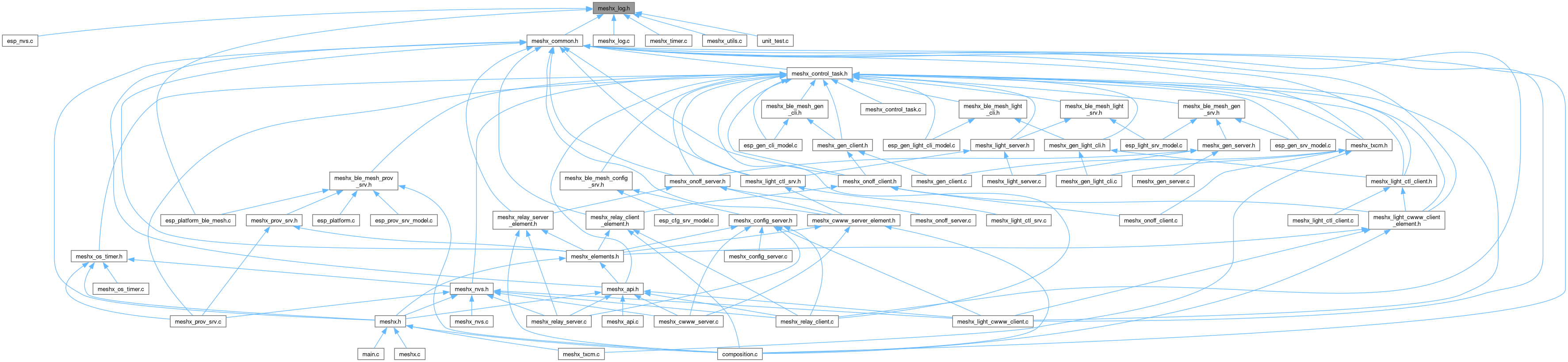

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	meshx_logging

Macros
#define	CONFIG_MESHX_LOG_PRINTF   printf
	Macro to define printf function.
#define	CONFIG_MESHX_DEFAULT_LOG_LEVEL   MESHX_LOG_INFO
#define	MESHX_LOG_COLOR_BLACK   "\033[0;30m"
#define	MESHX_LOG_COLOR_RED   "\033[0;31m"
#define	MESHX_LOG_COLOR_GREEN   "\033[0;32m"
#define	MESHX_LOG_COLOR_YELLOW   "\033[0;33m"
#define	MESHX_LOG_COLOR_BLUE   "\033[0;34m"
#define	MESHX_LOG_COLOR_PURPLE   "\033[0;35m"
#define	MESHX_LOG_COLOR_CYAN   "\033[0;36m"
#define	MESHX_LOG_COLOR_WHITE   "\033[0;37m"
#define	MESHX_LOG_COLOR_RESET   "\033[0m"
#define	MESHX_LOG_VERBOSE   0 /* White */
#define	MESHX_LOG_DEBUG   1 /* Blue */
#define	MESHX_LOG_INFO   2 /* Green */
#define	MESHX_LOG_WARN   3 /* Yellow */
#define	MESHX_LOG_ERROR   4 /* Red */
#define	MESHX_LOG_NONE   5 /* Blue */
#define	MESHX_LOG_MAX   6
#define	MESHX_LOG_LEVEL_COLOR(level)
#define	MESHX_LOG(module_id, level, format, ...)
#define	MESHX_LOGE(module_id, format, ...)
#define	MESHX_LOGW(module_id, format, ...)
#define	MESHX_LOGI(module_id, format, ...)
#define	MESHX_LOGD(module_id, format, ...)

Typedefs
typedef unsigned	meshx_log_level_t
typedef unsigned int(*	millis_t) (void)
typedef struct meshx_logging	meshx_logging_t

Functions
meshx_err_t	meshx_logging_init (const meshx_logging_t *config)
	Initializes the MeshX logging system with the provided configuration.
MESHX_WEEK void	meshx_log_printf (module_id_t module_id, meshx_log_level_t log_level, const char *func, int line_no, const char *fmt,...)
	Logs a formatted message for a specified module and log level.

Detailed Description

Logging interface for MeshX with color-coded output.

Definition in file meshx_log.h.

Macro Definition Documentation

CONFIG_MESHX_DEFAULT_LOG_LEVEL

#define CONFIG_MESHX_DEFAULT_LOG_LEVEL   MESHX_LOG_INFO

Definition at line 23 of file meshx_log.h.

CONFIG_MESHX_LOG_PRINTF

#define CONFIG_MESHX_LOG_PRINTF   printf

Macro to define printf function.

Note

this can be overriden by compile time Macro def

Definition at line 19 of file meshx_log.h.

MESHX_LOG

#define MESHX_LOG	(		module_id,
			level,
			format,
			... )

Value:

meshx_log_printf(module_id, level, __FILENAME__, __LINE__, format, ##__VA_ARGS__)

Definition at line 64 of file meshx_log.h.

MESHX_LOG_COLOR_BLACK

#define MESHX_LOG_COLOR_BLACK   "\033[0;30m"

Definition at line 27 of file meshx_log.h.

MESHX_LOG_COLOR_BLUE

#define MESHX_LOG_COLOR_BLUE   "\033[0;34m"

Definition at line 31 of file meshx_log.h.

MESHX_LOG_COLOR_CYAN

#define MESHX_LOG_COLOR_CYAN   "\033[0;36m"

Definition at line 33 of file meshx_log.h.

MESHX_LOG_COLOR_GREEN

#define MESHX_LOG_COLOR_GREEN   "\033[0;32m"

Definition at line 29 of file meshx_log.h.

MESHX_LOG_COLOR_PURPLE

#define MESHX_LOG_COLOR_PURPLE   "\033[0;35m"

Definition at line 32 of file meshx_log.h.

MESHX_LOG_COLOR_RED

#define MESHX_LOG_COLOR_RED   "\033[0;31m"

Definition at line 28 of file meshx_log.h.

MESHX_LOG_COLOR_RESET

#define MESHX_LOG_COLOR_RESET   "\033[0m"

Definition at line 35 of file meshx_log.h.

MESHX_LOG_COLOR_WHITE

#define MESHX_LOG_COLOR_WHITE   "\033[0;37m"

Definition at line 34 of file meshx_log.h.

MESHX_LOG_COLOR_YELLOW

#define MESHX_LOG_COLOR_YELLOW   "\033[0;33m"

Definition at line 30 of file meshx_log.h.

MESHX_LOG_DEBUG

#define MESHX_LOG_DEBUG   1 /* Blue */

Definition at line 40 of file meshx_log.h.

MESHX_LOG_ERROR

#define MESHX_LOG_ERROR   4 /* Red */

Definition at line 43 of file meshx_log.h.

MESHX_LOG_INFO

#define MESHX_LOG_INFO   2 /* Green */

Definition at line 41 of file meshx_log.h.

MESHX_LOG_LEVEL_COLOR

#define MESHX_LOG_LEVEL_COLOR

(

level

)

Value:

    (                                                                    \
    (level) == MESHX_LOG_ERROR ? MESHX_LOG_COLOR_RED : (level) == MESHX_LOG_WARN ? MESHX_LOG_COLOR_YELLOW \
                                                   : (level) == MESHX_LOG_INFO   ? MESHX_LOG_COLOR_GREEN  \
                                                   : (level) == MESHX_LOG_DEBUG  ? MESHX_LOG_COLOR_BLUE   \
                                                                                 : MESHX_LOG_COLOR_RESET)

Definition at line 57 of file meshx_log.h.

#define MESHX_LOG_LEVEL_COLOR(level) (                                                                    \
    (level) == MESHX_LOG_ERROR ? MESHX_LOG_COLOR_RED : (level) == MESHX_LOG_WARN ? MESHX_LOG_COLOR_YELLOW \
                                                   : (level) == MESHX_LOG_INFO   ? MESHX_LOG_COLOR_GREEN  \
                                                   : (level) == MESHX_LOG_DEBUG  ? MESHX_LOG_COLOR_BLUE   \
                                                                                 : MESHX_LOG_COLOR_RESET)

MESHX_LOG_MAX

#define MESHX_LOG_MAX   6

Definition at line 45 of file meshx_log.h.

MESHX_LOG_NONE

#define MESHX_LOG_NONE   5 /* Blue */

Definition at line 44 of file meshx_log.h.

MESHX_LOG_VERBOSE

#define MESHX_LOG_VERBOSE   0 /* White */

Definition at line 39 of file meshx_log.h.

MESHX_LOG_WARN

#define MESHX_LOG_WARN   3 /* Yellow */

Definition at line 42 of file meshx_log.h.

MESHX_LOGD

#define MESHX_LOGD	(		module_id,
			format,
			... )

Value:

    do                                     \
    {                                      \
    } while (0)

Definition at line 113 of file meshx_log.h.

#define MESHX_LOGD(module_id, format, ...) \
    do                                     \
    {                                      \
    } while (0)

MESHX_LOGE

#define MESHX_LOGE	(		module_id,
			format,
			... )

Value:

    do                                     \
    {                                      \
    } while (0)

Definition at line 73 of file meshx_log.h.

#define MESHX_LOGE(module_id, format, ...) \
    do                                     \
    {                                      \
    } while (0) // Prevent empty macro expansion warning

MESHX_LOGI

#define MESHX_LOGI	(		module_id,
			format,
			... )

Value:

    do                                     \
    {                                      \
    } while (0)

Definition at line 100 of file meshx_log.h.

#define MESHX_LOGI(module_id, format, ...) \
    do                                     \
    {                                      \
    } while (0)

MESHX_LOGW

#define MESHX_LOGW	(		module_id,
			format,
			... )

Value:

    do                                     \
    {                                      \
    } while (0)

Definition at line 87 of file meshx_log.h.

#define MESHX_LOGW(module_id, format, ...) \
    do                                     \
    {                                      \
    } while (0)

Typedef Documentation

meshx_log_level_t

typedef unsigned meshx_log_level_t

Definition at line 47 of file meshx_log.h.

meshx_logging_t

typedef struct meshx_logging meshx_logging_t

millis_t

typedef unsigned int(* millis_t) (void)

Definition at line 49 of file meshx_log.h.

Function Documentation

meshx_log_printf()

MESHX_WEEK void meshx_log_printf	(	module_id_t	module_id,
		meshx_log_level_t	log_level,
		const char *	func,
		int	line_no,
		const char *	fmt,
			... )

Logs a formatted message for a specified module and log level.

Note

This is a weak function, can be redefined to override in app layer

This function checks if the provided module ID and log level are valid and above the current global and module-specific log levels. If valid, it processes the variable arguments to format and log the message.

Note

This is a weak function defination and can be overriden by any other version of defination required as per platform

Parameters

[in]	module_id	The ID of the module for which the log is generated.
[in]	log_level	The log level of the message.
[in]	func	The name of the function where the log is called.
[in]	line_no	The line number in the source code where the log is called.
[in]	fmt	The format string for the log message.
[in]	...	Additional arguments for the format string.

Definition at line 109 of file meshx_log.c.

{
    /* Validate module ID */
    if (module_id > MODULE_ID_MAX || log_level < meshx_logging_ctrl.def_log_level || module_log_level[module_id] < meshx_logging_ctrl.def_log_level)
        return;

    /* Get timestamp */
        unsigned int millis;
    unsigned int task_id;

    meshx_rtos_get_sys_time(&millis);
    meshx_rtos_get_curr_task_id_prio(&task_id);
    /* Get log level color */
    const char *color = MESHX_LOG_LEVEL_COLOR(log_level);

    /* Print timestamp and log */
    CONFIG_MESHX_LOG_PRINTF("\r%s[%s][%08u][%03x][%25s:%04d]\t", color, log_lvl_str[log_level], millis, task_id, func, line_no);

    /* Process variable arguments */
    va_list args;
    va_start(args, fmt);
    vprintf(fmt, args);
    va_end(args);
    /* Reset color and add newline */
    CONFIG_MESHX_LOG_PRINTF("%s\n", MESHX_LOG_COLOR_RESET);
}

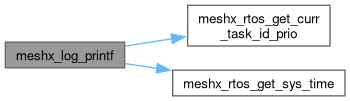

Here is the call graph for this function:

meshx_logging_init()

meshx_err_t meshx_logging_init

(

const meshx_logging_t *

config

)

Initializes the MeshX logging system with the provided configuration.

This function sets up the logging system by assigning the default log level and the callback function for retrieving the current time in milliseconds. It validates the configuration parameters and returns an error if they are invalid.

Parameters

[in]

config

Pointer to the logging configuration structure.

Returns

MESHX_SUCCESS on successful initialization, MESHX_INVALID_ARG if the configuration is invalid.

Definition at line 61 of file meshx_log.c.

{
    if (!config)
        return MESHX_INVALID_ARG;

    meshx_logging_ctrl.def_log_level = config->def_log_level;
    for (size_t i = 0; i < MODULE_ID_MAX; i++)
    {
        module_log_level[i] = CONFIG_MESHX_DEFAULT_LOG_LEVEL;
    }

    return MESHX_SUCCESS;
}

Here is the caller graph for this function:
