Header file for provisioning related definitions and functions. More...

#include "interface/meshx_platform.h"
#include "interface/ble_mesh/server/meshx_ble_mesh_prov_srv.h"

Include dependency graph for meshx_prov_srv.h:

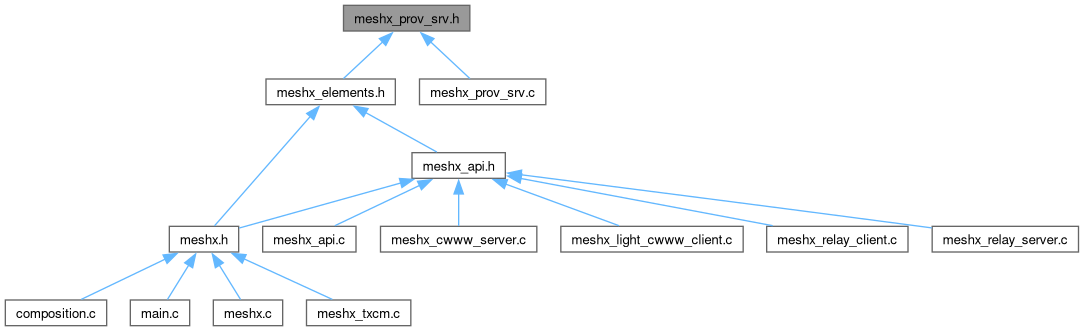

This graph shows which files directly or indirectly include this file:

Functions
meshx_err_t	meshx_init_prov (dev_struct_t p_dev, const meshx_prov_params_t prov_cfg)
	Initialize provisioning parameters.

meshx_err_t	meshx_prov_srv_reg_el_client_cb (prov_srv_cb_t cb)
	Register a callback function for provisioning events.

meshx_err_t	meshx_prov_srv_reg_el_server_cb (prov_srv_cb_t cb)
	Register a callback function for provisioning events.

Detailed Description

Header file for provisioning related definitions and functions.

This file contains the definitions and function declarations for provisioning in the BLE mesh node application.

Author: Pranjal Chanda

Definition in file meshx_prov_srv.h.

Function Documentation

◆ meshx_init_prov()

meshx_err_t meshx_init_prov	(	dev_struct_t *	p_dev,
		const meshx_prov_params_t *	prov_cfg )

Initialize provisioning parameters.

This function initializes the provisioning parameters by copying the UUID from the provided server configuration and registering the provisioning callback.

Parameters

[in]	p_dev	Pointer to the device structure.
[in]	prov_cfg	Pointer to the provisioning parameters structure containing the UUID.

Returns

MESHX_SUCCESS: Success
MESHX_FAIL: Failed to register provisioning callback

Definition at line 313 of file meshx_prov_srv.c.

{
    if (!prov_cfg || memcmp(prov_cfg->uuid, MESHX_UUID_EMPTY, sizeof(meshx_uuid_addr_t)) == 0)
    {
        MESHX_LOGE(MODULE_ID_MODEL_SERVER, "Invalid server configuration");
        return MESHX_INVALID_ARG;
    }

    meshx_err_t err = meshx_prov_srv_reg_from_ble_cb();
    if (err != MESHX_SUCCESS)
    {
        MESHX_LOGE(MODULE_ID_MODEL_SERVER, "Failed to register provisioning callback");
        return err;
    }

    err = meshx_prov_srv_meshx_reg_cb();
    if (err != MESHX_SUCCESS)
    {
        MESHX_LOGE(MODULE_ID_MODEL_SERVER, "Failed to register provisioning callback");
        return err;
    }

    err = meshx_init_freshboot_timer(p_dev, prov_cfg->freshboot_timeout_ms);
    if (err != MESHX_SUCCESS)
    {
        MESHX_LOGE(MODULE_ID_MODEL_SERVER, "Failed to initialize boot timer");
        return err;
    }

    return meshx_plat_init_prov(prov_cfg->uuid);
}

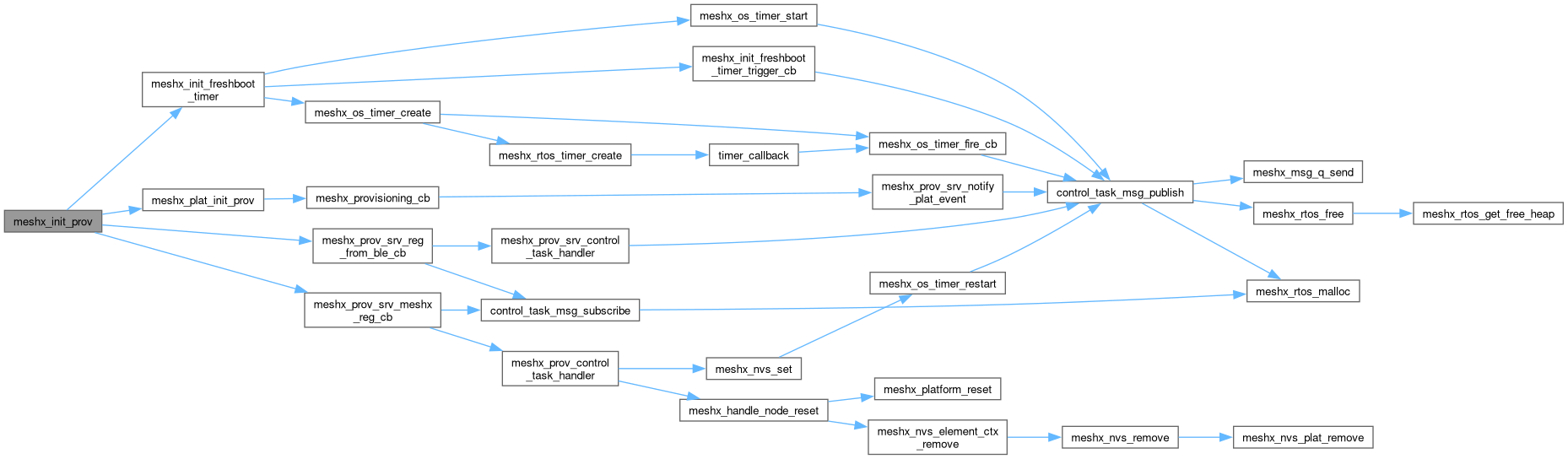

Here is the call graph for this function:

Here is the caller graph for this function:

◆ meshx_prov_srv_reg_el_client_cb()

meshx_err_t meshx_prov_srv_reg_el_client_cb ( prov_srv_cb_t cb )

Register a callback function for provisioning events.

This function registers a callback function that will be called when certain provisioning events occur.

Parameters

[in] cb The callback function to register.

Returns

MESHX_SUCCESS: Success
MESHX_FAIL: Failed to register the callback

Definition at line 357 of file meshx_prov_srv.c.

{
    return control_task_msg_subscribe(
        CONTROL_TASK_MSG_CODE_PROVISION,
        MESHX_PROV_SRV_CLIENT_EVENT_BMAP,
        (prov_srv_cb_t)cb
    );
}

Here is the call graph for this function:

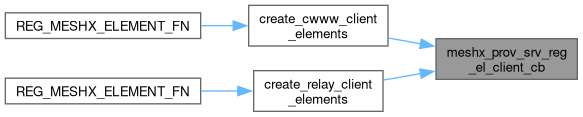

Here is the caller graph for this function:

◆ meshx_prov_srv_reg_el_server_cb()

meshx_err_t meshx_prov_srv_reg_el_server_cb ( prov_srv_cb_t cb )

Register a callback function for provisioning events.

This function registers a callback function that will be called when certain provisioning events occur.

Parameters

[in] cb The callback function to register.

Returns

MESHX_SUCCESS: Success
MESHX_FAIL: Failed to register the callback

Definition at line 378 of file meshx_prov_srv.c.

{
    return control_task_msg_subscribe(
        CONTROL_TASK_MSG_CODE_PROVISION,
        MESHX_PROV_SRV_SERVER_EVENT_BMAP,
        (prov_srv_cb_t)cb
    );
}

Here is the call graph for this function:

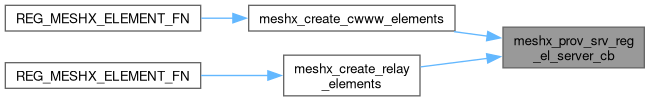

Here is the caller graph for this function:
