This file contains the API definitions for the MeshX application. More...

#include <meshx_common.h>
#include <meshx_elements.h>
#include <meshx_control_task.h>

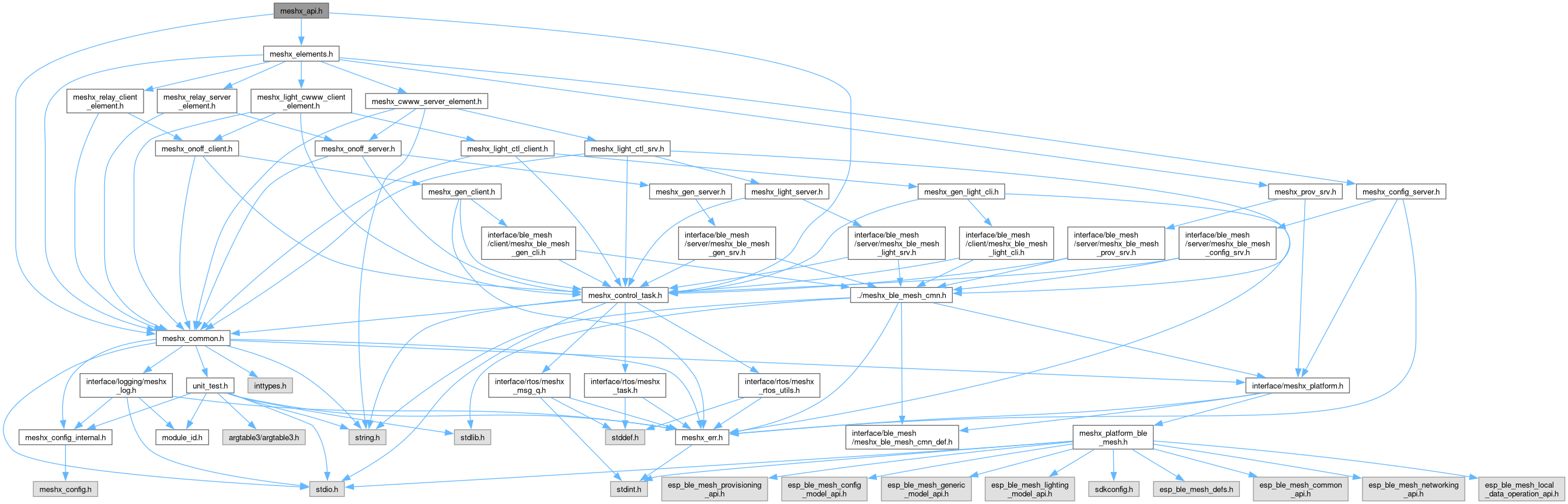

Include dependency graph for meshx_api.h:

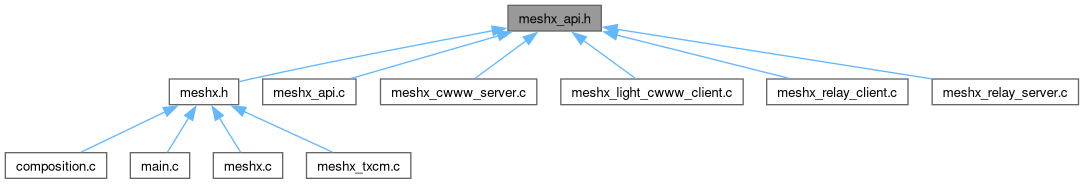

This graph shows which files directly or indirectly include this file:

Data Structures
struct	meshx_api_relay_server_evt
	Structure defines the payload for MESHX_ELEMENT_TYPE_RELAY_SERVER. More...

struct	meshx_api_light_cwww_server_evt
	Structure defines the payload for MESHX_ELEMENT_TYPE_LIGHT_CWWW_SERVER. More...

struct	meshx_api_relay_client_state
	Structure defines the payload for MESHX_ELEMENT_TYPE_RELAY_CLIENT. More...

struct	meshx_api_light_cwww_client_evt
	Structure defines the payload for MESHX_ELEMENT_TYPE_LIGHT_CWWW_CLIENT. More...

union	meshx_data_payload
	Structure for the BLE Mesh application control message. More...

union	meshx_ctrl_payload
	Structure defines the payload for meshx_ctrl_payload. More...

struct	meshx_app_element_msg_header
	Structure for the BLE Mesh application element message header. More...

struct	meshx_ctrl_msg_header
	Structure for the BLE Mesh application control message header. More...

struct	meshx_app_api_msg
	Structure for the BLE Mesh application API message. More...

Macros
#define	MESHX_APP_API_MSG_MAX_SIZE sizeof(meshx_data_payload_t)

#define	MESHX_ELEMENT_FUNC_ID_RELAY_SERVER_ONN_OFF 0x00

#define	MESHX_ELEMENT_FUNC_ID_LIGHT_CWWW_SERVER_ONN_OFF 0x00

#define	MESHX_ELEMENT_FUNC_ID_LIGHT_CWWW_SERVER_CTL 0x01

#define	MESHX_ELEMENT_FUNC_ID_LIGHT_CWWW_CLIENT_ONN_OFF 0x00

#define	MESHX_ELEMENT_FUNC_ID_LIGHT_CWWW_CLIENT_CTL 0x01

Typedefs
typedef enum meshx_api_type	meshx_api_type_t
	Enumeration of BLE Mesh application API message types.

typedef enum meshx_element_type	meshx_element_type_t
	Enumeration of BLE Mesh application API message types.

typedef struct meshx_api_relay_server_evt	meshx_api_relay_server_evt_t
	Structure defines the payload for MESHX_ELEMENT_TYPE_RELAY_SERVER.

typedef struct meshx_api_light_cwww_server_evt	meshx_api_light_cwww_server_evt_t
	Structure defines the payload for MESHX_ELEMENT_TYPE_LIGHT_CWWW_SERVER.

typedef struct meshx_api_relay_client_state	meshx_api_relay_client_evt_t
	Structure defines the payload for MESHX_ELEMENT_TYPE_RELAY_CLIENT.

typedef struct meshx_api_light_cwww_client_evt	meshx_api_light_cwww_client_evt_t
	Structure defines the payload for MESHX_ELEMENT_TYPE_LIGHT_CWWW_CLIENT.

typedef union meshx_data_payload	meshx_data_payload_t
	Structure for the BLE Mesh application control message.

typedef union meshx_ctrl_payload	meshx_ctrl_payload_t
	Structure defines the payload for meshx_ctrl_payload.

typedef struct meshx_app_element_msg_header	meshx_app_element_msg_header_t
	Structure for the BLE Mesh application element message header.

typedef struct meshx_ctrl_msg_header	meshx_ctrl_msg_header_t
	Structure for the BLE Mesh application control message header.

typedef struct meshx_app_api_msg	meshx_app_api_msg_t
	Structure for the BLE Mesh application API message.

typedef meshx_err_t(*	meshx_app_data_cb_t) (const meshx_app_element_msg_header_t msg_hdr, const meshx_data_payload_t msg)
	BLE Mesh application callback function.

typedef meshx_err_t(*	meshx_app_ctrl_cb_t) (const meshx_ctrl_msg_header_t msg_hdr, const meshx_ctrl_payload_t msg)
	BLE Mesh application control callback function.

Enumerations
enum	meshx_api_type { MESHX_API_TYPE_DATA = CONTROL_TASK_MSG_EVT_DATA , MESHX_API_TYPE_CTRL = CONTROL_TASK_MSG_EVT_CTRL }
	Enumeration of BLE Mesh application API message types. More...

enum	meshx_element_type { MESHX_ELEMENT_TYPE_RELAY_SERVER , MESHX_ELEMENT_TYPE_RELAY_CLIENT , MESHX_ELEMENT_TYPE_LIGHT_CWWW_SERVER , MESHX_ELEMENT_TYPE_LIGHT_CWWW_CLIENT , MESHX_ELEMENT_TYPE_MAX }
	Enumeration of BLE Mesh application API message types. More...

Functions
meshx_err_t	meshx_send_msg_to_app (uint16_t element_id, uint16_t element_type, uint16_t func_id, uint16_t msg_len, const void *msg)
	Sends a message to the BLE Mesh application.

meshx_err_t	meshx_send_msg_to_element (uint16_t element_id, uint16_t element_type, uint16_t func_id, uint16_t msg_len, const void *msg)
	Sends a message to the element.

meshx_err_t	meshx_app_reg_element_callback (meshx_app_data_cb_t cb)
	Registers the BLE Mesh application callback.

meshx_err_t	meshx_app_reg_system_events_callback (meshx_app_ctrl_cb_t cb)
	Registers the BLE Mesh application control callback.

Detailed Description

This file contains the API definitions for the MeshX application.

The MeshX API provides functions and structures to interact with the BLE Mesh application. It includes message types, payload structures, and callback function definitions.

Author: Pranjal Chanda

Definition in file meshx_api.h.

Macro Definition Documentation

◆ MESHX_APP_API_MSG_MAX_SIZE

#define MESHX_APP_API_MSG_MAX_SIZE sizeof(meshx_data_payload_t)

Definition at line 18 of file meshx_api.h.

◆ MESHX_ELEMENT_FUNC_ID_LIGHT_CWWW_CLIENT_CTL

#define MESHX_ELEMENT_FUNC_ID_LIGHT_CWWW_CLIENT_CTL 0x01

Definition at line 29 of file meshx_api.h.

◆ MESHX_ELEMENT_FUNC_ID_LIGHT_CWWW_CLIENT_ONN_OFF

#define MESHX_ELEMENT_FUNC_ID_LIGHT_CWWW_CLIENT_ONN_OFF 0x00

Definition at line 28 of file meshx_api.h.

◆ MESHX_ELEMENT_FUNC_ID_LIGHT_CWWW_SERVER_CTL

#define MESHX_ELEMENT_FUNC_ID_LIGHT_CWWW_SERVER_CTL 0x01

Definition at line 25 of file meshx_api.h.

◆ MESHX_ELEMENT_FUNC_ID_LIGHT_CWWW_SERVER_ONN_OFF

#define MESHX_ELEMENT_FUNC_ID_LIGHT_CWWW_SERVER_ONN_OFF 0x00

Definition at line 24 of file meshx_api.h.

◆ MESHX_ELEMENT_FUNC_ID_RELAY_SERVER_ONN_OFF

#define MESHX_ELEMENT_FUNC_ID_RELAY_SERVER_ONN_OFF 0x00

Definition at line 21 of file meshx_api.h.

Typedef Documentation

◆ meshx_api_light_cwww_client_evt_t

typedef struct meshx_api_light_cwww_client_evt meshx_api_light_cwww_client_evt_t

Structure defines the payload for MESHX_ELEMENT_TYPE_LIGHT_CWWW_CLIENT.

◆ meshx_api_light_cwww_server_evt_t

typedef struct meshx_api_light_cwww_server_evt meshx_api_light_cwww_server_evt_t

Structure defines the payload for MESHX_ELEMENT_TYPE_LIGHT_CWWW_SERVER.

◆ meshx_api_relay_client_evt_t

typedef struct meshx_api_relay_client_state meshx_api_relay_client_evt_t

Structure defines the payload for MESHX_ELEMENT_TYPE_RELAY_CLIENT.

◆ meshx_api_relay_server_evt_t

typedef struct meshx_api_relay_server_evt meshx_api_relay_server_evt_t

Structure defines the payload for MESHX_ELEMENT_TYPE_RELAY_SERVER.

◆ meshx_api_type_t

typedef enum meshx_api_type meshx_api_type_t

Enumeration of BLE Mesh application API message types.

◆ meshx_app_api_msg_t

typedef struct meshx_app_api_msg meshx_app_api_msg_t

Structure for the BLE Mesh application API message.

This structure defines the BLE Mesh application API message.

◆ meshx_app_ctrl_cb_t

typedef meshx_err_t(* meshx_app_ctrl_cb_t) (const meshx_ctrl_msg_header_t *msg_hdr, const meshx_ctrl_payload_t *msg)

BLE Mesh application control callback function.

This function is the BLE Mesh application control callback function.

Parameters

[in]	msg_hdr	Pointer to the BLE Mesh application control message header.
[in]	msg	Pointer to the message.

Returns: MESHX_SUCCESS on success, error code otherwise.

Definition at line 199 of file meshx_api.h.

◆ meshx_app_data_cb_t

typedef meshx_err_t(* meshx_app_data_cb_t) (const meshx_app_element_msg_header_t *msg_hdr, const meshx_data_payload_t *msg)

BLE Mesh application callback function.

This function is the BLE Mesh application callback function.

Parameters

[in]	msg_hdr	Pointer to the BLE Mesh application message header.
[in]	msg	Pointer to the message.

Returns: MESHX_SUCCESS on success, error code otherwise.

Definition at line 187 of file meshx_api.h.

◆ meshx_app_element_msg_header_t

typedef struct meshx_app_element_msg_header meshx_app_element_msg_header_t

Structure for the BLE Mesh application element message header.

This structure defines the header for BLE Mesh application element messages.

◆ meshx_ctrl_msg_header_t

typedef struct meshx_ctrl_msg_header meshx_ctrl_msg_header_t

Structure for the BLE Mesh application control message header.

This structure defines the header for BLE Mesh application control messages.

◆ meshx_ctrl_payload_t

typedef union meshx_ctrl_payload meshx_ctrl_payload_t

Structure defines the payload for meshx_ctrl_payload.

◆ meshx_data_payload_t

typedef union meshx_data_payload meshx_data_payload_t

Structure for the BLE Mesh application control message.

This structure defines the BLE Mesh application control payloads.

◆ meshx_element_type_t

typedef enum meshx_element_type meshx_element_type_t

Enumeration of BLE Mesh application API message types.

Enumeration Type Documentation

◆ meshx_api_type

enum meshx_api_type

Enumeration of BLE Mesh application API message types.

Enumerator
MESHX_API_TYPE_DATA	CONTROL_TASK_MSG_EVT_DATA	Data message : All msg rekated to BLE mesh elements
MESHX_API_TYPE_CTRL	CONTROL_TASK_MSG_EVT_CTRL	Control message : All msg related to System control

Definition at line 33 of file meshx_api.h.

{
    MESHX_API_TYPE_DATA = CONTROL_TASK_MSG_EVT_DATA,
    MESHX_API_TYPE_CTRL = CONTROL_TASK_MSG_EVT_CTRL,
} meshx_api_type_t;

◆ meshx_element_type

enum meshx_element_type

Enumeration of BLE Mesh application API message types.

Enumerator
MESHX_ELEMENT_TYPE_RELAY_SERVER
MESHX_ELEMENT_TYPE_RELAY_CLIENT
MESHX_ELEMENT_TYPE_LIGHT_CWWW_SERVER
MESHX_ELEMENT_TYPE_LIGHT_CWWW_CLIENT
MESHX_ELEMENT_TYPE_MAX

Definition at line 42 of file meshx_api.h.

{
    MESHX_ELEMENT_TYPE_RELAY_SERVER,
    MESHX_ELEMENT_TYPE_RELAY_CLIENT,
    MESHX_ELEMENT_TYPE_LIGHT_CWWW_SERVER,
    MESHX_ELEMENT_TYPE_LIGHT_CWWW_CLIENT,
    MESHX_ELEMENT_TYPE_MAX
}meshx_element_type_t;

Function Documentation

◆ meshx_app_reg_element_callback()

meshx_err_t meshx_app_reg_element_callback ( meshx_app_data_cb_t cb )

Registers the BLE Mesh application callback.

This function registers the BLE Mesh application data path callback.

Parameters

[in] cb Pointer to the application callback.

Returns: MESHX_SUCCESS on success, error code otherwise.

Definition at line 148 of file meshx_api.c.

{
    meshx_err_t err = MESHX_SUCCESS;

    err = control_task_msg_subscribe(
        CONTROL_TASK_MSG_CODE_TO_APP,
        CONTROL_TASK_MSG_EVT_DATA,
        (control_task_msg_handle_t)&meshx_api_control_task_handler);
    if (err)
    {
        MESHX_LOGE(MODULE_ID_COMMON, "Failed to register control task callback: (%d)", err);
        return err;
    }

    meshx_api_ctrl.app_data_cb = cb;

    return err;
}

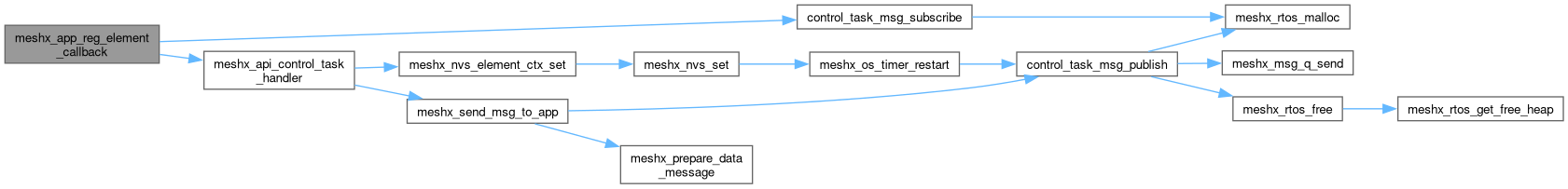

Here is the call graph for this function:

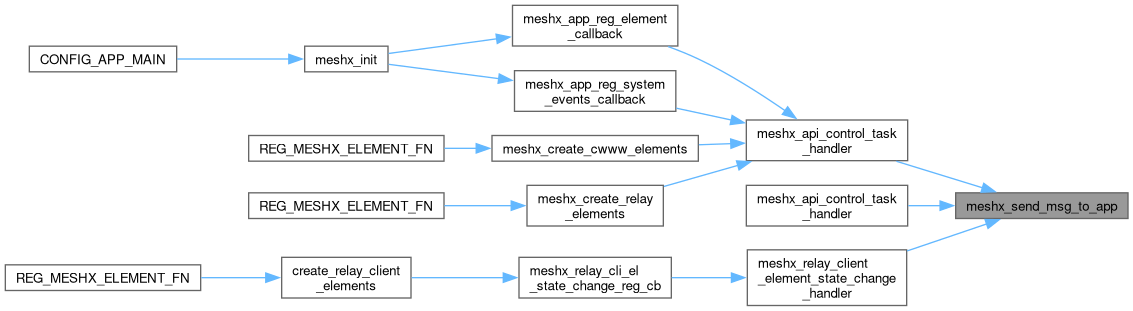

Here is the caller graph for this function:

◆ meshx_app_reg_system_events_callback()

meshx_err_t meshx_app_reg_system_events_callback ( meshx_app_ctrl_cb_t cb )

Registers the BLE Mesh application control callback.

This function registers the BLE Mesh application control callback.

Parameters

[in] cb Pointer to the control callback.

Returns: MESHX_SUCCESS on success, error code otherwise.

Definition at line 176 of file meshx_api.c.

{
    meshx_err_t err = MESHX_SUCCESS;

    err = control_task_msg_subscribe(
        CONTROL_TASK_MSG_CODE_TO_APP,
        CONTROL_TASK_MSG_EVT_CTRL,
        (control_task_msg_handle_t)&meshx_api_control_task_handler);
    if (err)
    {
        MESHX_LOGE(MODULE_ID_COMMON, "Failed to register control task callback: (%d)", err);
        return err;
    }

    meshx_api_ctrl.app_ctrl_cb = cb;

    return err;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ meshx_send_msg_to_app()

meshx_err_t meshx_send_msg_to_app	(	uint16_t	element_id,
		uint16_t	element_type,
		uint16_t	func_id,
		uint16_t	msg_len,
		const void *	msg )

Sends a message to the BLE Mesh application.

This function sends a message to the BLE Mesh application.

Parameters

[in]	element_id	The element ID.
[in]	element_type	The element type.
[in]	func_id	The function ID.
[in]	msg_len	The message length.
[in]	msg	Pointer to the message.

Returns: MESHX_SUCCESS on success, error code otherwise.

Definition at line 96 of file meshx_api.c.

{
    meshx_err_t err = MESHX_SUCCESS;

    err = meshx_prepare_data_message(element_id, element_type, func_id, msg_len,msg);
    if(err)
        MESHX_LOGE(MODULE_ID_COMMON, "Failed to create message: (0x%x)", err);

    err = control_task_msg_publish(CONTROL_TASK_MSG_CODE_TO_APP, CONTROL_TASK_MSG_EVT_DATA, &meshx_api_ctrl.msg_buff, sizeof(meshx_app_api_msg_t));
    if(err)
        MESHX_LOGE(MODULE_ID_COMMON, "Failed to send message to app: (0x%x)", err);

    return err;
}

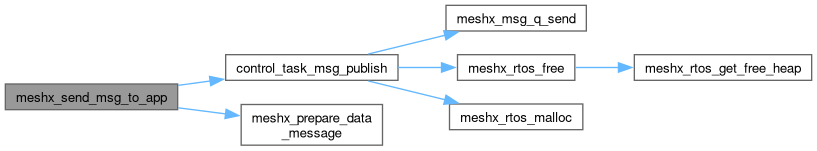

Here is the call graph for this function:

Here is the caller graph for this function:

◆ meshx_send_msg_to_element()

meshx_err_t meshx_send_msg_to_element	(	uint16_t	element_id,
		uint16_t	element_type,
		uint16_t	func_id,
		uint16_t	msg_len,
		const void *	msg )

Sends a message to the element.

This function sends a message to the element from BLE mesh Application

Parameters

[in]	element_id	The element ID.
[in]	element_type	The element type.
[in]	func_id	The function ID.
[in]	msg_len	The message length.
[in]	msg	Pointer to the message.

Returns: MESHX_SUCCESS on success, error code otherwise.

Definition at line 124 of file meshx_api.c.

{
    meshx_err_t err = MESHX_SUCCESS;

    err = meshx_prepare_data_message(element_id, element_type, func_id, msg_len,msg);
    if(err)
        MESHX_LOGE(MODULE_ID_COMMON, "Failed to create message: (0x%x)", err);

    err = control_task_msg_publish(CONTROL_TASK_MSG_CODE_TO_MESHX, CONTROL_TASK_MSG_EVT_DATA, &meshx_api_ctrl.msg_buff, sizeof(meshx_app_api_msg_t));
    if(err)
        MESHX_LOGE(MODULE_ID_COMMON, "Failed to send message to app: (0x%x)", err);

    return err;
}

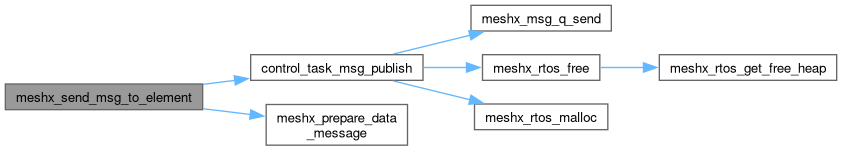

Here is the call graph for this function:

Data Structures

Macros

Typedefs

Enumerations

Functions

Detailed Description

Macro Definition Documentation

◆ MESHX_APP_API_MSG_MAX_SIZE

◆ MESHX_ELEMENT_FUNC_ID_LIGHT_CWWW_CLIENT_CTL

◆ MESHX_ELEMENT_FUNC_ID_LIGHT_CWWW_CLIENT_ONN_OFF

◆ MESHX_ELEMENT_FUNC_ID_LIGHT_CWWW_SERVER_CTL

◆ MESHX_ELEMENT_FUNC_ID_LIGHT_CWWW_SERVER_ONN_OFF

◆ MESHX_ELEMENT_FUNC_ID_RELAY_SERVER_ONN_OFF

Typedef Documentation

◆ meshx_api_light_cwww_client_evt_t

◆ meshx_api_light_cwww_server_evt_t

◆ meshx_api_relay_client_evt_t

◆ meshx_api_relay_server_evt_t

◆ meshx_api_type_t

◆ meshx_app_api_msg_t

◆ meshx_app_ctrl_cb_t

◆ meshx_app_data_cb_t

◆ meshx_app_element_msg_header_t

◆ meshx_ctrl_msg_header_t

◆ meshx_ctrl_payload_t

◆ meshx_data_payload_t

◆ meshx_element_type_t

Enumeration Type Documentation

◆ meshx_api_type

◆ meshx_element_type

Function Documentation

◆ meshx_app_reg_element_callback()

◆ meshx_app_reg_system_events_callback()

◆ meshx_send_msg_to_app()

◆ meshx_send_msg_to_element()
