meshx_ble_mesh_gen_srv.h File Reference

Header file for Generic Server Models in MeshX BLE Mesh. More...

#include "../meshx_ble_mesh_cmn.h"
#include "meshx_control_task.h"

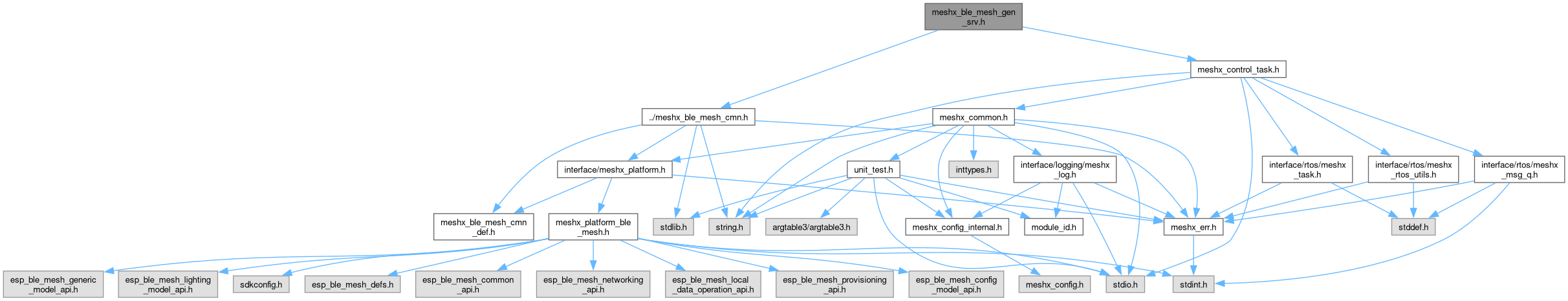

Include dependency graph for meshx_ble_mesh_gen_srv.h:

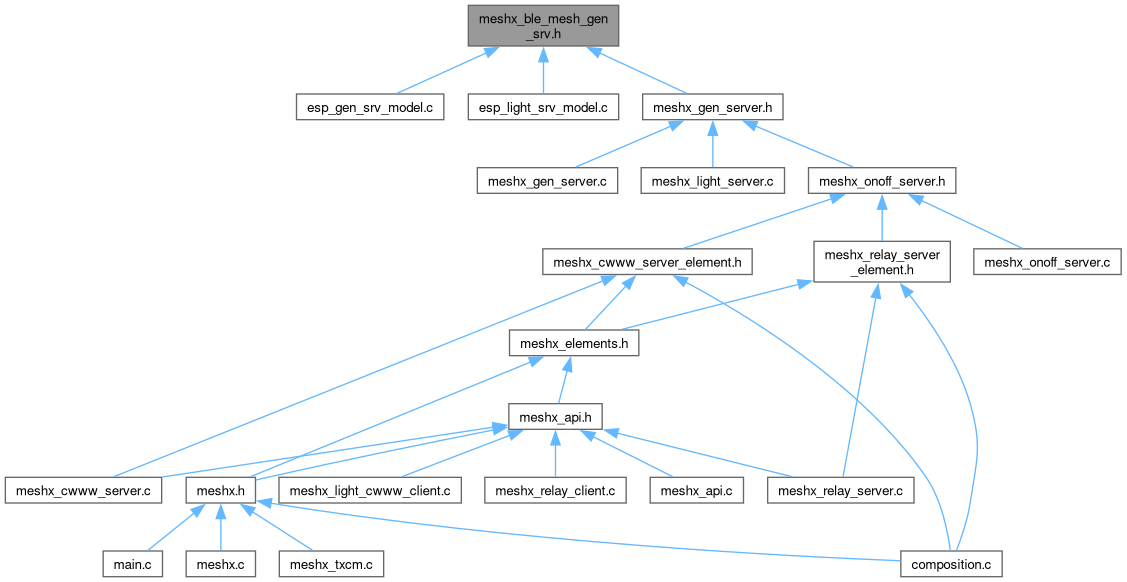

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	meshx_state_change_gen_onoff_set_t
struct	meshx_state_change_gen_level_set_t
struct	meshx_state_change_gen_delta_set_t
struct	meshx_state_change_gen_move_set_t
struct	meshx_state_change_gen_def_trans_time_set_t
struct	meshx_state_change_gen_onpowerup_set_t
struct	meshx_state_change_gen_power_level_set_t
struct	meshx_state_change_gen_power_default_set_t
struct	meshx_state_change_gen_power_range_set_t
struct	meshx_state_change_gen_loc_global_set_t
struct	meshx_state_change_gen_loc_local_set_t
struct	meshx_state_change_gen_user_property_set_t
struct	meshx_state_change_gen_admin_property_set_t
struct	meshx_state_change_gen_manu_property_set_t
union	meshx_gen_srv_state_change_t
struct	meshx_gen_srv_cb_param

Typedefs
typedef struct meshx_gen_srv_cb_param	meshx_gen_srv_cb_param_t
typedef control_task_msg_handle_t	meshx_server_cb

Functions
meshx_err_t	meshx_plat_on_off_gen_srv_create (void *p_model, void **p_pub, void **p_onoff_srv)
	Creates a Generic OnOff Server model and its publication context.
meshx_err_t	meshx_plat_gen_srv_delete (void **p_pub, void **p_srv)
	Deletes the Generic OnOff Server model and its associated resources.
meshx_err_t	meshx_plat_set_gen_srv_state (void *p_model, uint8_t on_off_state)
	Set the state of a generic server model.
meshx_err_t	meshx_plat_gen_srv_init (void)
	Initialize the generic server model platform.
meshx_err_t	meshx_plat_gen_on_off_srv_restore (void *p_model, uint8_t state)
	Restores the state of the Generic OnOff Server model.
meshx_err_t	meshx_plat_gen_srv_send_status (meshx_model_t *p_model, meshx_ctx_t *p_ctx, meshx_ptr_t p_data, uint32_t data_len)
	Send a status message from the Generic Server model.

Detailed Description

Header file for Generic Server Models in MeshX BLE Mesh.

Copyright (c) 2024 - 2025 MeshX

This file defines the structures, types, and APIs for implementing Generic Server Models in the MeshX BLE Mesh stack. It includes definitions for various state change events, server callbacks, and functions to create, delete, and manage the state of Generic Server Models.

Author

Pranjal Chanda

Definition in file meshx_ble_mesh_gen_srv.h.

Typedef Documentation

meshx_gen_srv_cb_param_t

typedef struct meshx_gen_srv_cb_param meshx_gen_srv_cb_param_t

meshx_server_cb

typedef control_task_msg_handle_t meshx_server_cb

Definition at line 146 of file meshx_ble_mesh_gen_srv.h.

Function Documentation

meshx_plat_gen_on_off_srv_restore()

meshx_err_t meshx_plat_gen_on_off_srv_restore	(	void *	p_model,
		uint8_t	state )

Restores the state of the Generic OnOff Server model.

This function sets the user data of the specified model to the given state. It checks if the model pointer is valid before proceeding with the operation.

Parameters

[in]	p_model	Pointer to the model structure.
[in]	state	The state to be restored in the model.

Returns

• MESHX_SUCCESS: State restored successfully.
• MESHX_INVALID_ARG: Invalid model pointer.

Definition at line 247 of file esp_gen_srv_model.c.

{
    return meshx_plat_set_gen_srv_state (p_model, state);
}

Here is the call graph for this function:

meshx_plat_gen_srv_delete()

meshx_err_t meshx_plat_gen_srv_delete	(	void **	p_pub,
		void **	p_srv )

Deletes the Generic OnOff Server model and its associated resources.

This function frees the memory allocated for the Generic OnOff Server and sets the pointer to NULL. It also deletes the model publication resources associated with the server.

Parameters

[in,out]	p_pub	Pointer to the publication structure to be deleted.
[in,out]	p_srv	Pointer to the Generic Server structure to be freed.

Returns

• MESHX_SUCCESS: Model and publication deleted successfully.
• MESHX_FAIL: Failed to delete the model or publication.

Definition at line 236 of file esp_gen_srv_model.c.

{
    if(p_srv)
    {
        MESHX_FREE(*p_srv);
        *p_srv = NULL;
    }

    return meshx_plat_del_model_pub(p_pub);
}

Here is the call graph for this function:

meshx_plat_gen_srv_init()

meshx_err_t meshx_plat_gen_srv_init

(

void

)

Initialize the generic server model platform.

Returns

MESHX_SUCCESS on success, or an appropriate error code on failure.

Initialize the generic server model platform.

This function sets up the necessary configurations and initializes the meshxuction generic server for the BLE mesh node.

Returns

• MESHX_SUCCESS: Success
• MESHX_FAIL: Failed to initialize the server

Definition at line 210 of file esp_gen_srv_model.c.

{
    meshx_err_t err = MESHX_SUCCESS;

    /* Register the ESP Generic Server callback */
    esp_err_t esp_err = esp_ble_mesh_register_generic_server_callback(
            (MESHX_GEN_SRV_CB)&esp_ble_mesh_generic_server_cb
        );
    if(esp_err != ESP_OK)
        err = MESHX_ERR_PLAT;

    return err;
}

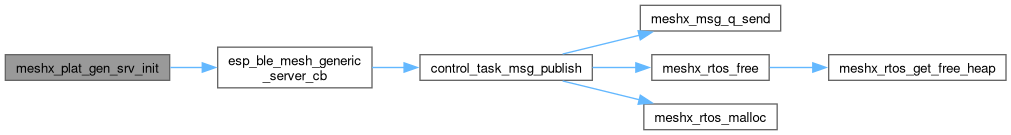

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_plat_gen_srv_send_status()

meshx_err_t meshx_plat_gen_srv_send_status	(	meshx_model_t *	p_model,
		meshx_ctx_t *	p_ctx,
		meshx_ptr_t	p_data,
		uint32_t	data_len )

Send a status message from the Generic Server model.

This function sends a status message to the specified context with the provided data.

Parameters

[in]	p_model	Pointer to the model instance.
[in]	p_ctx	Pointer to the context structure containing destination address and other parameters.
[in]	p_data	Pointer to the data to be sent.
[in]	data_len	Length of the data to be sent.

Returns

• MESHX_SUCCESS: Message sent successfully.
• MESHX_NO_MEM: Memory allocation failed.
• MESHX_ERR_PLAT: Platform error occurred while sending the message.

Definition at line 142 of file esp_gen_srv_model.c.

{
    static esp_ble_mesh_msg_ctx_t ctx;
    const esp_ble_mesh_msg_ctx_t *pctx = (esp_ble_mesh_msg_ctx_t *)p_ctx->p_ctx;
    if(pctx != NULL)
    {
        memcpy(&ctx, pctx, sizeof(esp_ble_mesh_msg_ctx_t));
    }

    ctx.net_idx    =   p_ctx->net_idx;
    ctx.app_idx    =   p_ctx->app_idx;
    ctx.addr       =   p_ctx->dst_addr;
    ctx.send_ttl   =   ESP_BLE_MESH_TTL_DEFAULT;
    ctx.send_cred  =   0;
    ctx.send_tag   =   BIT1;

    esp_err_t err = esp_ble_mesh_server_model_send_msg(p_model->p_model,
        &ctx,
        p_ctx->opcode,
        (uint16_t)data_len,
        (uint8_t*)p_data);
    if(err)
    {
        MESHX_LOGE(MODULE_ID_MODEL_SERVER, "Mesh Model msg send failed (err: 0x%x)", err);
        return MESHX_ERR_PLAT;
    }
    MESHX_LOGD(MODULE_ID_MODEL_SERVER, "Mesh Model msg sent (opcode: 0x%04x)", p_ctx->opcode);
    return MESHX_SUCCESS;
}

Here is the caller graph for this function:

meshx_plat_on_off_gen_srv_create()

meshx_err_t meshx_plat_on_off_gen_srv_create	(	void *	p_model,
		void **	p_pub,
		void **	p_onoff_srv )

Creates a Generic OnOff Server model and its publication context.

This function initializes the Generic OnOff Server model, its publication context, and allocates memory for the server instance. It checks for invalid arguments and handles memory allocation failures.

Parameters

[out]	p_model	Pointer to the model structure to be created.
[out]	p_pub	Pointer to the publication context to be created.
[out]	p_onoff_srv	Pointer to the OnOff server instance to be allocated.

Returns

• MESHX_SUCCESS: Successfully created the model and publication context.
• MESHX_INVALID_ARG: One or more arguments are invalid.
• MESHX_NO_MEM: Memory allocation failed.

Definition at line 224 of file esp_gen_srv_model.c.

{
    if(!p_model || !p_pub || !p_onoff_srv)
        return MESHX_INVALID_ARG;

    /* SIG ON OFF initialisation */
    uint16_t model_id = ESP_BLE_MESH_MODEL_ID_GEN_ONOFF_SRV;
    memcpy((meshx_ptr_t) &(((MESHX_MODEL*)p_model)->model_id), &model_id, sizeof(model_id));

    return meshx_plat_gen_srv_create(p_model, p_pub, p_onoff_srv);
}

Here is the call graph for this function:

meshx_plat_set_gen_srv_state()

meshx_err_t meshx_plat_set_gen_srv_state	(	void *	p_model,
		uint8_t	on_off_state )

Set the state of a generic server model.

This function updates the on/off state of a specified generic server model.

Parameters

[in]	p_model	Pointer to the model whose state is to be set.
[in]	on_off_state	The desired on/off state to set for the model.

Returns

MESHX_SUCCESS on success, or an appropriate error code on failure.

Definition at line 187 of file esp_gen_srv_model.c.

{
    if(!p_model)
        return MESHX_INVALID_ARG;

    MESHX_MODEL * model = (MESHX_MODEL *)p_model;
    MESHX_GEN_ONOFF_SRV *srv = (MESHX_GEN_ONOFF_SRV *)model->user_data;

    srv->state.onoff = on_off_state;

    return MESHX_SUCCESS;
}

Here is the caller graph for this function:
