meshx_control_task.h File Reference

Header file for the control task in the BLE mesh node application. More...

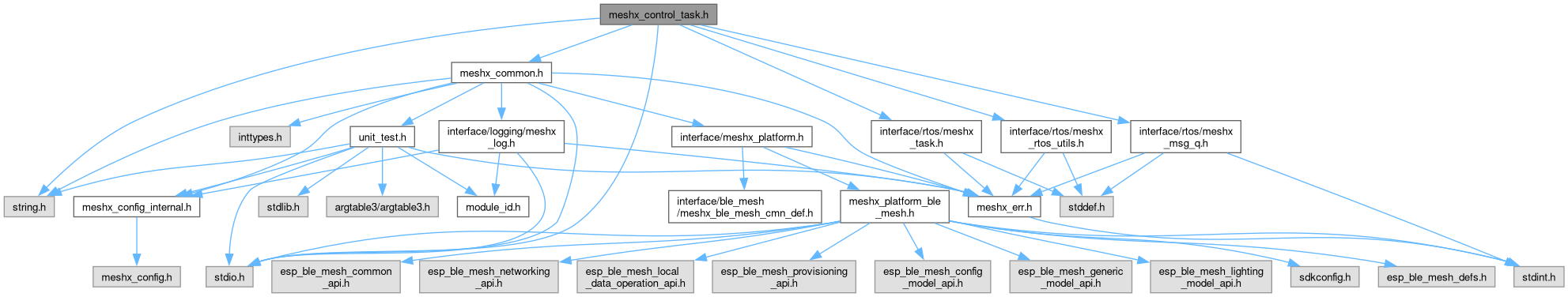

#include "stdio.h"
#include "string.h"
#include "meshx_common.h"
#include "interface/rtos/meshx_task.h"
#include "interface/rtos/meshx_msg_q.h"
#include "interface/rtos/meshx_rtos_utils.h"

Go to the source code of this file.

Data Structures
struct	control_task_msg
	Structure for control task message. More...
struct	control_task_evt_cb_reg
	Structure for control task event callback registration. More...

Macros
#define	CONFIG_CONTROL_TASK_NAME   "meshx_control_task"
	Control task name configuration.
#define	CONFIG_CONTROL_TASK_PRIO   configTIMER_TASK_PRIORITY + 2
	Control task priority configuration.
#define	CONFIG_MESHX_LOG_TASK_PRIO   configTIMER_TASK_PRIORITY + 1
	Logging task priority configuration.
#define	CONFIG_CONTROL_TASK_STACK_SIZE   8192
	Control task stack size configuration.
#define	CONFIG_CONTROL_TASK_QUEUE_LEN   10
	Control task queue length configuration.

Typedefs
typedef enum control_task_msg_code	control_task_msg_code_t
	Enumeration for control task message codes.
typedef uint32_t	control_task_msg_evt_t
	Type definition for control task message event.
typedef enum __packed control_task_msg_evt_to_app_meshx	control_task_msg_evt_to_app_meshx_t
	Enumeration for control task message events to application.
typedef enum __packed control_task_msg_evt_el_state_ch	control_task_msg_evt_el_state_ch_t
	Enumeration for control task message events to HAL.
typedef enum __packed control_task_msg_evt_to_ble	control_task_msg_evt_to_ble_t
	Enumeration for control task message events to BLE.
typedef enum __packed control_task_msg_evt_system	control_task_msg_evt_system_t
	Enumeration for control task system events.
typedef enum __packed control_task_msg_evt_config	control_task_msg_evt_config_t
	Enumeration for control task config srv events.
typedef enum __packed control_task_msg_evt_provision	control_task_msg_evt_provision_t
	Enumeration for control task provisioning events.
typedef enum __packed control_task_msg_evt_txcm	control_task_msg_evt_txcm_t
	Enumeration for control task TXCM events.
typedef meshx_err_t(*	control_task_msg_handle_t) (dev_struct_t *pdev, control_task_msg_evt_t evt, void *params)
	Function pointer type for control task message handler.
typedef struct control_task_msg	control_task_msg_t
	Structure for control task message.
typedef struct control_task_evt_cb_reg	control_task_evt_cb_reg_t
	Structure for control task event callback registration.

Enumerations
enum	control_task_msg_code {   CONTROL_TASK_MSG_CODE_EL_STATE_CH ,   CONTROL_TASK_MSG_CODE_SYSTEM ,   CONTROL_TASK_MSG_CODE_TO_BLE ,   CONTROL_TASK_MSG_CODE_FRM_BLE ,   CONTROL_TASK_MSG_CODE_CONFIG ,   CONTROL_TASK_MSG_CODE_PROVISION ,   CONTROL_TASK_MSG_CODE_PROV_PLAT ,   CONTROL_TASK_MSG_CODE_TO_APP ,   CONTROL_TASK_MSG_CODE_TO_MESHX ,   CONTROL_TASK_MSG_CODE_TXCM ,   CONTROL_TASK_MSG_CODE_MAX }
	Enumeration for control task message codes. More...

Functions
meshx_err_t	control_task_init (void)
	Initialize the control task messaging system.

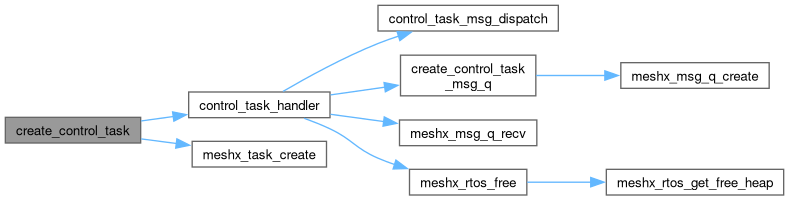

meshx_err_t	create_control_task (dev_struct_t *pdev)
	Create the control task.

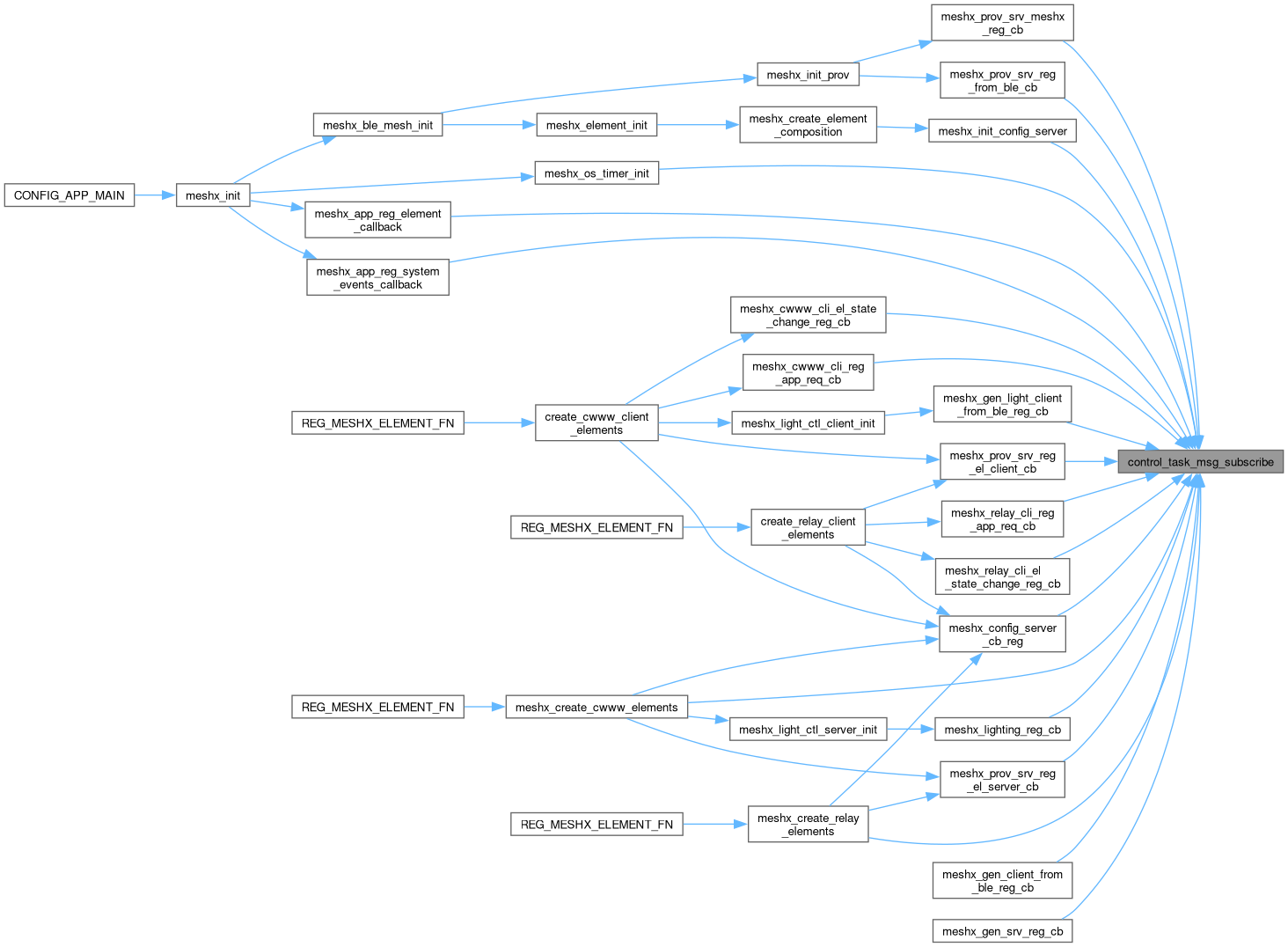

meshx_err_t	control_task_msg_subscribe (control_task_msg_code_t msg_code, control_task_msg_evt_t evt_bmap, control_task_msg_handle_t callback)
	Subscribe to a control task message.

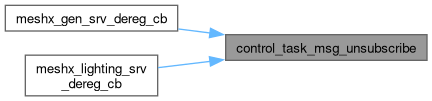

meshx_err_t	control_task_msg_unsubscribe (control_task_msg_code_t msg_code, control_task_msg_evt_t evt_bmap, control_task_msg_handle_t callback)
	Deregister a callback for a specific message code and event bitmap.
meshx_err_t	control_task_msg_publish (control_task_msg_code_t msg_code, control_task_msg_evt_t msg_evt, const void *msg_evt_params, size_t sizeof_msg_evt_params)
	Publish a control task message.

Variables
enum __packed	control_task_msg_evt_to_app_meshx
	Enumeration for control task message events to application.
	CONTROL_TASK_MSG_EVT_DATA = (1UL << (0))
	CONTROL_TASK_MSG_EVT_CTRL = (1UL << (1))
	CONTROL_TASK_MSG_EVT_MAX
enum __packed	control_task_msg_evt_el_state_ch
	Enumeration for control task message events to HAL.
	CONTROL_TASK_MSG_EVT_EL_STATE_CH_SET_ON_OFF = (1UL << (0))
	CONTROL_TASK_MSG_EVT_EL_STATE_CH_SET_CTL = (1UL << (1))
	CONTROL_TASK_MSG_EVT_EL_STATE_CH_MAX
enum __packed	control_task_msg_evt_to_ble
	Enumeration for control task message events to BLE.
	CONTROL_TASK_MSG_EVT_TO_BLE_SET_ON_OFF = (1UL << (0))
	CONTROL_TASK_MSG_EVT_TO_BLE_SET_CTL = (1UL << (1))
	CONTROL_TASK_MSG_EVT_TO_BLE_SET_LIGHTNESS = (1UL << (2))
	CONTROL_TASK_MSG_EVT_TO_BLE_SET_ON_OFF_SRV = (1UL << (16))
	CONTROL_TASK_MSG_EVT_TO_BLE_SET_CTL_SRV = (1UL << (17))
	CONTROL_TASK_MSG_EVT_TO_BLE_SENSOR_SRV = (1UL << (18))
enum __packed	control_task_msg_evt_system
	Enumeration for control task system events.
	CONTROL_TASK_MSG_EVT_SYSTEM_RESTART = (1UL << (0))
	CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_ARM = (1UL << (1))
	CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_REARM = (1UL << (2))
	CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_DISARM = (1UL << (3))
	CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_FIRE = (1UL << (4))
	CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_PERIOD = (1UL << (5))
	CONTROL_TASK_MSG_EVT_SYSTEM_NVS_COMMIT = (1UL << (6))
	CONTROL_TASK_MSG_EVT_SYSTEM_MAX
enum __packed	control_task_msg_evt_config
	Enumeration for control task config srv events.
	CONTROL_TASK_MSG_EVT_APP_KEY_ADD = (1UL << (0))
	CONTROL_TASK_MSG_EVT_APP_KEY_DEL = (1UL << (1))
	CONTROL_TASK_MSG_EVT_APP_KEY_BIND = (1UL << (2))
	CONTROL_TASK_MSG_EVT_APP_KEY_UNBIND = (1UL << (3))
	CONTROL_TASK_MSG_EVT_SUB_ADD = (1UL << (4))
	CONTROL_TASK_MSG_EVT_SUB_DEL = (1UL << (5))
	CONTROL_TASK_MSG_EVT_PUB_ADD = (1UL << (6))
	CONTROL_TASK_MSG_EVT_PUB_DEL = (1UL << (7))
	CONTROL_TASK_MSG_EVT_NET_KEY_ADD = (1UL << (8))
	CONTROL_TASK_MSG_EVT_NET_KEY_DEL = (1UL << (9))
	CONTROL_TASK_MSG_EVT_CONFIG_ALL = 0xFF
enum __packed	control_task_msg_evt_provision
	Enumeration for control task provisioning events.
	CONTROL_TASK_MSG_EVT_PROV_REG_COMP = (1UL << (0))
	CONTROL_TASK_MSG_EVT_SET_NAME_COMP = (1UL << (1))
	CONTROL_TASK_MSG_EVT_PROVISION_STOP = (1UL << (2))
	CONTROL_TASK_MSG_EVT_IDENTIFY_START = (1UL << (3))
	CONTROL_TASK_MSG_EVT_IDENTIFY_STOP = (1UL << (4))
	CONTROL_TASK_MSG_EVT_NODE_RESET = (1UL << (5))
	CONTROL_TASK_MSG_EVT_PROXY_CONNECT = (1UL << (6))
	CONTROL_TASK_MSG_EVT_PROXY_DISCONN = (1UL << (7))
	CONTROL_TASK_MSG_EVT_EN_NODE_PROV = (1UL << (8))
	CONTROL_TASK_MSG_EVT_SYSTEM_FRESH_BOOT = (1UL << (9))
	CONTROL_TASK_MSG_EVT_SYSTEM_STACK_READY = (1UL << (10))
	CONTROL_TASK_MSG_EVT_PROVISION_ALL = 0xFFFF
enum __packed	control_task_msg_evt_txcm
	Enumeration for control task TXCM events.
	CONTROL_TASK_MSG_EVT_TXCM_MSG_TIMEOUT = (1UL << (1))

Detailed Description

Header file for the control task in the BLE mesh node application.

Copyright © 2024 - 2025 MeshX

This file contains the definitions and function prototypes for the control task, which handles various control messages and events in the BLE mesh node application.

Author

Pranjal Chanda

Macro Definition Documentation

CONFIG_CONTROL_TASK_NAME

#define CONFIG_CONTROL_TASK_NAME   "meshx_control_task"

Control task name configuration.

CONFIG_CONTROL_TASK_PRIO

#define CONFIG_CONTROL_TASK_PRIO   configTIMER_TASK_PRIORITY + 2

Control task priority configuration.

CONFIG_CONTROL_TASK_QUEUE_LEN

#define CONFIG_CONTROL_TASK_QUEUE_LEN   10

Control task queue length configuration.

CONFIG_CONTROL_TASK_STACK_SIZE

#define CONFIG_CONTROL_TASK_STACK_SIZE   8192

Control task stack size configuration.

CONFIG_MESHX_LOG_TASK_PRIO

#define CONFIG_MESHX_LOG_TASK_PRIO   configTIMER_TASK_PRIORITY + 1

Logging task priority configuration.

Typedef Documentation

control_task_evt_cb_reg_t

typedef struct control_task_evt_cb_reg control_task_evt_cb_reg_t

Structure for control task event callback registration.

control_task_msg_code_t

typedef enum control_task_msg_code control_task_msg_code_t

Enumeration for control task message codes.

control_task_msg_evt_config_t

typedef enum __packed control_task_msg_evt_config control_task_msg_evt_config_t

Enumeration for control task config srv events.

control_task_msg_evt_el_state_ch_t

typedef enum __packed control_task_msg_evt_el_state_ch control_task_msg_evt_el_state_ch_t

Enumeration for control task message events to HAL.

control_task_msg_evt_provision_t

typedef enum __packed control_task_msg_evt_provision control_task_msg_evt_provision_t

Enumeration for control task provisioning events.

control_task_msg_evt_system_t

typedef enum __packed control_task_msg_evt_system control_task_msg_evt_system_t

Enumeration for control task system events.

control_task_msg_evt_t

typedef uint32_t control_task_msg_evt_t

Type definition for control task message event.

control_task_msg_evt_to_app_meshx_t

typedef enum __packed control_task_msg_evt_to_app_meshx control_task_msg_evt_to_app_meshx_t

Enumeration for control task message events to application.

control_task_msg_evt_to_ble_t

typedef enum __packed control_task_msg_evt_to_ble control_task_msg_evt_to_ble_t

Enumeration for control task message events to BLE.

control_task_msg_evt_txcm_t

typedef enum __packed control_task_msg_evt_txcm control_task_msg_evt_txcm_t

Enumeration for control task TXCM events.

control_task_msg_handle_t

typedef meshx_err_t(* control_task_msg_handle_t) (dev_struct_t *pdev, control_task_msg_evt_t evt, void *params)

Function pointer type for control task message handler.

Parameters

pdev	Pointer to the device structure.
evt	Event code.
params	Pointer to the event parameters.

Returns

MESHX_SUCCESS on success, or an error code on failure.

control_task_msg_t

typedef struct control_task_msg control_task_msg_t

Structure for control task message.

Enumeration Type Documentation

control_task_msg_code

enum control_task_msg_code

Enumeration for control task message codes.

Enumerator
CONTROL_TASK_MSG_CODE_EL_STATE_CH	Message code for Element state change
CONTROL_TASK_MSG_CODE_SYSTEM	Message code for system events.
CONTROL_TASK_MSG_CODE_TO_BLE	Message code to BLE layer.
CONTROL_TASK_MSG_CODE_FRM_BLE	Message code from BLE layer.
CONTROL_TASK_MSG_CODE_CONFIG	Message code for Config Server events
CONTROL_TASK_MSG_CODE_PROVISION	Message code for provisioning events.
CONTROL_TASK_MSG_CODE_PROV_PLAT	Internal message code for platform provisioning events.
CONTROL_TASK_MSG_CODE_TO_APP	Message code for application events.
CONTROL_TASK_MSG_CODE_TO_MESHX	Message code for meshX events from app
CONTROL_TASK_MSG_CODE_TXCM	Message code for TXCM events
CONTROL_TASK_MSG_CODE_MAX	Maximum message code value.

{
    CONTROL_TASK_MSG_CODE_EL_STATE_CH,  /**< Message code for Element state change */
    CONTROL_TASK_MSG_CODE_SYSTEM,       /**< Message code for system events. */
    CONTROL_TASK_MSG_CODE_TO_BLE,       /**< Message code to BLE layer. */
    CONTROL_TASK_MSG_CODE_FRM_BLE,      /**< Message code from BLE layer. */
    CONTROL_TASK_MSG_CODE_CONFIG,       /**< Message code for Config Server events */
    CONTROL_TASK_MSG_CODE_PROVISION,    /**< Message code for provisioning events. */
    CONTROL_TASK_MSG_CODE_PROV_PLAT,    /**< Internal message code for platform provisioning events. */
    CONTROL_TASK_MSG_CODE_TO_APP,       /**< Message code for application events. */
    CONTROL_TASK_MSG_CODE_TO_MESHX,     /**< Message code for meshX events from app */
    CONTROL_TASK_MSG_CODE_TXCM,         /**< Message code for TXCM events */
    CONTROL_TASK_MSG_CODE_MAX,          /**< Maximum message code value. */
} control_task_msg_code_t;

Function Documentation

control_task_init()

meshx_err_t control_task_init

(

void

)

Initialize the control task messaging system.

This function initializes the message queue used by the control task. It must be called before any component attempts to publish messages.

Returns

MESHX_SUCCESS on success, or an error code on failure.

{
    return create_control_task_msg_q();
}

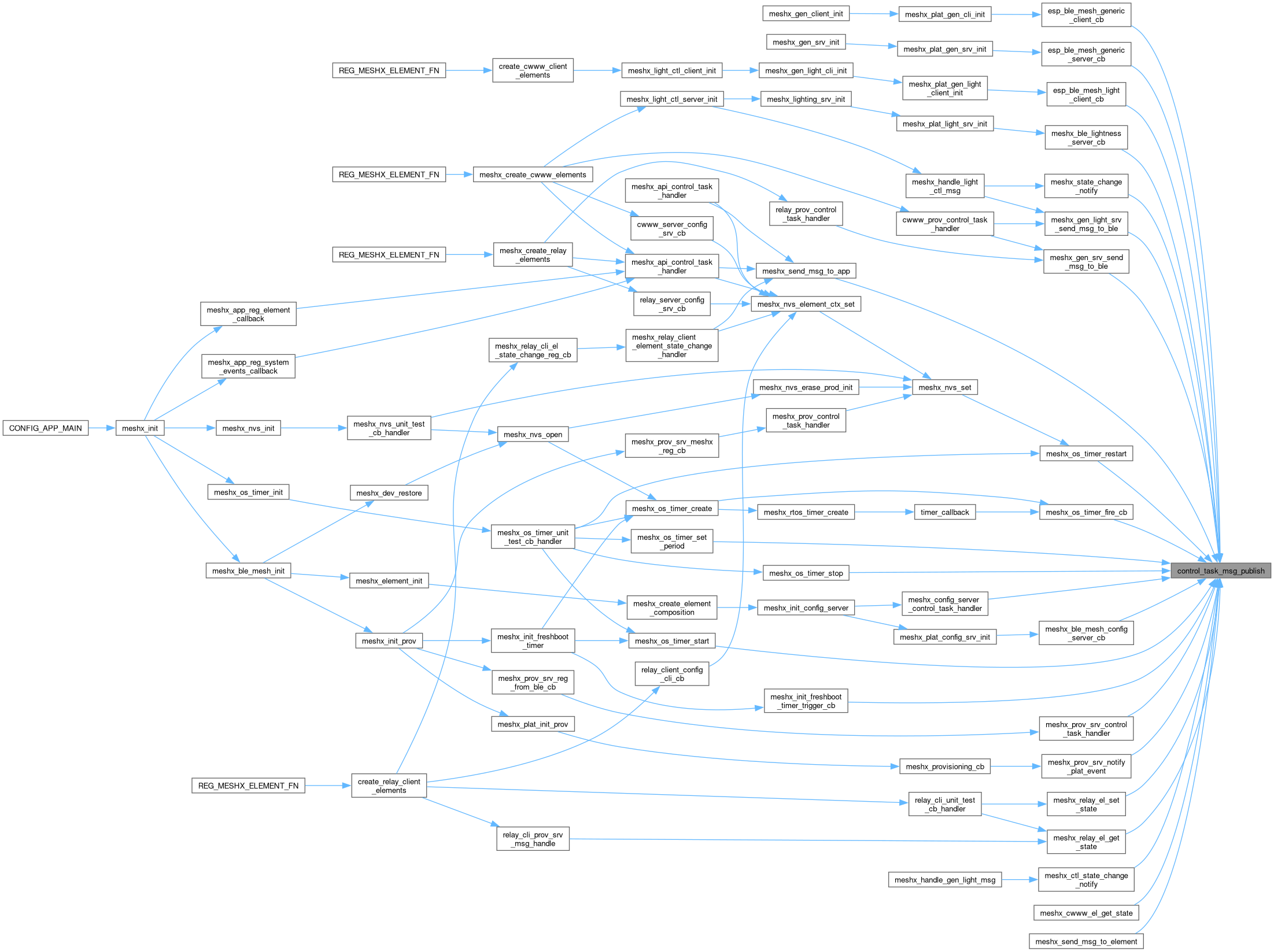

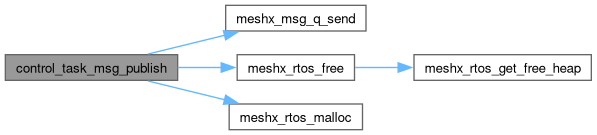

control_task_msg_publish()

meshx_err_t control_task_msg_publish	(	control_task_msg_code_t	msg_code,
		control_task_msg_evt_t	msg_evt,
		const void *	msg_evt_params,
		size_t	sizeof_msg_evt_params )

Publish a control task message.

This function allows you to publish a control task message with the given message code, event, and event parameters. The message will be sent to the control task for processing.

Parameters

[in]	msg_code	The message code to publish.
[in]	msg_evt	The event associated with the message.
[in]	msg_evt_params	Pointer to the event parameters.
[in]	sizeof_msg_evt_params	Size of the event parameters.

Returns

MESHX_SUCCESS on success, or an error code on failure.

{
    control_task_msg_t send_msg;
    if (msg_code >= CONTROL_TASK_MSG_CODE_MAX)
    {
        MESHX_LOGE(MODULE_ID_COMMON, "Invalid message code or event");
        return MESHX_INVALID_ARG;
    }
#if CONFIG_CT_DEBUG_LOG
#if CONFIG_MESHX_DEFAULT_LOG_LEVEL <= MESHX_LOG_DEBUG
    void *caller_addr0 = __builtin_return_address(0);
#endif /* CONFIG_MESHX_DEFAULT_LOG_LEVEL <= MESHX_LOG_DEBUG */
    MESHX_LOGD(MODULE_ID_COMMON, "fn_address|msg|evt: %p|%p|%p", caller_addr0, (void *)msg_code, (void *)msg_evt);
#endif /* CONFIG_CT_DEBUG_LOG */

    if (sizeof_msg_evt_params != 0)
    {
        meshx_err_t err = meshx_rtos_malloc(&send_msg.msg_evt_params, sizeof_msg_evt_params);
        if (err)
            return err;
        /* Copy the params to allocated space */
        memcpy(send_msg.msg_evt_params, msg_evt_params, sizeof_msg_evt_params);
    }
    else
    {
        send_msg.msg_evt_params = NULL;
    }

    send_msg.msg_code = msg_code;
    send_msg.msg_evt = msg_evt;

    meshx_err_t send_err = meshx_msg_q_send(&control_task_queue, &send_msg, sizeof(send_msg), UINT32_MAX);
    if (send_err != MESHX_SUCCESS && send_msg.msg_evt_params)
    {
        meshx_rtos_free(&send_msg.msg_evt_params);
    }
    return send_err;
}

control_task_msg_subscribe()

meshx_err_t control_task_msg_subscribe	(	control_task_msg_code_t	msg_code,
		control_task_msg_evt_t	evt_bmap,
		control_task_msg_handle_t	callback )

Subscribe to a control task message.

This function allows you to subscribe to a specific control task message identified by the given message code. When the message is received, the specified callback function will be invoked.

Parameters

[in]	msg_code	The message code to subscribe to.
[in]	evt_bmap	The event bitmap associated with the message.
[in]	callback	The callback function to be called when the message is received.

Returns

• MESHX_SUCCESS: Success
• MESHX_INVALID_ARG: Invalid argument
• MESHX_FAIL: Other failures

{
    if (callback == NULL || msg_code >= CONTROL_TASK_MSG_CODE_MAX)
        return MESHX_INVALID_ARG; // Invalid arguments

    control_task_evt_cb_reg_t *new_node = NULL;
    meshx_err_t err = meshx_rtos_malloc((void**)&new_node, sizeof(control_task_evt_cb_reg_t));
    if (err || !new_node)
        return err; // Memory allocation failed

    new_node->cb = callback;
    new_node->msg_evt_bmap = evt_bmap;
    new_node->next = control_task_msg_code_list_heads[msg_code];
    control_task_msg_code_list_heads[msg_code] = new_node;

    return MESHX_SUCCESS;
}

control_task_msg_unsubscribe()

meshx_err_t control_task_msg_unsubscribe	(	control_task_msg_code_t	msg_code,
		control_task_msg_evt_t	evt_bmap,
		control_task_msg_handle_t	callback )

Deregister a callback for a specific message code and event bitmap.

This function allows deregistering a callback handler for a specific message code and event type.

Parameters

[in]	msg_code	The message code to deregister the handler for.
[in]	evt_bmap	Bitmap of events to deregister for.
[in]	callback	Callback function to deregister.

Returns

MESHX_SUCCESS on success, or an error code on failure.

{
    if (callback == NULL || msg_code >= CONTROL_TASK_MSG_CODE_MAX)
        return MESHX_INVALID_ARG; // Invalid arguments

    control_task_evt_cb_reg_t *prev = NULL;
    control_task_evt_cb_reg_t *curr = control_task_msg_code_list_heads[msg_code];

    while (curr)
    {
        if (curr->cb == callback && curr->msg_evt_bmap == evt_bmap)
        {
            if (prev == NULL)
                control_task_msg_code_list_heads[msg_code] = curr->next;
            else
                prev->next = curr->next;

            return meshx_rtos_free((void**)&curr);
        }
        prev = curr;
        curr = curr->next;
    }

    return MESHX_NOT_FOUND;
}

create_control_task()

meshx_err_t create_control_task

(

dev_struct_t *

pdev

)

Create the control task.

This function creates a FreeRTOS task to handle control events.

Parameters

[in]

pdev

Pointer to the device structure (dev_struct_t).

Returns

MESHX_SUCCESS on success, or an error code on failure.

{

    meshx_task_t task_handle = {
        .arg = pdev,
        .task_cb = control_task_handler,
        .priority = CONFIG_CONTROL_TASK_PRIO,
        .task_name = CONFIG_CONTROL_TASK_NAME,
        .stack_size = CONFIG_CONTROL_TASK_STACK_SIZE,
    };

    return meshx_task_create(&task_handle);
}

Variable Documentation

CONTROL_TASK_MSG_EVT_APP_KEY_ADD

CONTROL_TASK_MSG_EVT_APP_KEY_ADD = (1UL << (0))

Event for adding an application key.

CONTROL_TASK_MSG_EVT_APP_KEY_BIND

CONTROL_TASK_MSG_EVT_APP_KEY_BIND = (1UL << (2))

Event for binding an application key.

CONTROL_TASK_MSG_EVT_APP_KEY_DEL

CONTROL_TASK_MSG_EVT_APP_KEY_DEL = (1UL << (1))

Event for deleting an application key.

CONTROL_TASK_MSG_EVT_APP_KEY_UNBIND

CONTROL_TASK_MSG_EVT_APP_KEY_UNBIND = (1UL << (3))

Event for unbinding an application key.

control_task_msg_evt_config

enum __packed control_task_msg_evt_config

Enumeration for control task config srv events.

{
    CONTROL_TASK_MSG_EVT_APP_KEY_ADD        = MESHX_BIT(0), /**< Event for adding an application key. */
    CONTROL_TASK_MSG_EVT_APP_KEY_DEL        = MESHX_BIT(1), /**< Event for deleting an application key. */
    CONTROL_TASK_MSG_EVT_APP_KEY_BIND       = MESHX_BIT(2), /**< Event for binding an application key. */
    CONTROL_TASK_MSG_EVT_APP_KEY_UNBIND     = MESHX_BIT(3), /**< Event for unbinding an application key. */
    CONTROL_TASK_MSG_EVT_SUB_ADD            = MESHX_BIT(4), /**< Event for adding a subscription. */
    CONTROL_TASK_MSG_EVT_SUB_DEL            = MESHX_BIT(5), /**< Event for deleting a subscription. */
    CONTROL_TASK_MSG_EVT_PUB_ADD            = MESHX_BIT(6), /**< Event for adding a publication. */
    CONTROL_TASK_MSG_EVT_PUB_DEL            = MESHX_BIT(7), /**< Event for deleting a publication. */
    CONTROL_TASK_MSG_EVT_NET_KEY_ADD        = MESHX_BIT(8), /**< Event for adding a network key. */
    CONTROL_TASK_MSG_EVT_NET_KEY_DEL        = MESHX_BIT(9), /**< Event for deleting a network key. */
    CONTROL_TASK_MSG_EVT_CONFIG_ALL         = 0xFF, /**< Event for all configuration events. */
} control_task_msg_evt_config_t;

CONTROL_TASK_MSG_EVT_CONFIG_ALL

CONTROL_TASK_MSG_EVT_CONFIG_ALL = 0xFF

Event for all configuration events.

CONTROL_TASK_MSG_EVT_CTRL

CONTROL_TASK_MSG_EVT_CTRL = (1UL << (1))

Control message

CONTROL_TASK_MSG_EVT_DATA

CONTROL_TASK_MSG_EVT_DATA = (1UL << (0))

Data message

control_task_msg_evt_el_state_ch

enum __packed control_task_msg_evt_el_state_ch

Enumeration for control task message events to HAL.

{
    CONTROL_TASK_MSG_EVT_EL_STATE_CH_SET_ON_OFF      = MESHX_BIT(0), /**< Event to set on/off state. */
    CONTROL_TASK_MSG_EVT_EL_STATE_CH_SET_CTL         = MESHX_BIT(1), /**< Event to set CTL state. */
    CONTROL_TASK_MSG_EVT_EL_STATE_CH_MAX,                    /**< Maximum HAL event value. */
} control_task_msg_evt_el_state_ch_t;

CONTROL_TASK_MSG_EVT_EL_STATE_CH_MAX

CONTROL_TASK_MSG_EVT_EL_STATE_CH_MAX

Maximum HAL event value.

CONTROL_TASK_MSG_EVT_EL_STATE_CH_SET_CTL

CONTROL_TASK_MSG_EVT_EL_STATE_CH_SET_CTL = (1UL << (1))

Event to set CTL state.

CONTROL_TASK_MSG_EVT_EL_STATE_CH_SET_ON_OFF

CONTROL_TASK_MSG_EVT_EL_STATE_CH_SET_ON_OFF = (1UL << (0))

Event to set on/off state.

CONTROL_TASK_MSG_EVT_EN_NODE_PROV

CONTROL_TASK_MSG_EVT_EN_NODE_PROV = (1UL << (8))

ESP_BLE_MESH_NODE_PROV_ENABLE_COMP_EVT

CONTROL_TASK_MSG_EVT_IDENTIFY_START

CONTROL_TASK_MSG_EVT_IDENTIFY_START = (1UL << (3))

EESP_BLE_MESH_NODE_PROV_LINK_OPEN_EVT

CONTROL_TASK_MSG_EVT_IDENTIFY_STOP

CONTROL_TASK_MSG_EVT_IDENTIFY_STOP = (1UL << (4))

ESP_BLE_MESH_NODE_PROV_LINK_CLOSE_EVT

CONTROL_TASK_MSG_EVT_MAX

CONTROL_TASK_MSG_EVT_MAX

Maximum event value

CONTROL_TASK_MSG_EVT_NET_KEY_ADD

CONTROL_TASK_MSG_EVT_NET_KEY_ADD = (1UL << (8))

Event for adding a network key.

CONTROL_TASK_MSG_EVT_NET_KEY_DEL

CONTROL_TASK_MSG_EVT_NET_KEY_DEL = (1UL << (9))

Event for deleting a network key.

CONTROL_TASK_MSG_EVT_NODE_RESET

CONTROL_TASK_MSG_EVT_NODE_RESET = (1UL << (5))

CONTROL_TASK_MSG_EVT_NODE_RESET

CONTROL_TASK_MSG_EVT_PROV_REG_COMP

CONTROL_TASK_MSG_EVT_PROV_REG_COMP = (1UL << (0))

ESP_BLE_MESH_PROV_REGISTER_COMP_EVT

control_task_msg_evt_provision

enum __packed control_task_msg_evt_provision

Enumeration for control task provisioning events.

{
    CONTROL_TASK_MSG_EVT_PROV_REG_COMP          = MESHX_BIT(0), /**< ESP_BLE_MESH_PROV_REGISTER_COMP_EVT */
    CONTROL_TASK_MSG_EVT_SET_NAME_COMP          = MESHX_BIT(1), /**< ESP_BLE_MESH_NODE_SET_UNPROV_DEV_NAME_COMP_EVT */
    CONTROL_TASK_MSG_EVT_PROVISION_STOP         = MESHX_BIT(2), /**< ESP_BLE_MESH_NODE_PROV_COMPLETE_EVT */
    CONTROL_TASK_MSG_EVT_IDENTIFY_START         = MESHX_BIT(3), /**< EESP_BLE_MESH_NODE_PROV_LINK_OPEN_EVT */
    CONTROL_TASK_MSG_EVT_IDENTIFY_STOP          = MESHX_BIT(4), /**< ESP_BLE_MESH_NODE_PROV_LINK_CLOSE_EVT */
    CONTROL_TASK_MSG_EVT_NODE_RESET             = MESHX_BIT(5), /**< CONTROL_TASK_MSG_EVT_NODE_RESET */
    CONTROL_TASK_MSG_EVT_PROXY_CONNECT          = MESHX_BIT(6), /**< ESP_BLE_MESH_PROXY_SERVER_CONNECTED_EVT */
    CONTROL_TASK_MSG_EVT_PROXY_DISCONN          = MESHX_BIT(7), /**< ESP_BLE_MESH_PROXY_SERVER_DISCONNECTED_EVT */
    CONTROL_TASK_MSG_EVT_EN_NODE_PROV           = MESHX_BIT(8), /**< ESP_BLE_MESH_NODE_PROV_ENABLE_COMP_EVT */
    CONTROL_TASK_MSG_EVT_SYSTEM_FRESH_BOOT      = MESHX_BIT(9), /**< Event to indicate fresh boot */
    CONTROL_TASK_MSG_EVT_SYSTEM_STACK_READY     = MESHX_BIT(10),/**< Event to indicate stack is ready for TX */
    CONTROL_TASK_MSG_EVT_PROVISION_ALL          = 0xFFFF, /**< Maximum provisioning event value. */
} control_task_msg_evt_provision_t;

CONTROL_TASK_MSG_EVT_PROVISION_ALL

CONTROL_TASK_MSG_EVT_PROVISION_ALL = 0xFFFF

Maximum provisioning event value.

CONTROL_TASK_MSG_EVT_PROVISION_STOP

CONTROL_TASK_MSG_EVT_PROVISION_STOP = (1UL << (2))

ESP_BLE_MESH_NODE_PROV_COMPLETE_EVT

CONTROL_TASK_MSG_EVT_PROXY_CONNECT

CONTROL_TASK_MSG_EVT_PROXY_CONNECT = (1UL << (6))

ESP_BLE_MESH_PROXY_SERVER_CONNECTED_EVT

CONTROL_TASK_MSG_EVT_PROXY_DISCONN

CONTROL_TASK_MSG_EVT_PROXY_DISCONN = (1UL << (7))

ESP_BLE_MESH_PROXY_SERVER_DISCONNECTED_EVT

CONTROL_TASK_MSG_EVT_PUB_ADD

CONTROL_TASK_MSG_EVT_PUB_ADD = (1UL << (6))

Event for adding a publication.

CONTROL_TASK_MSG_EVT_PUB_DEL

CONTROL_TASK_MSG_EVT_PUB_DEL = (1UL << (7))

Event for deleting a publication.

CONTROL_TASK_MSG_EVT_SET_NAME_COMP

CONTROL_TASK_MSG_EVT_SET_NAME_COMP = (1UL << (1))

ESP_BLE_MESH_NODE_SET_UNPROV_DEV_NAME_COMP_EVT

CONTROL_TASK_MSG_EVT_SUB_ADD

CONTROL_TASK_MSG_EVT_SUB_ADD = (1UL << (4))

Event for adding a subscription.

CONTROL_TASK_MSG_EVT_SUB_DEL

CONTROL_TASK_MSG_EVT_SUB_DEL = (1UL << (5))

Event for deleting a subscription.

control_task_msg_evt_system

enum __packed control_task_msg_evt_system

Enumeration for control task system events.

{
    CONTROL_TASK_MSG_EVT_SYSTEM_RESTART      = MESHX_BIT(0),    /**< Event to restart the system. */
    CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_ARM    = MESHX_BIT(1),    /**< Event to arm an OS Timer */
    CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_REARM  = MESHX_BIT(2),    /**< Event to re-arm an OS Timer */
    CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_DISARM = MESHX_BIT(3),    /**< Event to stop an OS Timer */
    CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_FIRE   = MESHX_BIT(4),    /**< Event to fire timedout OS Timer */
    CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_PERIOD = MESHX_BIT(5),    /**< Event to set timedout OS Timer */
    CONTROL_TASK_MSG_EVT_SYSTEM_NVS_COMMIT   = MESHX_BIT(6),    /**< Event for NVS commit operation */
    CONTROL_TASK_MSG_EVT_SYSTEM_MAX,                    /**< Maximum system event value. */
} control_task_msg_evt_system_t;

CONTROL_TASK_MSG_EVT_SYSTEM_FRESH_BOOT

CONTROL_TASK_MSG_EVT_SYSTEM_FRESH_BOOT = (1UL << (9))

Event to indicate fresh boot

CONTROL_TASK_MSG_EVT_SYSTEM_MAX

CONTROL_TASK_MSG_EVT_SYSTEM_MAX

Maximum system event value.

CONTROL_TASK_MSG_EVT_SYSTEM_NVS_COMMIT

CONTROL_TASK_MSG_EVT_SYSTEM_NVS_COMMIT = (1UL << (6))

Event for NVS commit operation

CONTROL_TASK_MSG_EVT_SYSTEM_RESTART

CONTROL_TASK_MSG_EVT_SYSTEM_RESTART = (1UL << (0))

Event to restart the system.

CONTROL_TASK_MSG_EVT_SYSTEM_STACK_READY

CONTROL_TASK_MSG_EVT_SYSTEM_STACK_READY = (1UL << (10))

Event to indicate stack is ready for TX

CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_ARM

CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_ARM = (1UL << (1))

Event to arm an OS Timer

CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_DISARM

CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_DISARM = (1UL << (3))

Event to stop an OS Timer

CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_FIRE

CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_FIRE = (1UL << (4))

Event to fire timedout OS Timer

CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_PERIOD

CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_PERIOD = (1UL << (5))

Event to set timedout OS Timer

CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_REARM

CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_REARM = (1UL << (2))

Event to re-arm an OS Timer

control_task_msg_evt_to_app_meshx

enum __packed control_task_msg_evt_to_app_meshx

Enumeration for control task message events to application.

{
    CONTROL_TASK_MSG_EVT_DATA = MESHX_BIT(0),   /**< Data message */
    CONTROL_TASK_MSG_EVT_CTRL = MESHX_BIT(1),   /**< Control message */
    CONTROL_TASK_MSG_EVT_MAX,           /**< Maximum event value */
} control_task_msg_evt_to_app_meshx_t;

control_task_msg_evt_to_ble

enum __packed control_task_msg_evt_to_ble

Enumeration for control task message events to BLE.

{
    /* To Client related events */
    CONTROL_TASK_MSG_EVT_TO_BLE_SET_ON_OFF      = MESHX_BIT(0), /**< Event to set on/off state. */
    CONTROL_TASK_MSG_EVT_TO_BLE_SET_CTL         = MESHX_BIT(1), /**< Event to set CTL state. */
    CONTROL_TASK_MSG_EVT_TO_BLE_SET_LIGHTNESS   = MESHX_BIT(2), /**< Event to set lightness state. */

    /* To server events */
    CONTROL_TASK_MSG_EVT_TO_BLE_SET_ON_OFF_SRV  = MESHX_BIT(16),/**< Event to send out on/off status */
    CONTROL_TASK_MSG_EVT_TO_BLE_SET_CTL_SRV     = MESHX_BIT(17),/**< Event to send out CTL status */
    CONTROL_TASK_MSG_EVT_TO_BLE_SENSOR_SRV      = MESHX_BIT(18),/**< Event to send out Sensor status */
    CONTROL_TASK_MSG_EVT_TO_BLE_MAX                     /**< Maximum BLE event value. */
} control_task_msg_evt_to_ble_t;

CONTROL_TASK_MSG_EVT_TO_BLE_SENSOR_SRV

CONTROL_TASK_MSG_EVT_TO_BLE_SENSOR_SRV = (1UL << (18))

Event to send out Sensor status

CONTROL_TASK_MSG_EVT_TO_BLE_SET_CTL

CONTROL_TASK_MSG_EVT_TO_BLE_SET_CTL = (1UL << (1))

Event to set CTL state.

CONTROL_TASK_MSG_EVT_TO_BLE_SET_CTL_SRV

CONTROL_TASK_MSG_EVT_TO_BLE_SET_CTL_SRV = (1UL << (17))

Event to send out CTL status

CONTROL_TASK_MSG_EVT_TO_BLE_SET_LIGHTNESS

CONTROL_TASK_MSG_EVT_TO_BLE_SET_LIGHTNESS = (1UL << (2))

Event to set lightness state.

CONTROL_TASK_MSG_EVT_TO_BLE_SET_ON_OFF

CONTROL_TASK_MSG_EVT_TO_BLE_SET_ON_OFF = (1UL << (0))

Event to set on/off state.

CONTROL_TASK_MSG_EVT_TO_BLE_SET_ON_OFF_SRV

CONTROL_TASK_MSG_EVT_TO_BLE_SET_ON_OFF_SRV = (1UL << (16))

Event to send out on/off status

control_task_msg_evt_txcm

enum __packed control_task_msg_evt_txcm

Enumeration for control task TXCM events.

{
    CONTROL_TASK_MSG_EVT_TXCM_MSG_TIMEOUT   = MESHX_BIT(1), /**< Event for TXCM message timeout */
    CONTROL_TASK_MSG_EVT_TXCM_MAX
}control_task_msg_evt_txcm_t;

CONTROL_TASK_MSG_EVT_TXCM_MSG_TIMEOUT

CONTROL_TASK_MSG_EVT_TXCM_MSG_TIMEOUT = (1UL << (1))

Event for TXCM message timeout
