cwww_srv_ctx Struct Reference

Structure to hold the context of the cwww client. More...

#include <meshx_cwww_server_element.h>

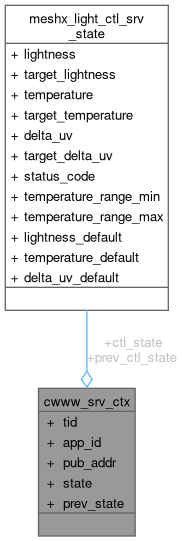

Collaboration diagram for cwww_srv_ctx:
Collaboration graph

Data Fields

uint8_t tid

uint16_t app_id

uint16_t pub_addr

meshx_on_off_srv_el_state_t state

meshx_on_off_srv_el_state_t prev_state

meshx_light_ctl_srv_state_t ctl_state

meshx_light_ctl_srv_state_t prev_ctl_state


Detailed Description

Structure to hold the context of the cwww client.

Definition at line 39 of file meshx_cwww_server_element.h.

Field Documentation

◆ app_id

uint16_t cwww_srv_ctx::app_id

Application ID

Definition at line 42 of file meshx_cwww_server_element.h.

◆ ctl_state

meshx_light_ctl_srv_state_t cwww_srv_ctx::ctl_state

CTL State of the cwww client

Definition at line 46 of file meshx_cwww_server_element.h.

◆ prev_ctl_state

meshx_light_ctl_srv_state_t cwww_srv_ctx::prev_ctl_state

Prev CTL State of the cwww client

Definition at line 47 of file meshx_cwww_server_element.h.

◆ prev_state

meshx_on_off_srv_el_state_t cwww_srv_ctx::prev_state

Prev ON/OFF State of the cwww client

Definition at line 45 of file meshx_cwww_server_element.h.

◆ pub_addr

uint16_t cwww_srv_ctx::pub_addr

Publish address

Definition at line 43 of file meshx_cwww_server_element.h.

◆ state

meshx_on_off_srv_el_state_t cwww_srv_ctx::state

ON/OFF State of the cwww client

Definition at line 44 of file meshx_cwww_server_element.h.

◆ tid

uint8_t cwww_srv_ctx::tid

Transaction ID

Definition at line 41 of file meshx_cwww_server_element.h.

The documentation for this struct was generated from the following file:
