Header file for CWWW Server Model. More...

#include <string.h>
#include <meshx_common.h>
#include <meshx_onoff_server.h>
#include <meshx_light_ctl_srv.h>

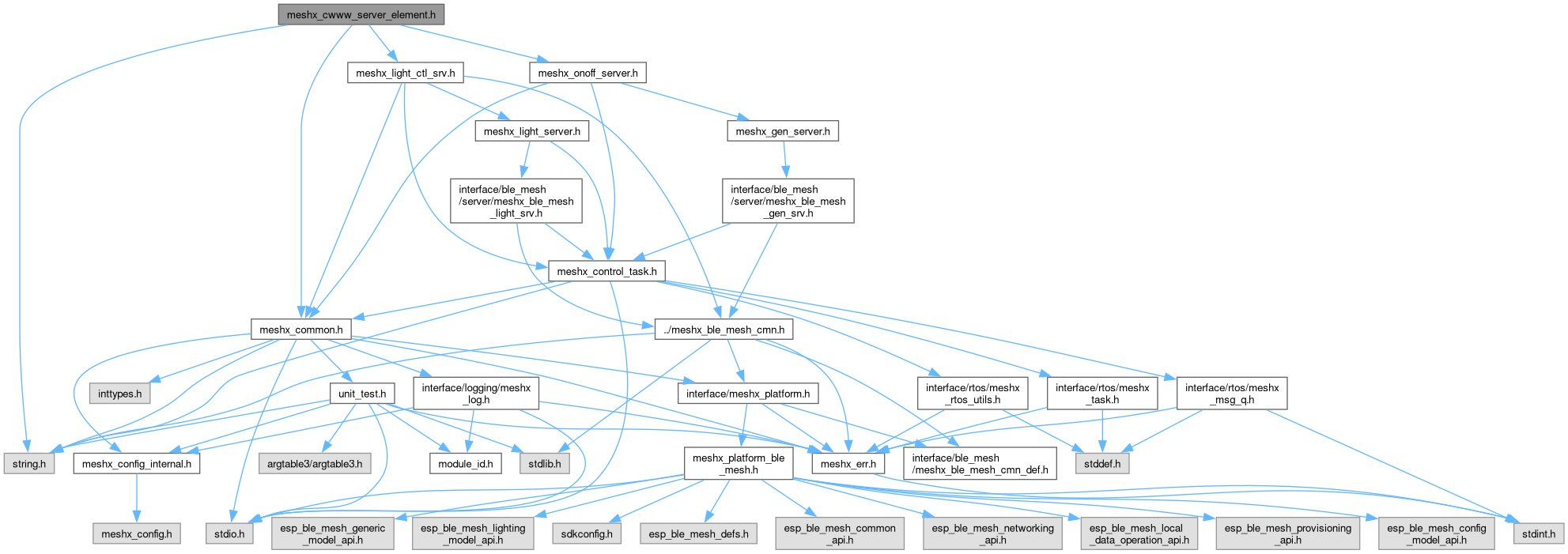

Include dependency graph for meshx_cwww_server_element.h:

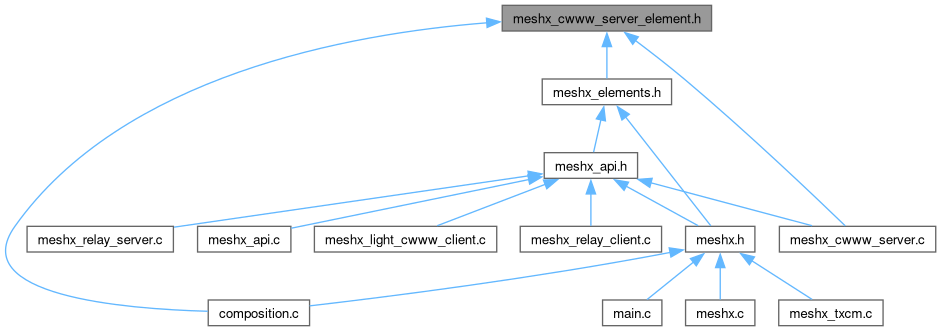

This graph shows which files directly or indirectly include this file:

Data Structures
struct	cwww_srv_ctx
	Structure to hold the context of the cwww client. More...

struct	meshx_cwww_element
	Structure to manage CWWW element initialization. More...

struct	meshx_cwww_elements_ctrl
	Structure representing a CW-WW element in the BLE mesh network. More...

Macros
#define	CWWW_SRV_MODEL_SIG_CNT CWWW_SIG_ID_MAX

#define	CWWW_SRV_MODEL_VEN_CNT 0

Typedefs
typedef struct cwww_srv_ctx	meshx_cwww_server_ctx_t
	Structure to hold the context of the cwww client.

typedef struct meshx_cwww_element	meshx_cwww_element_t
	Structure to manage CWWW element initialization.

typedef struct meshx_cwww_elements_ctrl	meshx_cwww_elements_ctrl_t
	Structure representing a CW-WW element in the BLE mesh network.

Enumerations
enum	cwww_sig_id_t { CWWW_SIG_ONOFF_MODEL_ID , CWWW_SIG_L_CTL_MODEL_ID , CWWW_SIG_ID_MAX }
	Enumeration of CW-WW SIG model IDs. More...

Functions
meshx_err_t	meshx_create_cwww_elements (dev_struct_t *pdev, uint16_t element_cnt)
	Create Dynamic CWWW Server Model Elements.

Detailed Description

Header file for CWWW Server Model.

This file contains the definitions and function prototypes for the CWWW Server Model. It includes the necessary includes, macros, and data structures required for the model.

Author: Pranjal Chanda

Definition in file meshx_cwww_server_element.h.

Macro Definition Documentation

◆ CWWW_SRV_MODEL_SIG_CNT

#define CWWW_SRV_MODEL_SIG_CNT CWWW_SIG_ID_MAX

Definition at line 23 of file meshx_cwww_server_element.h.

◆ CWWW_SRV_MODEL_VEN_CNT

#define CWWW_SRV_MODEL_VEN_CNT 0

Definition at line 24 of file meshx_cwww_server_element.h.

Typedef Documentation

◆ meshx_cwww_element_t

typedef struct meshx_cwww_element meshx_cwww_element_t

Structure to manage CWWW element initialization.

◆ meshx_cwww_elements_ctrl_t

typedef struct meshx_cwww_elements_ctrl meshx_cwww_elements_ctrl_t

Structure representing a CW-WW element in the BLE mesh network.

This structure contains all the necessary context and configuration for controlling a CW-WW (Cool White - Warm White) light element in a BLE mesh network.

◆ meshx_cwww_server_ctx_t

typedef struct cwww_srv_ctx meshx_cwww_server_ctx_t

Structure to hold the context of the cwww client.

Enumeration Type Documentation

◆ cwww_sig_id_t

enum cwww_sig_id_t

Enumeration of CW-WW SIG model IDs.

Enumerator
CWWW_SIG_ONOFF_MODEL_ID	On/Off model ID
CWWW_SIG_L_CTL_MODEL_ID	Light CTL model ID
CWWW_SIG_ID_MAX	Maximum number of model IDs

Definition at line 29 of file meshx_cwww_server_element.h.

{
    CWWW_SIG_ONOFF_MODEL_ID,
    CWWW_SIG_L_CTL_MODEL_ID,
    CWWW_SIG_ID_MAX
} cwww_sig_id_t;

Function Documentation

◆ meshx_create_cwww_elements()

meshx_err_t meshx_create_cwww_elements	(	dev_struct_t *	pdev,
		uint16_t	element_cnt )

Create Dynamic CWWW Server Model Elements.

This function creates dynamic CWWW server model elements for the given device structure.

Parameters

[in]	pdev	Pointer to device structure
[in]	element_cnt	Maximum number of CWWW server models

Returns: meshx_err_t Returns MESHX_SUCCESS on success or an error code on failure

Definition at line 613 of file meshx_cwww_server.c.

{
    meshx_err_t err;
    err = meshx_dev_create_cwww_model_space(element_cnt);
    if (err)
    {
        MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "CWWW Model create failed: (%d)", err);
        return err;
    }
    err = meshx_add_cwww_srv_model_to_element_list(pdev, (uint16_t *)&pdev->element_idx, element_cnt);
    if (err)
    {
        MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "CWWW Model create failed: (%d)", err);
        return err;
    }
#if CONFIG_ENABLE_CONFIG_SERVER
    err = meshx_config_server_cb_reg(
        (config_srv_cb_t)&cwww_server_config_srv_cb, CONFIG_SERVER_CB_MASK);
    if (err)
    {
        MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Relay Model configserver callback reg failed: (%d)", err);
        return err;
    }
#endif /* CONFIG_ENABLE_CONFIG_SERVER */
    err = control_task_msg_subscribe(
        CONTROL_TASK_MSG_CODE_EL_STATE_CH,
        CONTROL_TASK_EVT_MASK,
        (control_task_msg_handle_t)&meshx_api_control_task_handler);
    if (err)
    {
        MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Failed to register control task callback: (%d)", err);
        return err;
    }

    err = meshx_prov_srv_reg_el_server_cb((prov_srv_cb_t)&cwww_prov_control_task_handler);
    if (err)
    {
        MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Failed to register control task callback: (%d)", err);
        return err;
    }
    err = control_task_msg_subscribe(
        CONTROL_TASK_MSG_CODE_TO_BLE,
        CONTROL_TASK_MSG_EVT_TO_BLE_GEN_SRV_MASK,
        (control_task_msg_handle_t)&meshx_cwww_srv_msg_send_handler);
    if (err)
    {
        MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Failed to register control task callback: (%d)", err);
        return err;
    }
    err = meshx_on_off_server_init();
    if (err)
    {
        MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "meshx_on_off_server_init failed: (%d)", err);
        return err;
    }
    err = meshx_light_ctl_server_init();
    if (err)
    {
        MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "meshx_light_ctl_server_init failed: (%d)", err);
        return err;
    }
    return MESHX_SUCCESS;
}

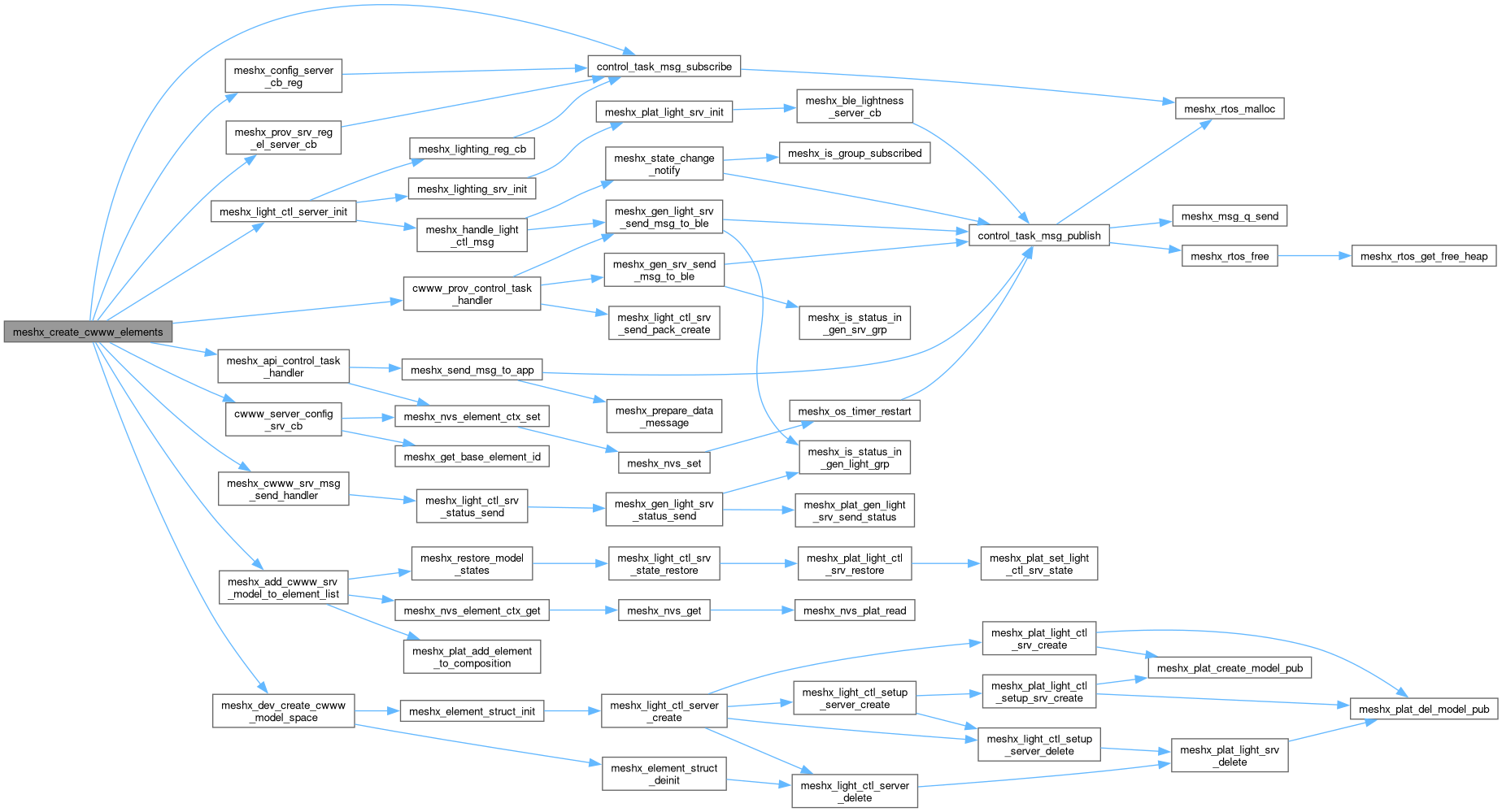

Here is the call graph for this function:

Here is the caller graph for this function:
