meshx_relay_server.c File Reference

Relay server model implementation for BLE Mesh networks. More...

#include "meshx_relay_server_element.h"
#include "meshx_nvs.h"
#include "meshx_api.h"
#include "meshx_config_server.h"

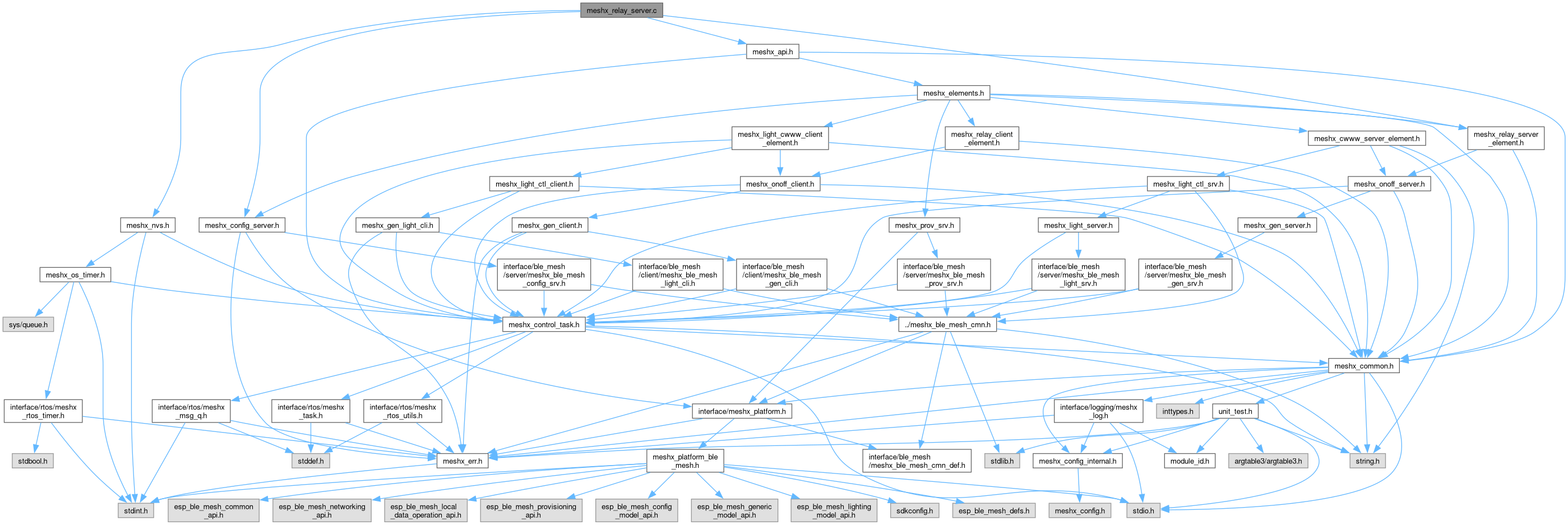

Include dependency graph for meshx_relay_server.c:

Go to the source code of this file.

Macros
#define	CONFIG_SERVER_CB_MASK
	Configuration server callback event mask for relay server.
#define	CONTROL_TASK_EVT_MASK   CONTROL_TASK_MSG_EVT_EL_STATE_CH_SET_ON_OFF
#define	CONTROL_TASK_MSG_EVT_TO_BLE_GEN_SRV_MASK   CONTROL_TASK_MSG_EVT_TO_BLE_SET_ON_OFF_SRV
#define	GET_RELATIVE_EL_IDX(_element_id)
	Get the relative index of an element ID.
#define	IS_EL_IN_RANGE(_element_id)
	Check if an element ID is within range.
#define	RELAY_SRV_EL(_el_id)

Functions

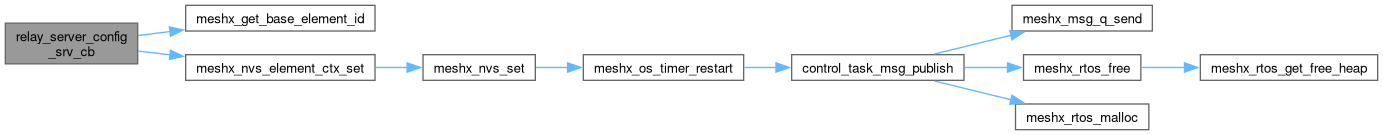

static meshx_err_t	relay_server_config_srv_cb (const dev_struct_t *pdev, control_task_msg_evt_t evt, const meshx_config_srv_cb_param_t *params)
	Callback function for configuration server events.
static meshx_err_t	meshx_element_struct_init (uint16_t n_max)
	Initialize the mesh element structure by allocating memory for various components.
static meshx_err_t	meshx_element_struct_deinit (void)
	Deinitializes the mesh element structure by freeing allocated memory.
static meshx_err_t	meshx_dev_create_relay_model_space (uint16_t n_max)
	Create relay model space.
static meshx_err_t	meshx_restore_model_states (uint16_t element_id)
	Restore saved relay model states.
static meshx_err_t	meshx_add_relay_srv_model_to_element_list (dev_struct_t *pdev, uint16_t *start_idx, uint16_t n_max)
	Add relay server models to the element list.
static meshx_err_t	meshx_api_control_task_handler (dev_struct_t const *pdev, control_task_msg_evt_t evt, void *params)
	Callback function for relay server model events.

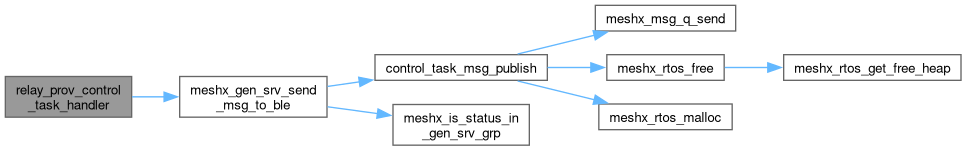

static meshx_err_t	relay_prov_control_task_handler (dev_struct_t const *pdev, control_task_msg_evt_t evt, void const *params)
	Callback function for relay server model events for Provisioning events.
static meshx_err_t	meshx_relay_srv_msg_send_handler (const dev_struct_t *pdev, control_task_msg_evt_to_ble_t evt, meshx_gen_srv_cb_param_t *params)
	Handles the BLE message sending for the Generic OnOff Server model.
meshx_err_t	meshx_create_relay_elements (dev_struct_t *pdev, uint16_t element_cnt)
	Create Dynamic Relay Model Elements.

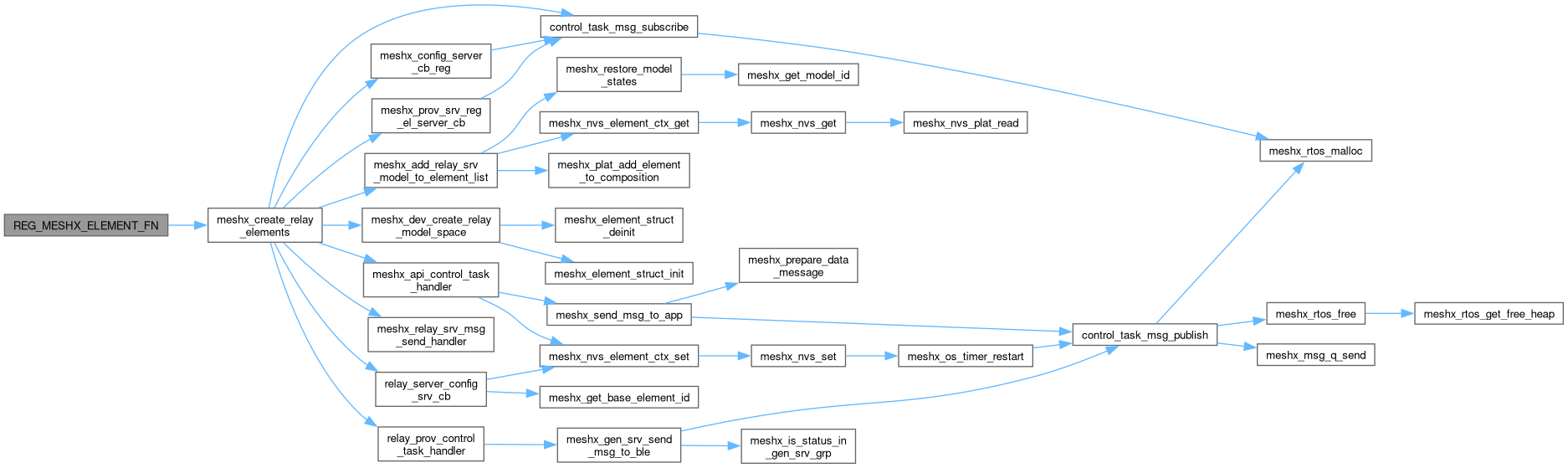

	REG_MESHX_ELEMENT_FN (relay_srv_el, MESHX_ELEMENT_TYPE_RELAY_SERVER, meshx_create_relay_elements)

Variables
static meshx_relay_element_ctrl_t	relay_element_init_ctrl
	Structure to manage relay element initialization.

Detailed Description

Relay server model implementation for BLE Mesh networks.

Copyright © 2024 - 2025 MeshX

This file contains the implementation of the relay server model for BLE Mesh. It includes functions to initialize, configure, and manage relay server elements.

Author

Pranjal Chanda

Definition in file meshx_relay_server.c.

Macro Definition Documentation

CONFIG_SERVER_CB_MASK

#define CONFIG_SERVER_CB_MASK

Value:

    CONTROL_TASK_MSG_EVT_PUB_ADD \
    | CONTROL_TASK_MSG_EVT_SUB_ADD | CONTROL_TASK_MSG_EVT_APP_KEY_BIND

Configuration server callback event mask for relay server.

Definition at line 25 of file meshx_relay_server.c.

#define CONFIG_SERVER_CB_MASK    \
    CONTROL_TASK_MSG_EVT_PUB_ADD \
    | CONTROL_TASK_MSG_EVT_SUB_ADD | CONTROL_TASK_MSG_EVT_APP_KEY_BIND

CONTROL_TASK_EVT_MASK

#define CONTROL_TASK_EVT_MASK   CONTROL_TASK_MSG_EVT_EL_STATE_CH_SET_ON_OFF

Definition at line 30 of file meshx_relay_server.c.

CONTROL_TASK_MSG_EVT_TO_BLE_GEN_SRV_MASK

#define CONTROL_TASK_MSG_EVT_TO_BLE_GEN_SRV_MASK   CONTROL_TASK_MSG_EVT_TO_BLE_SET_ON_OFF_SRV

Definition at line 32 of file meshx_relay_server.c.

GET_RELATIVE_EL_IDX

#define GET_RELATIVE_EL_IDX

(

_element_id

)

Value:

((_element_id) - (relay_element_init_ctrl.element_id_start))

Get the relative index of an element ID.

Parameters

_element_id

The element ID.

Returns

The relative index of the element.

Definition at line 39 of file meshx_relay_server.c.

IS_EL_IN_RANGE

#define IS_EL_IN_RANGE

(

_element_id

)

Value:

((_element_id) >= relay_element_init_ctrl.element_id_start && (_element_id) < relay_element_init_ctrl.element_id_end)

Check if an element ID is within range.

Parameters

_element_id

The element ID.

Returns

True if the element ID is within range, false otherwise.

Definition at line 46 of file meshx_relay_server.c.

RELAY_SRV_EL

#define RELAY_SRV_EL

(

_el_id

)

Value:

relay_element_init_ctrl.el_list[_el_id]

Definition at line 47 of file meshx_relay_server.c.

Function Documentation

meshx_add_relay_srv_model_to_element_list()

static meshx_err_t meshx_add_relay_srv_model_to_element_list ( dev_struct_t * pdev, uint16_t * start_idx, uint16_t n_max )

static

Add relay server models to the element list.

Registers the relay server models to the BLE Mesh element list.

Parameters

pdev	Pointer to the device structure.
start_idx	Pointer to the start index of elements.
n_max	Maximum number of elements to add.

Returns

MESHX_SUCCESS on success, error code otherwise.

Definition at line 289 of file meshx_relay_server.c.

{
    if (!pdev)
        return MESHX_INVALID_STATE;

    if ((n_max + *start_idx) > CONFIG_MAX_ELEMENT_COUNT)
    {
        MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "No of elements limit reached");
        return MESHX_NO_MEM;
    }

    meshx_err_t err = MESHX_SUCCESS;
    relay_element_init_ctrl.element_id_start = *start_idx;

    for (uint16_t i = *start_idx; i < (n_max + *start_idx); i++)
    {

        if (i == 0)
            continue;
        err = meshx_plat_add_element_to_composition(
            i,
            pdev->elements,
            RELAY_SRV_EL(i - *start_idx).relay_srv_model_list,
            NULL,
            RELAY_SRV_MODEL_SIG_CNT,
            RELAY_SRV_MODEL_VEN_CNT);
        if (err)
        {
            MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Failed to add element to composition: (%d)", err);
            return err;
        }
        err = meshx_nvs_element_ctx_get(
            i,
            RELAY_SRV_EL(i - *start_idx).srv_ctx,
            sizeof(meshx_relay_srv_model_ctx_t));
        if (err != MESHX_SUCCESS)
        {
            MESHX_LOGW(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Failed to get relay element context: (0x%x)", err);
        }
        else
        {
            err = meshx_restore_model_states(i - *start_idx);
            if (err != MESHX_SUCCESS)
            {
                MESHX_LOGW(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Failed to restore relay model states: (0x%x)", err);
            }
        }
    }
    relay_element_init_ctrl.element_id_end = (*start_idx += n_max);
    return MESHX_SUCCESS;
}

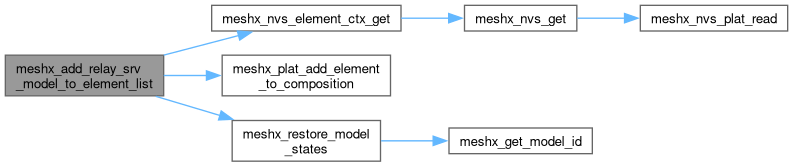

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_api_control_task_handler()

static meshx_err_t meshx_api_control_task_handler ( dev_struct_t const * pdev, control_task_msg_evt_t evt, void * params )

static

Callback function for relay server model events.

This function handles events from the relay server model, such as setting the relay state.

Parameters

[in]	pdev	Pointer to the callback parameter structure.
[in]	evt	Relay server event type.
[in]	params	Pointer to the parameters for the event.

Returns

MESHX_SUCCESS on success, error code otherwise.

Definition at line 351 of file meshx_relay_server.c.

{
    MESHX_UNUSED(pdev);
    MESHX_UNUSED(evt);
    size_t rel_el_id = 0;
    meshx_err_t err = MESHX_SUCCESS;
    meshx_relay_srv_model_ctx_t *el_ctx = NULL;
    const meshx_on_off_srv_el_msg_t *p_onoff_srv = (meshx_on_off_srv_el_msg_t *)params;
    meshx_api_relay_server_evt_t state;
    uint16_t element_id = p_onoff_srv->model.el_id;

    if (!IS_EL_IN_RANGE(element_id))
        return MESHX_SUCCESS;

    rel_el_id = GET_RELATIVE_EL_IDX(element_id);
    el_ctx = RELAY_SRV_EL(rel_el_id).srv_ctx;

    el_ctx->state.on_off = p_onoff_srv->on_off_state;

    err = meshx_nvs_element_ctx_set(element_id, el_ctx, sizeof(meshx_relay_srv_model_ctx_t));
    if (err != MESHX_SUCCESS)
        MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Failed to set relay element context: (%d)", err);

    state.on_off = el_ctx->state.on_off;
    err = meshx_send_msg_to_app(
        element_id,
        MESHX_ELEMENT_TYPE_RELAY_SERVER,
        RELAY_SIG_ONOFF_MODEL_ID,
        sizeof(meshx_api_relay_server_evt_t),
        &state);
    if (err != MESHX_SUCCESS)
        MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Failed to send relay state change message: (%d)", err);

    return MESHX_SUCCESS;
}

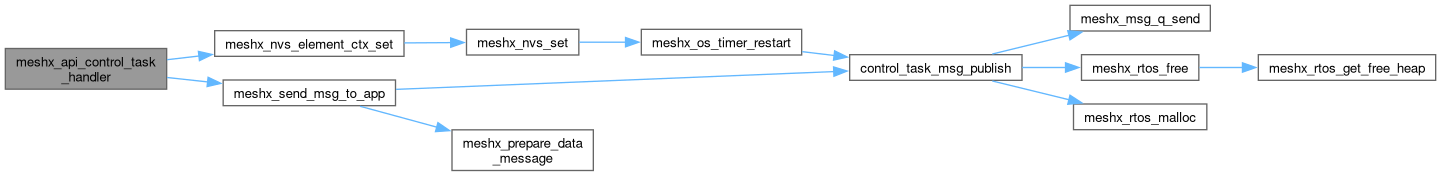

Here is the call graph for this function:

meshx_create_relay_elements()

meshx_err_t meshx_create_relay_elements	(	dev_struct_t *	pdev,
		uint16_t	element_cnt )

Create Dynamic Relay Model Elements.

Parameters

[in]	pdev	Pointer to device structure
[in]	element_cnt	Maximum number of relay models

Returns

meshx_err_t

Definition at line 497 of file meshx_relay_server.c.

{
    meshx_err_t err;
    err = meshx_dev_create_relay_model_space(element_cnt);
    if (err)
    {
        MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Relay Model create failed: (%d)", err);
        return err;
    }
    err = meshx_add_relay_srv_model_to_element_list(pdev, (uint16_t *)&pdev->element_idx, element_cnt);
    if (err)
    {
        MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Relay Model create failed: (%d)", err);
        return err;
    }
#if CONFIG_ENABLE_CONFIG_SERVER
    err = meshx_config_server_cb_reg(
        (config_srv_cb_t)&relay_server_config_srv_cb,
        CONFIG_SERVER_CB_MASK);
    if (err)
    {
        MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Relay Model configserver callback reg failed: (%d)", err);
        return err;
    }
#endif /* CONFIG_ENABLE_CONFIG_SERVER */
    err = control_task_msg_subscribe(
        CONTROL_TASK_MSG_CODE_EL_STATE_CH,
        CONTROL_TASK_EVT_MASK,
        (control_task_msg_handle_t)&meshx_api_control_task_handler);
    if (err)
    {
        MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Failed to register control task callback: (%d)", err);
        return err;
    }

    err = meshx_prov_srv_reg_el_server_cb((prov_srv_cb_t)&relay_prov_control_task_handler);
    if (err)
    {
        MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Failed to register control task callback: (%d)", err);
        return err;
    }
    err = control_task_msg_subscribe(
        CONTROL_TASK_MSG_CODE_TO_BLE,
        CONTROL_TASK_MSG_EVT_TO_BLE_GEN_SRV_MASK,
        (control_task_msg_handle_t)&meshx_relay_srv_msg_send_handler);
    if (err)
    {
        MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Failed to register control task callback: (%d)", err);
        return err;
    }
    err = meshx_on_off_server_init();
    if (err)
    {
        MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "meshx_on_off_server_init failed: (%d)", err);
        return err;
    }
    return MESHX_SUCCESS;
}

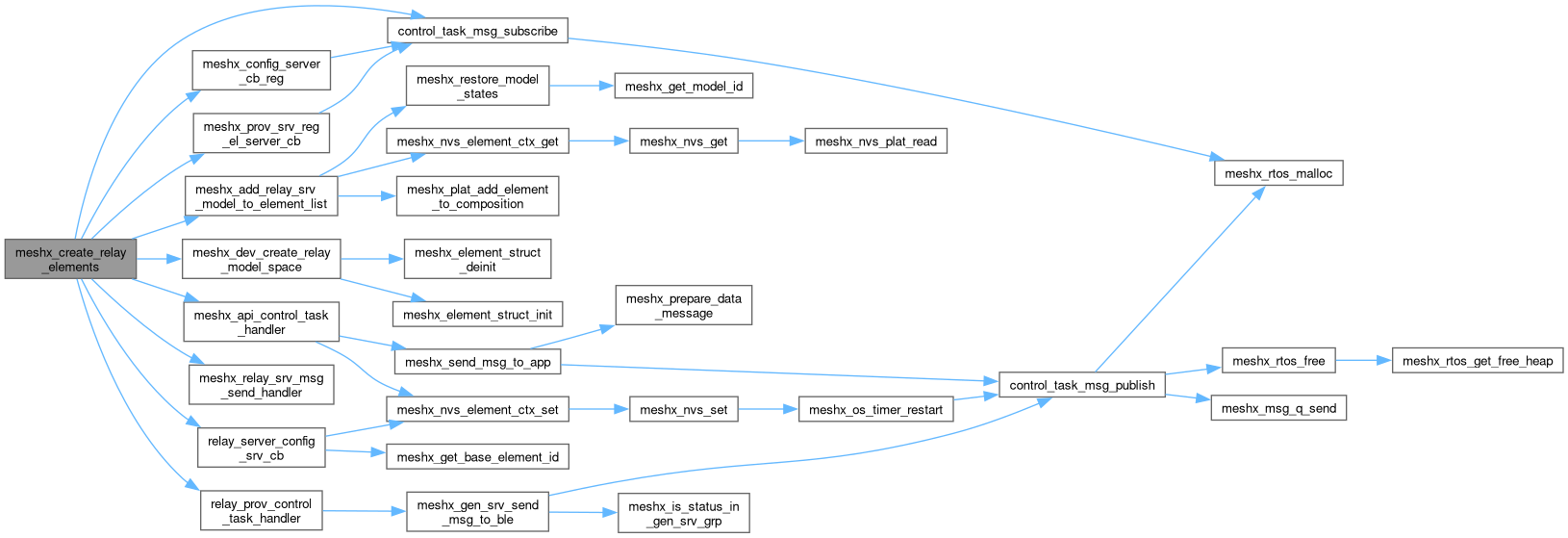

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_dev_create_relay_model_space()

static meshx_err_t meshx_dev_create_relay_model_space ( uint16_t n_max )

static

Create relay model space.

Allocates memory and initializes space for relay models.

Parameters

n_max

Maximum number of relay models.

Returns

MESHX_SUCCESS on success, error code otherwise.

Definition at line 231 of file meshx_relay_server.c.

{
    meshx_err_t err = meshx_element_struct_init(n_max);
    if (err)
    {
        MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Relay Model space create failed: (%d)", err);
        meshx_element_struct_deinit();
        return err;
    }
    return MESHX_SUCCESS;
}

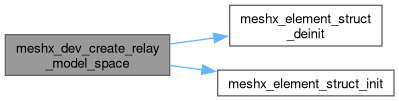

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_element_struct_deinit()

static meshx_err_t meshx_element_struct_deinit ( void )

static

Deinitializes the mesh element structure by freeing allocated memory.

This function deallocates memory for various components of the mesh element structure, including server context, server signature model list, server publication list, server on/off generic list, server light control list, and light control state. It ensures that all pointers are set to NULL after freeing the memory to avoid dangling pointers.

Returns

• MESHX_SUCCESS: Successfully deinitialized the mesh element structure.

Definition at line 192 of file meshx_relay_server.c.

{
    if (!relay_element_init_ctrl.element_cnt || !relay_element_init_ctrl.el_list)
    {
        MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Relay element list not initialized");
        return MESHX_INVALID_STATE;
    }

    meshx_err_t err;

    for (size_t i = 0; i < relay_element_init_ctrl.element_cnt; i++)
    {
        if (RELAY_SRV_EL(i).srv_ctx)
        {
            MESHX_FREE(RELAY_SRV_EL(i).srv_ctx);
            RELAY_SRV_EL(i).srv_ctx = NULL;
        }
        err = meshx_on_off_server_delete(&RELAY_SRV_EL(i).onoff_srv_model);
        if (err)
            MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Meshx On Off Server delete failed (Err : 0x%x)", err);
    }

    if (relay_element_init_ctrl.el_list)
    {
        MESHX_FREE(relay_element_init_ctrl.el_list);
        relay_element_init_ctrl.el_list = NULL;
    }

    return MESHX_SUCCESS;
}

Here is the caller graph for this function:

meshx_element_struct_init()

static meshx_err_t meshx_element_struct_init ( uint16_t n_max )

static

Initialize the mesh element structure by allocating memory for various components.

This function initializes the mesh element structure by allocating memory for various components, including server context, server signature model list, server publication list, server on/off generic list, and server light control list.

Parameters

n_max

The maximum number of elements in the server signature model list and server publication list.

Returns

• MESHX_SUCCESS: Successfully initialized the mesh element structure.
• MESHX_NO_MEM: Failed to allocate memory for the mesh element structure.

Definition at line 135 of file meshx_relay_server.c.

{
    if (!n_max)
        return MESHX_INVALID_ARG;

    if (relay_element_init_ctrl.el_list)
    {
        MESHX_LOGW(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Relay element list already initialized");
        return MESHX_INVALID_STATE;
    }

    meshx_err_t err = MESHX_SUCCESS;

    relay_element_init_ctrl.element_cnt = n_max;
    relay_element_init_ctrl.element_id_end = 0;
    relay_element_init_ctrl.element_id_start = 0;

    relay_element_init_ctrl.el_list =
        (meshx_relay_element_t *)MESHX_CALOC(relay_element_init_ctrl.element_cnt, sizeof(meshx_relay_element_t));

    if (!relay_element_init_ctrl.el_list)
        return MESHX_NO_MEM;

    for (size_t i = 0; i < relay_element_init_ctrl.element_cnt; i++)
    {
        RELAY_SRV_EL(i).srv_ctx =
            (meshx_relay_srv_model_ctx_t *)MESHX_CALOC(1, sizeof(meshx_relay_srv_model_ctx_t));

        if (!RELAY_SRV_EL(i).srv_ctx)
            return MESHX_NO_MEM;

        err = meshx_on_off_server_create(&RELAY_SRV_EL(i).onoff_srv_model,
                                         &RELAY_SRV_EL(i).relay_srv_model_list[RELAY_SIG_ONOFF_MODEL_ID]);
        if (err)
        {
            MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Meshx On Off Server create failed (Err : 0x%x)", err);
            return err;
        }
        RELAY_SRV_EL(i).onoff_srv_model->meshx_sig
            = &RELAY_SRV_EL(i).relay_srv_model_list[RELAY_SIG_ONOFF_MODEL_ID];
    }

    return err;
}

Here is the caller graph for this function:

meshx_relay_srv_msg_send_handler()

static meshx_err_t meshx_relay_srv_msg_send_handler ( const dev_struct_t * pdev, control_task_msg_evt_to_ble_t evt, meshx_gen_srv_cb_param_t * params )

static

Handles the BLE message sending for the Generic OnOff Server model.

This function processes the event to send a BLE Mesh message for the Generic Server model.

Parameters

[in]	pdev	Pointer to the device structure.
[in]	evt	Event type for the control task message to BLE.
[in]	params	Parameters for the BLE Mesh Generic Server model.

Returns

• MESHX_SUCCESS: Message sent successfully or event type not matched.
• MESHX_FAIL: Failed to send the message.

Definition at line 461 of file meshx_relay_server.c.

{
    if((evt & CONTROL_TASK_MSG_EVT_TO_BLE_GEN_SRV_MASK) == 0)
        return MESHX_SUCCESS;

    uint16_t element_id = params->model.el_id;

    if (!IS_EL_IN_RANGE(element_id))
        return MESHX_SUCCESS;

    meshx_err_t err = meshx_gen_on_off_srv_status_send(
        &params->model,
        &params->ctx,
        params->state_change.onoff_set.onoff
    );
    if(err)
    {
        MESHX_LOGE(MODULE_ID_MODEL_SERVER, "Mesh Model msg send failed (err: 0x%x)", err);
        return MESHX_ERR_PLAT;
    }

    ESP_UNUSED(pdev);
    return MESHX_SUCCESS;
}

Here is the caller graph for this function:

meshx_restore_model_states()

static meshx_err_t meshx_restore_model_states ( uint16_t element_id )

static

Restore saved relay model states.

Restores the relay model states from the NVS.

Parameters

element_id

Relative element ID.

Returns

MESHX_SUCCESS on success, error code otherwise.

Definition at line 251 of file meshx_relay_server.c.

{
    uint16_t model_id = 0;
    meshx_err_t err = MESHX_SUCCESS;
    meshx_relay_srv_model_ctx_t const *el_ctx = RELAY_SRV_EL(element_id).srv_ctx;
    for (size_t i = 0; i < RELAY_SRV_MODEL_SIG_CNT; i++)
    {
        err = meshx_get_model_id(RELAY_SRV_EL(element_id).onoff_srv_model->meshx_sig,
                                 &model_id);
        if (err)
        {
            MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Failed to get model ID (err: 0x%x)", err);
            return err;
        }

        if (model_id == MESHX_MODEL_ID_GEN_ONOFF_SRV)
        {
            err = meshx_gen_on_off_srv_state_restore(RELAY_SRV_EL(element_id).onoff_srv_model->meshx_sig,
                                                     el_ctx->state);
            if (err)
            {
                MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Failed to restore on-off server state (err: 0x%x)", err);
                return err;
            }
        }
    }
    return err;
}

Here is the call graph for this function:

Here is the caller graph for this function:

REG_MESHX_ELEMENT_FN()

REG_MESHX_ELEMENT_FN	(	relay_srv_el	,
		MESHX_ELEMENT_TYPE_RELAY_SERVER	,
		meshx_create_relay_elements	)

Here is the call graph for this function:

relay_prov_control_task_handler()

static meshx_err_t relay_prov_control_task_handler ( dev_struct_t const * pdev, control_task_msg_evt_t evt, void const * params )

static

Callback function for relay server model events for Provisioning events.

Parameters

[in]	pdev	Pointer to the device structure.
[in]	evt	Relay server event type.
[in]	params	Pointer to the parameters for the event.

Returns

MESHX_SUCCESS on success, error code otherwise.

Definition at line 396 of file meshx_relay_server.c.

{
    MESHX_UNUSED(params);

    size_t rel_el_id = 0;
    meshx_gen_srv_cb_param_t gen_srv_send;
    meshx_err_t err = MESHX_SUCCESS;

    switch (evt)
    {
        case CONTROL_TASK_MSG_EVT_EN_NODE_PROV:
            for (size_t el_id = relay_element_init_ctrl.element_id_start; el_id < relay_element_init_ctrl.element_id_end; el_id++)
            {
                rel_el_id = GET_RELATIVE_EL_IDX(el_id);

                err = meshx_gen_on_off_srv_send_pack_create(
                    RELAY_SRV_EL(rel_el_id).onoff_srv_model->meshx_sig,
                    (uint16_t)el_id,
                    pdev->meshx_store.net_key_id,
                    RELAY_SRV_EL(rel_el_id).srv_ctx->app_id,
                    RELAY_SRV_EL(rel_el_id).srv_ctx->pub_addr,
                    RELAY_SRV_EL(rel_el_id).srv_ctx->state.on_off,
                    &gen_srv_send
                );

                if ((err != MESHX_SUCCESS)
                || (gen_srv_send.ctx.dst_addr == MESHX_ADDR_UNASSIGNED)
                || (gen_srv_send.ctx.app_idx == MESHX_KEY_UNUSED))
                {
                    continue;
                }

                err = meshx_gen_srv_send_msg_to_ble(
                    CONTROL_TASK_MSG_EVT_TO_BLE_SET_ON_OFF_SRV,
                    &gen_srv_send
                );
                if (err)
                {
                    MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Failed to send ONOFF status message (Err: %x)", err);
                    return err;
                }
            }
            break;

        default:
            MESHX_LOGW(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Unhandled event: %d", evt);
            break;
    }
    return MESHX_SUCCESS;
}

Here is the call graph for this function:

Here is the caller graph for this function:

relay_server_config_srv_cb()

static meshx_err_t relay_server_config_srv_cb ( const dev_struct_t * pdev, control_task_msg_evt_t evt, const meshx_config_srv_cb_param_t * params )

static

Callback function for configuration server events.

This function handles events from the configuration server, such as model publication and application binding events.

Parameters

[in]	pdev	Pointer to device struct
[in]	evt	Configuration event type.
[in]	params	Pointer to the callback parameter structure.

Returns

MESHX_SUCCESS on success, an error code otherwise.

Definition at line 67 of file meshx_relay_server.c.

{
    MESHX_UNUSED(pdev);
    meshx_relay_srv_model_ctx_t *el_ctx = NULL;
    size_t rel_el_id = 0;
    uint16_t element_id = 0;
    uint16_t base_el_id = 0;
    bool nvs_save = false;
    meshx_get_base_element_id(&base_el_id);
    MESHX_LOGD(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "EVT: %d", evt);
    switch (evt)
    {
    case CONTROL_TASK_MSG_EVT_APP_KEY_BIND:
        element_id = params->state_change.mod_app_bind.element_addr - base_el_id;
        MESHX_LOGD(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "ele: %d", element_id);
        if (!IS_EL_IN_RANGE(element_id))
            break;
        rel_el_id = GET_RELATIVE_EL_IDX(element_id);
        el_ctx = RELAY_SRV_EL(rel_el_id).srv_ctx;
        el_ctx->app_id = params->state_change.appkey_add.app_idx;
        nvs_save = true;
        break;
    case CONTROL_TASK_MSG_EVT_PUB_ADD:
    case CONTROL_TASK_MSG_EVT_PUB_DEL:
        element_id = params->state_change.mod_pub_set.element_addr - base_el_id;
        MESHX_LOGD(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "ele: %d", element_id);
        if (!IS_EL_IN_RANGE(element_id))
            break;
        rel_el_id = GET_RELATIVE_EL_IDX(element_id);
        el_ctx = RELAY_SRV_EL(rel_el_id).srv_ctx;
        el_ctx->pub_addr = evt == CONTROL_TASK_MSG_EVT_PUB_ADD ? params->state_change.mod_pub_set.pub_addr
                                                               : MESHX_ADDR_UNASSIGNED;
        el_ctx->app_id = params->state_change.mod_pub_set.app_idx;
        MESHX_LOGI(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "PUB_ADD: %d, %d, 0x%X, 0x%X", element_id, rel_el_id, el_ctx->pub_addr, el_ctx->app_id);
        nvs_save = true;
        break;
    default:
        break;
    }
    if (nvs_save)
    {
        meshx_err_t err = meshx_nvs_element_ctx_set(element_id, el_ctx, sizeof(meshx_relay_srv_model_ctx_t));
        if (err != MESHX_SUCCESS)
        {
            MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Failed to set relay server element context: (%d)", err);
        }
    }
    return MESHX_SUCCESS;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

relay_element_init_ctrl

meshx_relay_element_ctrl_t relay_element_init_ctrl

static

Structure to manage relay element initialization.

Definition at line 51 of file meshx_relay_server.c.
