Header file for the Relay Server Model. More...

#include "meshx_common.h"
#include "meshx_onoff_server.h"

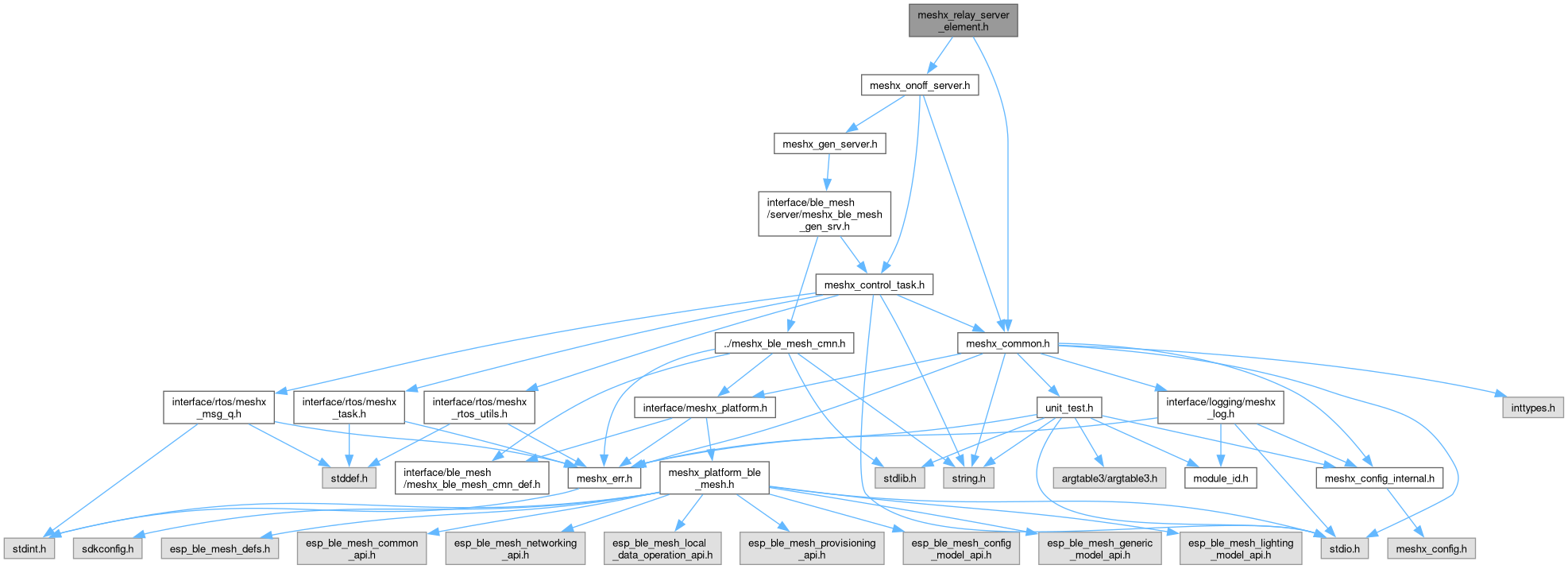

Include dependency graph for meshx_relay_server_element.h:

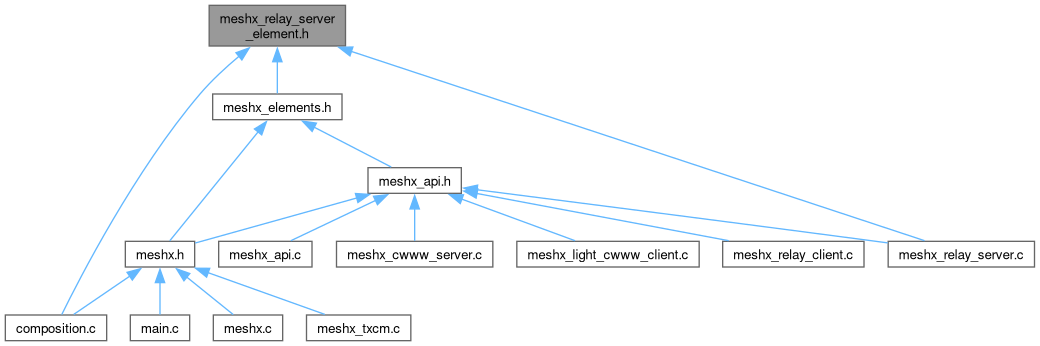

This graph shows which files directly or indirectly include this file:

Data Structures
struct	meshx_relay_srv_model_ctx
	Structure to hold the relay server save restore context. More...

struct	meshx_relay_element
	Structure to manage relay element models. More...

struct	meshx_relay_element_ctrl
	Structure to manage relay element initialization. More...

Macros
#define	RELAY_SRV_MODEL_SIG_CNT RELAY_SIG_MAX_ID

#define	RELAY_SRV_MODEL_VEN_CNT 0

Typedefs
typedef struct meshx_relay_srv_model_ctx	meshx_relay_srv_model_ctx_t
	Structure to hold the relay server save restore context.

typedef struct meshx_relay_element	meshx_relay_element_t
	Structure to manage relay element models.

typedef struct meshx_relay_element_ctrl	meshx_relay_element_ctrl_t
	Structure to manage relay element initialization.

Enumerations
enum	relay_sig_id_t { RELAY_SIG_ONOFF_MODEL_ID , RELAY_SIG_MAX_ID }

Functions
meshx_err_t	meshx_create_relay_elements (dev_struct_t *pdev, uint16_t element_cnt)
	Create Dynamic Relay Model Elements.

Detailed Description

Header file for the Relay Server Model.

This file contains the definitions and function prototypes for the Relay Server Model. The Relay Server Model is responsible for managing the relay elements and their states.

Author: Pranjal Chanda

Definition in file meshx_relay_server_element.h.

Macro Definition Documentation

◆ RELAY_SRV_MODEL_SIG_CNT

#define RELAY_SRV_MODEL_SIG_CNT RELAY_SIG_MAX_ID

No of SIG models in a relay model element

Definition at line 20 of file meshx_relay_server_element.h.

◆ RELAY_SRV_MODEL_VEN_CNT

#define RELAY_SRV_MODEL_VEN_CNT 0

No of VEN models in a relay model element

Definition at line 21 of file meshx_relay_server_element.h.

Typedef Documentation

◆ meshx_relay_element_ctrl_t

typedef struct meshx_relay_element_ctrl meshx_relay_element_ctrl_t

Structure to manage relay element initialization.

◆ meshx_relay_element_t

typedef struct meshx_relay_element meshx_relay_element_t

Structure to manage relay element models.

◆ meshx_relay_srv_model_ctx_t

typedef struct meshx_relay_srv_model_ctx meshx_relay_srv_model_ctx_t

Structure to hold the relay server save restore context.

Enumeration Type Documentation

◆ relay_sig_id_t

enum relay_sig_id_t

Enumerator
RELAY_SIG_ONOFF_MODEL_ID	On/Off model ID
RELAY_SIG_MAX_ID	Maximum model ID

Definition at line 23 of file meshx_relay_server_element.h.

{
    RELAY_SIG_ONOFF_MODEL_ID,
    RELAY_SIG_MAX_ID,
} relay_sig_id_t;

Function Documentation

◆ meshx_create_relay_elements()

meshx_err_t meshx_create_relay_elements	(	dev_struct_t *	pdev,
		uint16_t	element_cnt )

Create Dynamic Relay Model Elements.

Parameters

[in]	pdev	Pointer to device structure
[in]	element_cnt	Maximum number of relay models

Returns: meshx_err_t

Definition at line 497 of file meshx_relay_server.c.

{
    meshx_err_t err;
    err = meshx_dev_create_relay_model_space(element_cnt);
    if (err)
    {
        MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Relay Model create failed: (%d)", err);
        return err;
    }
    err = meshx_add_relay_srv_model_to_element_list(pdev, (uint16_t *)&pdev->element_idx, element_cnt);
    if (err)
    {
        MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Relay Model create failed: (%d)", err);
        return err;
    }
#if CONFIG_ENABLE_CONFIG_SERVER
    err = meshx_config_server_cb_reg(
        (config_srv_cb_t)&relay_server_config_srv_cb,
        CONFIG_SERVER_CB_MASK);
    if (err)
    {
        MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Relay Model configserver callback reg failed: (%d)", err);
        return err;
    }
#endif /* CONFIG_ENABLE_CONFIG_SERVER */
    err = control_task_msg_subscribe(
        CONTROL_TASK_MSG_CODE_EL_STATE_CH,
        CONTROL_TASK_EVT_MASK,
        (control_task_msg_handle_t)&meshx_api_control_task_handler);
    if (err)
    {
        MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Failed to register control task callback: (%d)", err);
        return err;
    }

    err = meshx_prov_srv_reg_el_server_cb((prov_srv_cb_t)&relay_prov_control_task_handler);
    if (err)
    {
        MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Failed to register control task callback: (%d)", err);
        return err;
    }
    err = control_task_msg_subscribe(
        CONTROL_TASK_MSG_CODE_TO_BLE,
        CONTROL_TASK_MSG_EVT_TO_BLE_GEN_SRV_MASK,
        (control_task_msg_handle_t)&meshx_relay_srv_msg_send_handler);
    if (err)
    {
        MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "Failed to register control task callback: (%d)", err);
        return err;
    }
    err = meshx_on_off_server_init();
    if (err)
    {
        MESHX_LOGE(MODULE_ID_ELEMENT_SWITCH_RELAY_SERVER, "meshx_on_off_server_init failed: (%d)", err);
        return err;
    }
    return MESHX_SUCCESS;
}

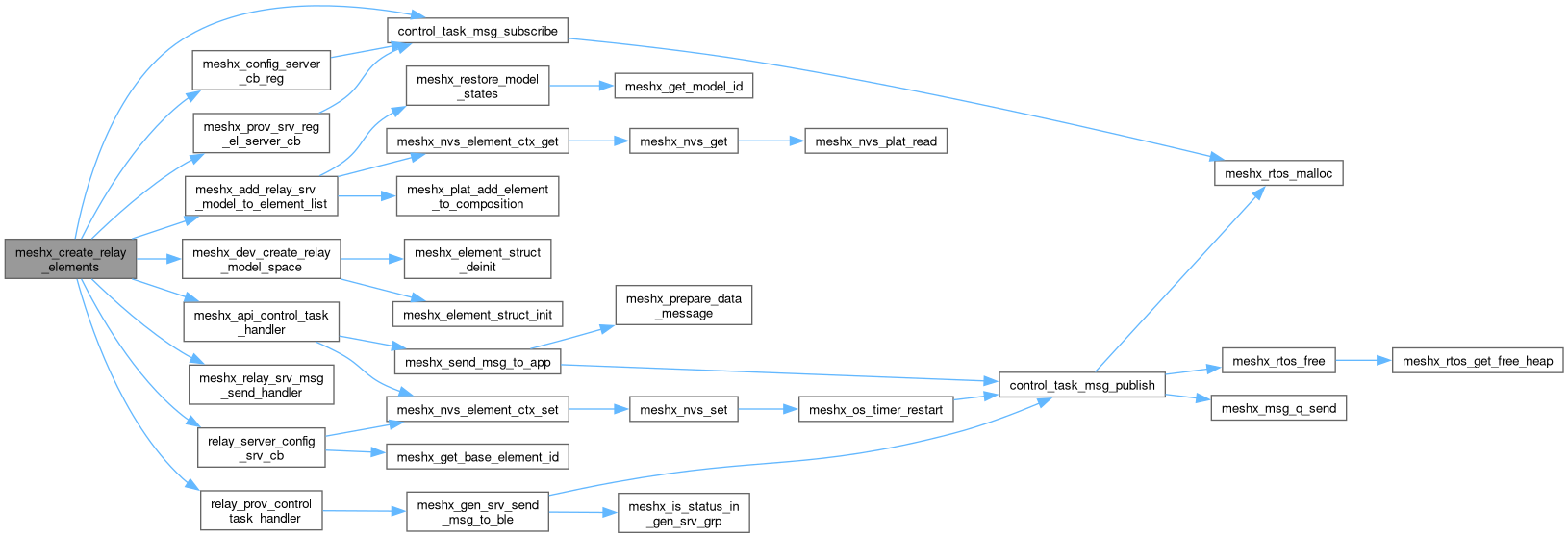

Here is the call graph for this function:

Here is the caller graph for this function:
