Structure representing a CW-WW element in the BLE mesh network. More...

#include <meshx_cwww_server_element.h>

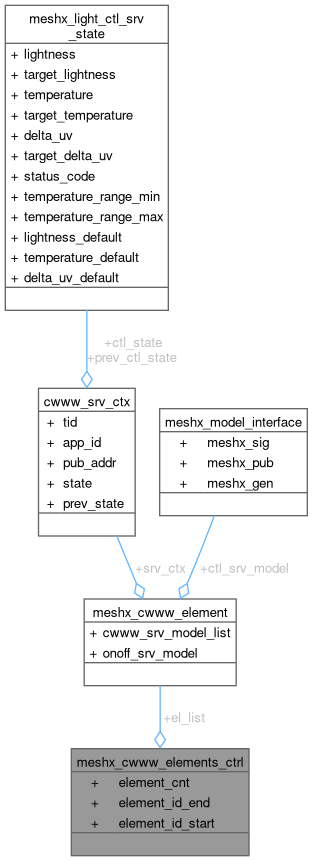

Collaboration diagram for meshx_cwww_elements_ctrl:

Data Fields
size_t	element_cnt

size_t	element_id_end

size_t	element_id_start

meshx_cwww_element_t *	el_list

Detailed Description

Structure representing a CW-WW element in the BLE mesh network.

This structure contains all the necessary context and configuration for controlling a CW-WW (Cool White - Warm White) light element in a BLE mesh network.

Definition at line 67 of file meshx_cwww_server_element.h.

Field Documentation

◆ el_list

meshx_cwww_element_t* meshx_cwww_elements_ctrl::el_list

Pointer to element list

Definition at line 72 of file meshx_cwww_server_element.h.

◆ element_cnt

size_t meshx_cwww_elements_ctrl::element_cnt

Number of relay elements

Definition at line 69 of file meshx_cwww_server_element.h.

◆ element_id_end

size_t meshx_cwww_elements_ctrl::element_id_end

Ending ID of the element

Definition at line 70 of file meshx_cwww_server_element.h.

◆ element_id_start

size_t meshx_cwww_elements_ctrl::element_id_start

Starting ID of the element

Definition at line 71 of file meshx_cwww_server_element.h.

The documentation for this struct was generated from the following file:
