meshx_light_ctl_client.c File Reference

Implementation of the Light CTL Client model for ESP32 BLE Mesh. More...

#include "meshx_err.h"
#include "meshx_light_ctl_client.h"

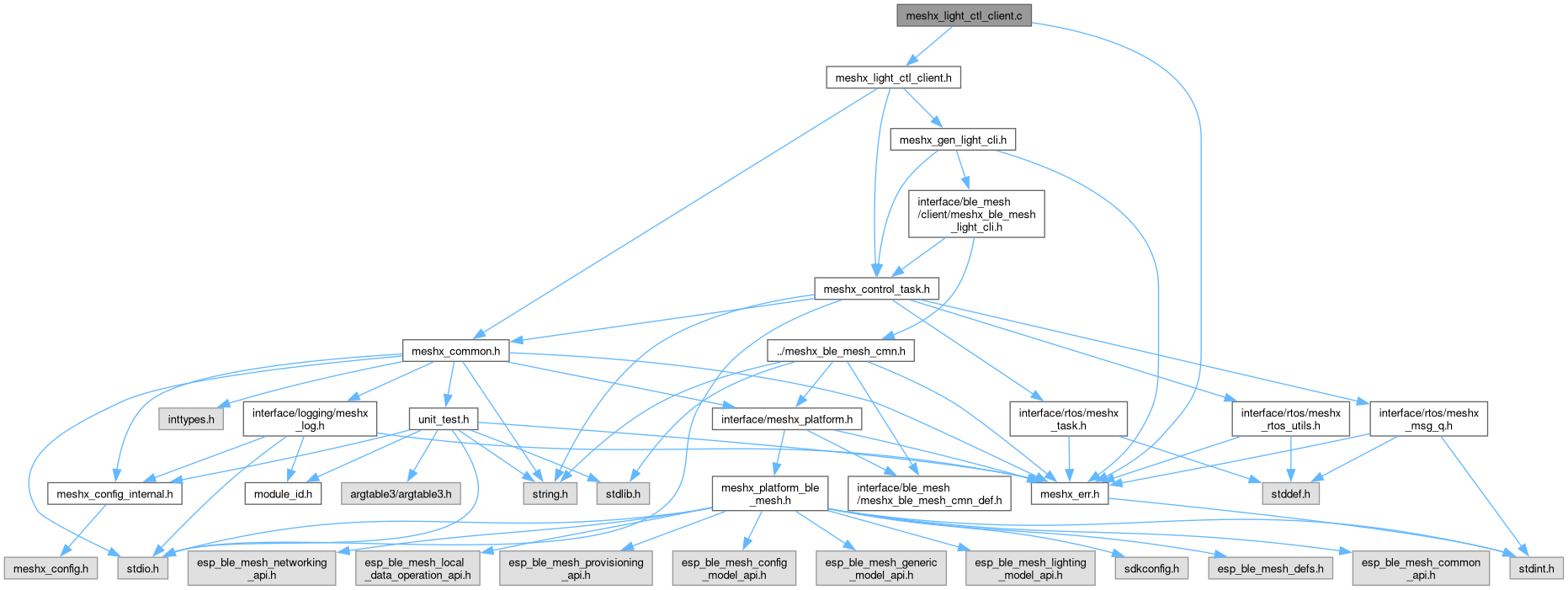

Include dependency graph for meshx_light_ctl_client.c:

Go to the source code of this file.

Macros
#define	LIGHT_CTL_CLIENT_INIT_MAGIC   0x8932

Functions
static meshx_err_t	meshx_ctl_state_change_notify (const meshx_gen_light_cli_cb_param_t *param, uint8_t status)
	Notifies about a change in the CTL (Color Temperature Lightness) state.
static meshx_err_t	meshx_handle_gen_light_msg (const dev_struct_t *pdev, control_task_msg_evt_t model_id, const meshx_gen_light_cli_cb_param_t *param)
	Handles generic light model messages for the Light CTL client.
meshx_err_t	meshx_light_ctl_client_init ()
	Initialize the Light CTL Client model.
meshx_err_t	meshx_light_ctl_client_create (meshx_light_ctl_client_model_t **p_model, void *p_sig_model)
	Creates and initializes a Generic Light Client model instance.
meshx_err_t	meshx_light_ctl_client_delete (meshx_light_ctl_client_model_t **p_model)
	Delete the Light client model instance.
meshx_err_t	meshx_light_ctl_client_send_msg (meshx_gen_ctl_send_params_t *params)
	Sends a Light CTL (Color Temperature Lightness) message from the Light CTL Client model.
meshx_err_t	meshx_light_ctl_temperature_client_send_msg (meshx_gen_ctl_send_params_t *params)
	Sends a Light CTL Temperature message from the client model.
meshx_err_t	meshx_light_ctl_temp_range_client_send_msg (meshx_gen_ctl_send_params_t *params)
	Sends a Light CTL Temperature Range message from the client model.
meshx_err_t	meshx_light_ctl_state_change_handle (const meshx_ctl_cli_el_msg_t *param, meshx_ctl_el_state_t *p_ctl_prev_state, const meshx_ctl_el_state_t *p_ctl_next_state)
	Handles state changes for the Light CTL client element.

Variables
static uint16_t	light_ctl_client_init_flag = 0

Detailed Description

Implementation of the Light CTL Client model for ESP32 BLE Mesh.

Copyright © 2024 - 2025 MeshX

This file contains the implementation of the Light CTL Client model, including initialization, callback registration, and event handling.

Author

Pranjal Chanda

Definition in file meshx_light_ctl_client.c.

Macro Definition Documentation

LIGHT_CTL_CLIENT_INIT_MAGIC

#define LIGHT_CTL_CLIENT_INIT_MAGIC   0x8932

Definition at line 16 of file meshx_light_ctl_client.c.

Function Documentation

meshx_ctl_state_change_notify()

static meshx_err_t meshx_ctl_state_change_notify ( const meshx_gen_light_cli_cb_param_t * param, uint8_t status )

static

Notifies about a change in the CTL (Color Temperature Lightness) state.

This function is called to notify the application or upper layers when the CTL state of a light device has changed. It provides the relevant parameters describing the new state.

Parameters

[in]	param	Pointer to a structure containing the CTL state change parameters.
[in]	status	Status code indicating the result of the notification operation.

Returns

meshx_err_t Returns an error code indicating the result of the notification operation.

Definition at line 33 of file meshx_light_ctl_client.c.

{
    if (!param)
        return MESHX_INVALID_ARG;

    meshx_ctl_cli_el_msg_t el_light_ctl_param = {
        .err_code = status,
        .ctx = param->ctx,
        .model = param->model
    };
    switch (param->ctx.opcode)
    {
    case MESHX_MODEL_OP_LIGHT_CTL_STATUS:
        el_light_ctl_param.ctl_state.lightness = param->status.ctl_status.present_ctl_lightness;
        el_light_ctl_param.ctl_state.temperature = param->status.ctl_status.present_ctl_temperature;
        break;
    case MESHX_MODEL_OP_LIGHT_CTL_TEMPERATURE_STATUS:
        el_light_ctl_param.ctl_state.delta_uv = param->status.ctl_temperature_status.present_ctl_delta_uv;
        el_light_ctl_param.ctl_state.temperature = param->status.ctl_temperature_status.present_ctl_temperature;
        break;
    case MESHX_MODEL_OP_LIGHT_CTL_TEMPERATURE_RANGE_STATUS:
        el_light_ctl_param.ctl_state.delta_uv = param->status.ctl_temperature_range_status.range_max;
        el_light_ctl_param.ctl_state.temperature = param->status.ctl_temperature_range_status.range_min;
        break;
    case MESHX_MODEL_OP_LIGHT_CTL_DEFAULT_STATUS:
        el_light_ctl_param.ctl_state.delta_uv = param->status.ctl_default_status.delta_uv;
        el_light_ctl_param.ctl_state.lightness = param->status.ctl_default_status.lightness;
        el_light_ctl_param.ctl_state.temperature = param->status.ctl_default_status.temperature;
        break;

    default:
        break;
    }
    if(param->evt == MESHX_GEN_LIGHT_CLI_TIMEOUT)
    {
        el_light_ctl_param.err_code = MESHX_TIMEOUT;
    }

    return control_task_msg_publish(
        CONTROL_TASK_MSG_CODE_EL_STATE_CH,
        CONTROL_TASK_MSG_EVT_EL_STATE_CH_SET_CTL,
        &el_light_ctl_param,
        sizeof(meshx_ctl_cli_el_msg_t));

}

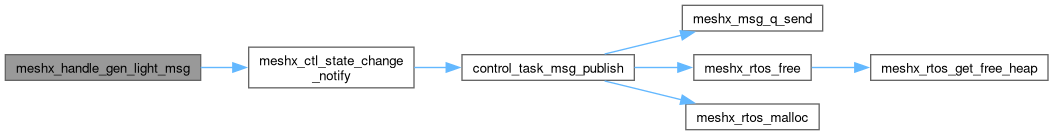

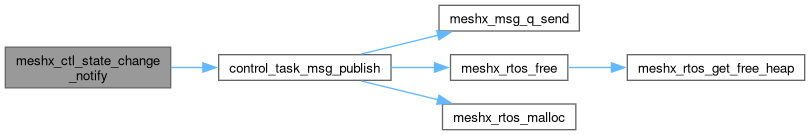

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_handle_gen_light_msg()

static meshx_err_t meshx_handle_gen_light_msg ( const dev_struct_t * pdev, control_task_msg_evt_t model_id, const meshx_gen_light_cli_cb_param_t * param )

static

Handles generic light model messages for the Light CTL client.

This function processes incoming messages related to the generic light model and performs the necessary actions based on the message event and parameters.

Parameters

[in]	pdev	Pointer to the device structure containing device-specific information.
[in]	model_id	Identifier for the control task message event associated with the model.
[in,out]	param	Pointer to the callback parameter structure for the generic light client.

Returns

meshx_err_t Error code indicating the result of the operation.

Definition at line 91 of file meshx_light_ctl_client.c.

{
    if (model_id != MESHX_MODEL_ID_LIGHT_CTL_CLI || !pdev || !param)
        return MESHX_INVALID_ARG;

    MESHX_LOGD(MODULE_ID_MODEL_SERVER, "op|src|dst:%04" PRIx32 "|%04x|%04x",
               param->ctx.opcode, param->ctx.src_addr, param->ctx.dst_addr);
    meshx_err_t err = param->evt == MESHX_GEN_LIGHT_CLI_TIMEOUT ?
        meshx_ctl_state_change_notify(param, MESHX_TIMEOUT):
        meshx_ctl_state_change_notify(param, MESHX_SUCCESS);

    return err;
}

Here is the call graph for this function:

meshx_light_ctl_client_create()

meshx_err_t meshx_light_ctl_client_create	(	meshx_light_ctl_client_model_t **	p_model,
		void *	p_sig_model )

Creates and initializes a Generic Light Client model instance.

This function allocates and sets up a Generic Light Client model, associating it with the provided SIG model context.

Parameters

[out]	p_model	Pointer to a pointer where the created model instance will be stored.
[in]	p_sig_model	Pointer to the SIG model context to associate with the client model.

Returns

meshx_err_t Returns an error code indicating the result of the operation.

• MESHX_OK on success
• Appropriate error code otherwise

Definition at line 157 of file meshx_light_ctl_client.c.

{
    if (!p_model || !p_sig_model)
    {
        return MESHX_INVALID_ARG;
    }

    *p_model = (meshx_light_ctl_client_model_t *)MESHX_CALOC(1, sizeof(meshx_light_ctl_client_model_t));
    if (!*p_model)
    {
        return MESHX_NO_MEM;
    }

    return meshx_plat_light_ctl_client_create(
        p_sig_model,
        &((*p_model)->meshx_pub),
        &((*p_model)->meshx_gen));
}

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_light_ctl_client_delete()

meshx_err_t meshx_light_ctl_client_delete

(

meshx_light_ctl_client_model_t **

p_model

)

Delete the Light client model instance.

This function deletes an instance of the Light client model, freeing associated resources and setting the model pointer to NULL.

Parameters

[in,out]

p_model

Double pointer to the Light client model instance to be deleted.

Returns

• MESHX_SUCCESS: Successfully deleted the model.
• MESHX_INVALID_ARG: Invalid argument provided.

Definition at line 188 of file meshx_light_ctl_client.c.

{
    if (p_model == NULL || *p_model == NULL)
    {
        return MESHX_INVALID_ARG;
    }

    meshx_plat_light_client_delete(
        &((*p_model)->meshx_pub),
        &((*p_model)->meshx_gen)
    );

    MESHX_FREE(*p_model);
    *p_model = NULL;

    return MESHX_SUCCESS;
}

Here is the call graph for this function:

meshx_light_ctl_client_init()

meshx_err_t meshx_light_ctl_client_init

(

)

Initialize the Light CTL Client model.

This function initializes the Light CTL Client model by registering the Light Client callback with the BLE Mesh stack.

Returns

MESHX_SUCCESS on success, or an error code on failure.

Definition at line 117 of file meshx_light_ctl_client.c.

{
    meshx_err_t err = MESHX_SUCCESS;

    if (light_ctl_client_init_flag == LIGHT_CTL_CLIENT_INIT_MAGIC)
        return MESHX_SUCCESS;

    light_ctl_client_init_flag = LIGHT_CTL_CLIENT_INIT_MAGIC;

    err = meshx_gen_light_cli_init();
    if (err)
    {
        MESHX_LOGE(MODULE_ID_MODEL_CLIENT, "Failed to initialize meshx client");
    }

    err = meshx_gen_light_client_from_ble_reg_cb(
        MESHX_MODEL_ID_LIGHT_CTL_CLI,
        (meshx_gen_light_client_cb_t)&meshx_handle_gen_light_msg
    );
    if (err)
    {
        MESHX_LOGE(MODULE_ID_MODEL_CLIENT, "Failed to register Light CTL Client callback: %d", err);
    }

    return err;
}

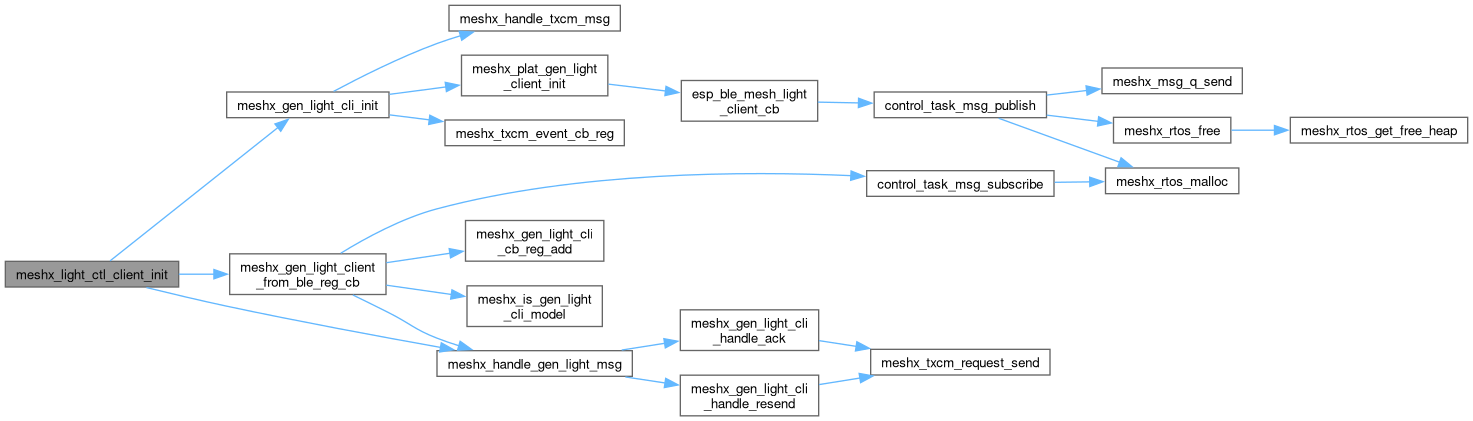

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_light_ctl_client_send_msg()

meshx_err_t meshx_light_ctl_client_send_msg

(

meshx_gen_ctl_send_params_t *

params

)

Sends a Light CTL (Color Temperature Lightness) message from the Light CTL Client model.

This function constructs and sends a Light CTL message to a specified destination address using the provided network and application indices. The message contains the desired lightness, temperature, and a transaction identifier (TID).

Parameters

[in]

params

Pointer to a structure containing the message parameters.

Returns

meshx_err_t Returns the result of the message send operation.

Definition at line 217 of file meshx_light_ctl_client.c.

{
    meshx_light_client_set_state_t set = {0};
    if (!params || !params->model || !params->model->meshx_sig)
    {
        return MESHX_INVALID_ARG; // Invalid model pointer
    }
    meshx_gen_light_client_send_params_t send_params = {
        .state      = &set,
        .addr       = params->addr,
        .opcode     = params->opcode,
        .app_idx    = params->app_idx,
        .net_idx    = params->net_idx,
        .model      = params->model->meshx_sig,
    };

    if (params->opcode == MESHX_MODEL_OP_LIGHT_CTL_GET)
    {
        MESHX_DO_NOTHING;
    }
    else if (params->opcode == MESHX_MODEL_OP_LIGHT_CTL_SET ||
             params->opcode == MESHX_MODEL_OP_LIGHT_CTL_SET_UNACK)
    {
        set.ctl_set.op_en           = false;
        set.ctl_set.tid             = params->tid;
        set.ctl_set.ctl_delta_uv    = params->delta_uv;
        set.ctl_set.ctl_lightness   = params->lightness;
        set.ctl_set.ctl_temperature = params->temperature;
    }
    else{
        MESHX_LOGE(MODULE_ID_MODEL_CLIENT, "Invalid opcode for Light CTL Client: %04x", params->opcode);
        return MESHX_INVALID_ARG;
    }
    return meshx_gen_light_send_msg(&send_params);
}

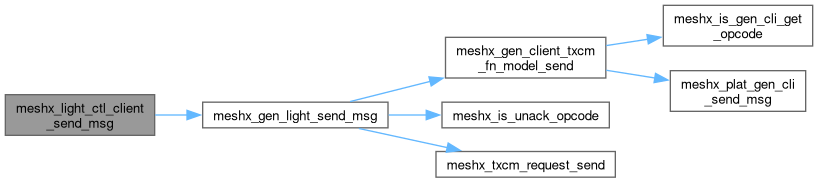

Here is the call graph for this function:

meshx_light_ctl_state_change_handle()

meshx_err_t meshx_light_ctl_state_change_handle	(	const meshx_ctl_cli_el_msg_t *	param,
		meshx_ctl_el_state_t *	p_ctl_prev_state,
		const meshx_ctl_el_state_t *	p_ctl_next_state )

Handles state changes for the Light CTL client element.

This function processes state change events for the Light CTL client element.

Parameters

[in]	param	Pointer to the message structure containing the state change parameters.
[in,out]	p_ctl_prev_state	Pointer to the previous state structure.
[in,out]	p_ctl_next_state	Pointer to the next state structure (currently unused).

Returns

meshx_err_t Returns an error code indicating the result of the handler execution.

Definition at line 357 of file meshx_light_ctl_client.c.

{
    if (!p_ctl_prev_state || !param || !p_ctl_next_state)
        return MESHX_INVALID_ARG;

    /* Kept for future use */
    MESHX_UNUSED(p_ctl_next_state);
    bool state_change = false;
    if(param->err_code == MESHX_SUCCESS)
    {
        if (param->ctx.opcode == MESHX_MODEL_OP_LIGHT_CTL_STATUS)
        {
            if (p_ctl_prev_state->lightness != param->ctl_state.lightness
            || p_ctl_prev_state->temperature != param->ctl_state.temperature
            )
            {
                p_ctl_prev_state->lightness = param->ctl_state.lightness;
                p_ctl_prev_state->temperature = param->ctl_state.temperature;
                state_change = true;
            }
        }
        else if (param->ctx.opcode == MESHX_MODEL_OP_LIGHT_CTL_TEMPERATURE_STATUS)
        {
            if(p_ctl_prev_state->delta_uv != param->ctl_state.delta_uv
            || p_ctl_prev_state->temperature != param->ctl_state.temperature)
            {
                p_ctl_prev_state->delta_uv = param->ctl_state.delta_uv;
                p_ctl_prev_state->temperature = param->ctl_state.temperature;
                state_change = true;
            }
        }
        else if (param->ctx.opcode == MESHX_MODEL_OP_LIGHT_CTL_TEMPERATURE_RANGE_STATUS)
        {
            if (p_ctl_prev_state->temp_range_max != param->ctl_state.temp_range_max
            ||  p_ctl_prev_state->temp_range_min != param->ctl_state.temp_range_min)
            {
                p_ctl_prev_state->temp_range_max = param->ctl_state.temp_range_max;
                p_ctl_prev_state->temp_range_min = param->ctl_state.temp_range_min;
                state_change = true;
            }
        }
        else if (param->ctx.opcode == MESHX_MODEL_OP_LIGHT_CTL_DEFAULT_STATUS)
        {
            MESHX_DO_NOTHING;
        }
        else
        {
            /* Return as No CTL related OPCode were received */
            MESHX_DO_NOTHING;
        }
    }
    else
    {
        MESHX_LOGE(MODULE_ID_MODEL_CLIENT, "CWWW Client Element Message: Error (%d)", param->err_code);
        /* Retry sending the failed packet done by MeshX Light CTL Layer. Do not notify App */
        MESHX_DO_NOTHING;
    }
    return state_change ? MESHX_SUCCESS : MESHX_INVALID_STATE;
}

meshx_light_ctl_temp_range_client_send_msg()

meshx_err_t meshx_light_ctl_temp_range_client_send_msg

(

meshx_gen_ctl_send_params_t *

params

)

Sends a Light CTL Temperature Range message from the client model.

This function constructs and sends a Light CTL Temperature Range message to a specified address using the provided network and application indices. It allows the client to set or get the temperature range of a lighting element in a mesh network.

Parameters

[in]

params

Pointer to a structure containing the message parameters.

Returns

meshx_err_t Result of the message send operation.

Definition at line 312 of file meshx_light_ctl_client.c.

{
    meshx_light_client_set_state_t set = {0};
    if (!params || !params->model || !params->model->meshx_sig)
    {
        return MESHX_INVALID_ARG; // Invalid model pointer
    }
    meshx_gen_light_client_send_params_t send_params = {
        .state      = &set,
        .addr       = params->addr,
        .opcode     = params->opcode,
        .app_idx    = params->app_idx,
        .net_idx    = params->net_idx,
        .model      = params->model->meshx_sig,
    };

    if(params->opcode == MESHX_MODEL_OP_LIGHT_CTL_TEMPERATURE_RANGE_GET)
    {
        MESHX_DO_NOTHING;
    }
    if (params->opcode == MESHX_MODEL_OP_LIGHT_CTL_TEMPERATURE_RANGE_SET ||
        params->opcode == MESHX_MODEL_OP_LIGHT_CTL_TEMPERATURE_RANGE_SET_UNACK)
    {
        set.ctl_temperature_range_set.range_min = params->temp_range_min;
        set.ctl_temperature_range_set.range_max = params->temp_range_max;
    }
    else{
        MESHX_LOGE(MODULE_ID_MODEL_CLIENT, "Invalid opcode for Light CTL Client: %04x", params->opcode);
        return MESHX_INVALID_ARG;
    }

    return meshx_gen_light_send_msg(&send_params);
}

Here is the call graph for this function:

meshx_light_ctl_temperature_client_send_msg()

meshx_err_t meshx_light_ctl_temperature_client_send_msg

(

meshx_gen_ctl_send_params_t *

params

)

Sends a Light CTL Temperature message from the client model.

This function constructs and sends a Light CTL Temperature message to a specified address using the provided network and application indices. It allows the client to control the color temperature and delta UV of a lighting element in a mesh network.

Parameters

[in]

params

Pointer to a structure containing the message parameters.

Returns

meshx_err_t Result of the message send operation.

Definition at line 264 of file meshx_light_ctl_client.c.

{
    meshx_light_client_set_state_t set = {0};
    if (!params || !params->model || !params->model->meshx_sig)
    {
        return MESHX_INVALID_ARG; // Invalid model pointer
    }
    meshx_gen_light_client_send_params_t send_params = {
        .state      = &set,
        .addr       = params->addr,
        .opcode     = params->opcode,
        .app_idx    = params->app_idx,
        .net_idx    = params->net_idx,
        .model      = params->model->meshx_sig,
    };

    if (params->opcode == MESHX_MODEL_OP_LIGHT_CTL_TEMPERATURE_GET)
    {
        MESHX_DO_NOTHING;
    }
    else if (params->opcode == MESHX_MODEL_OP_LIGHT_CTL_TEMPERATURE_SET ||
             params->opcode == MESHX_MODEL_OP_LIGHT_CTL_TEMPERATURE_SET_UNACK)
    {
        set.ctl_temperature_set.op_en           = false;
        set.ctl_temperature_set.tid             = params->tid;
        set.ctl_temperature_set.ctl_delta_uv    = params->delta_uv;
        set.ctl_temperature_set.ctl_temperature = params->temperature;

    }
    else{
        MESHX_LOGE(MODULE_ID_MODEL_CLIENT, "Invalid opcode for Light CTL Client: %04x", params->opcode);
        return MESHX_INVALID_ARG;
    }

    return meshx_gen_light_send_msg(&send_params);
}

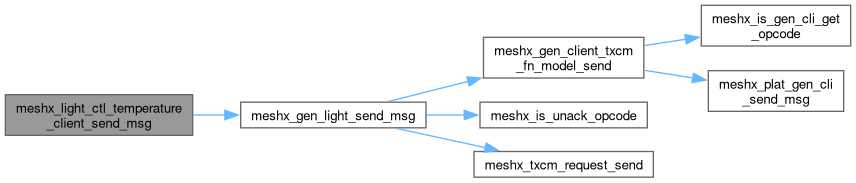

Here is the call graph for this function:

Variable Documentation

light_ctl_client_init_flag

uint16_t light_ctl_client_init_flag = 0

static

Definition at line 20 of file meshx_light_ctl_client.c.
