meshx_ble_mesh_light_cli.h File Reference

Header file for BLE Mesh Light Client functionality in the MeshX framework. This file contains declarations and includes required for implementing BLE Mesh Light Client operations. More...

#include "../meshx_ble_mesh_cmn.h"
#include "meshx_control_task.h"

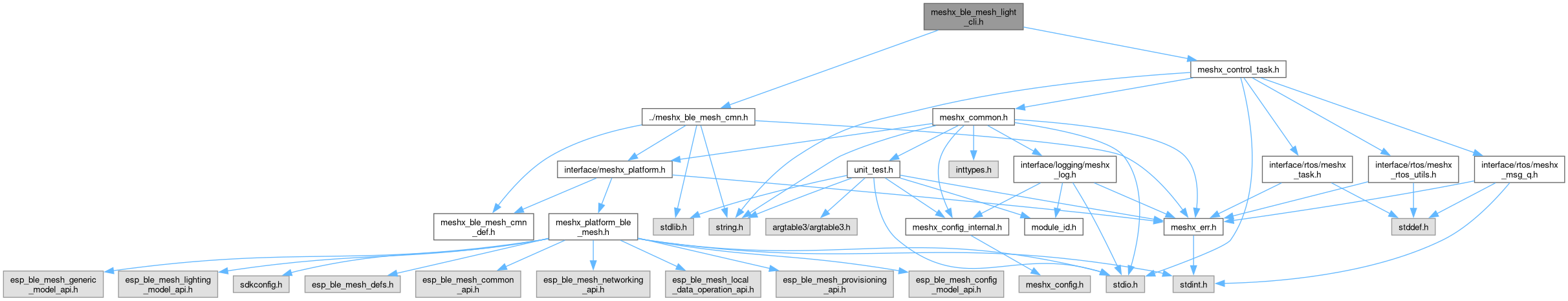

Include dependency graph for meshx_ble_mesh_light_cli.h:

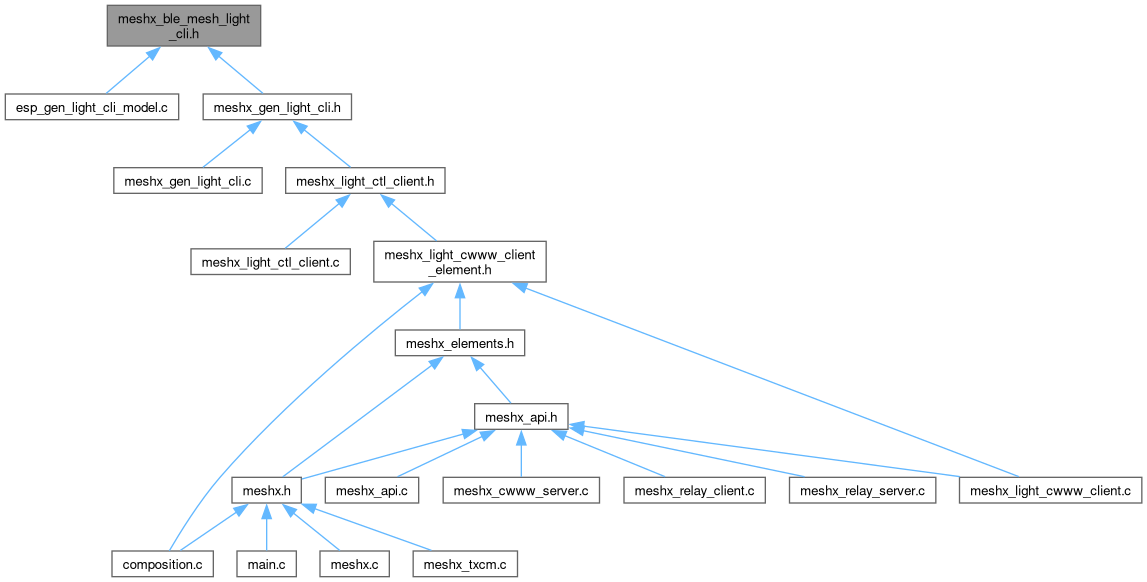

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	meshx_light_lightness_set_t
	Bluetooth Mesh Light Lightness Client Model Get and Set parameters structure. More...
struct	meshx_light_lightness_linear_set_t
struct	meshx_light_lightness_default_set_t
struct	meshx_light_lightness_range_set_t
struct	meshx_light_ctl_set_t
struct	meshx_light_ctl_temperature_set_t
struct	meshx_light_ctl_temperature_range_set_t
struct	meshx_light_ctl_default_set_t
struct	meshx_light_hsl_set_t
struct	meshx_light_hsl_hue_set_t
struct	meshx_light_hsl_saturation_set_t
struct	meshx_light_hsl_default_set_t
struct	meshx_light_hsl_range_set_t
struct	meshx_light_xyl_set_t
struct	meshx_light_xyl_default_set_t
struct	meshx_light_xyl_range_set_t
struct	meshx_light_lc_mode_set_t
struct	meshx_light_lc_om_set_t
struct	meshx_light_lc_light_onoff_set_t
struct	meshx_light_lc_property_get_t
struct	meshx_light_lc_property_set_t
union	meshx_light_client_get_state_t
	Lighting Client Model get message union. More...
union	meshx_light_client_set_state_t
	Lighting Client Model set message union. More...
struct	meshx_light_lightness_status_cb_t
	Bluetooth Mesh Light Lightness Client Model Get and Set callback parameters structure. More...
struct	meshx_light_lightness_linear_status_cb_t
struct	meshx_light_lightness_last_status_cb_t
struct	meshx_light_lightness_default_status_cb_t
struct	meshx_light_lightness_range_status_cb_t
struct	meshx_light_ctl_status_cb_t
struct	meshx_light_ctl_temperature_status_cb_t
struct	meshx_light_ctl_temperature_range_status_cb_t
struct	meshx_light_ctl_default_status_cb_t
struct	meshx_light_hsl_status_cb_t
struct	meshx_light_hsl_target_status_cb_t
struct	meshx_light_hsl_hue_status_cb_t
struct	meshx_light_hsl_saturation_status_cb_t
struct	meshx_light_hsl_default_status_cb_t
struct	meshx_light_hsl_range_status_cb_t
struct	meshx_light_xyl_status_cb_t
struct	meshx_light_xyl_target_status_cb_t
struct	meshx_light_xyl_default_status_cb_t
struct	meshx_light_xyl_range_status_cb_t
struct	meshx_light_lc_mode_status_cb_t
struct	meshx_light_lc_om_status_cb_t
struct	meshx_light_lc_light_onoff_status_cb_t
struct	meshx_light_lc_property_status_cb_t
union	meshx_gen_light_client_status_cb_t
struct	meshx_gen_light_cli_cb_param
	Callback parameters for Generic Light Client Model events. This structure is used to pass information about the received messages and their context to the application. It includes the context, model pointer, event type, and status values. The status values are encapsulated in a union to handle different types of status messages that the Generic Light Client Model can receive. Each status type corresponds to a specific operation code (opcode) defined in the BLE Mesh specification, allowing the application to handle them appropriately. More...

Typedefs
typedef control_task_msg_handle_t	meshx_gen_light_client_cb_t
typedef struct meshx_gen_light_cli_cb_param	meshx_gen_light_cli_cb_param_t
	Callback parameters for Generic Light Client Model events. This structure is used to pass information about the received messages and their context to the application. It includes the context, model pointer, event type, and status values. The status values are encapsulated in a union to handle different types of status messages that the Generic Light Client Model can receive. Each status type corresponds to a specific operation code (opcode) defined in the BLE Mesh specification, allowing the application to handle them appropriately.

Enumerations
enum	meshx_gen_light_cli_evt_t {   MESHX_GEN_LIGHT_CLI_EVT_GET = MESHX_BIT(0) ,   MESHX_GEN_LIGHT_CLI_EVT_SET = MESHX_BIT(1) ,   MESHX_GEN_LIGHT_CLI_PUBLISH = MESHX_BIT(2) ,   MESHX_GEN_LIGHT_CLI_TIMEOUT = MESHX_BIT(3) ,   MESHX_GEN_LIGHT_CLI_EVT_ALL }

Functions
meshx_err_t	meshx_plat_gen_light_client_init (void)
	Initialize the Generic Light Client Model. This function sets up the necessary parameters and resources for the Generic Light Client Model to operate correctly.
meshx_err_t	meshx_plat_light_ctl_client_create (meshx_ptr_t p_model, meshx_ptr_t *p_pub, meshx_ptr_t *p_light_ctl_cli)
	Creates and initializes a Light CTL (Color Temperature Light) client model instance.
meshx_err_t	meshx_plat_light_client_delete (meshx_ptr_t *p_pub, meshx_ptr_t *p_cli)
	Deletes the Light client instance and its associated publication context.
meshx_err_t	meshx_plat_light_client_send_msg (meshx_ptr_t p_model, meshx_light_client_set_state_t *p_set, uint16_t opcode, uint16_t addr, uint16_t net_idx, uint16_t app_idx, bool is_get_opcode)
	Sends a Light Client message over BLE Mesh.

Detailed Description

Header file for BLE Mesh Light Client functionality in the MeshX framework. This file contains declarations and includes required for implementing BLE Mesh Light Client operations.

Copyright (c) 2024 - 2025 MeshX

Author

Pranjal Chanda

Definition in file meshx_ble_mesh_light_cli.h.

Typedef Documentation

meshx_gen_light_cli_cb_param_t

typedef struct meshx_gen_light_cli_cb_param meshx_gen_light_cli_cb_param_t

Callback parameters for Generic Light Client Model events. This structure is used to pass information about the received messages and their context to the application. It includes the context, model pointer, event type, and status values. The status values are encapsulated in a union to handle different types of status messages that the Generic Light Client Model can receive. Each status type corresponds to a specific operation code (opcode) defined in the BLE Mesh specification, allowing the application to handle them appropriately.

meshx_gen_light_client_cb_t

typedef control_task_msg_handle_t meshx_gen_light_client_cb_t

Definition at line 18 of file meshx_ble_mesh_light_cli.h.

Enumeration Type Documentation

meshx_gen_light_cli_evt_t

enum meshx_gen_light_cli_evt_t

Enumerator
MESHX_GEN_LIGHT_CLI_EVT_GET	MESHX_BIT(0)
MESHX_GEN_LIGHT_CLI_EVT_SET	MESHX_BIT(1)
MESHX_GEN_LIGHT_CLI_PUBLISH	MESHX_BIT(2)
MESHX_GEN_LIGHT_CLI_TIMEOUT	MESHX_BIT(3)
MESHX_GEN_LIGHT_CLI_EVT_ALL	( MESHX_GEN_LIGHT_CLI_EVT_GET | MESHX_GEN_LIGHT_CLI_EVT_SET | MESHX_GEN_LIGHT_CLI_PUBLISH | MESHX_GEN_LIGHT_CLI_TIMEOUT)

Definition at line 20 of file meshx_ble_mesh_light_cli.h.

{
    MESHX_GEN_LIGHT_CLI_EVT_GET = MESHX_BIT(0),
    MESHX_GEN_LIGHT_CLI_EVT_SET = MESHX_BIT(1),
    MESHX_GEN_LIGHT_CLI_PUBLISH = MESHX_BIT(2),
    MESHX_GEN_LIGHT_CLI_TIMEOUT = MESHX_BIT(3),
    MESHX_GEN_LIGHT_CLI_EVT_ALL = (       \
            MESHX_GEN_LIGHT_CLI_EVT_GET | \
            MESHX_GEN_LIGHT_CLI_EVT_SET | \
            MESHX_GEN_LIGHT_CLI_PUBLISH | \
            MESHX_GEN_LIGHT_CLI_TIMEOUT)
} meshx_gen_light_cli_evt_t;

Function Documentation

meshx_plat_gen_light_client_init()

meshx_err_t meshx_plat_gen_light_client_init

(

void

)

Initialize the Generic Light Client Model. This function sets up the necessary parameters and resources for the Generic Light Client Model to operate correctly.

Returns

meshx_err_t Returns MESHX_SUCCESS on successful initialization, or an appropriate error code on failure.

Definition at line 114 of file esp_gen_light_cli_model.c.

{
    meshx_err_t err = MESHX_SUCCESS;
    if (meshx_client_init == MESHX_CLIENT_INIT_MAGIC_NO)
    {
        return MESHX_SUCCESS; // Already initialized
    }
    meshx_client_init = MESHX_CLIENT_INIT_MAGIC_NO;

    // Register the callback for handling messages sent to the BLE layer
    esp_err_t esp_err = esp_ble_mesh_register_light_client_callback(
        (MESHX_GEN_LIGHT_CLI_CB)&esp_ble_mesh_light_client_cb);
    if (esp_err != ESP_OK)
        err = MESHX_ERR_PLAT;
    return err;
}

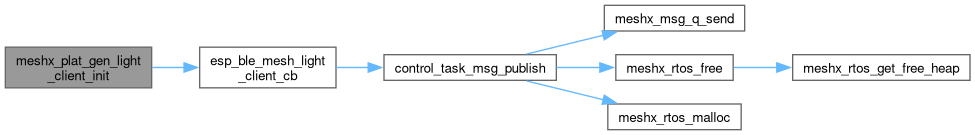

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_plat_light_client_delete()

meshx_err_t meshx_plat_light_client_delete	(	meshx_ptr_t *	p_pub,
		meshx_ptr_t *	p_cli )

Deletes the Light client instance and its associated publication context.

This function is responsible for cleaning up and freeing resources associated with the Light client model, including its publication context.

Parameters

[in]	p_pub	Pointer to the publication context to be deleted.
[in]	p_cli	Pointer to the client instance to be deleted.

Returns

meshx_err_t Returns an error code indicating the result of the delete operation.

Definition at line 168 of file esp_gen_light_cli_model.c.

{
    if (p_cli)
    {
        MESHX_FREE(*p_cli);
        *p_cli = NULL;
    }

    return meshx_plat_del_model_pub(p_pub);
}

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_plat_light_client_send_msg()

meshx_err_t meshx_plat_light_client_send_msg	(	meshx_ptr_t	p_model,
		meshx_light_client_set_state_t *	p_set,
		uint16_t	opcode,
		uint16_t	addr,
		uint16_t	net_idx,
		uint16_t	app_idx,
		bool	is_get_opcode )

Sends a Light Client message over BLE Mesh.

This function constructs and sends a Light Client message using the specified model, set state parameters, opcode, destination address, network index, and application index.

Parameters

[in]	p_model	Pointer to the BLE Mesh model instance.
[in]	p_set	Pointer to the structure containing the light client set state parameters.
[in]	opcode	Opcode of the message to be sent.
[in]	addr	Destination address for the message.
[in]	net_idx	Network index to be used for sending the message.
[in]	app_idx	Application index to be used for sending the message.
[in]	is_get_opcode	Indicates whether the opcode is a GET type (true) or SET type (false).

Returns

meshx_err_t Result of the message send operation.

Definition at line 195 of file esp_gen_light_cli_model.c.

{
    if (!p_model || !p_set)
    {
        return MESHX_INVALID_ARG;
    }

    esp_ble_mesh_client_common_param_t common = {0};
    common.model        = p_model;
    common.opcode       = opcode;
    common.ctx.addr     = addr;
    common.ctx.net_idx  = net_idx;
    common.ctx.app_idx  = app_idx;
    common.ctx.send_ttl = BLE_MESH_TTL_DEFAULT;
    common.msg_timeout  = 0; /* 0 indicates that timeout value from menuconfig will be used */

    // Send the message using the appropriate BLE Mesh API
    if (!is_get_opcode)
    {
        esp_err_t esp_err = esp_ble_mesh_light_client_set_state(
            &common,
            (esp_ble_mesh_light_client_set_state_t *)p_set
        );
        if (esp_err != ESP_OK)
        {
            MESHX_LOGE(MODULE_ID_MODEL_CLIENT, "Failed to send Light Client message: %d", esp_err);
            return MESHX_ERR_PLAT;
        }
    }
    else
    {
        esp_err_t esp_err = esp_ble_mesh_light_client_get_state(
            &common,
            (esp_ble_mesh_light_client_get_state_t *)p_set
        );
        if (esp_err != ESP_OK)
        {
            MESHX_LOGE(MODULE_ID_MODEL_CLIENT, "Failed to send Light Client GET message: %d", esp_err);
            return MESHX_ERR_PLAT;
        }
    }
    return MESHX_SUCCESS;
}

Here is the caller graph for this function:

meshx_plat_light_ctl_client_create()

meshx_err_t meshx_plat_light_ctl_client_create	(	meshx_ptr_t	p_model,
		meshx_ptr_t *	p_pub,
		meshx_ptr_t *	p_light_ctl_cli )

Creates and initializes a Light CTL (Color Temperature Light) client model instance.

This function sets up the Light CTL client model for use in the BLE Mesh network. It associates the client model with the provided model pointer and optionally sets up publication and client context pointers.

Parameters

[in]	p_model	Pointer to the mesh model structure to associate with the Light CTL client.
[out]	p_pub	Pointer to a publication context pointer to be initialized (can be NULL if not used).
[out]	p_light_ctl_cli	Pointer to a Light CTL client context pointer to be initialized.

Returns

meshx_err_t Returns MESHX_OK on success, or an appropriate error code on failure.

Definition at line 144 of file esp_gen_light_cli_model.c.

{
    if (!p_model || !p_pub || !p_light_ctl_cli)
    {
        return MESHX_INVALID_ARG; // Invalid arguments
    }
    /* SIG Light CTL Init */
    uint16_t model_id = ESP_BLE_MESH_MODEL_ID_LIGHT_CTL_CLI;
    memcpy((meshx_ptr_t)&(((MESHX_MODEL *)p_model)->model_id), &model_id, sizeof(model_id));

    return meshx_plat_client_create(p_model, p_pub, p_light_ctl_cli);
}

Here is the call graph for this function:
