meshx_prov_srv.c File Reference

This file contains the implementation of the provisioning process for the BLE mesh node. More...

#include "string.h"
#include "meshx_nvs.h"
#include "meshx_os_timer.h"
#include "meshx_control_task.h"
#include "meshx_prov_srv.h"

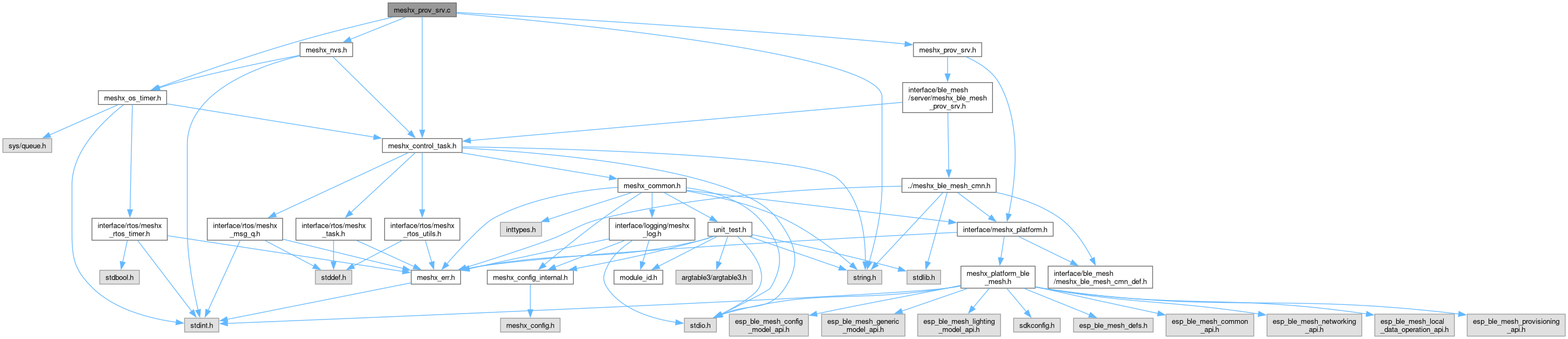

Include dependency graph for meshx_prov_srv.c:

Go to the source code of this file.

Data Structures
struct	prov_cb_evt_ctrl_task_evt_table
	Structure to map provisioning callback events to control task events. More...

Macros
#define	CONTROL_TASK_PROV_EVT_MASK
	Mask for control task provisioning events.
#define	MESHX_PROV_SRV_CLIENT_EVENT_BMAP   CONTROL_TASK_MSG_EVT_SYSTEM_FRESH_BOOT
#define	MESHX_PROV_SRV_SERVER_EVENT_BMAP   CONTROL_TASK_MSG_EVT_EN_NODE_PROV

Typedefs
typedef struct prov_cb_evt_ctrl_task_evt_table	prov_cb_evt_ctrl_task_evt_table_t
	Structure to map provisioning callback events to control task events.

Functions
static meshx_err_t	meshx_prov_srv_control_task_handler (dev_struct_t *pdev, control_task_msg_evt_t evt, meshx_prov_srv_param_t *params)
	Control task handler for the provisioning server.
static void	meshx_handle_node_reset (dev_struct_t *pdev)
	Handle node reset event.
static meshx_err_t	meshx_prov_control_task_handler (dev_struct_t *pdev, control_task_msg_evt_t evt, void *params)
	Handles provisioning control task events.
static meshx_err_t	meshx_prov_srv_meshx_reg_cb (void)
	Register the BLE Mesh provisioning callback for MeshX Layer Internal.
static void	meshx_init_freshboot_timer_trigger_cb (const meshx_os_timer_t *p_timer)
	Callback function for the boot timer.
static meshx_err_t	meshx_init_freshboot_timer (dev_struct_t *p_dev, uint16_t timeout_ms)
	Initializes the fresh boot timer.
static meshx_err_t	meshx_prov_srv_reg_from_ble_cb (void)
	Register the BLE Mesh provisioning callback.
meshx_err_t	meshx_init_prov (dev_struct_t *p_dev, const meshx_prov_params_t *prov_cfg)
	Initialize provisioning parameters.
meshx_err_t	meshx_prov_srv_reg_el_client_cb (prov_srv_cb_t cb)
	Register a callback function for provisioning events.
meshx_err_t	meshx_prov_srv_reg_el_server_cb (prov_srv_cb_t cb)
	Register a callback function for provisioning events.
meshx_err_t	meshx_prov_srv_notify_plat_event (meshx_prov_srv_param_t *param)
	Notify the model event to the application.

Variables
static prov_cb_evt_ctrl_task_evt_table_t	prov_cb_evt_ctrl_task_evt_table [MESHX_PROV_EVT_MAX]
	Table mapping provisioning events to control task events.
static meshx_os_timer_t *	g_boot_timer

Detailed Description

This file contains the implementation of the provisioning process for the BLE mesh node.

Copyright © 2024 - 2025 MeshX

The provisioning process is responsible for setting up the BLE mesh node, including initializing necessary components and handling communication with other nodes.

Author

Pranjal Chanda

Definition in file meshx_prov_srv.c.

Macro Definition Documentation

CONTROL_TASK_PROV_EVT_MASK

#define CONTROL_TASK_PROV_EVT_MASK

Value:

                                 CONTROL_TASK_MSG_EVT_IDENTIFY_START \
                                 | CONTROL_TASK_MSG_EVT_PROVISION_STOP \
                                 | CONTROL_TASK_MSG_EVT_IDENTIFY_STOP \
                                 | CONTROL_TASK_MSG_EVT_NODE_RESET

Mask for control task provisioning events.

This macro defines a mask that combines multiple control task message events related to provisioning.

Definition at line 27 of file meshx_prov_srv.c.

#define CONTROL_TASK_PROV_EVT_MASK CONTROL_TASK_MSG_EVT_IDENTIFY_START \
                                 | CONTROL_TASK_MSG_EVT_PROVISION_STOP \
                                 | CONTROL_TASK_MSG_EVT_IDENTIFY_STOP \
                                 | CONTROL_TASK_MSG_EVT_NODE_RESET

MESHX_PROV_SRV_CLIENT_EVENT_BMAP

#define MESHX_PROV_SRV_CLIENT_EVENT_BMAP   CONTROL_TASK_MSG_EVT_SYSTEM_FRESH_BOOT

Definition at line 32 of file meshx_prov_srv.c.

MESHX_PROV_SRV_SERVER_EVENT_BMAP

#define MESHX_PROV_SRV_SERVER_EVENT_BMAP   CONTROL_TASK_MSG_EVT_EN_NODE_PROV

Definition at line 33 of file meshx_prov_srv.c.

Typedef Documentation

prov_cb_evt_ctrl_task_evt_table_t

typedef struct prov_cb_evt_ctrl_task_evt_table prov_cb_evt_ctrl_task_evt_table_t

Structure to map provisioning callback events to control task events.

This structure contains a string representation of the provisioning event and the corresponding control task event.

Function Documentation

meshx_handle_node_reset()

static void meshx_handle_node_reset ( dev_struct_t * pdev )

static

Handle node reset event.

This function handles the node reset event by removing all element contexts from NVS and resetting the MCU.

Parameters

[in]

pdev

Pointer to the device structure.

Definition at line 148 of file meshx_prov_srv.c.

{
    if(!pdev)
    {
        MESHX_LOGE(MODULE_ID_COMMON, "Invalid device structure");
        return;
    }

    for(uint16_t i = 1; i < pdev->element_idx; i++)
    {
        meshx_err_t err = meshx_nvs_element_ctx_remove(i);
        if(err != MESHX_SUCCESS)
        {
            MESHX_LOGE(MODULE_ID_COMMON, "Failed to erase element context (%d): (%d)", i, err);
        }
    }
    /* Reset the MCU */
    meshx_platform_reset();
}

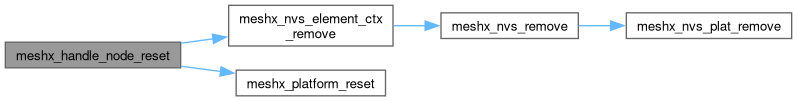

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_init_freshboot_timer()

static meshx_err_t meshx_init_freshboot_timer ( dev_struct_t * p_dev, uint16_t timeout_ms )

static

Initializes the fresh boot timer.

Parameters

[in]	p_dev	Pointer to the device structure.
[in]	timeout_ms	Timeout duration in milliseconds.

Returns

MESHX_SUCCESS on success, error code otherwise.

Definition at line 254 of file meshx_prov_srv.c.

{
    if(p_dev->meshx_store.node_addr == MESHX_ADDR_UNASSIGNED)
    {
        MESHX_LOGI(MODULE_ID_COMMON, "Device not provisioned, not starting boot timer");
        return MESHX_SUCCESS;
    }
    meshx_err_t err = meshx_os_timer_create("boot_timer",
        timeout_ms,
        false,
        meshx_init_freshboot_timer_trigger_cb,
        &g_boot_timer
    );
    if(err != MESHX_SUCCESS)
    {
        MESHX_LOGE(MODULE_ID_COMMON, "Failed to create boot timer: (%d)", err);
    }

    err = meshx_os_timer_start(g_boot_timer);
    if(err != MESHX_SUCCESS)
    {
        MESHX_LOGE(MODULE_ID_COMMON, "Failed to start boot timer: (%d)", err);
    }

    return err;
}

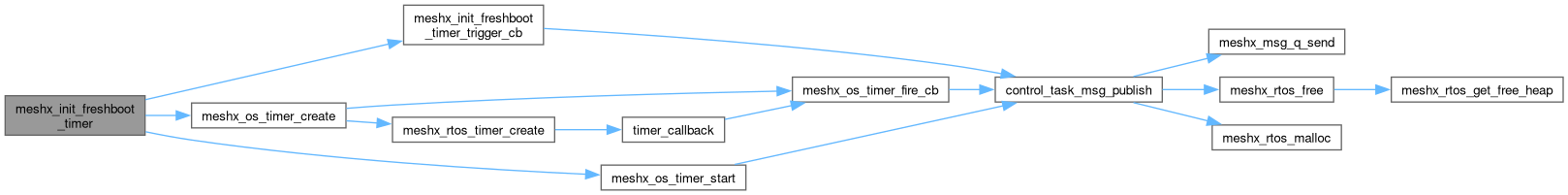

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_init_freshboot_timer_trigger_cb()

static void meshx_init_freshboot_timer_trigger_cb ( const meshx_os_timer_t * p_timer )

static

Callback function for the boot timer.

This function is called when the boot timer expires.

Parameters

[in]

p_timer

Pointer to the timer structure.

Definition at line 230 of file meshx_prov_srv.c.

{
    MESHX_LOGI(MODULE_ID_COMMON, "Fresh Boot Timer Expired");

    meshx_err_t err = control_task_msg_publish(
        CONTROL_TASK_MSG_CODE_PROVISION,
        CONTROL_TASK_MSG_EVT_SYSTEM_FRESH_BOOT,
        NULL,
        0
    );
    if(err)
    {
        MESHX_LOGE(MODULE_ID_COMMON, "Failed to publish fresh boot event: (%d)", err);
    }
}

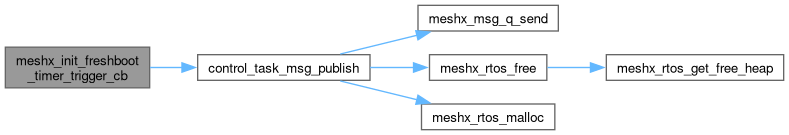

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_init_prov()

meshx_err_t meshx_init_prov	(	dev_struct_t *	p_dev,
		const meshx_prov_params_t *	prov_cfg )

Initialize provisioning parameters.

This function initializes the provisioning parameters by copying the UUID from the provided server configuration and registering the provisioning callback.

Parameters

[in]	p_dev	Pointer to the device structure.
[in]	prov_cfg	Pointer to the provisioning parameters structure containing the UUID.

Returns

• MESHX_SUCCESS: Success
• MESHX_FAIL: Failed to register provisioning callback

Definition at line 313 of file meshx_prov_srv.c.

{
    if (!prov_cfg || memcmp(prov_cfg->uuid, MESHX_UUID_EMPTY, sizeof(meshx_uuid_addr_t)) == 0)
    {
        MESHX_LOGE(MODULE_ID_MODEL_SERVER, "Invalid server configuration");
        return MESHX_INVALID_ARG;
    }

    meshx_err_t err = meshx_prov_srv_reg_from_ble_cb();
    if (err != MESHX_SUCCESS)
    {
        MESHX_LOGE(MODULE_ID_MODEL_SERVER, "Failed to register provisioning callback");
        return err;
    }

    err = meshx_prov_srv_meshx_reg_cb();
    if (err != MESHX_SUCCESS)
    {
        MESHX_LOGE(MODULE_ID_MODEL_SERVER, "Failed to register provisioning callback");
        return err;
    }

    err = meshx_init_freshboot_timer(p_dev, prov_cfg->freshboot_timeout_ms);
    if (err != MESHX_SUCCESS)
    {
        MESHX_LOGE(MODULE_ID_MODEL_SERVER, "Failed to initialize boot timer");
        return err;
    }

    return meshx_plat_init_prov(prov_cfg->uuid);
}

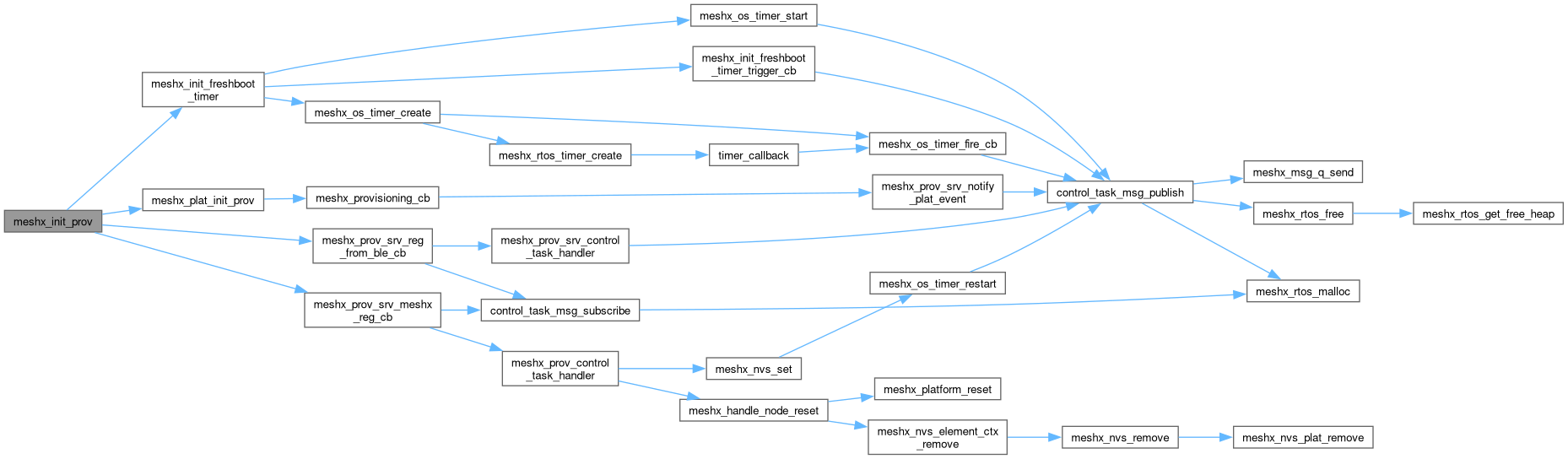

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_prov_control_task_handler()

static meshx_err_t meshx_prov_control_task_handler ( dev_struct_t * pdev, control_task_msg_evt_t evt, void * params )

static

Handles provisioning control task events.

This function processes various provisioning-related events and updates the device structure accordingly. It handles events such as provisioning completion and identification start.

Parameters

[in]	pdev	Pointer to the device structure.
[in]	evt	The control task message event type.
[in]	params	Pointer to the event parameters.

Returns

MESHX_SUCCESS on success, or an error code on failure.

Definition at line 181 of file meshx_prov_srv.c.

{
    const meshx_prov_cb_param_t *param = (meshx_prov_cb_param_t*) params;

    switch (evt)
    {
        case CONTROL_TASK_MSG_EVT_PROVISION_STOP:
            pdev->meshx_store.net_key_id = param->node_prov_complete.net_idx;
            pdev->meshx_store.node_addr  = param->node_prov_complete.addr;
            meshx_nvs_set(MESHX_NVS_STORE, &pdev->meshx_store, sizeof(pdev->meshx_store), MESHX_NVS_AUTO_COMMIT);
            break;
        case CONTROL_TASK_MSG_EVT_IDENTIFY_START:
            MESHX_LOGI(MODULE_ID_COMMON, "Identify Start");
            break;
        case CONTROL_TASK_MSG_EVT_NODE_RESET:
            MESHX_LOGW(MODULE_ID_COMMON, "Node Reset Event");
            meshx_handle_node_reset(pdev);
            break;
        default:
            break;
    }
    return MESHX_SUCCESS;
}

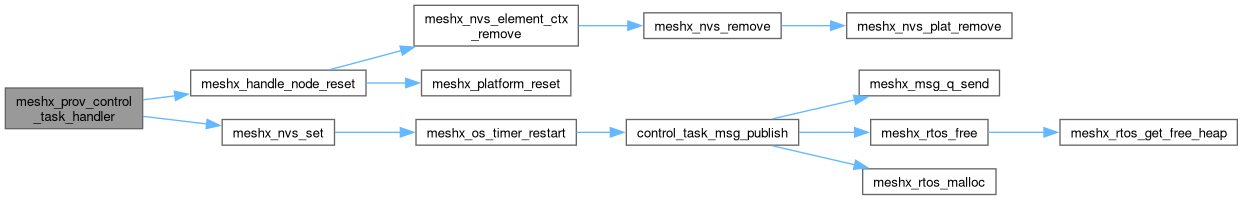

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_prov_srv_control_task_handler()

static meshx_err_t meshx_prov_srv_control_task_handler ( dev_struct_t * pdev, control_task_msg_evt_t evt, meshx_prov_srv_param_t * params )

static

Control task handler for the provisioning server.

Parameters

[in]	pdev	Pointer to the device structure.
[in]	evt	Event type.
[in]	params	Pointer to the provisioning server parameters.

Returns

MESHX_SUCCESS on success, error code otherwise.

Definition at line 95 of file meshx_prov_srv.c.

{
    if (!pdev || !params)
    {
        return MESHX_INVALID_ARG;
    }
    prov_evt_t prov_evt = CONTROL_TASK_MSG_EVT_PROVISION_ALL;
    if(evt != CONTROL_TASK_MSG_EVT_PROVISION_ALL)
    {
        return MESHX_INVALID_ARG;
    }

    if (prov_cb_evt_ctrl_task_evt_table[params->prov_evt].ctrl_task_evt != 0)
    {
        MESHX_LOGD(MODULE_ID_MODEL_SERVER, "Provisioning event mapped: %s",
                    prov_cb_evt_ctrl_task_evt_table[params->prov_evt].evt_str);
        prov_evt = prov_cb_evt_ctrl_task_evt_table[params->prov_evt].ctrl_task_evt;
    }
    else
    {
        MESHX_LOGD(MODULE_ID_MODEL_SERVER, "Unhandled event: %d", params->prov_evt);
    }
    if (params->prov_evt == MESHX_NODE_PROV_COMPLETE_EVT)
    {
        MESHX_LOGI(MODULE_ID_MODEL_SERVER, "net_idx: 0x%04x, addr: 0x%04x", params->param.node_prov_complete.net_idx, params->param.node_prov_complete.addr);
        MESHX_LOGI(MODULE_ID_MODEL_SERVER, "flags: 0x%02x, iv_index: 0x%08" PRIx32, params->param.node_prov_complete.flags, params->param.node_prov_complete.iv_index);
    }
    if (prov_evt == CONTROL_TASK_MSG_EVT_PROVISION_ALL)
    {
        return MESHX_INVALID_ARG;
    }

    /* Publish the event */
    return control_task_msg_publish(
        CONTROL_TASK_MSG_CODE_PROVISION,
        prov_evt,
        &params->param,
        sizeof(meshx_prov_cb_param_t));
    return MESHX_SUCCESS;
}

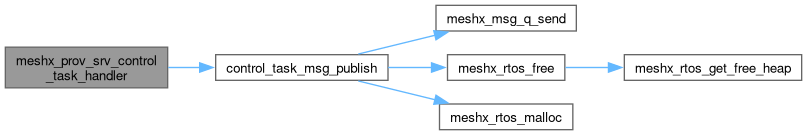

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_prov_srv_meshx_reg_cb()

static meshx_err_t meshx_prov_srv_meshx_reg_cb ( void )

static

Register the BLE Mesh provisioning callback for MeshX Layer Internal.

This function registers the BLE Mesh provisioning callback to handle provisioning events.

Returns

• MESHX_SUCCESS: Success
• MESHX_FAIL: Failed to register provisioning callback

Definition at line 215 of file meshx_prov_srv.c.

{
    return control_task_msg_subscribe(
        CONTROL_TASK_MSG_CODE_PROVISION,
        CONTROL_TASK_PROV_EVT_MASK,
        &meshx_prov_control_task_handler);
}

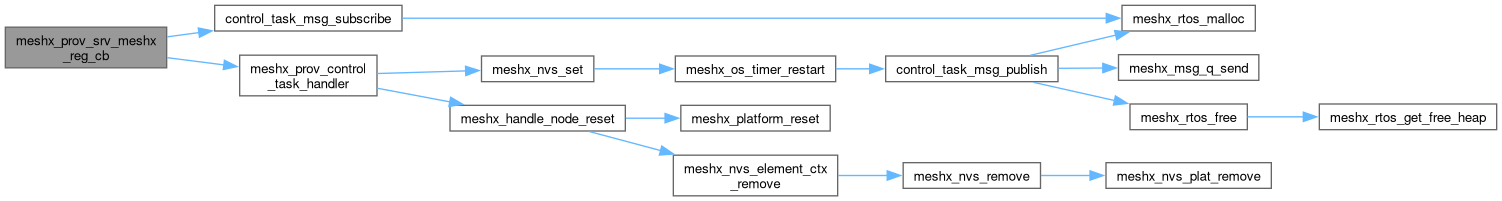

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_prov_srv_notify_plat_event()

meshx_err_t meshx_prov_srv_notify_plat_event

(

meshx_prov_srv_param_t *

param

)

Notify the model event to the application.

Note

This API is not to be defined in Platform Port layer and shall be called by the respective platform event handler to notify the MeshX of a model event.

This function notifies the application of a model event by invoking the registered provisioning callback with the provided event parameters.

Parameters

[in]

param

Pointer to the event parameters structure.

Returns

• MESHX_SUCCESS: Success
• MESHX_FAIL: Failed to notify model event

Definition at line 402 of file meshx_prov_srv.c.

{
    if (!param)
    {
        return MESHX_INVALID_ARG;
    }

    return control_task_msg_publish(
        CONTROL_TASK_MSG_CODE_FRM_BLE,
        CONTROL_TASK_MSG_EVT_PROVISION_ALL,
        param,
        sizeof(meshx_prov_srv_param_t)
    );
}

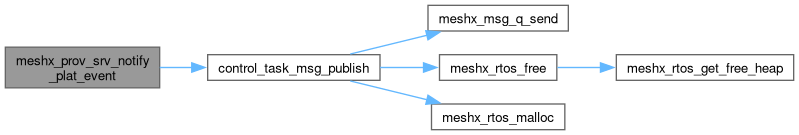

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_prov_srv_reg_el_client_cb()

meshx_err_t meshx_prov_srv_reg_el_client_cb

(

prov_srv_cb_t

cb

)

Register a callback function for provisioning events.

This function registers a callback function that will be called when certain provisioning events occur.

Parameters

[in]

cb

The callback function to register.

Returns

• MESHX_SUCCESS: Success
• MESHX_FAIL: Failed to register the callback

Definition at line 357 of file meshx_prov_srv.c.

{
    return control_task_msg_subscribe(
        CONTROL_TASK_MSG_CODE_PROVISION,
        MESHX_PROV_SRV_CLIENT_EVENT_BMAP,
        (prov_srv_cb_t)cb
    );
}

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_prov_srv_reg_el_server_cb()

meshx_err_t meshx_prov_srv_reg_el_server_cb

(

prov_srv_cb_t

cb

)

Register a callback function for provisioning events.

This function registers a callback function that will be called when certain provisioning events occur.

Parameters

[in]

cb

The callback function to register.

Returns

• MESHX_SUCCESS: Success
• MESHX_FAIL: Failed to register the callback

Definition at line 378 of file meshx_prov_srv.c.

{
    return control_task_msg_subscribe(
        CONTROL_TASK_MSG_CODE_PROVISION,
        MESHX_PROV_SRV_SERVER_EVENT_BMAP,
        (prov_srv_cb_t)cb
    );
}

Here is the call graph for this function:

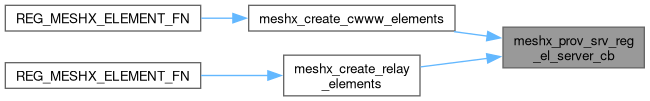

Here is the caller graph for this function:

meshx_prov_srv_reg_from_ble_cb()

static meshx_err_t meshx_prov_srv_reg_from_ble_cb ( void )

static

Register the BLE Mesh provisioning callback.

This function registers the BLE Mesh provisioning callback to handle provisioning events.

Returns

• MESHX_SUCCESS: Success
• MESHX_FAIL: Failed to register provisioning callback

Definition at line 291 of file meshx_prov_srv.c.

{
    return control_task_msg_subscribe(
        CONTROL_TASK_MSG_CODE_FRM_BLE,
        CONTROL_TASK_MSG_EVT_PROVISION_ALL,
        (prov_srv_cb_t)&meshx_prov_srv_control_task_handler
    );
}

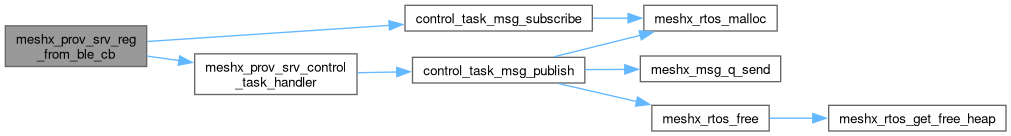

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

g_boot_timer

meshx_os_timer_t* g_boot_timer

static

Definition at line 84 of file meshx_prov_srv.c.

prov_cb_evt_ctrl_task_evt_table

prov_cb_evt_ctrl_task_evt_table_t prov_cb_evt_ctrl_task_evt_table[MESHX_PROV_EVT_MAX]

static

Initial value:

= {
    [MESHX_NODE_PROV_RESET_EVT]             = {CONTROL_TASK_MSG_EVT_NODE_RESET},
    [MESHX_NODE_PROV_COMPLETE_EVT]          = {CONTROL_TASK_MSG_EVT_PROVISION_STOP},
    [MESHX_NODE_PROV_LINK_OPEN_EVT]         = {CONTROL_TASK_MSG_EVT_IDENTIFY_START},
    [MESHX_NODE_PROV_LINK_CLOSE_EVT]        = {CONTROL_TASK_MSG_EVT_IDENTIFY_STOP},
    [MESHX_NODE_PROV_ENABLE_COMP_EVT]       = {CONTROL_TASK_MSG_EVT_EN_NODE_PROV},
    [MESHX_PROXY_SERVER_CONNECTED_EVT]      = {CONTROL_TASK_MSG_EVT_PROXY_CONNECT},
    [MESHX_PROXY_SERVER_DISCONNECTED_EVT]   = {CONTROL_TASK_MSG_EVT_PROXY_DISCONN},
}

Table mapping provisioning events to control task events.

This table is indexed by provisioning event types and contains the string representation of the event and the corresponding control task event.

Definition at line 73 of file meshx_prov_srv.c.

                                                                                               {
    [MESHX_NODE_PROV_RESET_EVT]             = {CONTROL_TASK_MSG_EVT_NODE_RESET},
    [MESHX_NODE_PROV_COMPLETE_EVT]          = {CONTROL_TASK_MSG_EVT_PROVISION_STOP},
    [MESHX_NODE_PROV_LINK_OPEN_EVT]         = {CONTROL_TASK_MSG_EVT_IDENTIFY_START},
    [MESHX_NODE_PROV_LINK_CLOSE_EVT]        = {CONTROL_TASK_MSG_EVT_IDENTIFY_STOP},
    [MESHX_NODE_PROV_ENABLE_COMP_EVT]       = {CONTROL_TASK_MSG_EVT_EN_NODE_PROV},
    [MESHX_PROXY_SERVER_CONNECTED_EVT]      = {CONTROL_TASK_MSG_EVT_PROXY_CONNECT},
    [MESHX_PROXY_SERVER_DISCONNECTED_EVT]   = {CONTROL_TASK_MSG_EVT_PROXY_DISCONN},
};
