meshx_os_timer.c File Reference

Implementation of OS timer functionalities for BLE mesh node. More...

#include "meshx_os_timer.h"

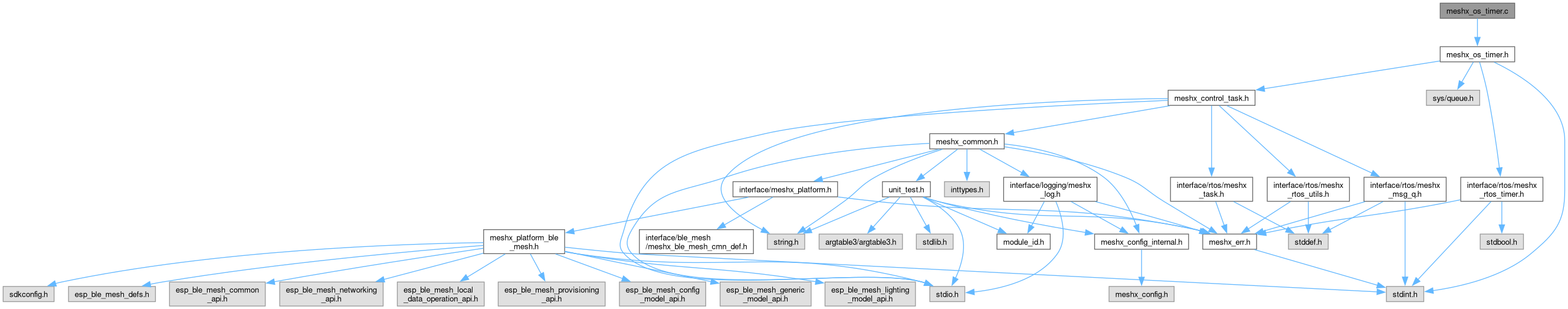

Include dependency graph for meshx_os_timer.c:

Go to the source code of this file.

Macros
#define	OS_TIMER_INIT_MAGIC   0x3892
#define	OS_TIMER_CONTROL_TASK_EVT_MASK
	Mask for OS timer control task events.

Enumerations
enum	meshx_os_timer_cli_cmd_t {   OS_TIMER_CLI_CMD_CREATE ,   OS_TIMER_CLI_CMD_ARM ,   OS_TIMER_CLI_CMD_REARM ,   OS_TIMER_CLI_CMD_DISARM ,   OS_TIMER_CLI_CMD_DELETE ,   OS_TIMER_CLI_CMD_PERIOD_SET ,   OS_TIMER_CLI_CMD_MAX }
	OS Timer CLI command enumeration. More...

Functions
	SLIST_HEAD (meshx_os_timer_reg_head, meshx_os_timer)
static void	meshx_os_timer_ut_cb_handler (const meshx_os_timer_t *p_timer)
	OS Timer Unit Test Callback handler.
static meshx_err_t	meshx_os_timer_unit_test_cb_handler (int cmd_id, int argc, char **argv)
	Callback handler for OS Timer unit test command.
void	meshx_os_timer_fire_cb (const void *timer_handle)
static meshx_err_t	meshx_os_timer_control_task_cb (const dev_struct_t *pdev, control_task_msg_evt_t evt, void *params)
meshx_err_t	meshx_os_timer_init (void)
	Initialize the OS timer module.
meshx_err_t	meshx_os_timer_create (const char *name, uint32_t period, bool reload, meshx_os_timer_cb_t cb, meshx_os_timer_t **timer_handle)
	Create a timer.
meshx_err_t	meshx_os_timer_start (const meshx_os_timer_t *timer_handle)
	Start a timer.
meshx_err_t	meshx_os_timer_restart (const meshx_os_timer_t *timer_handle)
	Restart a timer.
meshx_err_t	meshx_os_timer_set_period (meshx_os_timer_t *timer_handle, const uint32_t period_ms)
	Set period on an initialised timer.
meshx_err_t	meshx_os_timer_stop (const meshx_os_timer_t *timer_handle)
	Stop a timer.
meshx_err_t	meshx_os_timer_delete (meshx_os_timer_t **timer_handle)
	Delete a timer.

Variables
static struct meshx_os_timer_reg_head	meshx_os_timer_reg_table_head = SLIST_HEAD_INITIALIZER(os_timer_reg_table_head)
	Head of the OS timer registration table.

Detailed Description

Implementation of OS timer functionalities for BLE mesh node.

Copyright © 2024 - 2025 MeshX

This file contains the implementation of the OS timer functionalities used in the BLE mesh node application. It includes the necessary includes, definitions, and initialization of the timer registration table.

Author

Pranjal Chanda

Definition in file meshx_os_timer.c.

Macro Definition Documentation

OS_TIMER_CONTROL_TASK_EVT_MASK

#define OS_TIMER_CONTROL_TASK_EVT_MASK

Value:

                                        (CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_DISARM | \
                                        CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_ARM |    \
                                        CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_REARM |  \
                                        CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_PERIOD | \
                                        CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_FIRE)

Mask for OS timer control task events.

This mask includes the following events:

• CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_ARM
• CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_DISARM
• CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_FIRE

Definition at line 25 of file meshx_os_timer.c.

#define OS_TIMER_CONTROL_TASK_EVT_MASK (CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_DISARM | \
                                        CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_ARM |    \
                                        CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_REARM |  \
                                        CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_PERIOD | \
                                        CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_FIRE)

OS_TIMER_INIT_MAGIC

#define OS_TIMER_INIT_MAGIC   0x3892

Definition at line 15 of file meshx_os_timer.c.

Enumeration Type Documentation

meshx_os_timer_cli_cmd_t

enum meshx_os_timer_cli_cmd_t

OS Timer CLI command enumeration.

Enumerator
OS_TIMER_CLI_CMD_CREATE
OS_TIMER_CLI_CMD_ARM
OS_TIMER_CLI_CMD_REARM
OS_TIMER_CLI_CMD_DISARM
OS_TIMER_CLI_CMD_DELETE
OS_TIMER_CLI_CMD_PERIOD_SET
OS_TIMER_CLI_CMD_MAX

Definition at line 50 of file meshx_os_timer.c.

{
    OS_TIMER_CLI_CMD_CREATE,
    OS_TIMER_CLI_CMD_ARM,
    OS_TIMER_CLI_CMD_REARM,
    OS_TIMER_CLI_CMD_DISARM,
    OS_TIMER_CLI_CMD_DELETE,
    OS_TIMER_CLI_CMD_PERIOD_SET,
    OS_TIMER_CLI_CMD_MAX
} meshx_os_timer_cli_cmd_t;

Function Documentation

meshx_os_timer_control_task_cb()

static meshx_err_t meshx_os_timer_control_task_cb ( const dev_struct_t * pdev, control_task_msg_evt_t evt, void * params )

static

Definition at line 175 of file meshx_os_timer.c.

{
    meshx_os_timer_t *msg_params = (meshx_os_timer_t *)params;
    meshx_err_t err = MESHX_SUCCESS;

    switch (evt)
    {
    case CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_ARM:
        MESHX_LOGD(MODULE_ID_COMPONENT_OS_TIMER, "Starting timer %s", OS_TMER_GET_TIMER_NAME(msg_params));
        err = meshx_rtos_timer_start(&msg_params->timer_handle);
        break;

    case CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_REARM:
        MESHX_LOGD(MODULE_ID_COMPONENT_OS_TIMER, "Rearming timer %s", OS_TMER_GET_TIMER_NAME(msg_params));
        err = meshx_rtos_timer_reset(&msg_params->timer_handle);
        break;

    case CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_DISARM:
        MESHX_LOGD(MODULE_ID_COMPONENT_OS_TIMER, "Stopping timer %s", OS_TMER_GET_TIMER_NAME(msg_params));
        err = meshx_rtos_timer_stop(&msg_params->timer_handle);
        break;

    case CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_PERIOD:
        MESHX_LOGD(MODULE_ID_COMPONENT_OS_TIMER, "Timer %s period set: %ld", OS_TMER_GET_TIMER_NAME(msg_params), msg_params->period);
        err = meshx_rtos_timer_change_period(&msg_params->timer_handle, msg_params->period);
        break;

    case CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_FIRE:
        MESHX_LOGD(MODULE_ID_COMPONENT_OS_TIMER, "Timer %s fire", OS_TMER_GET_TIMER_NAME(msg_params));
        /* call respective callback */
        if (msg_params->cb)
            msg_params->cb(msg_params);
        break;

    default:
        err = MESHX_INVALID_ARG;
        break;
    }

    MESHX_UNUSED(pdev);

    return err;
}

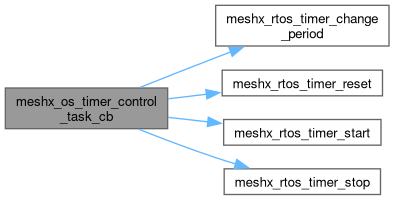

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_os_timer_create()

meshx_err_t meshx_os_timer_create	(	const char *	name,
		uint32_t	period,
		bool	reload,
		meshx_os_timer_cb_t	cb,
		meshx_os_timer_t **	timer_handle )

Create a timer.

This function creates a timer with the given period and callback function.

Parameters

[in]	name	The name of the timer.
[in]	period	The period of the timer in milliseconds.
[in]	reload	If true, the timer will automatically reload after expiring.
[in]	cb	The callback function to be called when the timer expires.
[in,out]	timer_handle	The timer handle.

Example:

meshx_os_timer_t * meshx_os_timer_inst;
meshx_err_t err = meshx_os_timer_create("Example_Timer", 1000, 1, &example_os_timer_cb, &os_timer_inst);

Returns

MESHX_SUCCESS on success, or an error code on failure.

Definition at line 263 of file meshx_os_timer.c.

{
    if (timer_handle == NULL)
    {
        return MESHX_INVALID_STATE;
    }

    if ((*timer_handle) != NULL && (*timer_handle)->init == OS_TIMER_INIT_MAGIC)
        return MESHX_INVALID_STATE;

    meshx_err_t err = MESHX_SUCCESS;

    *timer_handle = (meshx_os_timer_t *)MESHX_MALLOC(OS_TIMER_SIZE);
    if (*timer_handle == NULL)
        return MESHX_NO_MEM;

    (*timer_handle)->cb = cb;
    (*timer_handle)->period = period;

    err = meshx_rtos_timer_create(&(*timer_handle)->timer_handle,
        name,
        (meshx_rtos_timer_callback_t)&meshx_os_timer_fire_cb,
        *timer_handle,
        period,
        reload);
    if (err)
    {
        MESHX_FREE(*timer_handle);
        return err;
    }

    SLIST_INSERT_HEAD(&meshx_os_timer_reg_table_head, (*timer_handle), next);
    (*timer_handle)->init = OS_TIMER_INIT_MAGIC;

    return err;
}

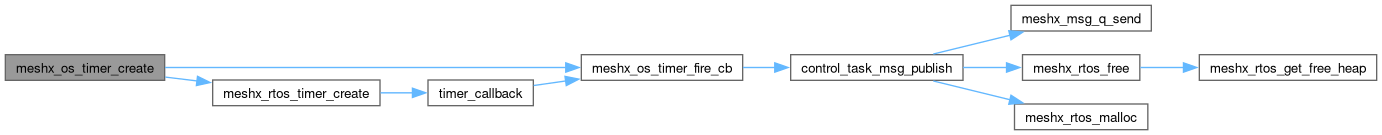

Here is the call graph for this function:

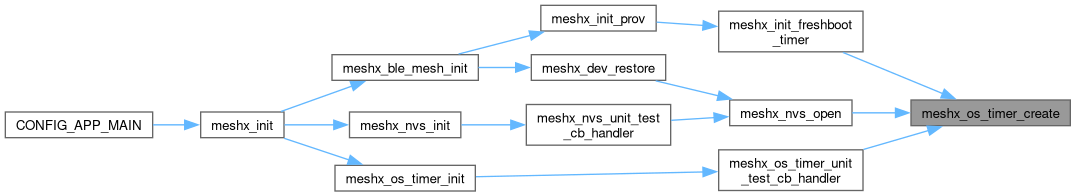

Here is the caller graph for this function:

meshx_os_timer_delete()

meshx_err_t meshx_os_timer_delete

(

meshx_os_timer_t **

timer_handle

)

Delete a timer.

This function deletes the given timer.

Parameters

timer_handle

The timer handle.

Returns

MESHX_SUCCESS on success, or an error code on failure.

Definition at line 418 of file meshx_os_timer.c.

{
    meshx_err_t err;

    if (timer_handle == NULL)
    {
        return MESHX_INVALID_STATE;
    }

    if (*timer_handle == NULL || (*timer_handle)->init != OS_TIMER_INIT_MAGIC)
        return MESHX_INVALID_STATE;

    MESHX_LOGI(MODULE_ID_COMPONENT_OS_TIMER, "Deleting timer %s", OS_TMER_GET_TIMER_NAME((*timer_handle)));

    err = meshx_rtos_timer_delete(&(*timer_handle)->timer_handle);
    if (err)
        return err;

    (*timer_handle)->init = 0;

    SLIST_REMOVE(&meshx_os_timer_reg_table_head, *timer_handle, meshx_os_timer, next);
    MESHX_FREE(*timer_handle);

    return MESHX_SUCCESS;
}

Here is the call graph for this function:

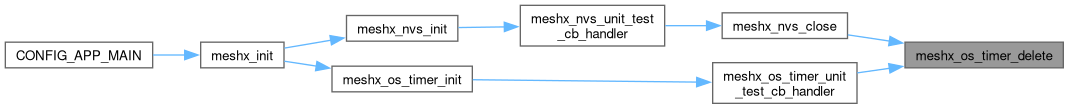

Here is the caller graph for this function:

meshx_os_timer_fire_cb()

void meshx_os_timer_fire_cb

(

const void *

timer_handle

)

Definition at line 148 of file meshx_os_timer.c.

{
    meshx_os_timer_t *msg_params;
    SLIST_FOREACH(msg_params, &meshx_os_timer_reg_table_head, next)
    {
        if (msg_params->timer_handle.__timer_handle == timer_handle)
        {
            control_task_msg_publish(
                CONTROL_TASK_MSG_CODE_SYSTEM,
                CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_FIRE,
                msg_params,
                OS_TIMER_SIZE);
            break;
        }
    }
}

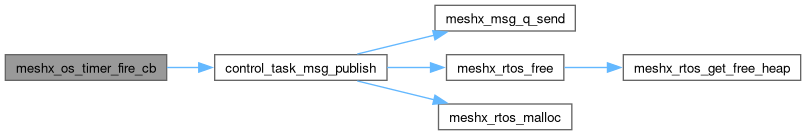

Here is the call graph for this function:

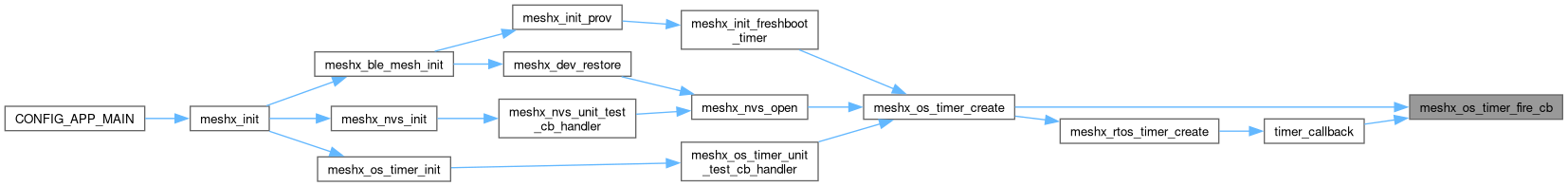

Here is the caller graph for this function:

meshx_os_timer_init()

meshx_err_t meshx_os_timer_init

(

void

)

Initialize the OS timer module.

This function initializes the OS timer module.

Returns

MESHX_SUCCESS on success, or an error code on failure.

Definition at line 226 of file meshx_os_timer.c.

{
    meshx_err_t err;
#if CONFIG_ENABLE_UNIT_TEST
    err = register_unit_test(MODULE_ID_COMPONENT_OS_TIMER, &meshx_os_timer_unit_test_cb_handler);
    if (err)
    {
        MESHX_LOGE(MODULE_ID_COMPONENT_OS_TIMER, "unit_test reg failed: (%d)", err);
        return err;
    }
#endif /* CONFIG_ENABLE_UNIT_TEST */
    err = control_task_msg_subscribe(
        CONTROL_TASK_MSG_CODE_SYSTEM,
        OS_TIMER_CONTROL_TASK_EVT_MASK,
        (control_task_msg_handle_t)&meshx_os_timer_control_task_cb);

    return err;
}

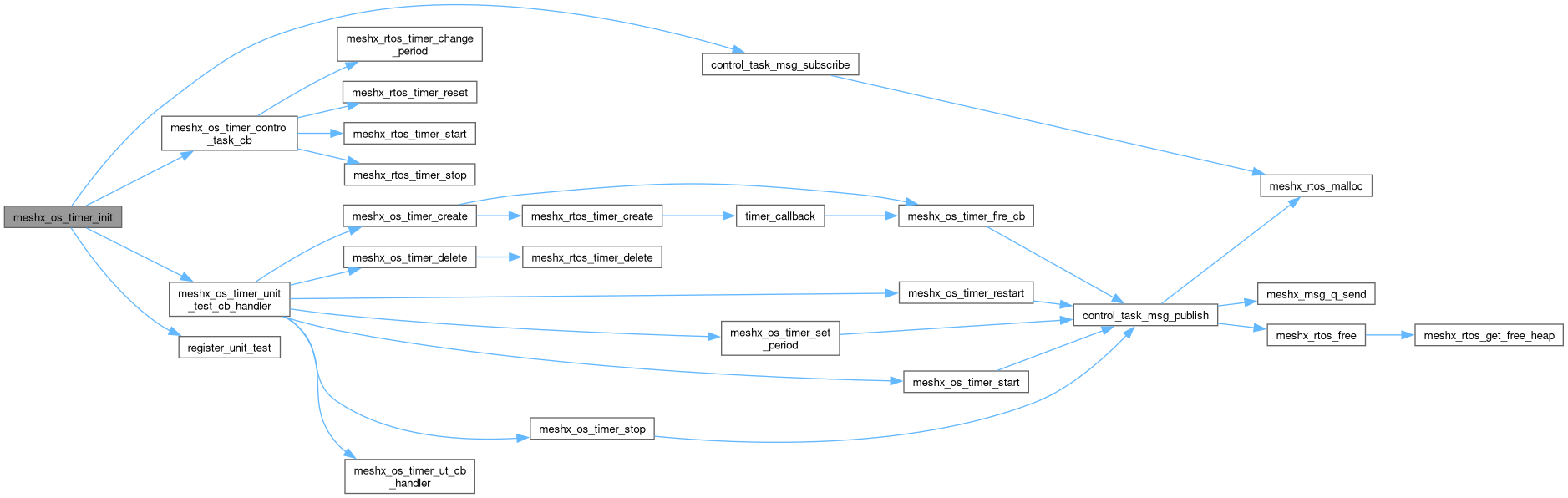

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_os_timer_restart()

meshx_err_t meshx_os_timer_restart

(

const meshx_os_timer_t *

timer_handle

)

Restart a timer.

This function re-starts the given timer.

Parameters

timer_handle

The timer handle.

Returns

MESHX_SUCCESS on success, or an error code on failure.

Definition at line 339 of file meshx_os_timer.c.

{
    if (timer_handle == NULL)
    {
        return MESHX_INVALID_STATE;
    }
    if (timer_handle->init != OS_TIMER_INIT_MAGIC)
        return MESHX_INVALID_STATE;

    return control_task_msg_publish(
        CONTROL_TASK_MSG_CODE_SYSTEM,
        CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_REARM,
        timer_handle,
        OS_TIMER_SIZE);
}

Here is the call graph for this function:

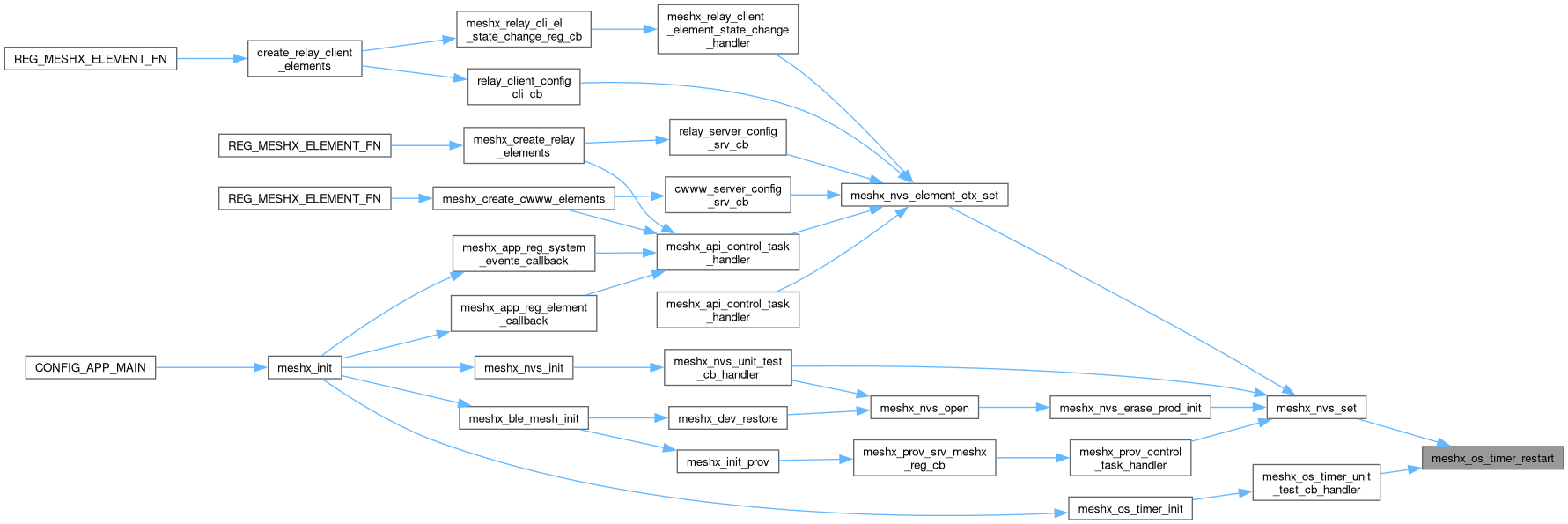

Here is the caller graph for this function:

meshx_os_timer_set_period()

meshx_err_t meshx_os_timer_set_period	(	meshx_os_timer_t *	timer_handle,
		const uint32_t	period_ms )

Set period on an initialised timer.

This function reset period of initialised timer.

Parameters

timer_handle	The timer handle.
period_ms	New period in ms

Returns

MESHX_SUCCESS on success, or an error code on failure.

Definition at line 365 of file meshx_os_timer.c.

{
    if (timer_handle == NULL)
    {
        return MESHX_INVALID_STATE;
    }
    if (timer_handle->init != OS_TIMER_INIT_MAGIC)
        return MESHX_INVALID_STATE;

    timer_handle->period = period_ms;

    return control_task_msg_publish(
        CONTROL_TASK_MSG_CODE_SYSTEM,
        CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_PERIOD,
        timer_handle,
        OS_TIMER_SIZE);
}

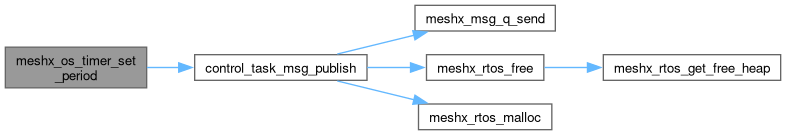

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_os_timer_start()

meshx_err_t meshx_os_timer_start

(

const meshx_os_timer_t *

timer_handle

)

Start a timer.

This function starts the given timer.

Parameters

timer_handle

The timer handle.

Returns

MESHX_SUCCESS on success, or an error code on failure.

Definition at line 314 of file meshx_os_timer.c.

{
    if (timer_handle == NULL)
    {
        return MESHX_INVALID_STATE;
    }
    if (timer_handle->init != OS_TIMER_INIT_MAGIC)
        return MESHX_INVALID_STATE;

    return control_task_msg_publish(
        CONTROL_TASK_MSG_CODE_SYSTEM,
        CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_ARM,
        timer_handle,
        OS_TIMER_SIZE);
}

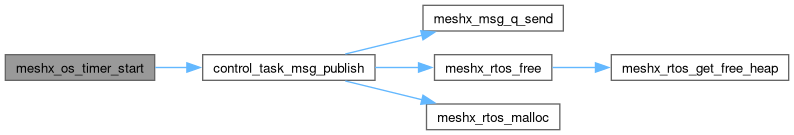

Here is the call graph for this function:

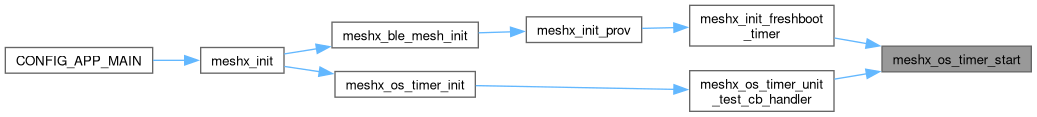

Here is the caller graph for this function:

meshx_os_timer_stop()

meshx_err_t meshx_os_timer_stop

(

const meshx_os_timer_t *

timer_handle

)

Stop a timer.

This function stops the given timer.

Parameters

timer_handle

The timer handle.

Returns

MESHX_SUCCESS on success, or an error code on failure.

Definition at line 392 of file meshx_os_timer.c.

{
    if (timer_handle == NULL)
    {
        return MESHX_INVALID_STATE;
    }
    if (timer_handle->init != OS_TIMER_INIT_MAGIC)
        return MESHX_INVALID_STATE;

    return control_task_msg_publish(
        CONTROL_TASK_MSG_CODE_SYSTEM,
        CONTROL_TASK_MSG_EVT_SYSTEM_TIMER_DISARM,
        timer_handle,
        OS_TIMER_SIZE);
}

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_os_timer_unit_test_cb_handler()

static meshx_err_t meshx_os_timer_unit_test_cb_handler ( int cmd_id, int argc, char ** argv )

static

Callback handler for OS Timer unit test command.

This function handles OS Timer unit test command by processing the provided command ID and arguments.

Parameters

[in]	cmd_id	The command ID to be processed.
[in]	argc	The number of arguments provided.
[in]	argv	The array of arguments.

Returns

• MESHX_SUCCESS: Success
• MESHX_INVALID_ARG: Invalid arguments
• Other error codes depending on the implementation

Definition at line 85 of file meshx_os_timer.c.

{
    meshx_err_t err = MESHX_SUCCESS;
    meshx_os_timer_cli_cmd_t cmd = (meshx_os_timer_cli_cmd_t)cmd_id;

    uint32_t ut_period = 0;
    bool ut_reload = false;
    static meshx_os_timer_t *ut_os_timer;

    MESHX_LOGD(MODULE_ID_COMPONENT_OS_TIMER, "argc|cmd_id: %d|%d", argc, cmd_id);
    if (cmd_id >= OS_TIMER_CLI_CMD_MAX)
    {
        MESHX_LOGE(MODULE_ID_COMPONENT_OS_TIMER, "Invalid number of arguments");
        return MESHX_INVALID_ARG;
    }

    switch (cmd)
    {
    case OS_TIMER_CLI_CMD_CREATE:
        /* ut 2 0 2 [period_ms] [reload]*/
        ut_period = UT_GET_ARG(0, uint32_t, argv);
        ut_reload = UT_GET_ARG(1, uint32_t, argv) == 0 ? false : true;
        err = meshx_os_timer_create("OS_TIMER_UT", ut_period, ut_reload, meshx_os_timer_ut_cb_handler, &ut_os_timer);
        break;
    case OS_TIMER_CLI_CMD_ARM:
        /* ut 2 1 0 */
        err = meshx_os_timer_start(ut_os_timer);
        break;
    case OS_TIMER_CLI_CMD_REARM:
        /* ut 2 2 0 */
        err = meshx_os_timer_restart(ut_os_timer);
        break;
    case OS_TIMER_CLI_CMD_DISARM:
        /* ut 2 3 0 */
        err = meshx_os_timer_stop(ut_os_timer);
        break;
    case OS_TIMER_CLI_CMD_DELETE:
        /* ut 2 4 0 */
        err = meshx_os_timer_delete(&ut_os_timer);
        break;
    case OS_TIMER_CLI_CMD_PERIOD_SET:
        /* ut 2 5 1 [new period ms] */
        ut_period = UT_GET_ARG(0, uint32_t, argv);
        err = meshx_os_timer_set_period(ut_os_timer, ut_period);
        break;
    default:
        break;
    }
    if (err)
        MESHX_LOGE(MODULE_ID_COMPONENT_OS_TIMER, "err: 0x%x", err);

    return err;
}

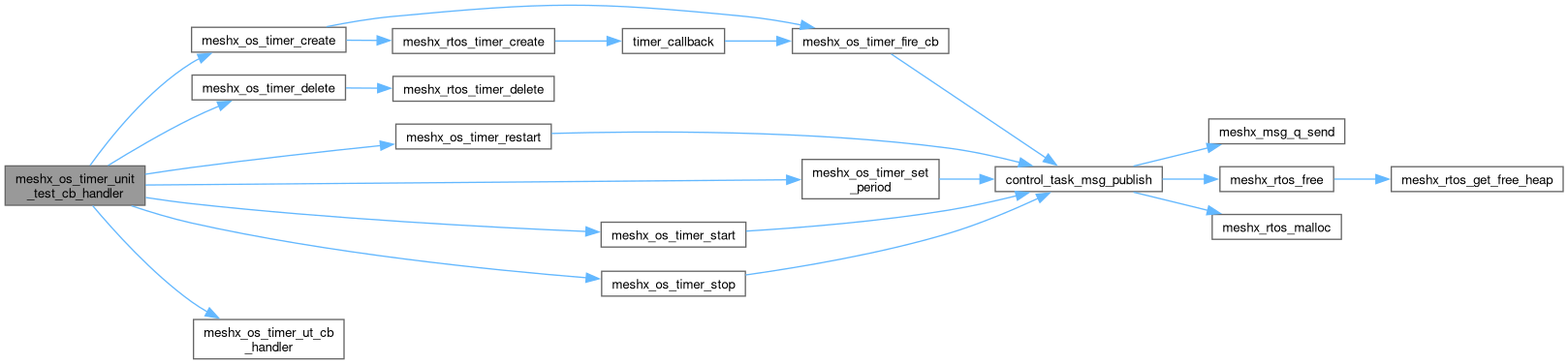

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_os_timer_ut_cb_handler()

static void meshx_os_timer_ut_cb_handler ( const meshx_os_timer_t * p_timer )

static

OS Timer Unit Test Callback handler.

Parameters

[in]

p_timer

Callback params

Definition at line 65 of file meshx_os_timer.c.

{
    MESHX_LOGI(MODULE_ID_COMPONENT_OS_TIMER, "%s|%ld", OS_TMER_GET_TIMER_NAME(p_timer), p_timer->period);
}

Here is the caller graph for this function:

SLIST_HEAD()

SLIST_HEAD	(	meshx_os_timer_reg_head	,
		meshx_os_timer	)

Variable Documentation

meshx_os_timer_reg_table_head

struct meshx_os_timer_reg_head meshx_os_timer_reg_table_head = SLIST_HEAD_INITIALIZER(os_timer_reg_table_head)

static

Head of the OS timer registration table.

This is initialized using the SLIST_HEAD_INITIALIZER macro.

Definition at line 43 of file meshx_os_timer.c.
