unit_test.h File Reference

Header file for the production console unit test functionality. More...

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include "meshx_config_internal.h"
#include "argtable3/argtable3.h"
#include "module_id.h"
#include "meshx_err.h"

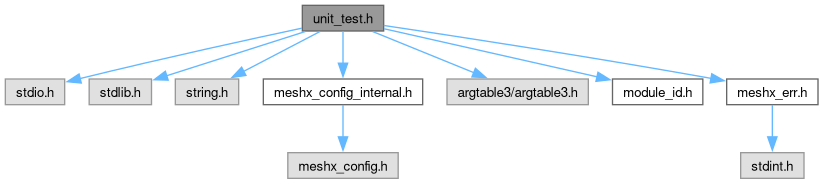

Include dependency graph for unit_test.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	callback_node
	Structure to hold the unit test callback function. More...

Macros
#define	UT_GET_ARG(_x, _type, _argv)
	Macro to extract an argument from the argument list.

Typedefs
typedef meshx_err_t(*	module_callback_t) (int cmd_id, int argc, char **argv)
	Callback function for unit test modules.
typedef struct callback_node	unit_test_callback_t
	Structure to hold the unit test callback function.

Functions
meshx_err_t	register_ut_command ()
	Registers the unit test (ut) command with the ESP console.
meshx_err_t	init_unit_test_console (void)
	Initialize the production console.
meshx_err_t	register_unit_test (module_id_t module_id, module_callback_t callback)
	Register a unit test for a specific module.

Detailed Description

Header file for the production console unit test functionality.

Copyright © 2024 - 2025 MeshX

This file contains the declarations and definitions for initializing the production console and registering unit test callbacks for different modules.

Definition in file unit_test.h.

Macro Definition Documentation

UT_GET_ARG

#define UT_GET_ARG	(		_x,
			_type,
			_argv )

Value:

(_type) atoi( _argv [_x] )

Macro to extract an argument from the argument list.

Definition at line 27 of file unit_test.h.

Typedef Documentation

module_callback_t

typedef meshx_err_t(* module_callback_t) (int cmd_id, int argc, char **argv)

Callback function for unit test modules.

This function is used to define the callback function signature for unit test modules. The callback function is invoked when a unit test command is received by the production console.

Parameters

cmd_id	The command ID to be processed.
argc	The number of arguments provided.
argv	The array of arguments.

Returns

• MESHX_SUCCESS: Success
• MESHX_INVALID_ARG: Invalid arguments
• Other error codes depending on the implementation

Definition at line 44 of file unit_test.h.

unit_test_callback_t

typedef struct callback_node unit_test_callback_t

Structure to hold the unit test callback function.

Function Documentation

init_unit_test_console()

meshx_err_t init_unit_test_console

(

void

)

Initialize the production console.

This function initializes the production console for the application.

Returns

• MESHX_SUCCESS: Success
• MESHX_FAIL: Initialization failed

Definition at line 100 of file unit_test.c.

                                     {
    // Initialize the console
    meshx_err_t err = MESHX_SUCCESS;
    esp_console_repl_t *repl = NULL;
    esp_console_repl_config_t repl_config = ESP_CONSOLE_REPL_CONFIG_DEFAULT();

    repl_config.prompt = "X>";

    // install console REPL environment
#if CONFIG_ESP_CONSOLE_UART
    esp_console_dev_uart_config_t uart_config = ESP_CONSOLE_DEV_UART_CONFIG_DEFAULT();
    ESP_ERROR_CHECK(esp_console_new_repl_uart(&uart_config, &repl_config, &repl));
#endif
#if CONFIG_ESP_CONSOLE_USB_CDC
    esp_console_dev_usb_cdc_config_t cdc_config = ESP_CONSOLE_DEV_CDC_CONFIG_DEFAULT();
    ESP_ERROR_CHECK(esp_console_new_repl_usb_cdc(&cdc_config, &repl_config, &repl));
#endif
#if CONFIG_ESP_CONSOLE_USB_SERIAL_JTAG
    esp_console_dev_usb_serial_jtag_config_t usbjtag_config = ESP_CONSOLE_DEV_USB_SERIAL_JTAG_CONFIG_DEFAULT();
    ESP_ERROR_CHECK(esp_console_new_repl_usb_serial_jtag(&usbjtag_config, &repl_config, &repl));
#endif

    // Register the unit test command
    err = register_ut_command();
    if (err != MESHX_SUCCESS) {
        return err;
    }

    err = esp_console_start_repl(repl);
    if (err != MESHX_SUCCESS) {
        return err;
    }

    return MESHX_SUCCESS;
}

Here is the call graph for this function:

Here is the caller graph for this function:

register_unit_test()

meshx_err_t register_unit_test	(	module_id_t	module_id,
		module_callback_t	callback )

Register a unit test for a specific module.

This function registers a unit test callback for the given module ID.

Parameters

[in]	module_id	The ID of the module for which the unit test is being registered.
[in]	callback	The callback function to be called for the unit test.

Returns

• MESHX_SUCCESS: Success
• MESHX_INVALID_ARG: Invalid arguments
• MESHX_FAIL: Failed to register the unit test

Definition at line 149 of file unit_test.c.

                                                                                  {
    if(module_id >= MODULE_ID_MAX)
        return MESHX_INVALID_ARG;

    callback_list[module_id].callback = callback;
    return MESHX_SUCCESS;
}

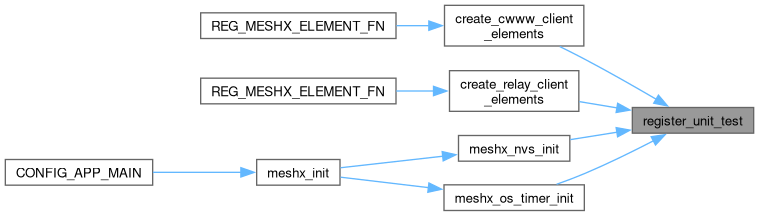

Here is the caller graph for this function:

register_ut_command()

meshx_err_t register_ut_command

(

)

Registers the unit test (ut) command with the ESP console.

This function creates a new console command "ut" which is used for running unit tests. The command is registered with the ESP console using the esp_console_cmd_register function.

Returns

• MESHX_SUCCESS: Success
• Other error codes: Failure

Definition at line 81 of file unit_test.c.

                                  {
    const esp_console_cmd_t cmd = {
        .command = "ut",
        .help = "Run unit tests",
        .hint = NULL,
        .func = (esp_console_cmd_func_t)&ut_command_handler,
    };
    return esp_console_cmd_register(&cmd);
}

Here is the call graph for this function:

Here is the caller graph for this function:
