meshx_app_api_msg Struct Reference

Structure for the BLE Mesh application API message. More...

#include <meshx_api.h>

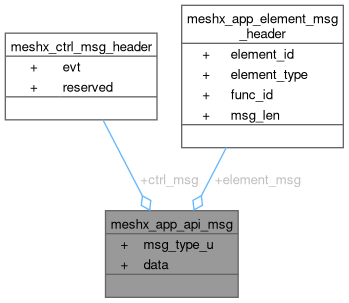

Collaboration diagram for meshx_app_api_msg:

Data Fields
union {
meshx_ctrl_msg_header_t   ctrl_msg
meshx_app_element_msg_header_t   element_msg
}	msg_type_u
uint8_t	data [MESHX_APP_API_MSG_MAX_SIZE]

Detailed Description

Structure for the BLE Mesh application API message.

This structure defines the BLE Mesh application API message.

Definition at line 166 of file meshx_api.h.

Field Documentation

ctrl_msg

meshx_ctrl_msg_header_t meshx_app_api_msg::ctrl_msg

Definition at line 170 of file meshx_api.h.

data

uint8_t meshx_app_api_msg::data[MESHX_APP_API_MSG_MAX_SIZE]

Definition at line 174 of file meshx_api.h.

element_msg

meshx_app_element_msg_header_t meshx_app_api_msg::element_msg

Definition at line 171 of file meshx_api.h.

[union]

union { ... } meshx_app_api_msg::msg_type_u

---

The documentation for this struct was generated from the following file:

• meshx_api.h
