esp_gen_srv_model.c File Reference

Implementation of the Generic OnOff Server model for BLE Mesh. This file contains the initialization, state management, and message handling logic for the Generic OnOff Server model in the MeshX platform. More...

#include "meshx_control_task.h"
#include "interface/ble_mesh/server/meshx_ble_mesh_gen_srv.h"

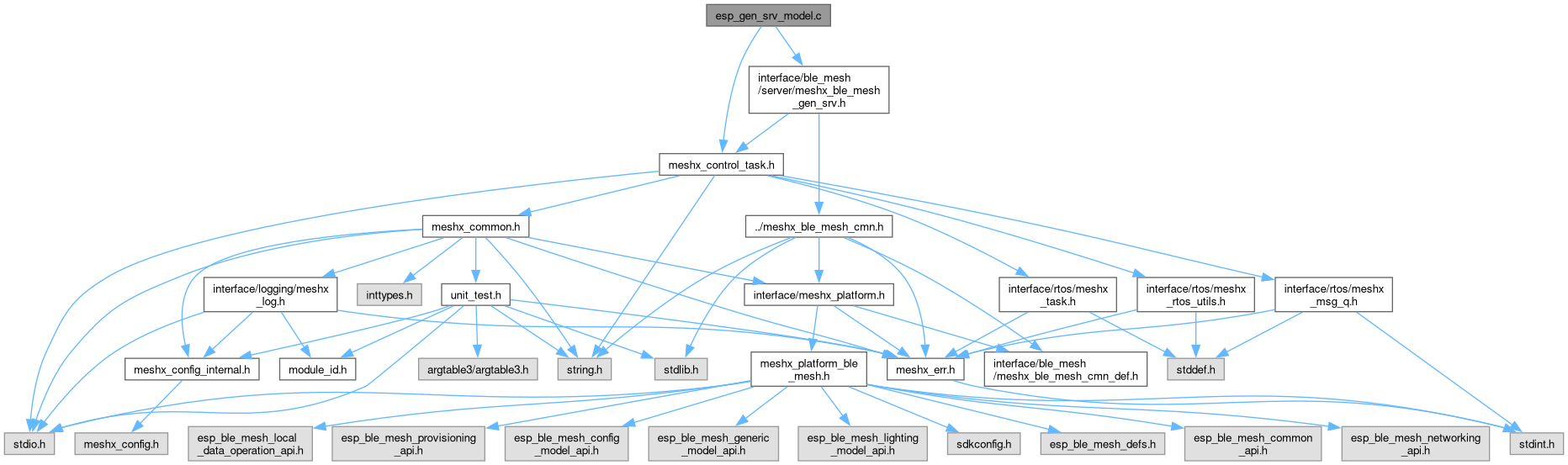

Include dependency graph for esp_gen_srv_model.c:

Go to the source code of this file.

Macros
#define	CONTROL_TASK_MSG_EVT_TO_BLE_GEN_SRV_MASK    CONTROL_TASK_MSG_EVT_TO_BLE_SET_ON_OFF_SRV

Functions
static meshx_err_t	meshx_plat_gen_srv_create (void *p_model, void **p_pub, void **p_srv)
	Creates and initializes the Generic Server model platform resources.
static void	esp_ble_mesh_generic_server_cb (MESHX_GEN_SRV_CB_EVT event, MESHX_GEN_SRV_CB_PARAM *param)
	Callback function for BLE Mesh Generic Server events.
meshx_err_t	meshx_plat_gen_srv_send_status (meshx_model_t *p_model, meshx_ctx_t *p_ctx, meshx_ptr_t p_data, uint32_t data_len)
	Send a status message from the Generic Server model.
meshx_err_t	meshx_plat_set_gen_srv_state (void *p_model, uint8_t on_off_state)
	Set the state of a generic server model.
meshx_err_t	meshx_plat_gen_srv_init (void)
	Initialize the meshxuction generic server.
meshx_err_t	meshx_plat_on_off_gen_srv_create (void *p_model, void **p_pub, void **p_onoff_srv)
	Creates a Generic OnOff Server model and its publication context.
meshx_err_t	meshx_plat_gen_srv_delete (void **p_pub, void **p_srv)
	Deletes the Generic OnOff Server model and its associated resources.
meshx_err_t	meshx_plat_gen_on_off_srv_restore (void *p_model, uint8_t state)
	Restores the state of the Generic OnOff Server model.

Variables
static const char *	server_state_str []
	String representation of the server state change events.

Detailed Description

Implementation of the Generic OnOff Server model for BLE Mesh. This file contains the initialization, state management, and message handling logic for the Generic OnOff Server model in the MeshX platform.

Copyright (c) 2024 - 2025 MeshX

The Generic OnOff Server model is responsible for managing the on/off state of a device in a BLE Mesh network. It handles incoming messages, updates the state, and publishes the state changes to the network.

Author

Pranjal Chanda

Definition in file esp_gen_srv_model.c.

Macro Definition Documentation

CONTROL_TASK_MSG_EVT_TO_BLE_GEN_SRV_MASK

#define CONTROL_TASK_MSG_EVT_TO_BLE_GEN_SRV_MASK    CONTROL_TASK_MSG_EVT_TO_BLE_SET_ON_OFF_SRV

Definition at line 21 of file esp_gen_srv_model.c.

#define CONTROL_TASK_MSG_EVT_TO_BLE_GEN_SRV_MASK \
    CONTROL_TASK_MSG_EVT_TO_BLE_SET_ON_OFF_SRV

Function Documentation

esp_ble_mesh_generic_server_cb()

static void esp_ble_mesh_generic_server_cb ( MESHX_GEN_SRV_CB_EVT event, MESHX_GEN_SRV_CB_PARAM * param )

static

Callback function for BLE Mesh Generic Server events.

This function is called whenever a BLE Mesh Generic Server event occurs.

Parameters

[in]	event	The event type for the BLE Mesh Generic Server.
[in]	param	Parameters associated with the event.

Definition at line 80 of file esp_gen_srv_model.c.

{
    ESP_UNUSED(server_state_str);
    MESHX_LOGD(MODULE_ID_MODEL_SERVER, "%s, op|src|dst:%04" PRIx32 "|%04x|%04x",
            server_state_str[event], param->ctx.recv_op, param->ctx.addr, param->ctx.recv_dst);

    if (event != ESP_BLE_MESH_GENERIC_SERVER_STATE_CHANGE_EVT)
        return;

    meshx_gen_srv_cb_param_t pub_param = {
        .ctx = {
            .net_idx    = param->ctx.net_idx,
            .app_idx    = param->ctx.app_idx,
            .dst_addr   = param->ctx.recv_dst,
            .src_addr   = param->ctx.addr,
            .opcode     = param->ctx.recv_op,
            .p_ctx      = &param->ctx
        },
        .model = {
            .pub_addr   = param->model->pub->publish_addr,
            .model_id   = param->model->model_id,
            .el_id      = param->model->element_idx,
            .p_model    = param->model
        },
        .state_change = {
            .onoff_set.onoff = param->value.state_change.onoff_set.onoff
        }
    };

    if(pub_param.model.model_id == ESP_BLE_MESH_MODEL_ID_GEN_ONOFF_SRV)
    {
        MESHX_GEN_ONOFF_SRV *srv = (MESHX_GEN_ONOFF_SRV *)param->model->user_data;
        srv->state.onoff = pub_param.state_change.onoff_set.onoff;
    }

    meshx_err_t err = control_task_msg_publish(
        CONTROL_TASK_MSG_CODE_FRM_BLE,
        pub_param.model.model_id,
        &pub_param,
        sizeof(meshx_gen_srv_cb_param_t));
    if (err)
    {
        MESHX_LOGE(MODULE_ID_MODEL_SERVER, "Failed to publish to control task");
    }
}

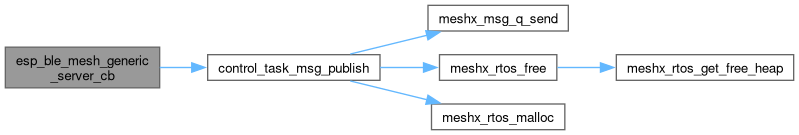

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_plat_gen_on_off_srv_restore()

meshx_err_t meshx_plat_gen_on_off_srv_restore	(	void *	p_model,
		uint8_t	state )

Restores the state of the Generic OnOff Server model.

This function sets the user data of the specified model to the given state. It checks if the model pointer is valid before proceeding with the operation.

Parameters

[in]	p_model	Pointer to the model structure.
[in]	state	The state to be restored in the model.

Returns

• MESHX_SUCCESS: State restored successfully.
• MESHX_INVALID_ARG: Invalid model pointer.

Definition at line 247 of file esp_gen_srv_model.c.

{
    return meshx_plat_set_gen_srv_state (p_model, state);
}

Here is the call graph for this function:

meshx_plat_gen_srv_create()

static meshx_err_t meshx_plat_gen_srv_create ( void * p_model, void ** p_pub, void ** p_srv )

static

Creates and initializes the Generic Server model platform resources.

This function sets up the necessary resources for a Generic Server model, including publication and OnOff server instances.

Parameters

[in]	p_model	Pointer to the model instance to be initialized.
[out]	p_pub	Pointer to the location where the publication context will be stored.
[out]	p_srv	Pointer to the location where the OnOff server instance will be stored.

Returns

meshx_err_t Returns an error code indicating success or failure of the operation.

Definition at line 36 of file esp_gen_srv_model.c.

{
    if(!p_model || !p_pub || !p_srv)
        return MESHX_INVALID_ARG;

    meshx_err_t err = MESHX_SUCCESS;

    err = meshx_plat_create_model_pub(p_pub, 1);
    if (err)
        return meshx_plat_del_model_pub(p_pub);

    *p_srv = (MESHX_GEN_ONOFF_SRV *) MESHX_CALOC(1, sizeof(MESHX_GEN_ONOFF_SRV));
    if(!*p_srv)
        return MESHX_NO_MEM;

    ((MESHX_GEN_ONOFF_SRV*)*p_srv)->rsp_ctrl.get_auto_rsp = ESP_BLE_MESH_SERVER_AUTO_RSP;
    ((MESHX_GEN_ONOFF_SRV*)*p_srv)->rsp_ctrl.set_auto_rsp = ESP_BLE_MESH_SERVER_AUTO_RSP;
    ((MESHX_MODEL*)p_model)->user_data = *p_srv;

    void **temp = (void**) &((MESHX_MODEL*)p_model)->pub;

    *temp = *p_pub;

    return err;
}

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_plat_gen_srv_delete()

meshx_err_t meshx_plat_gen_srv_delete	(	void **	p_pub,
		void **	p_srv )

Deletes the Generic OnOff Server model and its associated resources.

This function frees the memory allocated for the Generic OnOff Server and sets the pointer to NULL. It also deletes the model publication resources associated with the server.

Parameters

[in,out]	p_pub	Pointer to the publication structure to be deleted.
[in,out]	p_srv	Pointer to the Generic Server structure to be freed.

Returns

• MESHX_SUCCESS: Model and publication deleted successfully.
• MESHX_FAIL: Failed to delete the model or publication.

Definition at line 236 of file esp_gen_srv_model.c.

{
    if(p_srv)
    {
        MESHX_FREE(*p_srv);
        *p_srv = NULL;
    }

    return meshx_plat_del_model_pub(p_pub);
}

Here is the call graph for this function:

meshx_plat_gen_srv_init()

meshx_err_t meshx_plat_gen_srv_init

(

void

)

Initialize the meshxuction generic server.

Initialize the generic server model platform.

This function sets up the necessary configurations and initializes the meshxuction generic server for the BLE mesh node.

Returns

• MESHX_SUCCESS: Success
• MESHX_FAIL: Failed to initialize the server

Definition at line 210 of file esp_gen_srv_model.c.

{
    meshx_err_t err = MESHX_SUCCESS;

    /* Register the ESP Generic Server callback */
    esp_err_t esp_err = esp_ble_mesh_register_generic_server_callback(
            (MESHX_GEN_SRV_CB)&esp_ble_mesh_generic_server_cb
        );
    if(esp_err != ESP_OK)
        err = MESHX_ERR_PLAT;

    return err;
}

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_plat_gen_srv_send_status()

meshx_err_t meshx_plat_gen_srv_send_status	(	meshx_model_t *	p_model,
		meshx_ctx_t *	p_ctx,
		meshx_ptr_t	p_data,
		uint32_t	data_len )

Send a status message from the Generic Server model.

This function sends a status message to the specified context with the provided data.

Parameters

[in]	p_model	Pointer to the model instance.
[in]	p_ctx	Pointer to the context structure containing destination address and other parameters.
[in]	p_data	Pointer to the data to be sent.
[in]	data_len	Length of the data to be sent.

Returns

• MESHX_SUCCESS: Message sent successfully.
• MESHX_NO_MEM: Memory allocation failed.
• MESHX_ERR_PLAT: Platform error occurred while sending the message.

Definition at line 142 of file esp_gen_srv_model.c.

{
    static esp_ble_mesh_msg_ctx_t ctx;
    const esp_ble_mesh_msg_ctx_t *pctx = (esp_ble_mesh_msg_ctx_t *)p_ctx->p_ctx;
    if(pctx != NULL)
    {
        memcpy(&ctx, pctx, sizeof(esp_ble_mesh_msg_ctx_t));
    }

    ctx.net_idx    =   p_ctx->net_idx;
    ctx.app_idx    =   p_ctx->app_idx;
    ctx.addr       =   p_ctx->dst_addr;
    ctx.send_ttl   =   ESP_BLE_MESH_TTL_DEFAULT;
    ctx.send_cred  =   0;
    ctx.send_tag   =   BIT1;

    esp_err_t err = esp_ble_mesh_server_model_send_msg(p_model->p_model,
        &ctx,
        p_ctx->opcode,
        (uint16_t)data_len,
        (uint8_t*)p_data);
    if(err)
    {
        MESHX_LOGE(MODULE_ID_MODEL_SERVER, "Mesh Model msg send failed (err: 0x%x)", err);
        return MESHX_ERR_PLAT;
    }
    MESHX_LOGD(MODULE_ID_MODEL_SERVER, "Mesh Model msg sent (opcode: 0x%04x)", p_ctx->opcode);
    return MESHX_SUCCESS;
}

Here is the caller graph for this function:

meshx_plat_on_off_gen_srv_create()

meshx_err_t meshx_plat_on_off_gen_srv_create	(	void *	p_model,
		void **	p_pub,
		void **	p_onoff_srv )

Creates a Generic OnOff Server model and its publication context.

This function initializes the Generic OnOff Server model, its publication context, and allocates memory for the server instance. It checks for invalid arguments and handles memory allocation failures.

Parameters

[out]	p_model	Pointer to the model structure to be created.
[out]	p_pub	Pointer to the publication context to be created.
[out]	p_onoff_srv	Pointer to the OnOff server instance to be allocated.

Returns

• MESHX_SUCCESS: Successfully created the model and publication context.
• MESHX_INVALID_ARG: One or more arguments are invalid.
• MESHX_NO_MEM: Memory allocation failed.

Definition at line 224 of file esp_gen_srv_model.c.

{
    if(!p_model || !p_pub || !p_onoff_srv)
        return MESHX_INVALID_ARG;

    /* SIG ON OFF initialisation */
    uint16_t model_id = ESP_BLE_MESH_MODEL_ID_GEN_ONOFF_SRV;
    memcpy((meshx_ptr_t) &(((MESHX_MODEL*)p_model)->model_id), &model_id, sizeof(model_id));

    return meshx_plat_gen_srv_create(p_model, p_pub, p_onoff_srv);
}

Here is the call graph for this function:

meshx_plat_set_gen_srv_state()

meshx_err_t meshx_plat_set_gen_srv_state	(	void *	p_model,
		uint8_t	on_off_state )

Set the state of a generic server model.

This function updates the on/off state of a specified generic server model.

Parameters

[in]	p_model	Pointer to the model whose state is to be set.
[in]	on_off_state	The desired on/off state to set for the model.

Returns

MESHX_SUCCESS on success, or an appropriate error code on failure.

Definition at line 187 of file esp_gen_srv_model.c.

{
    if(!p_model)
        return MESHX_INVALID_ARG;

    MESHX_MODEL * model = (MESHX_MODEL *)p_model;
    MESHX_GEN_ONOFF_SRV *srv = (MESHX_GEN_ONOFF_SRV *)model->user_data;

    srv->state.onoff = on_off_state;

    return MESHX_SUCCESS;
}

Here is the caller graph for this function:

Variable Documentation

server_state_str

const char* server_state_str[]

static

Initial value:

= {
    [ESP_BLE_MESH_GENERIC_SERVER_STATE_CHANGE_EVT] = "SRV_STATE_CH",
    [ESP_BLE_MESH_GENERIC_SERVER_RECV_GET_MSG_EVT] = "SRV_RECV_GET",
    [ESP_BLE_MESH_GENERIC_SERVER_RECV_SET_MSG_EVT] = "SRV_RECV_SET"
}

String representation of the server state change events.

Definition at line 65 of file esp_gen_srv_model.c.

                                        {
    [ESP_BLE_MESH_GENERIC_SERVER_STATE_CHANGE_EVT] = "SRV_STATE_CH",
    [ESP_BLE_MESH_GENERIC_SERVER_RECV_GET_MSG_EVT] = "SRV_RECV_GET",
    [ESP_BLE_MESH_GENERIC_SERVER_RECV_SET_MSG_EVT] = "SRV_RECV_SET"
};
