esp_gen_light_cli_model.c File Reference

Implementation of the Generic Light Client model for BLE Mesh. This file contains the initialization, resource management, and message handling logic for the Generic Light Client model in the MeshX platform. More...

#include "meshx_control_task.h"
#include "interface/ble_mesh/client/meshx_ble_mesh_light_cli.h"

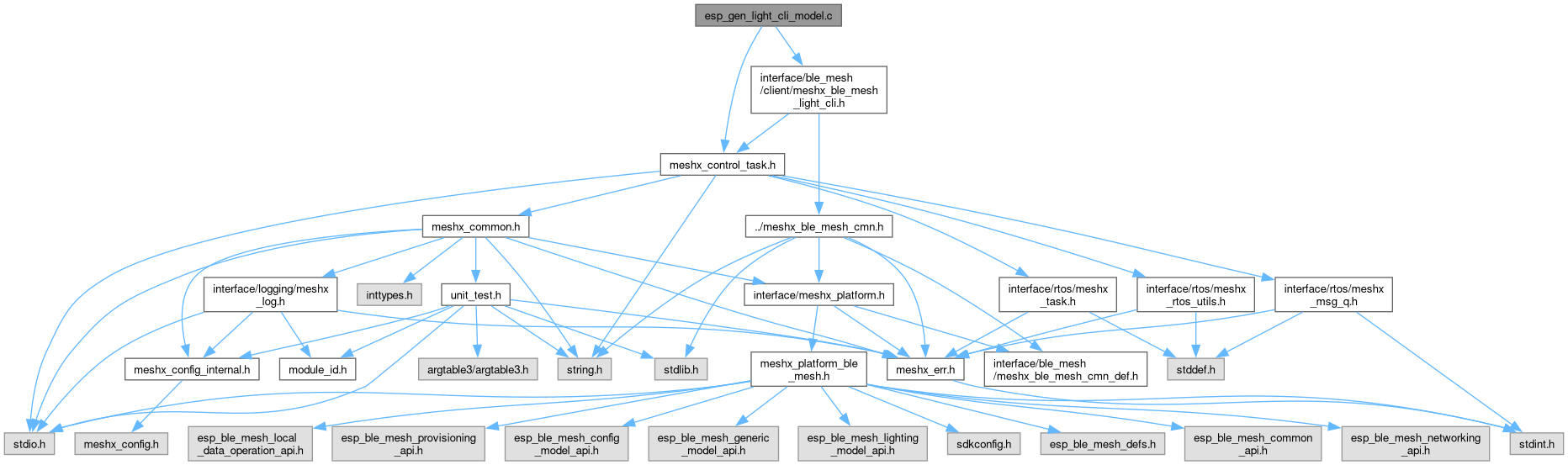

Include dependency graph for esp_gen_light_cli_model.c:

Go to the source code of this file.

Macros
#define	MESHX_CLIENT_INIT_MAGIC_NO   0x3728

Functions
static void	esp_ble_mesh_light_client_cb (MESHX_GEN_LIGHT_CLI_CB_EVT event, MESHX_GEN_LIGHT_CLI_CB_PARAM *param)
	Callback function for BLE Mesh Light Client events.
meshx_err_t	meshx_plat_gen_light_client_init (void)
	Initialize the Generic Light Client Model. This function sets up the necessary parameters and resources for the Generic Light Client Model to operate correctly.
meshx_err_t	meshx_plat_light_ctl_client_create (meshx_ptr_t p_model, meshx_ptr_t *p_pub, meshx_ptr_t *p_light_ctl_cli)
	Creates and initializes a Light CTL (Color Temperature Light) client model instance.
meshx_err_t	meshx_plat_light_client_delete (meshx_ptr_t *p_pub, meshx_ptr_t *p_cli)
	Deletes the Light client instance and its associated publication context.
meshx_err_t	meshx_plat_light_client_send_msg (meshx_ptr_t p_model, meshx_light_client_set_state_t *p_set, uint16_t opcode, uint16_t addr, uint16_t net_idx, uint16_t app_idx, bool is_get_opcode)
	Sends a Light Client message over BLE Mesh.

Variables
static uint16_t	meshx_client_init = 0
static const char *	client_state_str []
	Mapping of BLE Mesh client state events to string representations.

Detailed Description

Implementation of the Generic Light Client model for BLE Mesh. This file contains the initialization, resource management, and message handling logic for the Generic Light Client model in the MeshX platform.

Copyright (c) 2024 - 2025 MeshX

The Generic Light Client model is responsible for sending requests and receiving responses related to the light state of devices in a BLE Mesh network. It manages the client instance, publication context, and interacts with the MeshX BLE Mesh stack.

Author

Pranjal Chanda

Definition in file esp_gen_light_cli_model.c.

Macro Definition Documentation

MESHX_CLIENT_INIT_MAGIC_NO

#define MESHX_CLIENT_INIT_MAGIC_NO   0x3728

Definition at line 27 of file esp_gen_light_cli_model.c.

Function Documentation

esp_ble_mesh_light_client_cb()

static void esp_ble_mesh_light_client_cb ( MESHX_GEN_LIGHT_CLI_CB_EVT event, MESHX_GEN_LIGHT_CLI_CB_PARAM * param )

static

Callback function for BLE Mesh Light Client events.

This function is invoked to handle events related to the Generic Light Client model in the BLE Mesh stack. It processes various client events and their associated parameters.

Parameters

event	The event type received by the Light Client.
param	Pointer to the structure containing event-specific parameters.

Definition at line 63 of file esp_gen_light_cli_model.c.

{
    MESHX_UNUSED(client_state_str);
    MESHX_LOGD(MODULE_ID_MODEL_CLIENT, "%s, err|op|src|dst: %d|%04" PRIx32 "|%04x|%04x",
            client_state_str[event], param->error_code,
            param->params->ctx.recv_op, param->params->ctx.addr, param->params->ctx.recv_dst);

    meshx_gen_light_cli_cb_param_t pub_param = {
        .ctx = {
            .net_idx    = param->params->ctx.net_idx,
            .app_idx    = param->params->ctx.app_idx,
            .dst_addr   = param->params->ctx.recv_dst,
            .src_addr   = param->params->ctx.addr,
            .opcode     = param->params->ctx.recv_op,
            .p_ctx      = &param->params->ctx
        },
        .model = {
            .pub_addr   = param->params->model->pub->publish_addr,
            .model_id   = param->params->model->model_id,
            .el_id      = param->params->model->element_idx,
            .p_model    = param->params->model
        },
        .evt = MESHX_BIT(event)
    };

    /* Copy the msg data from BLE Layer to MeshX Layer */
    memcpy(&pub_param.status, &param->status_cb, sizeof(meshx_gen_light_client_status_cb_t));

    /* Publish the event to the control task message queue */
    meshx_err_t err = control_task_msg_publish(
        CONTROL_TASK_MSG_CODE_FRM_BLE,
        pub_param.model.model_id,
        &pub_param, sizeof(meshx_gen_light_cli_cb_param_t));
    if (err != MESHX_SUCCESS)
    {
        MESHX_LOGE(MODULE_ID_MODEL_CLIENT, "Failed to publish Generic Light Client event: %d", err);
    }
}

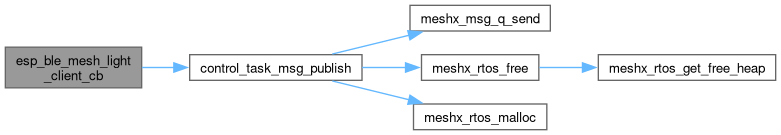

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_plat_gen_light_client_init()

meshx_err_t meshx_plat_gen_light_client_init

(

void

)

Initialize the Generic Light Client Model. This function sets up the necessary parameters and resources for the Generic Light Client Model to operate correctly.

Returns

meshx_err_t Returns MESHX_SUCCESS on successful initialization, or an appropriate error code on failure.

Definition at line 114 of file esp_gen_light_cli_model.c.

{
    meshx_err_t err = MESHX_SUCCESS;
    if (meshx_client_init == MESHX_CLIENT_INIT_MAGIC_NO)
    {
        return MESHX_SUCCESS; // Already initialized
    }
    meshx_client_init = MESHX_CLIENT_INIT_MAGIC_NO;

    // Register the callback for handling messages sent to the BLE layer
    esp_err_t esp_err = esp_ble_mesh_register_light_client_callback(
        (MESHX_GEN_LIGHT_CLI_CB)&esp_ble_mesh_light_client_cb);
    if (esp_err != ESP_OK)
        err = MESHX_ERR_PLAT;
    return err;
}

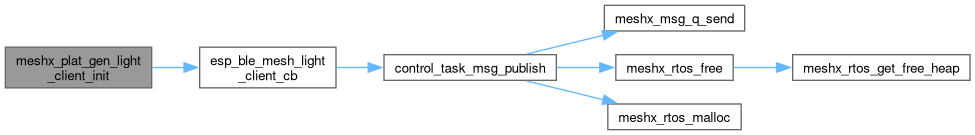

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_plat_light_client_delete()

meshx_err_t meshx_plat_light_client_delete	(	meshx_ptr_t *	p_pub,
		meshx_ptr_t *	p_cli )

Deletes the Light client instance and its associated publication context.

This function is responsible for cleaning up and freeing resources associated with the Light client model, including its publication context.

Parameters

[in]	p_pub	Pointer to the publication context to be deleted.
[in]	p_cli	Pointer to the client instance to be deleted.

Returns

meshx_err_t Returns an error code indicating the result of the delete operation.

Definition at line 168 of file esp_gen_light_cli_model.c.

{
    if (p_cli)
    {
        MESHX_FREE(*p_cli);
        *p_cli = NULL;
    }

    return meshx_plat_del_model_pub(p_pub);
}

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_plat_light_client_send_msg()

meshx_err_t meshx_plat_light_client_send_msg	(	meshx_ptr_t	p_model,
		meshx_light_client_set_state_t *	p_set,
		uint16_t	opcode,
		uint16_t	addr,
		uint16_t	net_idx,
		uint16_t	app_idx,
		bool	is_get_opcode )

Sends a Light Client message over BLE Mesh.

This function constructs and sends a Light Client message using the specified model, set state parameters, opcode, destination address, network index, and application index.

Parameters

[in]	p_model	Pointer to the BLE Mesh model instance.
[in]	p_set	Pointer to the structure containing the light client set state parameters.
[in]	opcode	Opcode of the message to be sent.
[in]	addr	Destination address for the message.
[in]	net_idx	Network index to be used for sending the message.
[in]	app_idx	Application index to be used for sending the message.
[in]	is_get_opcode	Indicates whether the opcode is a GET type (true) or SET type (false).

Returns

meshx_err_t Result of the message send operation.

Definition at line 195 of file esp_gen_light_cli_model.c.

{
    if (!p_model || !p_set)
    {
        return MESHX_INVALID_ARG;
    }

    esp_ble_mesh_client_common_param_t common = {0};
    common.model        = p_model;
    common.opcode       = opcode;
    common.ctx.addr     = addr;
    common.ctx.net_idx  = net_idx;
    common.ctx.app_idx  = app_idx;
    common.ctx.send_ttl = BLE_MESH_TTL_DEFAULT;
    common.msg_timeout  = 0; /* 0 indicates that timeout value from menuconfig will be used */

    // Send the message using the appropriate BLE Mesh API
    if (!is_get_opcode)
    {
        esp_err_t esp_err = esp_ble_mesh_light_client_set_state(
            &common,
            (esp_ble_mesh_light_client_set_state_t *)p_set
        );
        if (esp_err != ESP_OK)
        {
            MESHX_LOGE(MODULE_ID_MODEL_CLIENT, "Failed to send Light Client message: %d", esp_err);
            return MESHX_ERR_PLAT;
        }
    }
    else
    {
        esp_err_t esp_err = esp_ble_mesh_light_client_get_state(
            &common,
            (esp_ble_mesh_light_client_get_state_t *)p_set
        );
        if (esp_err != ESP_OK)
        {
            MESHX_LOGE(MODULE_ID_MODEL_CLIENT, "Failed to send Light Client GET message: %d", esp_err);
            return MESHX_ERR_PLAT;
        }
    }
    return MESHX_SUCCESS;
}

Here is the caller graph for this function:

meshx_plat_light_ctl_client_create()

meshx_err_t meshx_plat_light_ctl_client_create	(	meshx_ptr_t	p_model,
		meshx_ptr_t *	p_pub,
		meshx_ptr_t *	p_light_ctl_cli )

Creates and initializes a Light CTL (Color Temperature Light) client model instance.

This function sets up the Light CTL client model for use in the BLE Mesh network. It associates the client model with the provided model pointer and optionally sets up publication and client context pointers.

Parameters

[in]	p_model	Pointer to the mesh model structure to associate with the Light CTL client.
[out]	p_pub	Pointer to a publication context pointer to be initialized (can be NULL if not used).
[out]	p_light_ctl_cli	Pointer to a Light CTL client context pointer to be initialized.

Returns

meshx_err_t Returns MESHX_OK on success, or an appropriate error code on failure.

Definition at line 144 of file esp_gen_light_cli_model.c.

{
    if (!p_model || !p_pub || !p_light_ctl_cli)
    {
        return MESHX_INVALID_ARG; // Invalid arguments
    }
    /* SIG Light CTL Init */
    uint16_t model_id = ESP_BLE_MESH_MODEL_ID_LIGHT_CTL_CLI;
    memcpy((meshx_ptr_t)&(((MESHX_MODEL *)p_model)->model_id), &model_id, sizeof(model_id));

    return meshx_plat_client_create(p_model, p_pub, p_light_ctl_cli);
}

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

client_state_str

const char* client_state_str[]

static

Initial value:

=
{
    [ESP_BLE_MESH_LIGHT_CLIENT_PUBLISH_EVT] = "PUBLISH_EVT",
    [ESP_BLE_MESH_LIGHT_CLIENT_TIMEOUT_EVT] = "TIMEOUT_EVT",
    [ESP_BLE_MESH_LIGHT_CLIENT_GET_STATE_EVT] = "GET_STATE_EVT",
    [ESP_BLE_MESH_LIGHT_CLIENT_SET_STATE_EVT] = "SET_STATE_EVT",
}

Mapping of BLE Mesh client state events to string representations.

Definition at line 37 of file esp_gen_light_cli_model.c.

{
    [ESP_BLE_MESH_LIGHT_CLIENT_PUBLISH_EVT] = "PUBLISH_EVT",
    [ESP_BLE_MESH_LIGHT_CLIENT_TIMEOUT_EVT] = "TIMEOUT_EVT",
    [ESP_BLE_MESH_LIGHT_CLIENT_GET_STATE_EVT] = "GET_STATE_EVT",
    [ESP_BLE_MESH_LIGHT_CLIENT_SET_STATE_EVT] = "SET_STATE_EVT",
};

meshx_client_init

uint16_t meshx_client_init = 0

static

Definition at line 32 of file esp_gen_light_cli_model.c.
