meshx_light_ctl_srv.c File Reference

Implementation of the Light CTL Server model for BLE Mesh Node. More...

#include <meshx_light_ctl_srv.h>

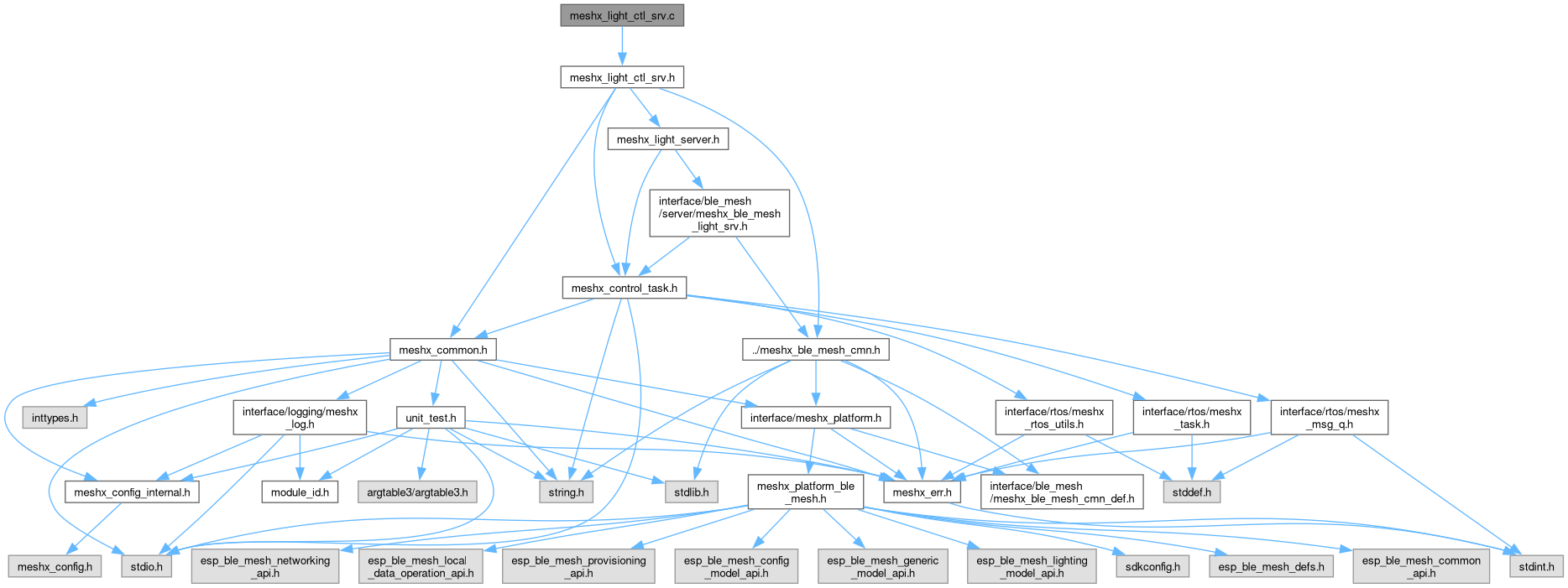

Include dependency graph for meshx_light_ctl_srv.c:

Go to the source code of this file.

Data Structures
struct	meshx_light_ctl_setup_server
	Structure representing the MeshX Light CTL Setup Server. More...

Macros
#define	MESHX_SERVER_INIT_MAGIC_NO   0x2483

Typedefs
typedef struct meshx_light_ctl_setup_server	meshx_light_ctl_setup_server_t
	Structure representing the MeshX Light CTL Setup Server.

Functions
static meshx_err_t	meshx_state_change_notify (meshx_lighting_server_cb_param_t *param)
	Perform hardware change for the light control server model.
static meshx_err_t	meshx_handle_light_ctl_msg (const dev_struct_t *pdev, const control_task_msg_evt_t evt, meshx_lighting_server_cb_param_t *param)
	Handle Light CTL messages for the lighting server model.
static meshx_err_t	meshx_light_ctl_setup_server_delete (void)
	Deletes or deinitializes the Light CTL (Color Temperature Lightness) Setup Server instance.
static meshx_err_t	meshx_light_ctl_setup_server_create (void)
	Creates and initializes the Light CTL (Color Temperature Lightness) Setup Server.
meshx_err_t	meshx_get_ctl_setup_srv_model (meshx_ptr_t p_model)
	Retrieves the CTL (Color Temperature Lightness) Setup Server model instance.
meshx_err_t	meshx_light_ctl_server_init (void)
	Initialize the Light CTL Server model.
meshx_err_t	meshx_light_ctl_server_create (meshx_ctl_server_model_t **p_model, meshx_ptr_t p_sig_model)
	Create and initialize a new CTL server model instance.
meshx_err_t	meshx_light_ctl_server_delete (meshx_ctl_server_model_t **p_model)
	Delete the CTL server model instance.
meshx_err_t	meshx_light_ctl_srv_state_restore (meshx_ctl_server_model_t *p_model, meshx_light_ctl_srv_state_t ctl_state)
	Restore the CTL state for the generic server model.
meshx_err_t	meshx_light_ctl_srv_status_send (meshx_model_t *p_model, meshx_ctx_t *ctx, int16_t delta_uv, uint16_t lightness, uint16_t temperature)
	Send the Light CTL status message.
meshx_err_t	meshx_light_ctl_srv_send_pack_create (meshx_ptr_t p_model, uint16_t element_id, uint16_t net_idx, uint16_t app_idx, uint16_t pub_addr, meshx_light_ctl_srv_state_t ctl_state, meshx_lighting_server_cb_param_t *light_srv_send)
	Create a Light CTL Server send message packet.

Variables
struct {
uint16_t   ctl_lighting_server_init
uint16_t   ctl_lighting_server_created
meshx_light_ctl_setup_server_t   ctl_setup_server
}	g_meshx_light_ctl_srv
	Structure to maintain the initialization and creation state of the MeshX Light CTL Server.

Detailed Description

Implementation of the Light CTL Server model for BLE Mesh Node.

Copyright © 2024 - 2025 MeshX

This file contains the implementation of the Light CTL (Color Temperature Light) Server model for the BLE Mesh Node. The Light CTL Server model is responsible for controlling the color temperature and lightness of a light.

Author

Pranjal Chanda

Definition in file meshx_light_ctl_srv.c.

Macro Definition Documentation

MESHX_SERVER_INIT_MAGIC_NO

#define MESHX_SERVER_INIT_MAGIC_NO   0x2483

Definition at line 16 of file meshx_light_ctl_srv.c.

Typedef Documentation

meshx_light_ctl_setup_server_t

typedef struct meshx_light_ctl_setup_server meshx_light_ctl_setup_server_t

Structure representing the MeshX Light CTL Setup Server.

This structure holds the initialization state, model information, and a pointer to the server model for the Light CTL (Color Temperature Lightness) Setup Server.

Function Documentation

meshx_get_ctl_setup_srv_model()

meshx_err_t meshx_get_ctl_setup_srv_model

(

meshx_ptr_t

p_model

)

Retrieves the CTL (Color Temperature Lightness) Setup Server model instance.

This function is used to obtain a reference or handle to the CTL Setup Server model, which is responsible for managing color temperature and lightness control in a mesh network.

Parameters

[in]

p_model

Pointer to the model structure or context.

Returns

meshx_err_t Returns an error code indicating the result of the operation. Typically, MESHX_OK on success or an appropriate error code on failure.

Definition at line 289 of file meshx_light_ctl_srv.c.

{
    if (!p_model)
        return MESHX_INVALID_ARG;

    if (g_meshx_light_ctl_srv.ctl_setup_server.meshx_srv_model == NULL)
        return MESHX_FAIL;

    memcpy(p_model, &g_meshx_light_ctl_srv.ctl_setup_server.ctl_setup_srv_model, sizeof(MESHX_MODEL));
    return MESHX_SUCCESS;
}

meshx_handle_light_ctl_msg()

static meshx_err_t meshx_handle_light_ctl_msg ( const dev_struct_t * pdev, const control_task_msg_evt_t evt, meshx_lighting_server_cb_param_t * param )

static

Handle Light CTL messages for the lighting server model.

This function processes incoming Light CTL messages and performs the necessary actions based on the message parameters.

Parameters

pdev	Pointer to the device structure.
evt	Event type of the control task message.
param	Pointer to the BLE Mesh lighting server callback parameter structure.

Returns

• MESHX_SUCCESS: Success
• MESHX_INVALID_ARG: Invalid argument
• MESHX_FAIL: Other failures

< Light CTL Message Opcode

< Light CTL Setup Message Opcode

Definition at line 117 of file meshx_light_ctl_srv.c.

{
    if (!pdev || (evt != MESHX_MODEL_ID_LIGHT_CTL_SRV && evt != MESHX_MODEL_ID_LIGHT_CTL_SETUP_SRV))
        return MESHX_INVALID_ARG;
    meshx_err_t err = MESHX_SUCCESS;

    bool send_reply_to_src = false;
    bool state_change_notify = false;
    uint32_t op_code = param->ctx.opcode;
    uint32_t status_op = 0;
    switch (op_code)
    {
        case MESHX_MODEL_OP_LIGHT_CTL_STATUS:
        case MESHX_MODEL_OP_LIGHT_CTL_TEMPERATURE_STATUS:
        case MESHX_MODEL_OP_LIGHT_CTL_DEFAULT_STATUS:
        case MESHX_MODEL_OP_LIGHT_CTL_TEMPERATURE_RANGE_STATUS:
            /* Ignore, as these are status messages */
            break;
        case MESHX_MODEL_OP_LIGHT_CTL_GET:
        case MESHX_MODEL_OP_LIGHT_CTL_SET:
        case MESHX_MODEL_OP_LIGHT_CTL_SET_UNACK:
            status_op = MESHX_MODEL_OP_LIGHT_CTL_STATUS;
            if (op_code != MESHX_MODEL_OP_LIGHT_CTL_GET)
                state_change_notify = true;

            if (op_code != MESHX_MODEL_OP_LIGHT_CTL_SET_UNACK)
                send_reply_to_src = true;

            break;
        case MESHX_MODEL_OP_LIGHT_CTL_TEMPERATURE_GET:
        case MESHX_MODEL_OP_LIGHT_CTL_TEMPERATURE_SET:
        case MESHX_MODEL_OP_LIGHT_CTL_TEMPERATURE_SET_UNACK:
            status_op = MESHX_MODEL_OP_LIGHT_CTL_TEMPERATURE_STATUS;
            if (op_code != MESHX_MODEL_OP_LIGHT_CTL_TEMPERATURE_GET)
                state_change_notify = true;

            if (op_code != MESHX_MODEL_OP_LIGHT_CTL_TEMPERATURE_SET_UNACK)
                send_reply_to_src = true;
            break;
        case MESHX_MODEL_OP_LIGHT_CTL_DEFAULT_SET:
        case MESHX_MODEL_OP_LIGHT_CTL_DEFAULT_GET:
        case MESHX_MODEL_OP_LIGHT_CTL_DEFAULT_SET_UNACK:
            status_op = MESHX_MODEL_OP_LIGHT_CTL_DEFAULT_STATUS;
            if (op_code != MESHX_MODEL_OP_LIGHT_CTL_DEFAULT_GET)
                MESHX_DO_NOTHING;

            if (op_code != MESHX_MODEL_OP_LIGHT_CTL_DEFAULT_SET_UNACK)
                send_reply_to_src = true;

            break;
        case MESHX_MODEL_OP_LIGHT_CTL_TEMPERATURE_RANGE_SET:
        case MESHX_MODEL_OP_LIGHT_CTL_TEMPERATURE_RANGE_GET:
        case MESHX_MODEL_OP_LIGHT_CTL_TEMPERATURE_RANGE_SET_UNACK:
            status_op = MESHX_MODEL_OP_LIGHT_CTL_TEMPERATURE_RANGE_STATUS;
            if (op_code != MESHX_MODEL_OP_LIGHT_CTL_TEMPERATURE_RANGE_GET)
                MESHX_DO_NOTHING;

            if (op_code != MESHX_MODEL_OP_LIGHT_CTL_TEMPERATURE_RANGE_SET_UNACK)
                send_reply_to_src = true;

            break;
        default:
            MESHX_LOGW(MODULE_ID_MODEL_SERVER, "CTL Unhandled Event %p", (void *)param->ctx.opcode);
            break;
    }
    if (state_change_notify)
    {
        err = meshx_state_change_notify(param);
        if (err)
            return err;
    }
    if (send_reply_to_src
        /* This is meant to notify the respective publish client */
        || param->ctx.src_addr != param->model.pub_addr)
    {
        /* Here the message was received from unregistered source and mention the state to the respective client */
        MESHX_LOGD(MODULE_ID_MODEL_SERVER, "PUB: src|pub %x|%x", param->ctx.src_addr, param->model.pub_addr);
        param->ctx.opcode = (uint16_t)status_op;
        param->ctx.dst_addr = param->model.pub_addr;

        err = meshx_gen_light_srv_send_msg_to_ble(
            CONTROL_TASK_MSG_EVT_TO_BLE_SET_CTL_SRV,
            param
        );
    }

    return err;
}

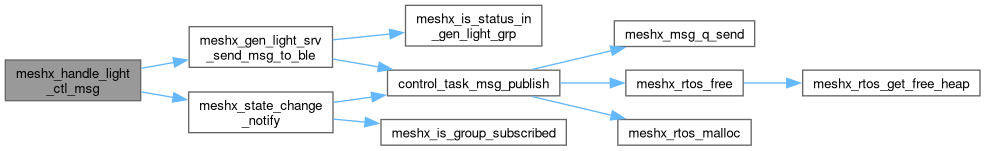

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_light_ctl_server_create()

meshx_err_t meshx_light_ctl_server_create	(	meshx_ctl_server_model_t **	p_model,
		meshx_ptr_t	p_sig_model )

Create and initialize a new CTL server model instance.

This function allocates memory for a new CTL server model and initializes it using the platform-specific creation function. It ensures that the model is properly set up for handling Generic OnOff messages in a BLE Mesh network.

Parameters

[in,out]	p_model	Pointer to a pointer where the newly created CTL server model instance will be stored.
[in,out]	p_sig_model	Pointer to a pointer where the offset of the model will be stored.

Returns

• MESHX_SUCCESS: Successfully created and initialized the model.
• MESHX_INVALID_ARG: The provided pointer is NULL.
• MESHX_NO_MEM: Memory allocation failed.

Definition at line 357 of file meshx_light_ctl_srv.c.

{
    meshx_err_t err = MESHX_SUCCESS;
    if (!p_model || !p_sig_model)
    {
        return MESHX_INVALID_ARG;
    }

    *p_model = (meshx_ctl_server_model_t *)MESHX_CALOC(1, sizeof(meshx_ctl_server_model_t));
    if (!*p_model)
    {
        return MESHX_NO_MEM;
    }

    err = meshx_plat_light_ctl_srv_create(
        p_sig_model,
        &((*p_model)->meshx_pub),
        &((*p_model)->meshx_gen));
    if(err != MESHX_SUCCESS)
    {
        /* Tops down deinit for CTL server model */
        meshx_light_ctl_server_delete(p_model);
        return err;
    }

    if(     g_meshx_light_ctl_srv.ctl_lighting_server_created == 0
        &&  g_meshx_light_ctl_srv.ctl_setup_server.ctl_setup_server_init == 0)
    {
        MESHX_LOGI(MODULE_ID_MODEL_SERVER, "Creating CTL setup server model");
        /* Create CTL setup server */
        err = meshx_light_ctl_setup_server_create();
        if(err != MESHX_SUCCESS)
        {
            /* Tops down deinit for CTL server model */
            meshx_light_ctl_setup_server_delete();
            /* The code execution below is only possible if this is the very first model being created */
            meshx_light_ctl_server_delete(p_model);
            return err;
        }
        g_meshx_light_ctl_srv.ctl_setup_server.ctl_setup_server_init = MESHX_SERVER_INIT_MAGIC_NO;
    }
    else
    {
        g_meshx_light_ctl_srv.ctl_lighting_server_created++;
    }

    (*p_model)->meshx_sig = p_sig_model;

    return err;
}

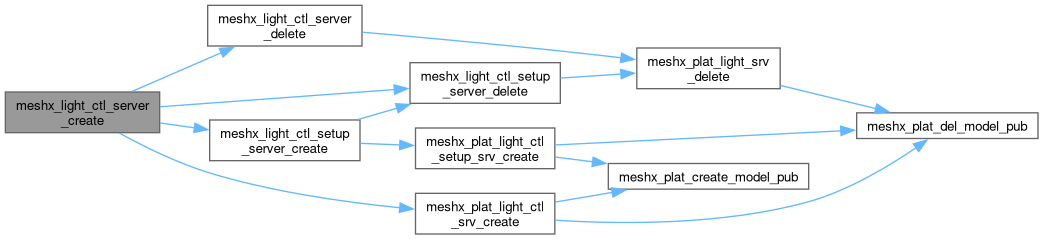

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_light_ctl_server_delete()

meshx_err_t meshx_light_ctl_server_delete

(

meshx_ctl_server_model_t **

p_model

)

Delete the CTL server model instance.

This function deletes an instance of the CTL server model, freeing associated resources and setting the model pointer to NULL.

Parameters

[in,out]

p_model

Double pointer to the CTL server model instance to be deleted.

Returns

• MESHX_SUCCESS: Successfully deleted the model.
• MESHX_INVALID_ARG: Invalid argument provided.

Definition at line 420 of file meshx_light_ctl_srv.c.

{
    if (p_model == NULL || *p_model == NULL)
    {
        return MESHX_INVALID_ARG;
    }

    meshx_plat_light_srv_delete(
        &((*p_model)->meshx_pub),
        &((*p_model)->meshx_gen));

    MESHX_FREE(*p_model);
    *p_model = NULL;
    if (g_meshx_light_ctl_srv.ctl_lighting_server_created == 0)
    {
        MESHX_LOGW(MODULE_ID_MODEL_SERVER, "Deleting CTL setup server model");
        /* Delete CTL setup server */
    }
    else
    {
        g_meshx_light_ctl_srv.ctl_lighting_server_created--;
    }
    return MESHX_SUCCESS;
}

Here is the call graph for this function:

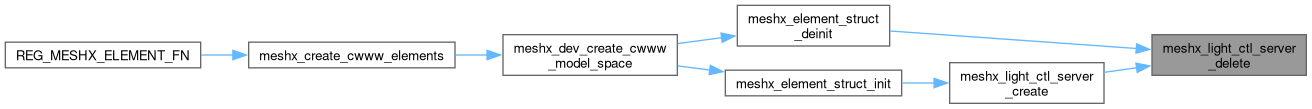

Here is the caller graph for this function:

meshx_light_ctl_server_init()

meshx_err_t meshx_light_ctl_server_init

(

void

)

Initialize the Light CTL Server model.

Initialize the CTL server model.

This function initializes the Light CTL (Color Temperature Light) Server model for the BLE Mesh Node. It sets up the necessary configurations and state for the Light CTL Server to operate correctly.

Returns

• MESHX_SUCCESS: Success
• MESHX_FAIL: Failure

Definition at line 311 of file meshx_light_ctl_srv.c.

{
    meshx_err_t err = MESHX_SUCCESS;

    if (g_meshx_light_ctl_srv.ctl_setup_server.ctl_setup_server_init == MESHX_SERVER_INIT_MAGIC_NO)
        return MESHX_SUCCESS;

    g_meshx_light_ctl_srv.ctl_setup_server.ctl_setup_server_init = MESHX_SERVER_INIT_MAGIC_NO;

    err = meshx_lighting_srv_init();
    if (err)
        MESHX_LOGE(MODULE_ID_MODEL_SERVER, "Failed to initialize prod server");

    err = meshx_lighting_reg_cb(
        MESHX_MODEL_ID_LIGHT_CTL_SRV,
        (meshx_lighting_server_cb)&meshx_handle_light_ctl_msg
    );
    if (err)
        MESHX_LOGE(MODULE_ID_MODEL_SERVER, "Failed to initialize meshx_gen_srv_reg_cb (Err: %d)", err);

    err = meshx_lighting_reg_cb(
        MESHX_MODEL_ID_LIGHT_CTL_SETUP_SRV,
        (meshx_lighting_server_cb)&meshx_handle_light_ctl_msg
    );
    if (err)
        MESHX_LOGE(MODULE_ID_MODEL_SERVER, "Failed to initialize meshx_gen_srv_reg_cb (Err: %d)", err);

    return err;
}

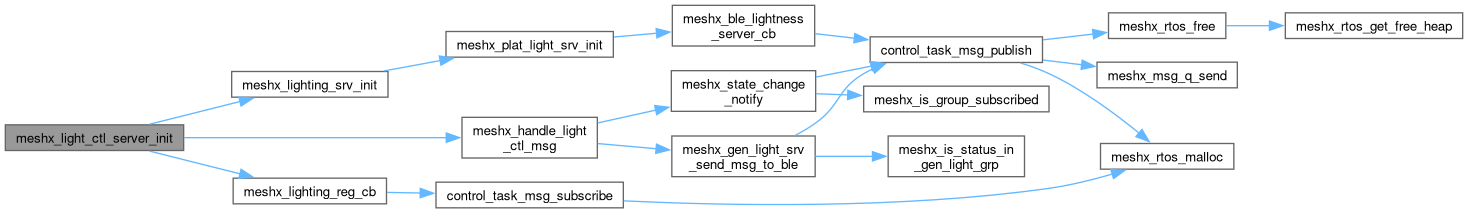

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_light_ctl_setup_server_create()

static meshx_err_t meshx_light_ctl_setup_server_create ( void )

static

Creates and initializes the Light CTL (Color Temperature Lightness) Setup Server.

This function sets up the Light CTL Setup Server model, allocating necessary resources and initializing internal state. It should be called during the provisioning or initialization phase of the mesh node.

Returns

meshx_err_t Returns MESHX_OK on success, or an appropriate error code on failure.

Definition at line 246 of file meshx_light_ctl_srv.c.

{
    meshx_err_t err = MESHX_SUCCESS;
    if  (   g_meshx_light_ctl_srv.ctl_setup_server.meshx_srv_model != NULL
        ||  g_meshx_light_ctl_srv.ctl_setup_server.ctl_setup_server_init == MESHX_SERVER_INIT_MAGIC_NO)
        return MESHX_SUCCESS;

    g_meshx_light_ctl_srv.ctl_setup_server.meshx_srv_model =
        (meshx_ctl_setup_server_model_t *)MESHX_CALOC(1, sizeof(meshx_ctl_setup_server_model_t));
    if (NULL == g_meshx_light_ctl_srv.ctl_setup_server.meshx_srv_model)
    {
        return MESHX_NO_MEM;
    }

    err = meshx_plat_light_ctl_setup_srv_create(
        &g_meshx_light_ctl_srv.ctl_setup_server.ctl_setup_srv_model,
        &g_meshx_light_ctl_srv.ctl_setup_server.meshx_srv_model->meshx_pub,
        &g_meshx_light_ctl_srv.ctl_setup_server.meshx_srv_model->meshx_gen);
    if(err != MESHX_SUCCESS)
    {
        /* Tops down deinit for CTL setup server model */
        meshx_light_ctl_setup_server_delete();
        return err;
    }
    else
    {
        g_meshx_light_ctl_srv.ctl_lighting_server_init++;
    }

    return err;
}

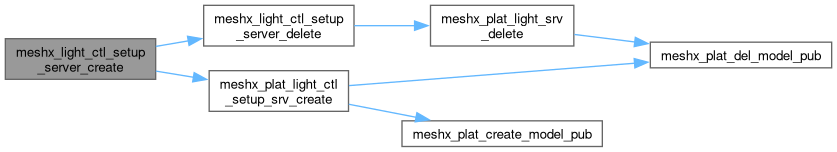

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_light_ctl_setup_server_delete()

static meshx_err_t meshx_light_ctl_setup_server_delete ( void )

static

Deletes or deinitializes the Light CTL (Color Temperature Lightness) Setup Server instance.

This function is responsible for cleaning up resources and performing any necessary teardown for the Light CTL Setup Server in the MeshX framework.

Returns

meshx_err_t Returns an error code indicating the result of the delete operation.

Definition at line 218 of file meshx_light_ctl_srv.c.

{
    if (g_meshx_light_ctl_srv.ctl_setup_server.meshx_srv_model != NULL)
    {
        MESHX_FREE(g_meshx_light_ctl_srv.ctl_setup_server.meshx_srv_model);
        g_meshx_light_ctl_srv.ctl_setup_server.meshx_srv_model = NULL;

        meshx_plat_light_srv_delete(
            &(g_meshx_light_ctl_srv.ctl_setup_server.meshx_srv_model->meshx_pub),
            &(g_meshx_light_ctl_srv.ctl_setup_server.meshx_srv_model->meshx_gen)
        );

        g_meshx_light_ctl_srv.ctl_setup_server.meshx_srv_model = NULL;
    }

    g_meshx_light_ctl_srv.ctl_setup_server.meshx_srv_model = 0;
    return MESHX_SUCCESS;
}

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_light_ctl_srv_send_pack_create()

meshx_err_t meshx_light_ctl_srv_send_pack_create	(	meshx_ptr_t	p_model,
		uint16_t	element_id,
		uint16_t	net_idx,
		uint16_t	app_idx,
		uint16_t	pub_addr,
		meshx_light_ctl_srv_state_t	ctl_state,
		meshx_lighting_server_cb_param_t *	light_srv_send )

Create a Light CTL Server send message packet.

This function creates a Light CTL Server send message packet with the provided parameters.

Parameters

[in]	p_model	Pointer to the MeshX model structure.
[in]	element_id	Element ID associated with the model.
[in]	net_idx	Network Index for the message.
[in]	app_idx	Application Index for the message.
[in]	pub_addr	Publication address for the message.
[in]	ctl_state	Current state of the Light CTL Server.
[out]	light_srv_send	Pointer to the structure where the created message packet will be stored.

Returns

• MESHX_SUCCESS: Successfully created the message packet.
• MESHX_INVALID_ARG: Invalid argument provided.

Definition at line 536 of file meshx_light_ctl_srv.c.

{
    if (!p_model || !light_srv_send)
    {
        return MESHX_INVALID_ARG;
    }

    memset(light_srv_send, 0, sizeof(meshx_lighting_server_cb_param_t));
    light_srv_send->ctx.net_idx = net_idx;
    light_srv_send->ctx.app_idx = app_idx;
    light_srv_send->ctx.src_addr = element_id;
    light_srv_send->ctx.dst_addr = pub_addr;
    light_srv_send->ctx.opcode = MESHX_MODEL_OP_LIGHT_CTL_STATUS;
    light_srv_send->ctx.p_ctx = NULL;

    light_srv_send->model.el_id = element_id;
    light_srv_send->model.p_model = p_model;

    light_srv_send->state_change.ctl_set.delta_uv = ctl_state.delta_uv;
    light_srv_send->state_change.ctl_set.lightness = ctl_state.lightness;
    light_srv_send->state_change.ctl_set.temperature = ctl_state.temperature;

    return MESHX_SUCCESS;
}

Here is the caller graph for this function:

meshx_light_ctl_srv_state_restore()

meshx_err_t meshx_light_ctl_srv_state_restore	(	meshx_ctl_server_model_t *	p_model,
		meshx_light_ctl_srv_state_t	ctl_state )

Restore the CTL state for the generic server model.

This function restores the CTL state of the specified server model using the provided state value. It checks for a valid model pointer before proceeding with the restoration.

Parameters

p_model	Pointer to the CTL server model structure.
ctl_state	The CTL state to be restored.

Returns

• MESHX_INVALID_STATE: If the model pointer is NULL.
• Result of the platform-specific restoration function.

Definition at line 459 of file meshx_light_ctl_srv.c.

{
    if (!p_model)
        return MESHX_INVALID_STATE;

    return meshx_plat_light_ctl_srv_restore(p_model->meshx_sig,
                                            ctl_state.delta_uv,
                                            ctl_state.lightness,
                                            ctl_state.temperature,
                                            ctl_state.temperature_range_max,
                                            ctl_state.temperature_range_min);
}

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_light_ctl_srv_status_send()

meshx_err_t meshx_light_ctl_srv_status_send	(	meshx_model_t *	p_model,
		meshx_ctx_t *	ctx,
		int16_t	delta_uv,
		uint16_t	lightness,
		uint16_t	temperature )

Send the Light CTL status message.

This function sends the Light CTL status message to the specified context.

Parameters

[in]	p_model	Pointer to the MeshX model structure.
[in]	ctx	Context structure containing the necessary parameters for sending the message.
[in]	delta_uv	The Delta UV value to be included in the status message.
[in]	lightness	The Lightness value to be included in the status message.
[in]	temperature	The Temperature value to be included in the status message.

Returns

• MESHX_SUCCESS: Successfully sent the status message.
• Appropriate error code on failure.

Definition at line 486 of file meshx_light_ctl_srv.c.

{
    if (!p_model)
    {
        return MESHX_INVALID_ARG;
    }

    meshx_lighting_server_state_change_t state_change = {
        .ctl_set = {
            .delta_uv = delta_uv,
            .lightness = lightness,
            .temperature = temperature
        }
    };

    meshx_err_t err = meshx_gen_light_srv_status_send(
        p_model,
        ctx,
        &state_change
    );

    if (err != MESHX_SUCCESS)
    {
        MESHX_LOGE(MODULE_ID_MODEL_SERVER, "Failed to send Light CTL status: %d", err);
    }

    return err;
}

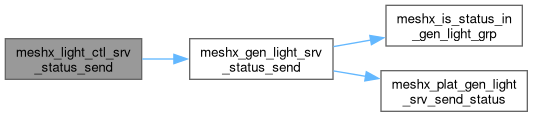

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_state_change_notify()

static meshx_err_t meshx_state_change_notify ( meshx_lighting_server_cb_param_t * param )

static

Perform hardware change for the light control server model.

This function is responsible for performing the necessary hardware changes based on the parameters provided by the BLE Mesh lighting server callback.

Parameters

param

Pointer to the BLE Mesh lighting server callback parameters.

Returns

• MESHX_SUCCESS: Success
• MESHX_FAIL: Failure

Definition at line 65 of file meshx_light_ctl_srv.c.

{
    meshx_light_ctl_srv_t ctl_srv_params = {
        .model = param->model};

    if (MESHX_ADDR_IS_UNICAST(param->ctx.dst_addr) || (MESHX_ADDR_BROADCAST(param->ctx.dst_addr)) || (MESHX_ADDR_IS_GROUP(param->ctx.dst_addr) && (MESHX_SUCCESS == meshx_is_group_subscribed(param->model.p_model, param->ctx.dst_addr))))
    {
        switch (param->ctx.opcode)
        {
        case MESHX_MODEL_OP_LIGHT_CTL_SET:
        case MESHX_MODEL_OP_LIGHT_CTL_SET_UNACK:
            ctl_srv_params.state.delta_uv = param->state_change.ctl_set.delta_uv;
            ctl_srv_params.state.lightness = param->state_change.ctl_set.lightness;
            ctl_srv_params.state.temperature = param->state_change.ctl_set.temperature;
            break;
        case MESHX_MODEL_OP_LIGHT_CTL_TEMPERATURE_GET:
        case MESHX_MODEL_OP_LIGHT_CTL_TEMPERATURE_SET:
            ctl_srv_params.state.delta_uv = param->state_change.ctl_temp_set.delta_uv;
            ctl_srv_params.state.temperature = param->state_change.ctl_temp_set.temperature;
            break;
        default:
            return MESHX_NOT_SUPPORTED;
        }
        /* Send msg for hw manipulation */
        MESHX_LOGD(MODULE_ID_MODEL_SERVER, "HW change requested, Element_id: 0x%x",
                   param->model.el_id);

        meshx_err_t err = control_task_msg_publish(
            CONTROL_TASK_MSG_CODE_EL_STATE_CH,
            CONTROL_TASK_MSG_EVT_EL_STATE_CH_SET_CTL,
            &ctl_srv_params,
            sizeof(meshx_light_ctl_srv_t));
        return err;
    }
    return MESHX_NOT_SUPPORTED;
}

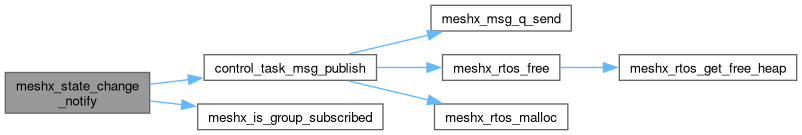

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

ctl_lighting_server_created

uint16_t ctl_lighting_server_created

Definition at line 42 of file meshx_light_ctl_srv.c.

ctl_lighting_server_init

uint16_t ctl_lighting_server_init

Definition at line 41 of file meshx_light_ctl_srv.c.

ctl_setup_server

meshx_light_ctl_setup_server_t ctl_setup_server

Definition at line 43 of file meshx_light_ctl_srv.c.

[struct]

struct { ... } g_meshx_light_ctl_srv

Initial value:

= {
    .ctl_setup_server = {
        .ctl_setup_server_init = 0,
        .meshx_srv_model = NULL,
    },
    .ctl_lighting_server_init = 0,
    .ctl_lighting_server_created = 0,
}

Structure to maintain the initialization and creation state of the MeshX Light CTL Server.

This static structure holds flags indicating whether the CTL Setup Server and CTL Lighting Server have been initialized, as well as whether the CTL Lighting Server has been created.
