meshx_ble_mesh_gen_cli.h File Reference

Header file for BLE Mesh Generic Client functionality in the MeshX framework. This file contains declarations and includes required for implementing BLE Mesh Generic Client operations. More...

#include "../meshx_ble_mesh_cmn.h"
#include "meshx_control_task.h"

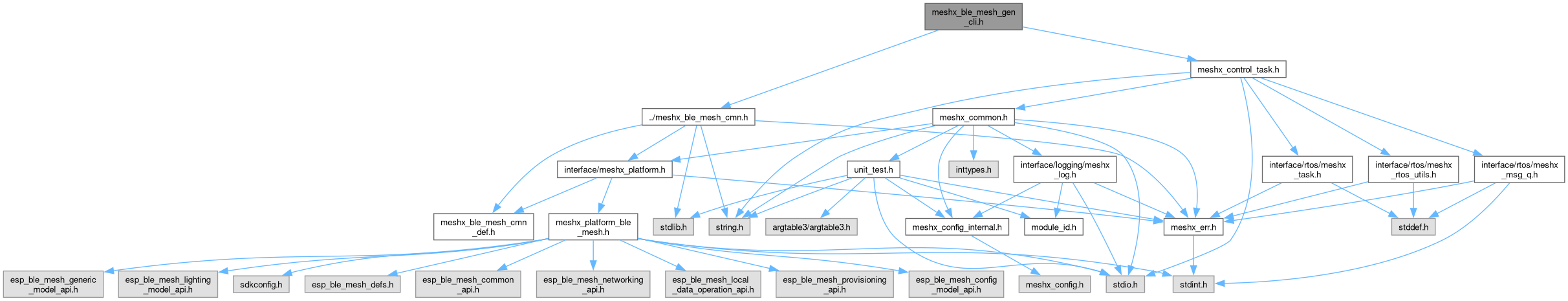

Include dependency graph for meshx_ble_mesh_gen_cli.h:

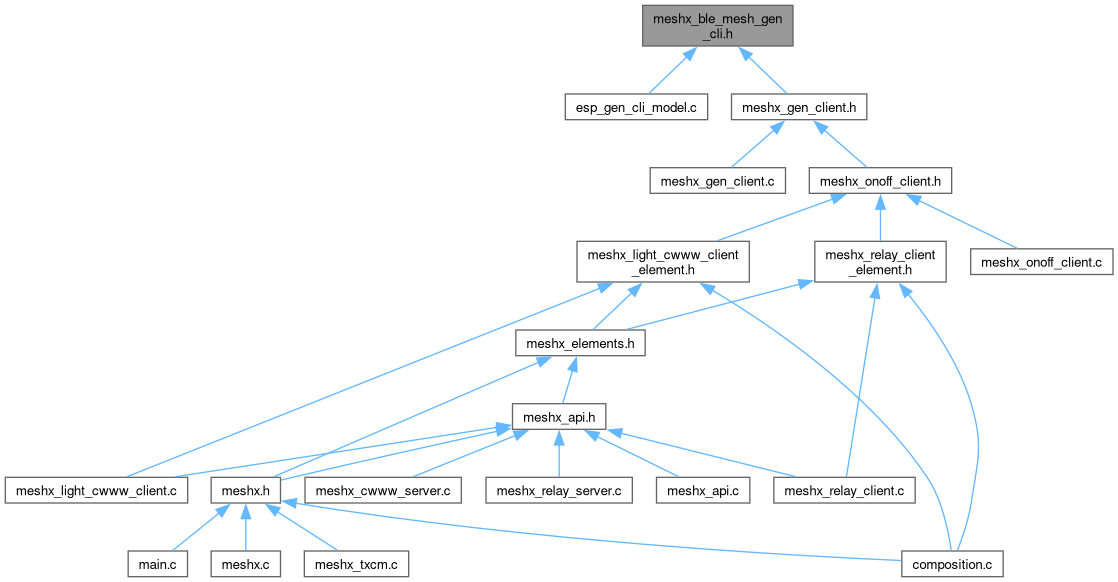

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	meshx_gen_onoff_set_t
struct	meshx_gen_level_set_t
struct	meshx_gen_delta_set_t
struct	meshx_gen_move_set_t
struct	meshx_gen_def_trans_time_set_t
struct	meshx_gen_onpowerup_set_t
struct	meshx_gen_power_level_set_t
struct	meshx_gen_power_default_set_t
struct	meshx_gen_power_range_set_t
struct	meshx_gen_loc_global_set_t
struct	meshx_gen_loc_local_set_t
union	meshx_gen_cli_set_t
	Generic Client Model set message union. More...
struct	meshx_gen_onoff_status_cb_t
struct	meshx_gen_level_status_cb_t
struct	meshx_gen_def_trans_time_status_cb_t
struct	meshx_gen_onpowerup_status_cb_t
struct	meshx_gen_power_level_status_cb_t
struct	meshx_gen_power_last_status_cb_t
struct	meshx_gen_power_default_status_cb_t
struct	meshx_gen_power_range_status_cb_t
struct	meshx_gen_battery_status_cb_t
struct	meshx_gen_loc_global_status_cb_t
struct	meshx_gen_loc_local_status_cb_t
struct	meshx_gen_user_properties_status_cb_t
struct	meshx_gen_user_property_status_cb_t
struct	meshx_gen_admin_properties_status_cb_t
struct	meshx_gen_admin_property_status_cb_t
struct	meshx_gen_manufacturer_properties_status_cb_t
struct	meshx_gen_manufacturer_property_status_cb_t
struct	meshx_gen_client_properties_status_cb_t
union	meshx_gen_client_status_cb_t
	Generic Client Model received message union. More...
struct	meshx_gen_cli_cb_param
	Callback parameters for Generic Client Model events. This structure is used to pass information about the received messages and their context to the application. It includes the context, model pointer, event type, and status values. The status values are encapsulated in a union to handle different types of status messages that the Generic Client Model can receive. Each status type corresponds to a specific operation code (opcode) defined in the BLE Mesh specification, allowing the application to handle them appropriately. More...

Typedefs
typedef struct meshx_gen_cli_cb_param	meshx_gen_cli_cb_param_t
	Callback parameters for Generic Client Model events. This structure is used to pass information about the received messages and their context to the application. It includes the context, model pointer, event type, and status values. The status values are encapsulated in a union to handle different types of status messages that the Generic Client Model can receive. Each status type corresponds to a specific operation code (opcode) defined in the BLE Mesh specification, allowing the application to handle them appropriately.
typedef control_task_msg_handle_t	meshx_gen_client_cb_t

Enumerations
enum	meshx_gen_cli_evt_t {   MESHX_GEN_CLI_EVT_GET = MESHX_BIT(0) ,   MESHX_GEN_CLI_EVT_SET = MESHX_BIT(1) ,   MESHX_GEN_CLI_PUBLISH = MESHX_BIT(2) ,   MESHX_GEN_CLI_TIMEOUT = MESHX_BIT(3) ,   MESHX_GEN_CLI_EVT_ALL }

Functions
meshx_err_t	meshx_plat_on_off_gen_cli_create (meshx_ptr_t p_model, meshx_ptr_t *p_pub, meshx_ptr_t *p_onoff_cli)
	Creates a Generic OnOff client model and its publication context.
meshx_err_t	meshx_plat_gen_cli_delete (meshx_ptr_t *p_pub, meshx_ptr_t *p_cli)
	Deletes the Generic OnOff Client model and its associated resources.
meshx_err_t	meshx_plat_gen_cli_init (void)
	Initialize the meshxuction generic client.
meshx_err_t	meshx_plat_gen_cli_send_msg (meshx_ptr_t p_model, meshx_gen_cli_set_t *p_set, uint16_t opcode, uint16_t addr, uint16_t net_idx, uint16_t app_idx, bool is_get_opcode)
	Sends a Generic Client message over BLE Mesh.

Detailed Description

Header file for BLE Mesh Generic Client functionality in the MeshX framework. This file contains declarations and includes required for implementing BLE Mesh Generic Client operations.

Copyright (c) 2024 - 2025 MeshX

Author

Pranjal Chanda

Definition in file meshx_ble_mesh_gen_cli.h.

Typedef Documentation

meshx_gen_cli_cb_param_t

typedef struct meshx_gen_cli_cb_param meshx_gen_cli_cb_param_t

Callback parameters for Generic Client Model events. This structure is used to pass information about the received messages and their context to the application. It includes the context, model pointer, event type, and status values. The status values are encapsulated in a union to handle different types of status messages that the Generic Client Model can receive. Each status type corresponds to a specific operation code (opcode) defined in the BLE Mesh specification, allowing the application to handle them appropriately.

meshx_gen_client_cb_t

typedef control_task_msg_handle_t meshx_gen_client_cb_t

Definition at line 292 of file meshx_ble_mesh_gen_cli.h.

Enumeration Type Documentation

meshx_gen_cli_evt_t

enum meshx_gen_cli_evt_t

Enumerator
MESHX_GEN_CLI_EVT_GET	MESHX_BIT(0)
MESHX_GEN_CLI_EVT_SET	MESHX_BIT(1)
MESHX_GEN_CLI_PUBLISH	MESHX_BIT(2)
MESHX_GEN_CLI_TIMEOUT	MESHX_BIT(3)
MESHX_GEN_CLI_EVT_ALL	( MESHX_GEN_CLI_EVT_GET | MESHX_GEN_CLI_EVT_SET | MESHX_GEN_CLI_PUBLISH | MESHX_GEN_CLI_TIMEOUT)

Definition at line 18 of file meshx_ble_mesh_gen_cli.h.

{
    MESHX_GEN_CLI_EVT_GET = MESHX_BIT(0),
    MESHX_GEN_CLI_EVT_SET = MESHX_BIT(1),
    MESHX_GEN_CLI_PUBLISH = MESHX_BIT(2),
    MESHX_GEN_CLI_TIMEOUT = MESHX_BIT(3),
    MESHX_GEN_CLI_EVT_ALL = (       \
            MESHX_GEN_CLI_EVT_GET | \
            MESHX_GEN_CLI_EVT_SET | \
            MESHX_GEN_CLI_PUBLISH | \
            MESHX_GEN_CLI_TIMEOUT)
} meshx_gen_cli_evt_t;

Function Documentation

meshx_plat_gen_cli_delete()

meshx_err_t meshx_plat_gen_cli_delete	(	meshx_ptr_t *	p_pub,
		meshx_ptr_t *	p_cli )

Deletes the Generic OnOff Client model and its associated resources.

This function frees the memory allocated for the Generic OnOff Client and sets the pointer to NULL. It also deletes the model publication resources associated with the client.

Parameters

[in,out]	p_pub	Pointer to the publication structure to be deleted.
[in,out]	p_cli	Pointer to the OnOff Client structure to be freed.

Returns

• MESHX_SUCCESS: Model and publication deleted successfully.
• MESHX_FAIL: Failed to delete the model or publication.

Definition at line 187 of file esp_gen_cli_model.c.

{
    if (p_cli)
    {
        MESHX_FREE(*p_cli);
        *p_cli = NULL;
    }

    return meshx_plat_del_model_pub(p_pub);
}

Here is the call graph for this function:

meshx_plat_gen_cli_init()

meshx_err_t meshx_plat_gen_cli_init

(

void

)

Initialize the meshxuction generic client.

This function sets up the necessary configurations and initializes the meshxuction generic client for the BLE mesh node.

Returns

• MESHX_SUCCESS: Success
• MESHX_FAIL: Failed to initialize the client

Definition at line 125 of file esp_gen_cli_model.c.

{

    meshx_err_t err = MESHX_SUCCESS;
    if (meshx_client_init == MESHX_CLIENT_INIT_MAGIC_NO)
    {
        return MESHX_SUCCESS; // Already initialized
    }
    meshx_client_init = MESHX_CLIENT_INIT_MAGIC_NO;

    // Register the callback for handling messages sent to the BLE layer
    esp_err_t esp_err = esp_ble_mesh_register_generic_client_callback(
        (MESHX_GEN_CLI_CB)&esp_ble_mesh_generic_client_cb);
    if (esp_err != ESP_OK)
        err = MESHX_ERR_PLAT;

    return err;
}

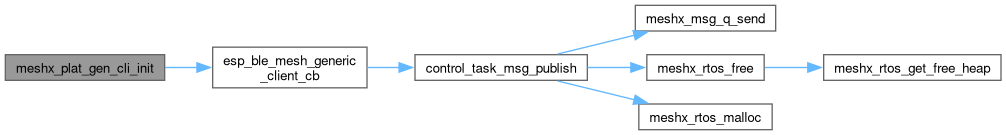

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_plat_gen_cli_send_msg()

meshx_err_t meshx_plat_gen_cli_send_msg	(	meshx_ptr_t	p_model,
		meshx_gen_cli_set_t *	p_set,
		uint16_t	opcode,
		uint16_t	addr,
		uint16_t	net_idx,
		uint16_t	app_idx,
		bool	is_get_opcode )

Sends a Generic Client message over BLE Mesh.

This function sends a message from a Generic Client model to a specified address within the BLE Mesh network, using the provided opcode and parameters.

Parameters

[in]	p_model	Pointer to the Generic Client model instance.
[in]	p_set	Pointer to the structure containing the message parameters to set.
[in]	opcode	Operation code specifying the type of message to send.
[in]	addr	Destination address within the BLE Mesh network.
[in]	net_idx	Network index identifying the subnet to use.
[in]	app_idx	Application key index to encrypt the message.
[in]	is_get_opcode	Flag indicating if the opcode is a GET request.

Returns

meshx_err_t Result of the operation. Returns MESHX_OK on success or an error code on failure.

Definition at line 214 of file esp_gen_cli_model.c.

{
    if (!p_model || !p_set)
    {
        return MESHX_INVALID_ARG; // Invalid arguments
    }

    esp_ble_mesh_client_common_param_t common = {0};
    common.model        = p_model;
    common.opcode       = opcode;
    common.ctx.addr     = addr;
    common.ctx.net_idx  = net_idx;
    common.ctx.app_idx  = app_idx;
    common.ctx.send_ttl = BLE_MESH_TTL_DEFAULT;
    common.msg_timeout  = 0; /* 0 indicates that timeout value from menuconfig will be used */

    esp_err_t err = ESP_OK;
    if(!is_get_opcode)
    {
        p_set->onoff_set.trans_time = 0;
        if(!(p_set->onoff_set.onoff == 0 || p_set->onoff_set.onoff == 1))
        {
            MESHX_LOGE(MODULE_ID_MODEL_CLIENT, "Invalid OnOff value %d", p_set->onoff_set.onoff);
            return MESHX_INVALID_ARG;
        }
        err = esp_ble_mesh_generic_client_set_state(
            &common,
            (esp_ble_mesh_generic_client_set_state_t *)p_set
        );
        if (err != ESP_OK)
        {
            MESHX_LOGE(MODULE_ID_MODEL_CLIENT, "Send Generic OnOff failed: %d", err);
            return MESHX_FAIL;
        }
    }
    else
    {
        err = esp_ble_mesh_generic_client_get_state(
            &common,
            (esp_ble_mesh_generic_client_get_state_t *)p_set
        );
        if (err != ESP_OK)
        {
            MESHX_LOGE(MODULE_ID_MODEL_CLIENT, "Send Generic OnOff Get failed: %d", err);
            return MESHX_FAIL;
        }
    }
    if (!err)
    {
        MESHX_LOGD(MODULE_ID_MODEL_CLIENT, "Client Send Success");
    }

    return MESHX_SUCCESS;
}

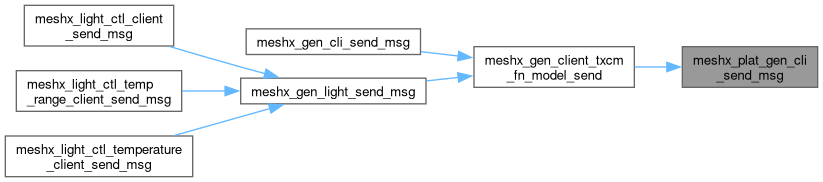

Here is the caller graph for this function:

meshx_plat_on_off_gen_cli_create()

meshx_err_t meshx_plat_on_off_gen_cli_create	(	meshx_ptr_t	p_model,
		meshx_ptr_t *	p_pub,
		meshx_ptr_t *	p_onoff_cli )

Creates a Generic OnOff client model and its publication context.

This function initializes the Generic OnOff client model, its publication context, and allocates memory for the client instance. It checks for invalid arguments and handles memory allocation failures.

Parameters

[out]	p_model	Pointer to the model structure to be created.
[out]	p_pub	Pointer to the publication context to be created.
[out]	p_onoff_cli	Pointer to the OnOff client instance to be allocated.

Returns

• MESHX_SUCCESS: Successfully created the model and publication context.
• MESHX_INVALID_ARG: One or more arguments are invalid.
• MESHX_NO_MEM: Memory allocation failed.

Definition at line 160 of file esp_gen_cli_model.c.

{
    if (!p_model || !p_pub || !p_onoff_cli)
    {
        return MESHX_INVALID_ARG; // Invalid arguments
    }
    /* SIG On OFF Init */
    uint16_t model_id = ESP_BLE_MESH_MODEL_ID_GEN_ONOFF_CLI;
    memcpy((meshx_ptr_t)&(((MESHX_MODEL *)p_model)->model_id), &model_id, sizeof(model_id));

    return meshx_plat_client_create(p_model, p_pub, p_onoff_cli);
}
