meshx_config_server.c File Reference

Implementation of the Configuration Server for ESP BLE Mesh. More...

#include "meshx_config_server.h"

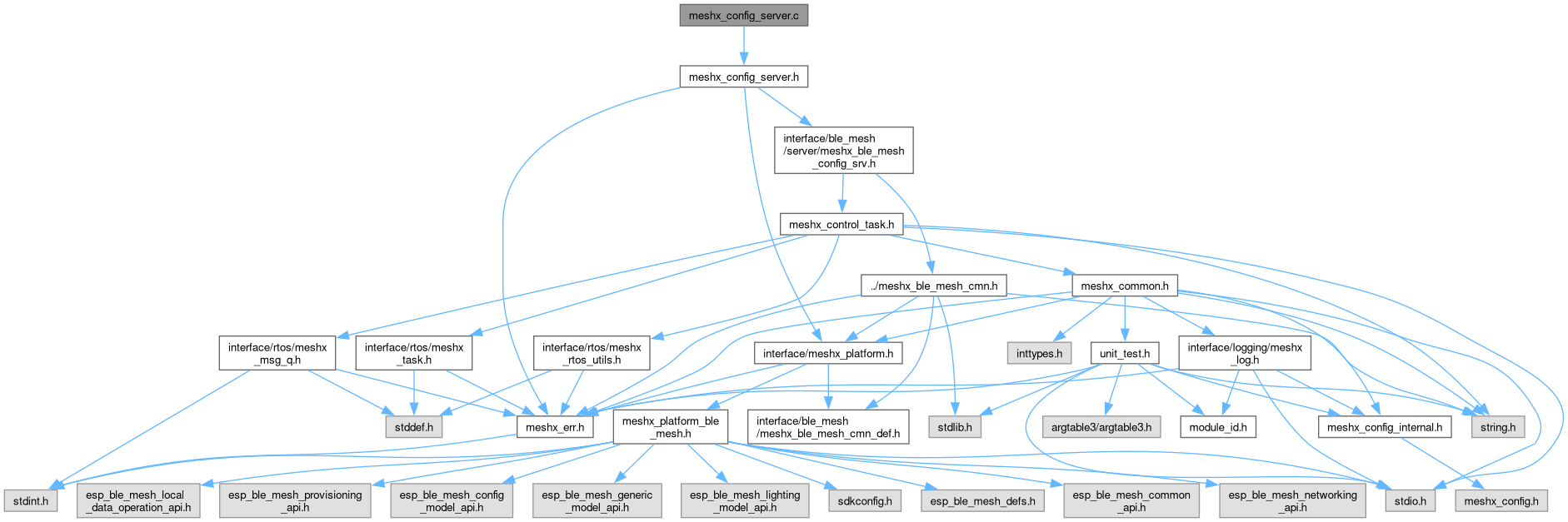

Include dependency graph for meshx_config_server.c:

Go to the source code of this file.

Data Structures
struct	config_server_model_evt_map

Macros
#define	CONFIG_SRV_INIT_MAGIC   0x2307

Typedefs
typedef struct config_server_model_evt_map	config_server_model_evt_map_t

Functions
static meshx_err_t	meshx_config_server_control_task_handler (const dev_struct_t *pdev, control_task_msg_evt_t evt, const void *params)
	Handles the configuration server events from the control task.
meshx_err_t	meshx_init_config_server ()
	Initializes the Configuration Server.
meshx_err_t	meshx_config_server_cb_reg (config_srv_cb_t cb, uint32_t config_evt_bmap)
	Registers a configuration server callback for specific events.
meshx_err_t	meshx_get_config_srv_instance (void **p_conf_srv)
	Retrieves the instance of the MeshX configuration server.
meshx_err_t	meshx_get_config_srv_model (meshx_ptr_t p_model)
	Retrieves the configuration server model for the MeshX framework.

Variables
static uint16_t	config_srv_init_flag = 0
static const config_server_model_evt_map_t	config_server_model_evt_map_table []
uint16_t	config_srv_evt_map_count = sizeof(config_server_model_evt_map_table) / sizeof(config_server_model_evt_map_t)

Detailed Description

Implementation of the Configuration Server for ESP BLE Mesh.

Copyright © 2024 - 2025 MeshX

This file contains the initialization and event handling logic for the BLE Mesh Configuration Server, including the management of callback registrations and event dispatching.

Author

Pranjal Chanda

Definition in file meshx_config_server.c.

Macro Definition Documentation

CONFIG_SRV_INIT_MAGIC

#define CONFIG_SRV_INIT_MAGIC   0x2307

Definition at line 15 of file meshx_config_server.c.

Typedef Documentation

config_server_model_evt_map_t

typedef struct config_server_model_evt_map config_server_model_evt_map_t

Function Documentation

meshx_config_server_cb_reg()

meshx_err_t meshx_config_server_cb_reg	(	config_srv_cb_t	cb,
		uint32_t	config_evt_bmap )

Registers a configuration server callback for specific events.

Adds a new callback registration to the linked list for dispatching events.

Parameters

[in]	cb	Callback function to register.
[in]	config_evt_bmap	Bitmap of events the callback is interested in.

Returns

MESHX_SUCCESS on success, an error code otherwise.

Definition at line 122 of file meshx_config_server.c.

{
    if (cb == NULL || config_evt_bmap == 0)
    {
        return MESHX_INVALID_ARG; // Invalid arguments
    }

    return control_task_msg_subscribe(
        CONTROL_TASK_MSG_CODE_CONFIG,
        config_evt_bmap,
        (control_task_msg_handle_t)cb);

}

Here is the call graph for this function:

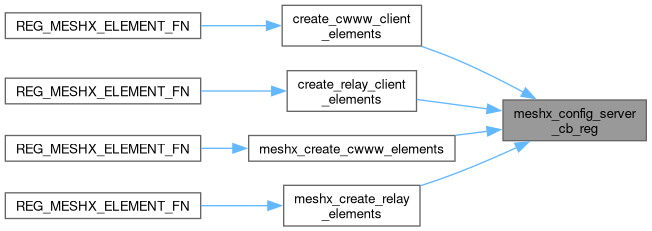

Here is the caller graph for this function:

meshx_config_server_control_task_handler()

static meshx_err_t meshx_config_server_control_task_handler ( const dev_struct_t * pdev, control_task_msg_evt_t evt, const void * params )

static

Handles the configuration server events from the control task.

This function processes the events received from the control task and publishes them to the registered callbacks for the configuration server.

Parameters

[in]	pdev	Pointer to the device structure.
[in]	evt	Event type from the control task.
[in]	params	Pointer to the parameters associated with the event.

Returns

MESHX_SUCCESS on success, an error code otherwise.

Definition at line 52 of file meshx_config_server.c.

{
    if(!pdev || !params)
    {
        return MESHX_INVALID_ARG;
    }
    const meshx_config_srv_cb_param_t *pub_param = (const meshx_config_srv_cb_param_t *)params;

    if(evt != MESHX_MODEL_ID_CONFIG_SRV)
    {
        return MESHX_INVALID_ARG;
    }
    /* Map event to config event */
    config_evt_t config_evt = CONTROL_TASK_MSG_EVT_CONFIG_ALL;
    for (uint16_t i = 0; i < config_srv_evt_map_count; i++)
    {
        if (config_server_model_evt_map_table[i].model_op_code == pub_param->ctx.opcode)
        {
            config_evt = config_server_model_evt_map_table[i].config_evt;
            break;
        }
    }
    if (config_evt == CONTROL_TASK_MSG_EVT_CONFIG_ALL)
    {
        return MESHX_INVALID_ARG;
    }
    /* Publish the event */
    return control_task_msg_publish(
        CONTROL_TASK_MSG_CODE_CONFIG,
        config_evt,
        pub_param,
        sizeof(meshx_config_srv_cb_param_t));
}

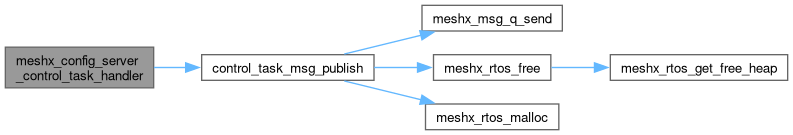

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_get_config_srv_instance()

meshx_err_t meshx_get_config_srv_instance

(

void **

p_conf_srv

)

Retrieves the instance of the MeshX configuration server.

This function provides access to the configuration server instance used in the MeshX framework. The configuration server is responsible for managing and storing configuration settings for the mesh network.

Parameters

[out]

p_conf_srv

Pointer to a variable where the configuration server instance will be stored. The pointer must be of type void**.

Returns

• MESHX_SUCCESS on successful retrieval of the configuration server instance.
• An appropriate error code of type meshx_err_t on failure.

Definition at line 151 of file meshx_config_server.c.

{
    return meshx_plat_get_config_srv_instance(p_conf_srv);
}

Here is the call graph for this function:

meshx_get_config_srv_model()

meshx_err_t meshx_get_config_srv_model

(

meshx_ptr_t

p_model

)

Retrieves the configuration server model for the MeshX framework.

This function provides access to the configuration server model used in the MeshX implementation. The retrieved model can be used for configuring and managing the mesh network.

Parameters

[out]

p_model

Pointer to a variable where the address of the configuration server model will be stored. The caller must ensure that the pointer is valid.

Returns

• MESHX_SUCCESS on success.
• An appropriate error code of type meshx_err_t on failure.

Definition at line 171 of file meshx_config_server.c.

{
    return meshx_plat_get_config_srv_model(p_model);
}

Here is the call graph for this function:

meshx_init_config_server()

meshx_err_t meshx_init_config_server

(

void

)

Initializes the Configuration Server.

Initialize the meshxuction configuration server.

Registers the BLE Mesh Configuration Server callback function and prepares the server for use.

Returns

MESHX_SUCCESS on success, an error code otherwise.

Definition at line 97 of file meshx_config_server.c.

{
    if(config_srv_init_flag == CONFIG_SRV_INIT_MAGIC)
        return MESHX_INVALID_ARG;

    config_srv_init_flag = CONFIG_SRV_INIT_MAGIC;

    control_task_msg_subscribe(
        CONTROL_TASK_MSG_CODE_FRM_BLE,
        MESHX_MODEL_ID_CONFIG_SRV,
        (control_task_msg_handle_t)meshx_config_server_control_task_handler);

    return meshx_plat_config_srv_init();
}

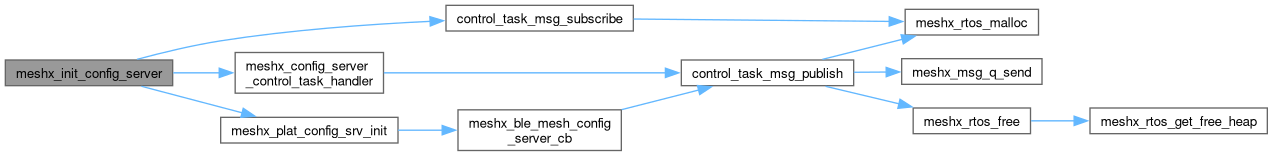

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

config_server_model_evt_map_table

const config_server_model_evt_map_t config_server_model_evt_map_table[]

static

Initial value:

= {
    {MESHX_MODEL_OP_APP_KEY_ADD, "OP_APP_KEY_ADD", CONTROL_TASK_MSG_EVT_APP_KEY_ADD},
    {MESHX_MODEL_OP_NET_KEY_ADD, "OP_NET_KEY_ADD", CONTROL_TASK_MSG_EVT_NET_KEY_ADD},
    {MESHX_MODEL_OP_MODEL_SUB_ADD, "OP_MODEL_SUB_ADD", CONTROL_TASK_MSG_EVT_SUB_ADD},
    {MESHX_MODEL_OP_MODEL_PUB_SET, "OP_MODEL_PUB_SET", CONTROL_TASK_MSG_EVT_PUB_ADD},
    {MESHX_MODEL_OP_MODEL_APP_BIND, "OP_MODEL_APP_BIND", CONTROL_TASK_MSG_EVT_APP_KEY_BIND},
    {MESHX_MODEL_OP_NET_KEY_DELETE, "OP_NET_KEY_DELETE", CONTROL_TASK_MSG_EVT_NET_KEY_DEL},
    {MESHX_MODEL_OP_APP_KEY_DELETE, "OP_APP_KEY_DELETE", CONTROL_TASK_MSG_EVT_APP_KEY_DEL},
    {MESHX_MODEL_OP_MODEL_SUB_DELETE, "OP_MODEL_SUB_DELETE", CONTROL_TASK_MSG_EVT_SUB_DEL},
    {MESHX_MODEL_OP_MODEL_APP_UNBIND, "OP_MODEL_APP_UNBIND", CONTROL_TASK_MSG_EVT_APP_KEY_UNBIND},
}

Definition at line 27 of file meshx_config_server.c.

                                                                                 {
    {MESHX_MODEL_OP_APP_KEY_ADD, "OP_APP_KEY_ADD", CONTROL_TASK_MSG_EVT_APP_KEY_ADD},
    {MESHX_MODEL_OP_NET_KEY_ADD, "OP_NET_KEY_ADD", CONTROL_TASK_MSG_EVT_NET_KEY_ADD},
    {MESHX_MODEL_OP_MODEL_SUB_ADD, "OP_MODEL_SUB_ADD", CONTROL_TASK_MSG_EVT_SUB_ADD},
    {MESHX_MODEL_OP_MODEL_PUB_SET, "OP_MODEL_PUB_SET", CONTROL_TASK_MSG_EVT_PUB_ADD},
    {MESHX_MODEL_OP_MODEL_APP_BIND, "OP_MODEL_APP_BIND", CONTROL_TASK_MSG_EVT_APP_KEY_BIND},
    {MESHX_MODEL_OP_NET_KEY_DELETE, "OP_NET_KEY_DELETE", CONTROL_TASK_MSG_EVT_NET_KEY_DEL},
    {MESHX_MODEL_OP_APP_KEY_DELETE, "OP_APP_KEY_DELETE", CONTROL_TASK_MSG_EVT_APP_KEY_DEL},
    {MESHX_MODEL_OP_MODEL_SUB_DELETE, "OP_MODEL_SUB_DELETE", CONTROL_TASK_MSG_EVT_SUB_DEL},
    {MESHX_MODEL_OP_MODEL_APP_UNBIND, "OP_MODEL_APP_UNBIND", CONTROL_TASK_MSG_EVT_APP_KEY_UNBIND},
};

config_srv_evt_map_count

uint16_t config_srv_evt_map_count = sizeof(config_server_model_evt_map_table) / sizeof(config_server_model_evt_map_t)

Definition at line 38 of file meshx_config_server.c.

config_srv_init_flag

uint16_t config_srv_init_flag = 0

static

Definition at line 18 of file meshx_config_server.c.
