esp_prov_srv_model.c File Reference

Implementation of BLE Mesh provisioning server model for ESP32. This file contains the provisioning callback handling, control task message mapping, and provisioning parameter initialization. It facilitates the provisioning process and event handling for BLE Mesh. More...

#include "interface/ble_mesh/server/meshx_ble_mesh_prov_srv.h"

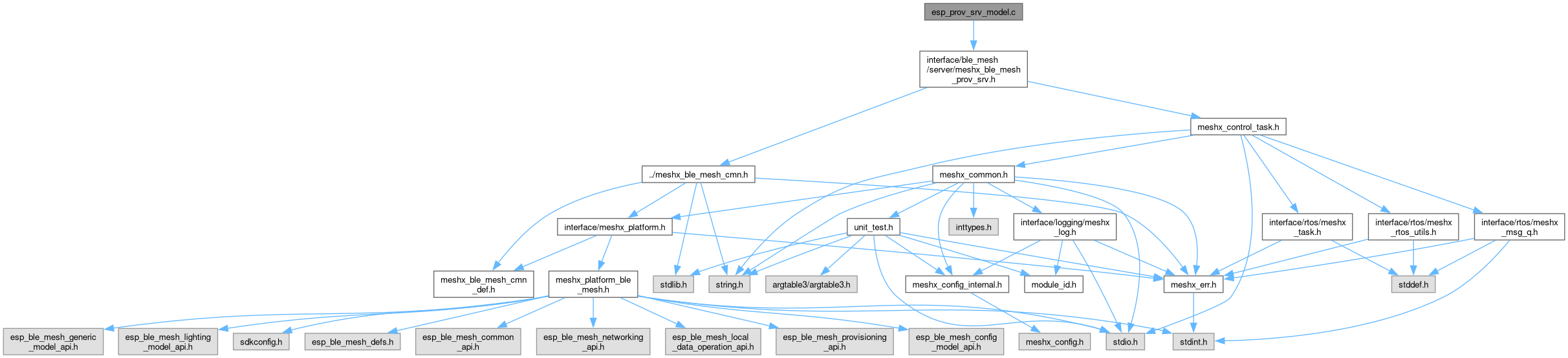

Include dependency graph for esp_prov_srv_model.c:

Go to the source code of this file.

Functions
static void	meshx_provisioning_cb (MESHX_PROV_CB_EVT event, const MESHX_PROV_CB_PARAM *param)
	Callback function for BLE Mesh provisioning events.
meshx_err_t	meshx_plat_init_prov (const uint8_t *uuid)
	Initialize provisioning parameters.
meshx_ptr_t	meshx_plat_get_prov (void)
	Get the provisioning parameters.

Variables
static MESHX_PROV	g_meshx_prov
	Global provisioning structure.

Detailed Description

Implementation of BLE Mesh provisioning server model for ESP32. This file contains the provisioning callback handling, control task message mapping, and provisioning parameter initialization. It facilitates the provisioning process and event handling for BLE Mesh.

Copyright (c) 2024 - 2025 MeshX

Author

Pranjal Chanda

Definition in file esp_prov_srv_model.c.

Function Documentation

meshx_plat_get_prov()

meshx_ptr_t meshx_plat_get_prov

(

void

)

Get the provisioning parameters.

This function returns a pointer to the global provisioning parameters.

Returns

Pointer to the global provisioning parameters.

Definition at line 78 of file esp_prov_srv_model.c.

{
    return (meshx_ptr_t)&g_meshx_prov;
}

Here is the caller graph for this function:

meshx_plat_init_prov()

meshx_err_t meshx_plat_init_prov

(

const uint8_t *

uuid

)

Initialize provisioning parameters.

This function initializes the provisioning parameters by copying the UUID from the provided server configuration and registering the provisioning callback.

Parameters

uuid	Pointer to the UUID of the device.

Returns

• MESHX_SUCCESS: Success
• MESHX_FAIL: Failed to register provisioning callback

Definition at line 59 of file esp_prov_srv_model.c.

{
    if (!uuid)
    {
        MESHX_LOGE(MODULE_ID_MODEL_SERVER, "Invalid server configuration");
        return MESHX_INVALID_ARG;
    }
    g_meshx_prov.uuid = uuid;

    return esp_ble_mesh_register_prov_callback((esp_ble_mesh_prov_cb_t)meshx_provisioning_cb);
}

Here is the call graph for this function:

Here is the caller graph for this function:

meshx_provisioning_cb()

static void meshx_provisioning_cb ( MESHX_PROV_CB_EVT event, const MESHX_PROV_CB_PARAM * param )

static

Callback function for BLE Mesh provisioning events.

This function is called whenever a BLE Mesh provisioning event occurs.

Parameters

event	The provisioning event type.
param	Pointer to the provisioning event parameters.

Definition at line 31 of file esp_prov_srv_model.c.

{
    MESHX_LOGD(MODULE_ID_MODEL_SERVER, "Event 0x%02x", event);

    meshx_prov_srv_param_t prov_srv_param;

    memcpy(&prov_srv_param.param, param, sizeof(meshx_prov_cb_param_t));
    prov_srv_param.prov_evt = event;

    if(MESHX_SUCCESS != meshx_prov_srv_notify_plat_event(&prov_srv_param))
    {
        MESHX_LOGE(MODULE_ID_MODEL_SERVER, "Failed to notify model event");
    }
}

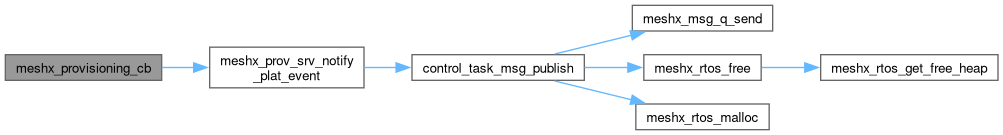

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

g_meshx_prov

MESHX_PROV g_meshx_prov

static

Global provisioning structure.

This structure holds the global provisioning configuration.

Definition at line 21 of file esp_prov_srv_model.c.
