main.c File Reference

Main application file. More...

#include "meshx.h"

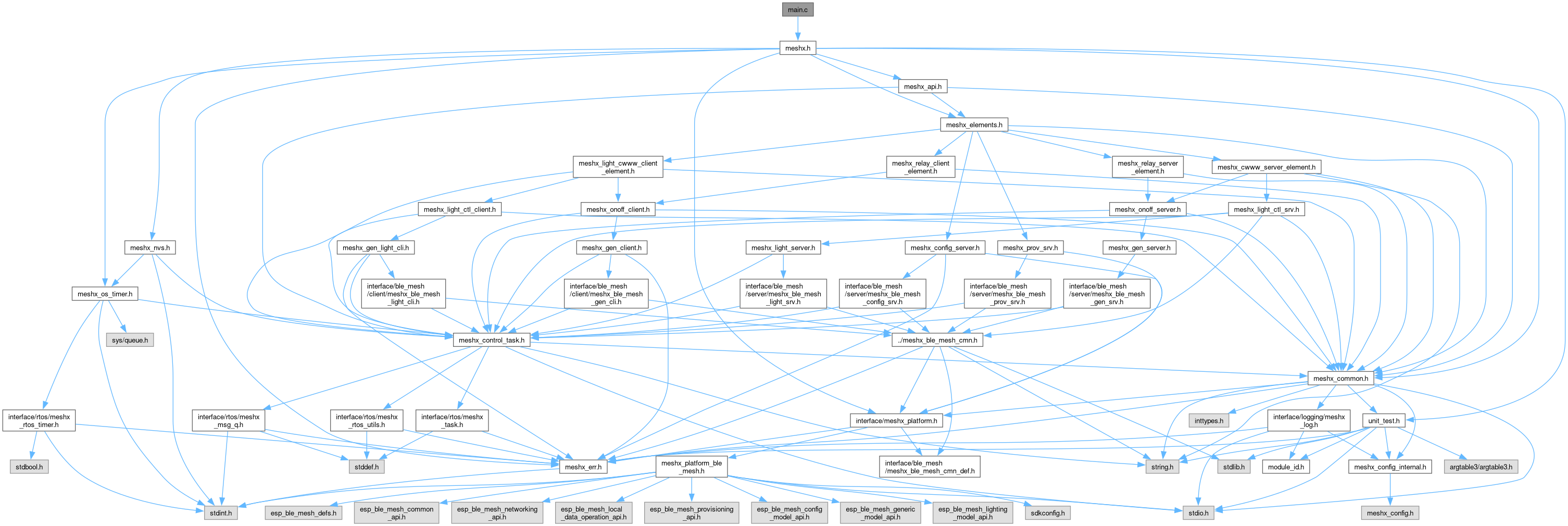

Include dependency graph for main.c:

Go to the source code of this file.

Macros
#define	CONFIG_MESHX_NVS_SAVE_PERIOD_MS   1000

Functions
static meshx_err_t	meshx_app_data_cb (const meshx_app_element_msg_header_t *msg_hdr, const meshx_data_payload_t *data_payload_u)
static meshx_err_t	meshx_app_ctrl_cb (const meshx_ctrl_msg_header_t *msg_hdr, const meshx_ctrl_payload_t *msg)
void	CONFIG_APP_MAIN (void)
	Main application entry point.

Variables
static element_comp_t	element_comp_arr []
	Array of element components with their respective types and counts.
static const meshx_config_t	meshx_config
	Configuration for the MeshX library.

Detailed Description

Main application file.

Copyright © 2024 - 2025 MeshX

This file contains the entry point for the application which initializes the MeshX library and handles any initialization errors.

Definition in file main.c.

Macro Definition Documentation

CONFIG_MESHX_NVS_SAVE_PERIOD_MS

#define CONFIG_MESHX_NVS_SAVE_PERIOD_MS   1000

Definition at line 13 of file main.c.

Function Documentation

CONFIG_APP_MAIN()

void CONFIG_APP_MAIN

(

void

)

Main application entry point.

This function initializes the MeshX library and logs an error message if the initialization fails.

Definition at line 52 of file main.c.

{
    meshx_err_t err;

    err = meshx_init(&meshx_config);
    if (err)
    {
        MESHX_LOGE(MODULE_ID_COMMON, "MeshX Init failed (err: 0x%x)", err);
        return;
    }
}

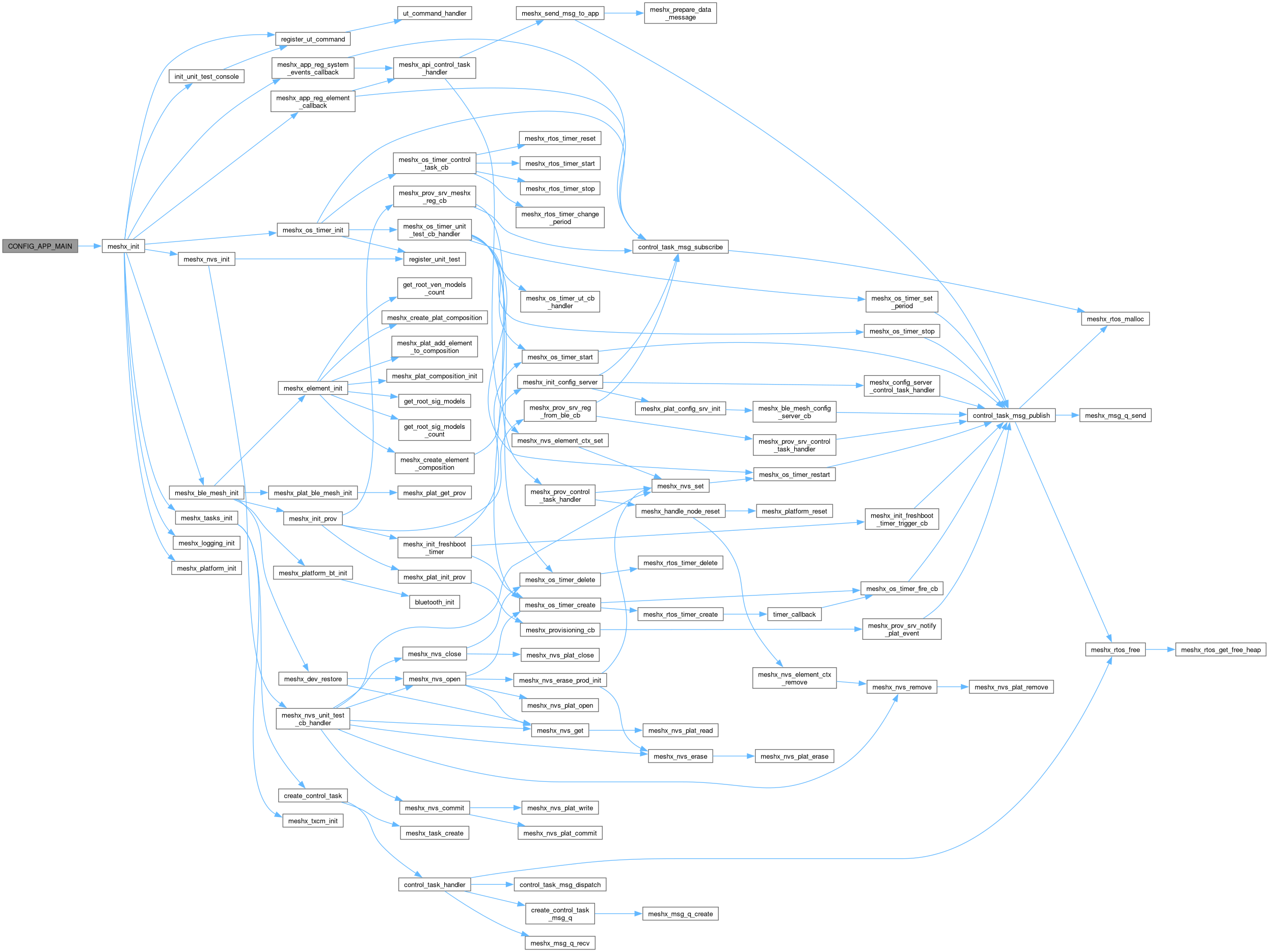

Here is the call graph for this function:

meshx_app_ctrl_cb()

static meshx_err_t meshx_app_ctrl_cb ( const meshx_ctrl_msg_header_t * msg_hdr, const meshx_ctrl_payload_t * msg )

static

Definition at line 118 of file main.c.

{
    return MESHX_SUCCESS;
}

meshx_app_data_cb()

static meshx_err_t meshx_app_data_cb ( const meshx_app_element_msg_header_t * msg_hdr, const meshx_data_payload_t * data_payload_u )

static

Definition at line 64 of file main.c.

{
    if (!msg_hdr || !data_payload_u)
        return MESHX_INVALID_ARG;

    switch (msg_hdr->element_type)
    {
    case MESHX_ELEMENT_TYPE_RELAY_SERVER:
        MESHX_LOGI(MODULE_ID_COMMON, "Relay Server Element ID: %d, Func ID: %d, Data: %d", msg_hdr->element_id, msg_hdr->func_id, data_payload_u->relay_server_evt.on_off);
        break;
    case MESHX_ELEMENT_TYPE_RELAY_CLIENT:
        MESHX_LOGI(MODULE_ID_COMMON, "Relay Client Element ID: %d, Func ID: %d, Data: %d, Error: %d", msg_hdr->element_id, msg_hdr->func_id, data_payload_u->relay_client_evt.on_off, data_payload_u->relay_client_evt.err_code);
        break;
    case MESHX_ELEMENT_TYPE_LIGHT_CWWW_SERVER:
        switch (msg_hdr->func_id)
        {
        case MESHX_ELEMENT_FUNC_ID_LIGHT_CWWW_SERVER_ONN_OFF:
            MESHX_LOGI(MODULE_ID_COMMON, "Light CW-WW Server Element ID: %d, Func ID: %d, Data: %d", msg_hdr->element_id, msg_hdr->func_id,
                     data_payload_u->light_cwww_server_evt.state_change.on_off.state);
            break;
        case MESHX_ELEMENT_FUNC_ID_LIGHT_CWWW_SERVER_CTL:
            MESHX_LOGI(MODULE_ID_COMMON, "Light CW-WW Server Element ID: %d, Func ID: %d, Data: %d|%d", msg_hdr->element_id, msg_hdr->func_id,
                     data_payload_u->light_cwww_server_evt.state_change.ctl.lightness,
                     data_payload_u->light_cwww_server_evt.state_change.ctl.temperature);
            break;
        default:
            MESHX_LOGW(MODULE_ID_COMMON, "Unhandled function ID: %d", msg_hdr->func_id);
            break;
        }
        break;
    case MESHX_ELEMENT_TYPE_LIGHT_CWWW_CLIENT:
        switch (msg_hdr->func_id)
        {
        case MESHX_ELEMENT_FUNC_ID_LIGHT_CWWW_CLIENT_ONN_OFF:
            MESHX_LOGI(MODULE_ID_COMMON, "Light CW-WW Client Element ID: %d, Func ID: %d, Data: %d, Error: %d", msg_hdr->element_id, msg_hdr->func_id,
                     data_payload_u->light_cwww_client_evt.state_change.on_off.state, data_payload_u->light_cwww_client_evt.err_code);
            break;
        case MESHX_ELEMENT_FUNC_ID_LIGHT_CWWW_CLIENT_CTL:
            MESHX_LOGI(MODULE_ID_COMMON, "Light CW-WW Client Element ID: %d, Func ID: %d, Data: %d|%d", msg_hdr->element_id, msg_hdr->func_id,
                     data_payload_u->light_cwww_client_evt.state_change.ctl.lightness,
                     data_payload_u->light_cwww_client_evt.state_change.ctl.temperature);
            break;
        default:
            MESHX_LOGW(MODULE_ID_COMMON, "Unhandled function ID: %d", msg_hdr->func_id);
            break;
        }
        break;
    default:
        MESHX_LOGW(MODULE_ID_COMMON, "Unhandled element type: %d", msg_hdr->element_type);
        break;
    }
    return MESHX_SUCCESS;
}

Variable Documentation

element_comp_arr

element_comp_t element_comp_arr[]

static

Initial value:

= {
    {MESHX_ELEMENT_TYPE_RELAY_SERVER,       1},
    {MESHX_ELEMENT_TYPE_RELAY_CLIENT,       1},
    {MESHX_ELEMENT_TYPE_LIGHT_CWWW_SERVER,  1},
    {MESHX_ELEMENT_TYPE_LIGHT_CWWW_CLIENT,  1}
}

Array of element components with their respective types and counts.

This array holds the configuration for different types of elements in the MeshX application. Each entry in the array consists of an element type and the corresponding count defined in the configuration.

Definition at line 24 of file main.c.

                                           {
    {MESHX_ELEMENT_TYPE_RELAY_SERVER,       CONFIG_RELAY_SERVER_COUNT},
    {MESHX_ELEMENT_TYPE_RELAY_CLIENT,       CONFIG_RELAY_CLIENT_COUNT},
    {MESHX_ELEMENT_TYPE_LIGHT_CWWW_SERVER,  CONFIG_LIGHT_CWWW_SRV_COUNT},
    {MESHX_ELEMENT_TYPE_LIGHT_CWWW_CLIENT,  CONFIG_LIGHT_CWWW_CLIENT_COUNT}
};

meshx_config

const meshx_config_t meshx_config

static

Initial value:

= {
    .cid                    = CONFIG_CID_ID,
    .pid                    = CONFIG_PID_ID,
    .product_name           = CONFIG_PRODUCT_NAME,
    .app_ctrl_cb            = &meshx_app_ctrl_cb,
    .app_element_cb         = &meshx_app_data_cb,
    .meshx_uuid_addr        = MESHX_UUID_EMPTY,
    .element_comp_arr       = element_comp_arr,
    .element_comp_arr_len   = ARRAY_SIZE(element_comp_arr),
    .meshx_nvs_save_period  = CONFIG_MESHX_NVS_SAVE_PERIOD_MS,
}

Configuration for the MeshX library.

Definition at line 34 of file main.c.

                                           {
    .cid                    = CONFIG_CID_ID,
    .pid                    = CONFIG_PID_ID,
    .product_name           = CONFIG_PRODUCT_NAME,
    .app_ctrl_cb            = &meshx_app_ctrl_cb,
    .app_element_cb         = &meshx_app_data_cb,
    .meshx_uuid_addr        = MESHX_UUID_EMPTY,   /* UUID address to be filled internally for MeshX */
    .element_comp_arr       = element_comp_arr,
    .element_comp_arr_len   = ARRAY_SIZE(element_comp_arr),
    .meshx_nvs_save_period  = CONFIG_MESHX_NVS_SAVE_PERIOD_MS,
};
