meshx_nvs_interface.h File Reference

Implementation for Non-Volatile Storage (NVS) drivers Insterface APIs. More...

#include "meshx_err.h"
#include <stdint.h>
#include <stddef.h>

Go to the source code of this file.

Functions
meshx_err_t	meshx_nvs_plat_open (uintptr_t *p_nvs_handle)
	Open non-volatile storage with a given namespace from the default partition.
meshx_err_t	meshx_nvs_plat_close (uintptr_t p_nvs_handle)
	Close the non-volatile storage handle.
meshx_err_t	meshx_nvs_plat_read (uintptr_t p_nvs_handle, char const *key, uint8_t *p_data, uint16_t len)
	Read blob value for given key from non-volatile storage.
meshx_err_t	meshx_nvs_plat_write (uintptr_t p_nvs_handle, char const *key, uint8_t const *p_data, uint16_t len)
	Write a blob value to the non-volatile storage with a given key and namespace.
meshx_err_t	meshx_nvs_plat_erase (uintptr_t p_nvs_handle)
	Erase all key-value pairs in the given namespace.
meshx_err_t	meshx_nvs_plat_remove (uintptr_t p_nvs_handle, char const *key)
	Remove a key-value pair from the non-volatile storage with a given key and namespace.
meshx_err_t	meshx_nvs_plat_commit (uintptr_t p_nvs_handle)
	Commit changes to the non-volatile storage.

Detailed Description

Implementation for Non-Volatile Storage (NVS) drivers Insterface APIs.

Copyright © 2024 - 2025 MeshX

Author

Pranjal Chanda

Function Documentation

meshx_nvs_plat_close()

meshx_err_t meshx_nvs_plat_close

(

uintptr_t

p_nvs_handle

)

Close the non-volatile storage handle.

Parameters

[in]

p_nvs_handle

Handle obtained with meshx_nvs_plat_open.

Returns

• MESHX_SUCCESS if the handle was closed successfully
• MESHX_ERR_PLAT for any platform error

meshx_nvs_plat_commit()

meshx_err_t meshx_nvs_plat_commit

(

uintptr_t

p_nvs_handle

)

Commit changes to the non-volatile storage.

Note

This function is a prototype and can be returned with MESHX_SUCCESS if no such platform function exists

Parameters

[in]

p_nvs_handle

Pointer to the opened handle.

Returns

• MESHX_SUCCESS if the changes were committed successfully
• MESHX_ERR_PLAT for any platform error

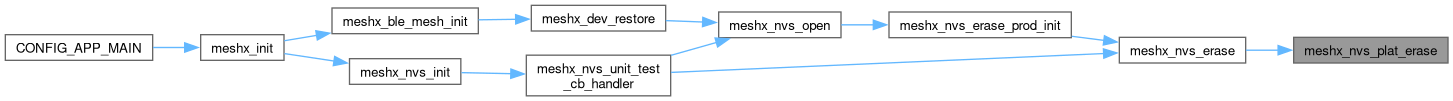

meshx_nvs_plat_erase()

meshx_err_t meshx_nvs_plat_erase

(

uintptr_t

p_nvs_handle

)

Erase all key-value pairs in the given namespace.

Parameters

[in]

p_nvs_handle

Pointer to the opened handle.

Returns

• MESHX_SUCCESS if all key-value pairs were erased successfully
• MESHX_ERR_PLAT for any platform error

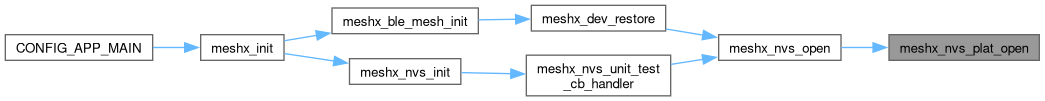

meshx_nvs_plat_open()

meshx_err_t meshx_nvs_plat_open

(

uintptr_t *

p_nvs_handle

)

Open non-volatile storage with a given namespace from the default partition.

If CONFIG_BLE_MESH_SPECIFIC_PARTITION is not defined, this function will open the namespace from the default partition. Otherwise, it will open the namespace from the MESHX_NVS_PARTITION.

Parameters

[out]

p_nvs_handle

Pointer to the output variable populated with the opened handle.

Returns

• MESHX_SUCCESS if the storage handle was opened successfully
• MESHX_ERR_PLAT if p_nvs_handle is NULL

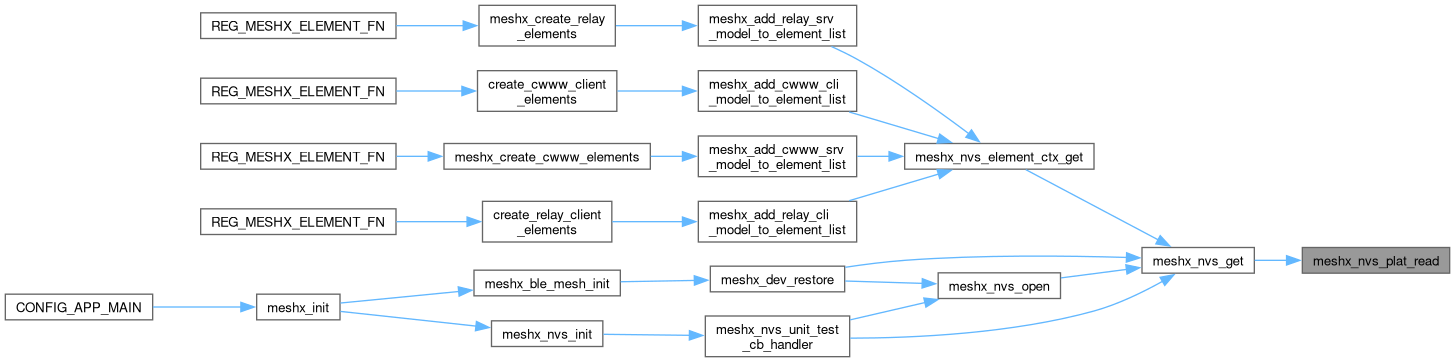

meshx_nvs_plat_read()

meshx_err_t meshx_nvs_plat_read	(	uintptr_t	p_nvs_handle,
		char const *	key,
		uint8_t *	p_data,
		uint16_t	len )

Read blob value for given key from non-volatile storage.

Parameters

[in]	p_nvs_handle	Handle obtained with meshx_nvs_plat_open.
[in]	key	Key name. Maximum length is (NVS_KEY_NAME_MAX_SIZE-1) characters. Shouldn't be empty.
[out]	p_data	Pointer to the output variable populated with the read blob value.
[in]	len	Length of the read blob value.

Returns

• MESHX_SUCCESS if the blob value was read successfully
• MESHX_ERR_PLAT if there is an internal error;

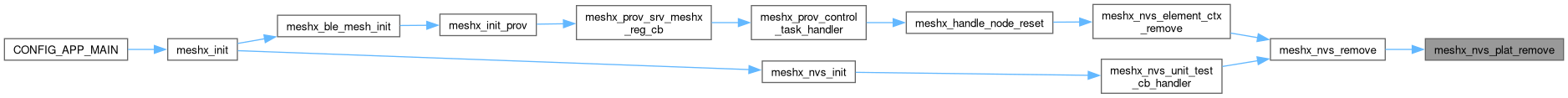

meshx_nvs_plat_remove()

meshx_err_t meshx_nvs_plat_remove	(	uintptr_t	p_nvs_handle,
		char const *	key )

Remove a key-value pair from the non-volatile storage with a given key and namespace.

Parameters

[in]	p_nvs_handle	Pointer to the opened handle.
[in]	key	Key name. Maximum length is (NVS_KEY_NAME_MAX_SIZE-1) characters. Shouldn't be empty.

Returns

• MESHX_SUCCESS if the key-value pair was removed successfully
• MESHX_ERR_PLAT for any platform error

meshx_nvs_plat_write()

meshx_err_t meshx_nvs_plat_write	(	uintptr_t	p_nvs_handle,
		char const *	key,
		uint8_t const *	p_data,
		uint16_t	len )

Write a blob value to the non-volatile storage with a given key and namespace.

Parameters

[in]	p_nvs_handle	Pointer to the opened handle.
[in]	key	Key name. Maximum length is (NVS_KEY_NAME_MAX_SIZE-1) characters. Shouldn't be empty.
[in]	p_data	Pointer to the data to write.
[in]	len	Number of bytes to write.

Returns

• MESHX_SUCCESS if the value was written successfully
• MESHX_ERR_PLAT for any platform error
