meshx_log.c File Reference

Implementation of the MeshX logging system. More...

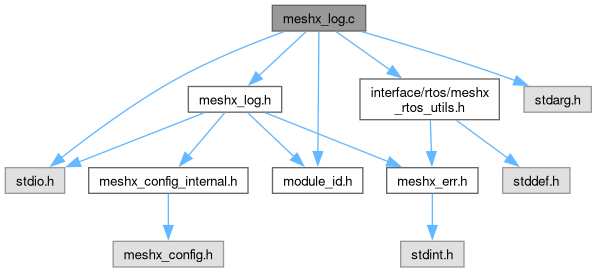

#include "meshx_log.h"
#include "interface/meshx_platform.h"
#include "module_id.h"
#include "interface/rtos/meshx_rtos_utils.h"
#include "interface/rtos/meshx_msg_q.h"
#include "interface/rtos/meshx_task.h"
#include <stdio.h>
#include <stdarg.h>
#include <string.h>
#include <ctype.h>

Macros
#define	CONFIG_MESHX_LOG_BUF_SIZE   128

Functions
static uint8_t	calculate_xor_parity (const uint8_t *data, uint16_t len)
	Calculates XOR parity for a buffer.
meshx_err_t	meshx_logging_init (const meshx_logging_t *config)
void	meshx_module_set_log_level (module_id_t module_id, meshx_log_level_t log_level)
static void	vmeshx_log_packet (module_id_t module_id, meshx_log_level_t log_level, const char *file, int line_no, const char *fmt, va_list args)
void	meshx_log_packet (module_id_t module_id, meshx_log_level_t log_level, const char *file, int line_no, const char *fmt,...)
	Logs a packetized binary log message.
void	meshx_log_printf (module_id_t module_id, meshx_log_level_t log_level, const char *func, int line_no, const char *fmt,...)
	Legacy printf-style logging for external components.

Variables
static meshx_log_level_t	module_log_level [MODULE_ID_MAX]
static meshx_logging_t	meshx_logging_ctrl

Detailed Description

Implementation of the MeshX logging system.

This file contains the implementation of the logging system for the MeshX application. It provides functions to initialize the logging system, set logging levels for specific modules, and log formatted messages with different log levels and colors.

Macro Definition Documentation

CONFIG_MESHX_LOG_BUF_SIZE

#define CONFIG_MESHX_LOG_BUF_SIZE   128

Function Documentation

calculate_xor_parity()

uint8_t calculate_xor_parity ( const uint8_t * data, uint16_t len )

static

Calculates XOR parity for a buffer.

{
    uint8_t parity = 0;
    for (uint16_t i = 0; i < len; i++)
    {
        parity ^= data[i];
    }
    return parity;
}

meshx_log_packet()

void meshx_log_packet	(	module_id_t	module_id,
		meshx_log_level_t	log_level,
		const char *	file,
		int	line_no,
		const char *	fmt,
			... )

Logs a packetized binary log message.

Note

This is called by the MESHX_LOG macro.

{
    va_list args;
    va_start(args, fmt);
    vmeshx_log_packet(module_id, log_level, file, line_no, fmt, args);
    va_end(args);
}

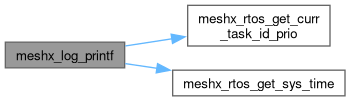

meshx_log_printf()

void meshx_log_printf	(	module_id_t	module_id,
		meshx_log_level_t	log_level,
		const char *	func,
		int	line_no,
		const char *	fmt,
			... )

Legacy printf-style logging for external components.

{
    va_list args;
    va_start(args, fmt);
    vmeshx_log_packet(module_id, log_level, func, line_no, fmt, args);
    va_end(args);
}

meshx_logging_init()

meshx_err_t meshx_logging_init

(

const meshx_logging_t *

config

)

{
    if (!config)
        return MESHX_INVALID_ARG;

    meshx_logging_ctrl.def_log_level = config->def_log_level;
    for (size_t i = 0; i < MODULE_ID_MAX; i++)
    {
        module_log_level[i] = config->def_log_level;
    }

#if CONFIG_MESHX_LOG_THREADED
    if (!log_threaded_init_done)
    {
        meshx_err_t err = meshx_msg_q_create(&log_msg_q);
        if (err != MESHX_SUCCESS)
            return err;

        static meshx_task_t log_task;
        log_task.task_cb = meshx_log_task_handler;
        log_task.task_name = "meshx_log_task";
        log_task.stack_size = CONFIG_MESHX_LOG_STACK_SIZE;
        log_task.priority = CONFIG_MESHX_LOG_TASK_PRIO;
        log_task.arg = NULL;

        err = meshx_task_create(&log_task);
        if (err != MESHX_SUCCESS)
            return err;

        log_threaded_init_done = true;
    }
#endif

    return MESHX_SUCCESS;
}

meshx_module_set_log_level()

void meshx_module_set_log_level	(	module_id_t	module_id,
		meshx_log_level_t	log_level )

{
    if (module_id < MODULE_ID_MAX)
    {
        module_log_level[module_id] = log_level;
    }
}

vmeshx_log_packet()

void vmeshx_log_packet ( module_id_t module_id, meshx_log_level_t log_level, const char * file, int line_no, const char * fmt, va_list args )

static

{
    /* Validate module ID and log level */
    if (module_id >= MODULE_ID_MAX || log_level < meshx_logging_ctrl.def_log_level ||
        module_log_level[module_id] < log_level)
    {
        return;
    }

#if CONFIG_MESHX_LOG_THREADED
    meshx_log_msg_t msg;
    memset(&msg, 0, sizeof(msg));
    meshx_log_packet_t *pkt = (meshx_log_packet_t *)msg.data;
    msg.len = sizeof(meshx_log_packet_t);
#else
    uint8_t buf[sizeof(meshx_log_packet_t)];
    meshx_log_packet_t *pkt = (meshx_log_packet_t *)buf;
    memset(buf, 0, sizeof(buf));
#endif

    unsigned int timestamp = 0;
    meshx_rtos_get_sys_time(&timestamp);

    pkt->sync = MESHX_LOG_SYNC_WORD;
    pkt->level = (uint8_t)log_level;
    pkt->module_id = (uint8_t)module_id;
    pkt->timestamp = (uint32_t)timestamp;
    pkt->fmt_addr = (uint32_t)fmt;
    pkt->file_addr = (uint32_t)file;
    pkt->line_no = (uint16_t)line_no;

    /* Pack arguments */
    va_list args_copy;
    va_copy(args_copy, args);
    for (int i = 0; i < 16; i++) {
        pkt->args[i] = va_arg(args_copy, uint32_t);
    }
    va_end(args_copy);

    /* Simple scan for %s to support dynamic string inlining */
    const char *p = fmt;
    int arg_idx = 0;
    bool found_s = false;
    while (*p) {
        if (*p == '%' && *(p+1) != '%') {
            p++;
            // Basic skip of common modifiers
            while (*p && (isdigit((int)*p) || strchr("-+ #.0123456789", *p))) p++;
            while (*p && strchr("lhjzL", *p)) p++;

            if (*p == 's') {
                found_s = true;
                break;
            }
            arg_idx++;
            if (arg_idx >= 16) break;
        }
        p++;
    }

    if (found_s && arg_idx < 16) {
        uint32_t str_ptr = pkt->args[arg_idx];
        /* Check if pointer is likely in RAM (ESP32-C3 DRAM: 0x3FC80000 - 0x3FCE0000) */
        /* Note: This is a heuristic. In a full system, use platform-specific RAM checks. */
        if (str_ptr >= 0x3FC00000 && str_ptr < 0x40000000) {
            strncpy(pkt->inline_str, (const char *)str_ptr, sizeof(pkt->inline_str) - 1);
            pkt->inline_str[sizeof(pkt->inline_str) - 1] = '\0';
        }
    }

    pkt->len = sizeof(meshx_log_packet_t) - 3; // Length excluding sync and len

    pkt->parity = calculate_xor_parity((uint8_t *)pkt, sizeof(meshx_log_packet_t) - 1);

#if CONFIG_MESHX_LOG_THREADED
    if (log_threaded_init_done)
    {
        /* Use a small wait to avoid dropping logs if queue is momentarily full */
        if (meshx_msg_q_send(&log_msg_q, &msg, sizeof(msg), 10) == MESHX_SUCCESS) {
            return;
        }
    }
#endif

    /* Fallback: direct output if not threaded or queue full/not ready */
    meshx_platform_console_write((const char *)pkt, sizeof(meshx_log_packet_t));
}

Variable Documentation

meshx_logging_ctrl

meshx_logging_t meshx_logging_ctrl

static

module_log_level

meshx_log_level_t module_log_level[MODULE_ID_MAX]

static
