meshx_txcm.c File Reference

MeshX Tx Control Module This file contains the implementation of the MeshX Tx Control Module, which is responsible for managing transmission control in the MeshX BLE Mesh stack. More...

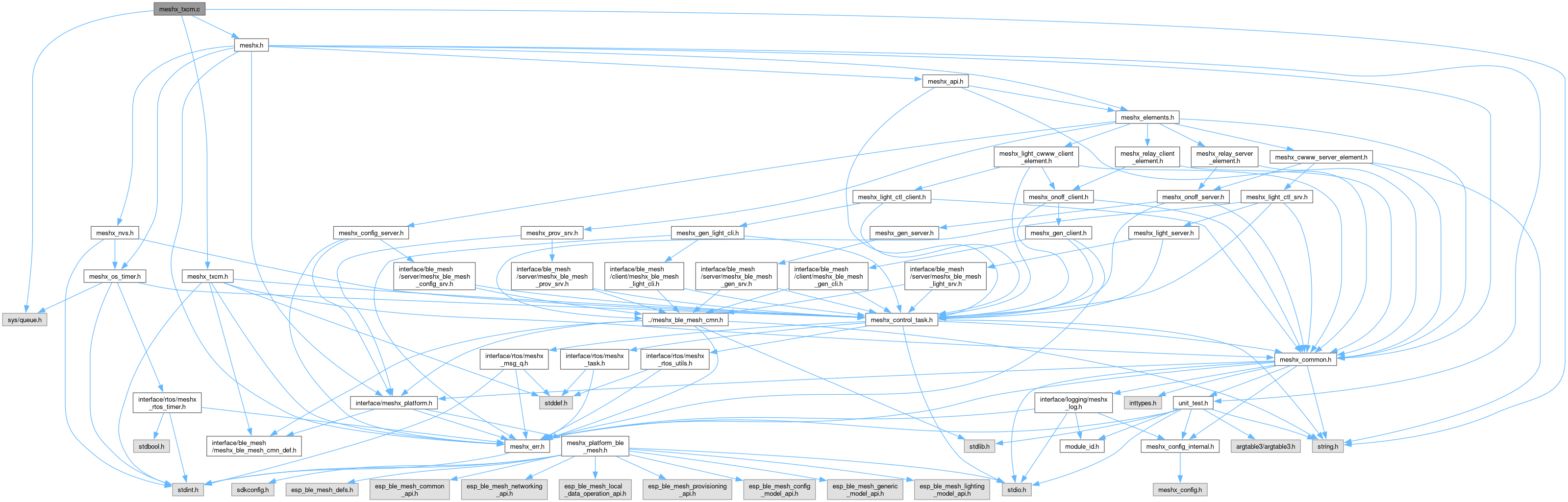

#include "meshx.h"
#include "meshx_txcm.h"

Data Structures
struct	meshx_txcm_tx_q
	Structure for queued transmission items in the Tx Control module. More...
struct	meshx_tx_queue_t
	Structure for the transmission queue in the Tx Control module. More...

Macros
#define	MESHX_TXCM_INIT_MAGIC   0x4455
	Magic value used to check if the Tx Control module has been initialized.
#define	MESHX_TXCM_TASK_STACK_SIZE   4096
	Stack size for the Tx Control task in bytes.
#define	MESHX_TXCM_TASK_PRIO   5
	Priority level for the Tx Control task.
#define	MESHX_TXCM_SIG_Q_LEN   10
	Maximum number of signals in the Tx Control signal queue.
#define	MESHX_TXCM_SIG_Q_DEPTH   sizeof(meshx_txcm_request_t)
	Depth (size) of each signal queue entry.

Typedefs
typedef meshx_err_t(*	meshx_txcm_sig_proc_t) (meshx_txcm_request_t *request)
	Type definition for signal processing functions in the Tx Control module.
typedef struct meshx_txcm_tx_q	meshx_txcm_tx_q_t
	Structure for queued transmission items in the Tx Control module.

Functions
static meshx_err_t	meshx_tx_queue_is_full (const meshx_tx_queue_t *q)
	Checks if the transmission queue is full.
static meshx_err_t	meshx_tx_queue_is_empty (const meshx_tx_queue_t *q)
	Checks if the transmission queue is empty.
static meshx_err_t	meshx_tx_queue_enqueue (meshx_tx_queue_t *q, const meshx_txcm_tx_q_t *item)
	Adds an item to the transmission queue.
static meshx_err_t	meshx_tx_queue_enqueue_front (meshx_tx_queue_t *q, const meshx_txcm_tx_q_t *item)
	Adds an item to the front of the transmission queue.
static void	meshx_txcm_task_handler (const dev_struct_t *args)
	Handler function for the MeshX TXCM task.
static meshx_err_t	meshx_txcm_sig_resend (meshx_txcm_request_t *request)
	Handles the resend signal for the Tx Control module.
static meshx_err_t	meshx_txcm_sig_enq_send (meshx_txcm_request_t *request)
	Enqueues a send request to the Tx Control module.
static meshx_err_t	meshx_txcm_sig_ack (const meshx_txcm_request_t *request)
	Handles the flush signal for the Tx Control module.
static meshx_err_t	meshx_txcm_sig_direct_send (meshx_txcm_request_t *request)
	Enqueues a direct send request to the Tx Control module.
static meshx_err_t	meshx_tx_queue_search (const meshx_tx_queue_t *q, const uint8_t *param, uint16_t param_len, uint16_t dest_addr)
	Searches for a parameter in the transmission queue.
static meshx_err_t	meshx_tx_queue_dequeue_at (meshx_tx_queue_t *q, int16_t index, meshx_txcm_tx_q_t *item)
	Removes an item from the transmission queue.
static meshx_err_t	meshx_txcm_msg_q_try_send (bool resend, uint16_t target_addr)
	Attempts to send messages from the transmission queue.
static meshx_err_t	meshx_txcm_msg_q_front_try_send (bool resend)
static meshx_err_t	meshx_txcm_proccess_request_msg (meshx_txcm_request_t *request, meshx_txcm_msg_type_t msg_type)
	Processes a request message for the Tx Control module.
meshx_err_t	meshx_txcm_init (dev_struct_t *pdev)
	Initializes the MeshX Tx Control Module.
meshx_err_t	meshx_txcm_request_send (meshx_txcm_sig_t request_type, uint16_t dest_addr, meshx_cptr_t msg_param, uint16_t msg_param_len, meshx_txcm_fn_model_send_t send_fn)
	Sends a request to the Tx Control module.
meshx_err_t	meshx_txcm_event_cb_reg (meshx_txcm_cb_t event_cb)
	Registers a callback function for handling Tx Control module events.

Variables
struct {
uint16_t   init_magic
meshx_task_t   txcm_task
meshx_msg_q_t   txcm_sig_queue
meshx_tx_queue_t   txcm_tx_queue
}	g_txcm
	Global structure for Tx Control module state and resources.
static meshx_txcm_sig_proc_t	g_sig_proc_table [MESHX_TXCM_SIG_MAX]
	Signal processing function table for the Tx Control module.

Detailed Description

MeshX Tx Control Module This file contains the implementation of the MeshX Tx Control Module, which is responsible for managing transmission control in the MeshX BLE Mesh stack.

Copyright

Copyright © 2024 - 2025 MeshX

Author

Pranjal Chanda

Macro Definition Documentation

MESHX_TXCM_INIT_MAGIC

#define MESHX_TXCM_INIT_MAGIC   0x4455

Magic value used to check if the Tx Control module has been initialized.

MESHX_TXCM_SIG_Q_DEPTH

#define MESHX_TXCM_SIG_Q_DEPTH   sizeof(meshx_txcm_request_t)

Depth (size) of each signal queue entry.

MESHX_TXCM_SIG_Q_LEN

#define MESHX_TXCM_SIG_Q_LEN   10

Maximum number of signals in the Tx Control signal queue.

MESHX_TXCM_TASK_PRIO

#define MESHX_TXCM_TASK_PRIO   5

Priority level for the Tx Control task.

MESHX_TXCM_TASK_STACK_SIZE

#define MESHX_TXCM_TASK_STACK_SIZE   4096

Stack size for the Tx Control task in bytes.

Typedef Documentation

meshx_txcm_sig_proc_t

typedef meshx_err_t(* meshx_txcm_sig_proc_t) (meshx_txcm_request_t *request)

Type definition for signal processing functions in the Tx Control module.

A signal processing function takes a pointer to a transmission control request structure and processes the request accordingly.

meshx_txcm_tx_q_t

typedef struct meshx_txcm_tx_q meshx_txcm_tx_q_t

Structure for queued transmission items in the Tx Control module.

This structure represents an item in the transmission queue, containing the send callback and message parameters ready for transmission.

Function Documentation

meshx_tx_queue_dequeue_at()

meshx_err_t meshx_tx_queue_dequeue_at ( meshx_tx_queue_t * q, int16_t index, meshx_txcm_tx_q_t * item )

static

Removes an item from the transmission queue.

This function removes an item from the transmission queue. The item is a pointer to the meshx_txcm_tx_q_t structure to be removed.

Parameters

[in]	q	Pointer to the transmission queue structure to remove the item from.
[in]	index	Index of the item to dequeue.
[out]	item	Pointer to the meshx_txcm_tx_q_t structure to store the removed item.

Returns

meshx_err_t

{
    if (q->count == 0) return MESHX_INVALID_STATE;

    if (item) memcpy(item, &q->q_param[index], sizeof(meshx_txcm_tx_q_t));

    // If it's the head, just use standard dequeue logic
    if (index == q->head)
    {
        q->head = (q->head + 1) % MESHX_TXCM_TX_Q_LEN;
    }
    else
    {
        // Shift elements to fill the gap
        int16_t current = index;
        while (current != q->head)
        {
            int16_t prev = (current - 1 + MESHX_TXCM_TX_Q_LEN) % MESHX_TXCM_TX_Q_LEN;
            memcpy(&q->q_param[current], &q->q_param[prev], sizeof(meshx_txcm_tx_q_t));
            current = prev;
        }
        q->head = (q->head + 1) % MESHX_TXCM_TX_Q_LEN;
    }
    q->count--;
    return MESHX_SUCCESS;
}

meshx_tx_queue_enqueue()

meshx_err_t meshx_tx_queue_enqueue ( meshx_tx_queue_t * q, const meshx_txcm_tx_q_t * item )

static

Adds an item to the transmission queue.

This function adds an item to the transmission queue. The item is a pointer to the meshx_txcm_tx_q_t structure to be added.

Parameters

[in]	q	Pointer to the transmission queue structure to add the item to.
[in]	item	Pointer to the meshx_txcm_tx_q_t structure to be added.

Returns

true if the item was successfully added, false if the queue is full.

{
    meshx_err_t err = MESHX_SUCCESS;
    err = meshx_tx_queue_is_full(q);
    if (err == MESHX_SUCCESS)
    {
        return MESHX_NO_MEM;
    }

    // Copy the entire item structure into the q_param.
    memcpy(q->q_param + q->tail, item, sizeof(meshx_txcm_tx_q_t));

    q->tail = (q->tail + 1) % MESHX_TXCM_TX_Q_LEN;

    // Increment count.
    q->count++;

    return MESHX_SUCCESS;
}

meshx_tx_queue_enqueue_front()

meshx_err_t meshx_tx_queue_enqueue_front ( meshx_tx_queue_t * q, const meshx_txcm_tx_q_t * item )

static

Adds an item to the front of the transmission queue.

This function adds an item to the front of the transmission queue. The item is a pointer to the meshx_txcm_tx_q_t structure to be added.

Parameters

[in]	q	Pointer to the transmission queue structure to add the item to.
[in]	item	Pointer to the meshx_txcm_tx_q_t structure to be added.

Returns

true if the item was successfully added, false if the queue is full.

{
    meshx_err_t err = MESHX_SUCCESS;
    err = meshx_tx_queue_is_full(q);
    if (err == MESHX_SUCCESS)
    {
        return MESHX_NO_MEM;
    }
    // Increment tail and wrap around if necessary.
    q->head = (q->head - 1 + MESHX_TXCM_TX_Q_LEN) % MESHX_TXCM_TX_Q_LEN;

    // Copy the entire item structure into the q_param.
    memcpy(q->q_param + q->head, item, sizeof(meshx_txcm_tx_q_t));

    // Increment count.
    q->count++;

    return MESHX_SUCCESS;
}

meshx_tx_queue_is_empty()

meshx_err_t meshx_tx_queue_is_empty ( const meshx_tx_queue_t * q )

static

Checks if the transmission queue is empty.

This function checks if the count of messages in the transmission queue has reached zero.

Parameters

[in]

q

Pointer to the transmission queue structure to be checked.

Returns

true if the queue is empty, false otherwise.

{
    return q->count == 0 ? MESHX_SUCCESS : MESHX_INVALID_STATE;
}

meshx_tx_queue_is_full()

meshx_err_t meshx_tx_queue_is_full ( const meshx_tx_queue_t * q )

static

Checks if the transmission queue is full.

This function checks if the count of messages in the transmission queue has reached the maximum capacity.

Parameters

[in]

q

Pointer to the transmission queue structure to be checked.

Returns

true if the queue is full, false otherwise.

{
    return q->count == MESHX_TXCM_TX_Q_LEN ? MESHX_SUCCESS : MESHX_NO_MEM;
}

meshx_tx_queue_search()

meshx_err_t meshx_tx_queue_search ( const meshx_tx_queue_t * q, const uint8_t * param, uint16_t param_len, uint16_t dest_addr )

static

Searches for a parameter in the transmission queue.

Parameters

[in]	q	Pointer to the transmission queue structure to search in.
[in]	param	Pointer to the uint8_t array to search for.
[in]	param_len	Length of the parameter array.
[in]	dest_addr	Destination address associated with the parameter.

Returns

MESHX_SUCCESS if found, MESHX_NOT_FOUND otherwise.

{
    meshx_err_t err = MESHX_SUCCESS;
    err = meshx_tx_queue_is_empty(q);
    if (err == MESHX_SUCCESS)
    {
        return MESHX_INVALID_STATE;
    }

    int16_t head = q->head;
    int16_t tail = q->tail;

    while(head != tail)
    {
        // Move tail back
        tail = (tail - 1 + MESHX_TXCM_TX_Q_LEN) % MESHX_TXCM_TX_Q_LEN;
        // compare param with q_param[tail]
        if (q->q_param[tail].msg_param_len == param_len &&
            memcmp(param, q->q_param[tail].msg_param, param_len) == 0 &&
            q->q_param[tail].dest_addr == dest_addr)
        {
            MESHX_LOGD(MODULE_ID_TXCM, "Found param in queue");
            return MESHX_SUCCESS;
        }
    }

    return MESHX_NOT_FOUND;
}

meshx_txcm_event_cb_reg()

meshx_err_t meshx_txcm_event_cb_reg

(

meshx_txcm_cb_t

event_cb

)

Registers a callback function for handling Tx Control module events.

This function registers a callback function to handle specific events from the Tx Control module. The callback will be invoked when the specified event occurs.

Parameters

[in]

event_cb

Pointer to the callback function to be registered for event handling.

Returns

meshx_err_t

• MESHX_SUCCESS on successful registration.
• Error code (meshx_err_t) if registration fails.

{
    return control_task_msg_subscribe(
        CONTROL_TASK_MSG_CODE_TXCM,
        CONTROL_TASK_MSG_EVT_TXCM_MSG_TIMEOUT,
        event_cb);
}

meshx_txcm_init()

meshx_err_t meshx_txcm_init

(

dev_struct_t *

pdev

)

Initializes the MeshX Tx Control Module.

This function sets up the transmission control module for MeshX. It checks if the module has already been initialized using an initialization magic value. If not initialized, it sets the magic value, assigns the provided device structure to the task argument, and creates the Tx Control task.

Parameters

[in]

pdev

Pointer to the device structure to be used by the Tx Control Module.

Returns

• MESHX_SUCCESS on successful initialization or if already initialized.
• Error code (meshx_err_t) if task creation fails.

{
    MESHX_LOGD(MODULE_ID_TXCM, "Initializing MeshX Tx Control Module");
    if(g_txcm.init_magic == MESHX_TXCM_INIT_MAGIC)
    {
        return MESHX_SUCCESS;
    }
    meshx_err_t err = MESHX_SUCCESS;
    g_txcm.init_magic = MESHX_TXCM_INIT_MAGIC;
    g_txcm.txcm_task.arg = pdev;

    /* Create Control Signal Queue */
    err = meshx_msg_q_create(&g_txcm.txcm_sig_queue);
    if(err)
    {
        MESHX_LOGE(MODULE_ID_TXCM, "Failed to create Tx Control Signal Queue: %p", (void *)err);
        return err;
    }

    err = meshx_task_create(&g_txcm.txcm_task);
    if(err)
    {
        MESHX_LOGE(MODULE_ID_TXCM, "Failed to create Tx Control task: %p", (void *)err);
        return err;
    }

    return MESHX_SUCCESS;
}

meshx_txcm_msg_q_front_try_send()

meshx_err_t meshx_txcm_msg_q_front_try_send ( bool resend )

static

{
    return meshx_txcm_msg_q_try_send(resend, 0xFFFF);
}

meshx_txcm_msg_q_try_send()

meshx_err_t meshx_txcm_msg_q_try_send ( bool resend, uint16_t target_addr )

static

Attempts to send messages from the transmission queue.

Parameters

[in]	resend	True if this is a resend attempt.
[in]	target_addr	Target address for the message.

Returns

MESHX_SUCCESS on success.

{
    meshx_err_t err = MESHX_SUCCESS;
    int16_t current = g_txcm.txcm_tx_queue.head;
    int16_t count = g_txcm.txcm_tx_queue.count;

    // Destinations currently waiting for ACKs
    uint16_t blocked_addrs[MESHX_TXCM_TX_Q_LEN];
    uint8_t blocked_count = 0;

    for (int i = 0; i < count; i++)
    {
        meshx_txcm_tx_q_t *item = &g_txcm.txcm_tx_queue.q_param[current];
        if (item->msg_state == MESHX_TXCM_MSG_STATE_WAITING_ACK || item->msg_state == MESHX_TXCM_MSG_STATE_SENDING)
        {
            blocked_addrs[blocked_count++] = item->dest_addr;
        }
        current = (current + 1) % MESHX_TXCM_TX_Q_LEN;
    }

    current = g_txcm.txcm_tx_queue.head;
    for (int i = 0; i < count; i++)
    {
        meshx_txcm_tx_q_t *item = &g_txcm.txcm_tx_queue.q_param[current];
        bool is_resend_match = resend && (item->dest_addr == target_addr && item->msg_state == MESHX_TXCM_MSG_STATE_WAITING_ACK);
        bool is_new_runnable = !resend && (item->msg_state == MESHX_TXCM_MSG_STATE_NEW);

        if (is_resend_match || is_new_runnable)
        {
            // Check if destination is blocked (only for NEW messages)
            bool blocked = false;
            if (is_new_runnable)
            {
                for (uint8_t b = 0; b < blocked_count; b++)
                {
                    if (blocked_addrs[b] == item->dest_addr) { blocked = true; break; }
                }
            }

            if (!blocked)
            {
                meshx_txcm_tx_q_t active_tx;
                err = meshx_tx_queue_dequeue_at(&g_txcm.txcm_tx_queue, current, &active_tx);

                if (active_tx.retry_cnt-- <= 0)
                {
                    MESHX_LOGW(MODULE_ID_TXCM, "Message exhausted retries for 0x%X", active_tx.dest_addr);
                    return MESHX_TIMEOUT;
                }

                active_tx.msg_state = MESHX_TXCM_MSG_STATE_SENDING;
                if (active_tx.send_fn != NULL)
                {
                    err = active_tx.send_fn(active_tx.msg_param, active_tx.msg_param_len);
                    if (err != MESHX_SUCCESS)
                    {
                        active_tx.msg_state = MESHX_TXCM_MSG_STATE_NACK;
                        return err;
                    }
                }

                if (active_tx.msg_type == MESHX_TXCM_MSG_TYPE_ACKED)
                {
                    active_tx.msg_state = MESHX_TXCM_MSG_STATE_WAITING_ACK;
                    meshx_tx_queue_enqueue_front(&g_txcm.txcm_tx_queue, &active_tx);
                }
                return MESHX_SUCCESS;
            }
        }
        current = (current + 1) % MESHX_TXCM_TX_Q_LEN;
    }

    return MESHX_SUCCESS;
}

meshx_txcm_proccess_request_msg()

meshx_err_t meshx_txcm_proccess_request_msg ( meshx_txcm_request_t * request, meshx_txcm_msg_type_t msg_type )

static

Processes a request message for the Tx Control module.

This function handles the processing of a request message for the Tx Control module. It checks if the request is valid, creates a new transmission entry with a sequence number, and then queues the message to the transmission queue. If the queued message is at the front of the queue, it immediately processes the send function.

Parameters

[in]	request	Pointer to the transmission control request structure containing the send msg
[in]	msg_type	Type of the message (ACKED or UNACKED)

Returns

meshx_err_t

{
    meshx_err_t err = MESHX_SUCCESS;
    meshx_txcm_tx_q_t new_tx;

    if (   request == NULL
        || request->send_fn == NULL
        || msg_type >= MESHX_TXCM_MSG_TYPE_MAX
        || request->msg_param_len >= MESHX_TXCM_MSG_PARAM_MAX_LEN
    )
    {
        return MESHX_INVALID_ARG;
    }

    MESHX_LOGD(MODULE_ID_TXCM, "Processing a new request");

    err = meshx_tx_queue_search(&g_txcm.txcm_tx_queue, request->msg_param, request->msg_param_len, request->dest_addr);
    if (err == MESHX_SUCCESS)
    {
        MESHX_LOGD(MODULE_ID_TXCM, "Message already in queue");
        return MESHX_SUCCESS;
    }

    memset(&new_tx, 0, sizeof(meshx_txcm_tx_q_t));

    new_tx.msg_type      = msg_type;
    new_tx.send_fn       = request->send_fn;
    new_tx.dest_addr     = request->dest_addr;
    new_tx.msg_param_len = request->msg_param_len;
    new_tx.msg_state     = MESHX_TXCM_MSG_STATE_NEW;
    new_tx.retry_cnt     = MESHX_TXCM_MSG_RETRY_MAX;

    memcpy(new_tx.msg_param, request->msg_param, request->msg_param_len);

    err = meshx_tx_queue_enqueue(&g_txcm.txcm_tx_queue, &new_tx);
    if (err)
    {
        MESHX_LOGE(MODULE_ID_TXCM, "Failed to send message to Tx Control Tx Queue: %p", (void *)err);
        return err;
    }

    err = meshx_txcm_msg_q_front_try_send(false);
    if(err)
    {
        MESHX_LOGE(MODULE_ID_TXCM, "Failed to process front of Tx Control Tx Queue: %p", (void *)err);
    }
    return err;
}

meshx_txcm_request_send()

meshx_err_t meshx_txcm_request_send	(	meshx_txcm_sig_t	request_type,
		uint16_t	dest_addr,
		meshx_cptr_t	msg_param,
		uint16_t	msg_param_len,
		meshx_txcm_fn_model_send_t	send_fn )

Sends a request to the Tx Control module.

This function sends a request to the Tx Control module with the specified parameters. It creates a new request structure, copies the message parameters, and sends the request to the signal queue of the Tx Control module.

Parameters

[in]	request_type	Type of the request (ACK, RESEND, ENQ_SEND, DIRECT_SEND)
[in]	dest_addr	Destination address of the message
[in]	msg_param	Pointer to the message parameters
[in]	msg_param_len	Length of the message parameters
[in]	send_fn	Function pointer to the send function to be used for the request

Returns

meshx_err_t

{
    meshx_err_t err = MESHX_SUCCESS;
    meshx_txcm_request_t new_req;
    memset(&new_req, 0, sizeof(meshx_txcm_request_t));

    /* Prepare request message */
    new_req.dest_addr     = dest_addr;
    new_req.send_fn       = send_fn;
    new_req.request_type  = request_type;
    new_req.msg_param_len = msg_param_len;

    /* Auto-downgrade Group/Broadcast addresses to DIRECT_SEND */
    if (dest_addr >= MESHX_ADDR_GROUP_START && new_req.request_type == MESHX_TXCM_SIG_ENQ_SEND)
    {
        MESHX_LOGW(MODULE_ID_TXCM, "Auto-downgrading multicast/broadcast (0x%X) to DIRECT_SEND", dest_addr);
        new_req.request_type = MESHX_TXCM_SIG_DIRECT_SEND;
    }

    if(msg_param_len != 0 && msg_param != NULL)
    {
        /* Retain message context */
        err = meshx_rtos_malloc(&new_req.msg_param, msg_param_len);
        if (err)
        {
            MESHX_LOGE(MODULE_ID_TXCM, "Malloc Failure: %p", (void *)err);
            return err;
        }
        memcpy(new_req.msg_param, msg_param, msg_param_len);
    }
    else
    {
        new_req.msg_param = NULL;
    }
    err = meshx_msg_q_send(&g_txcm.txcm_sig_queue, &new_req, sizeof(meshx_txcm_request_t), 0);
    if (err)
    {
        MESHX_LOGE(MODULE_ID_TXCM, "TXCM Signal failed: %p", (void *)err);
        meshx_rtos_free(&new_req.msg_param);
        return err;
    }
    return err;
}

meshx_txcm_sig_ack()

meshx_err_t meshx_txcm_sig_ack ( const meshx_txcm_request_t * request )

static

Handles the flush signal for the Tx Control module.

This function clears all messages from the transmission queue of the Tx Control module. It removes only front message from the queue and returns the status of the operation.

Parameters

[in]

request

Pointer to the transmission control request structure containing the flush request

Returns

meshx_err_t

{
    meshx_err_t err = MESHX_SUCCESS;

    MESHX_LOGD(MODULE_ID_TXCM, "Processing an ack for 0x%X", request->dest_addr);

    // Search the queue for the message matching this destination that is WAITING_ACK
    int16_t current = g_txcm.txcm_tx_queue.head;
    int16_t count = g_txcm.txcm_tx_queue.count;
    bool found = false;

    for (int i = 0; i < count; i++)
    {
        meshx_txcm_tx_q_t *item = &g_txcm.txcm_tx_queue.q_param[current];
        if (item->dest_addr == request->dest_addr && item->msg_state == MESHX_TXCM_MSG_STATE_WAITING_ACK)
        {
            meshx_tx_queue_dequeue_at(&g_txcm.txcm_tx_queue, current, NULL);
            found = true;
            break;
        }
        current = (current + 1) % MESHX_TXCM_TX_Q_LEN;
    }

    if (!found)
    {
        MESHX_LOGW(MODULE_ID_TXCM, "ACK received for unknown/non-pending address 0x%X", request->dest_addr);
    }

    err = meshx_rtos_free(request->msg_param);
    if (err)
    {
        MESHX_LOGE(MODULE_ID_TXCM, "RTOS Free failed: %p", (void *)err);
    }
    err = meshx_txcm_msg_q_front_try_send(false);
    return err;
}

meshx_txcm_sig_direct_send()

meshx_err_t meshx_txcm_sig_direct_send ( meshx_txcm_request_t * request )

static

Enqueues a direct send request to the Tx Control module.

This function adds a direct send request to the transmission queue of the Tx Control module. It checks if the request is valid, creates a new transmission entry with a sequence number, and then queues the message to the transmission queue. If the queued message is at the front of the queue, it immediately processes the send function.

Parameters

[in]

request

Pointer to the transmission control request structure containing the send msg

Returns

meshx_err_t

{
    MESHX_LOGD(MODULE_ID_TXCM, "Processing a new direct request");
    /* The same path can take care as the msg type  */
    return meshx_txcm_proccess_request_msg(request, MESHX_TXCM_MSG_TYPE_UNACKED);
}

meshx_txcm_sig_enq_send()

meshx_err_t meshx_txcm_sig_enq_send ( meshx_txcm_request_t * request )

static

Enqueues a send request to the Tx Control module.

This function adds a send request to the transmission queue of the Tx Control module. It checks if the request is valid, creates a new transmission entry with a sequence number, and then queues the message to the transmission queue. If the queued message is at the front of the queue, it immediately processes the send function.

Parameters

[in]

request

Pointer to the transmission control request structure containing the send msg

Returns

meshx_err_t

{
    MESHX_LOGD(MODULE_ID_TXCM, "Enqueuing a new request");
    return meshx_txcm_proccess_request_msg(request, MESHX_TXCM_MSG_TYPE_ACKED);
}

meshx_txcm_sig_resend()

meshx_err_t meshx_txcm_sig_resend ( meshx_txcm_request_t * request )

static

Handles the resend signal for the Tx Control module.

Parameters

[in]

request

Pointer to the transmission control request structure containing the send msg

Returns

meshx_err_t

{
    meshx_err_t err = MESHX_SUCCESS;

    MESHX_LOGD(MODULE_ID_TXCM, "Processing a retry for 0x%X", request->dest_addr);
    err = meshx_txcm_msg_q_try_send(true, request->dest_addr);
    if(err == MESHX_TIMEOUT)
    {
        MESHX_LOGD(MODULE_ID_TXCM, "Timeout for 0x%X", request->dest_addr);
        err = control_task_msg_publish(
            CONTROL_TASK_MSG_CODE_TXCM,
            CONTROL_TASK_MSG_EVT_TXCM_MSG_TIMEOUT,
            request->msg_param,
            request->msg_param_len
        );
        if(err)
        {
            MESHX_LOGE(MODULE_ID_TXCM, "Failed to publish timeout: %p", (void *)err);
        }
        err = meshx_txcm_msg_q_front_try_send(false);
    }
    meshx_rtos_free(&request->msg_param);
    return err;
}

meshx_txcm_task_handler()

void meshx_txcm_task_handler ( const dev_struct_t * args )

static

Handler function for the MeshX TXCM task.

This static function processes transmission commands for the MeshX component. It is intended to be run as a task handler, typically within a FreeRTOS or similar multitasking environment.

Parameters

[in]

args

Pointer to a device structure (dev_struct_t) containing context or parameters required for the task operation.

Note

This function is not intended to be called directly from outside this source file.

{
    MESHX_UNUSED(args);
    MESHX_LOGD(MODULE_ID_TXCM, "MeshX Tx Control Task started");
    meshx_err_t err = MESHX_SUCCESS;

    while(true)
    {
        meshx_txcm_request_t request;
        /* Wait for a signal from the signal queue */
        if(meshx_msg_q_recv(&g_txcm.txcm_sig_queue, &request, UINT32_MAX) != MESHX_SUCCESS)
        {
            MESHX_LOGD(MODULE_ID_TXCM, "Failed to receive signal from Tx Control Signal Queue");
            continue;
        }
        MESHX_LOGD(MODULE_ID_TXCM, "Processing sig: %d", request.request_type);

        /* Process the signal based on the request type */
        err = g_sig_proc_table[request.request_type](&request);
        if(err)
        {
            MESHX_LOGE(MODULE_ID_TXCM, "Failed to process the request (%p): %p",(void*)request.request_type, (void *)err);
        }
    }
}

Variable Documentation

g_sig_proc_table

meshx_txcm_sig_proc_t g_sig_proc_table[MESHX_TXCM_SIG_MAX]

static

Initial value:

                                              =
{
    [MESHX_TXCM_SIG_ACK]         = (meshx_txcm_sig_proc_t)&meshx_txcm_sig_ack,
    [MESHX_TXCM_SIG_RESEND]      = (meshx_txcm_sig_proc_t)&meshx_txcm_sig_resend,
    [MESHX_TXCM_SIG_ENQ_SEND]    = (meshx_txcm_sig_proc_t)&meshx_txcm_sig_enq_send,
    [MESHX_TXCM_SIG_DIRECT_SEND] = (meshx_txcm_sig_proc_t)&meshx_txcm_sig_direct_send,
}

Signal processing function table for the Tx Control module.

This table maps signal types to their corresponding processing functions. Each entry in the table is a function pointer that handles a specific type of signal. The table is indexed by the signal type (meshx_txcm_sig_t) and contains function pointers to the respective signal processing functions.

                                                                  {
    [MESHX_TXCM_SIG_ACK]         = (meshx_txcm_sig_proc_t)&meshx_txcm_sig_ack,
    [MESHX_TXCM_SIG_RESEND]      = (meshx_txcm_sig_proc_t)&meshx_txcm_sig_resend,
    [MESHX_TXCM_SIG_ENQ_SEND]    = (meshx_txcm_sig_proc_t)&meshx_txcm_sig_enq_send,
    [MESHX_TXCM_SIG_DIRECT_SEND] = (meshx_txcm_sig_proc_t)&meshx_txcm_sig_direct_send,
};

[struct]

struct { ... } g_txcm

Initial value:

= {
    .init_magic = 0,
    .txcm_tx_queue = {
        .head = 0,
        .tail = 0,
        .count = 0,
    },
    .txcm_sig_queue = {
        .max_msg_length = 10 ,
        .max_msg_depth  = sizeof(meshx_txcm_request_t) ,
    },
    .txcm_task = {
        .task_name  = "meshx_txcm_task",
        .priority   = 5 ,
        .stack_size = 4096 ,
        .task_cb    = (meshx_task_cb_t) &meshx_txcm_task_handler,
    }
}

Global structure for Tx Control module state and resources.

This static structure manages the initialization state, task configuration, and queues for signals and transmissions in the Tx Control module.

init_magic

uint16_t init_magic

txcm_sig_queue

meshx_msg_q_t txcm_sig_queue

txcm_task

meshx_task_t txcm_task

txcm_tx_queue

meshx_tx_queue_t txcm_tx_queue
