meshXModelIF Class Reference

#include <meshx_model_class.hpp>

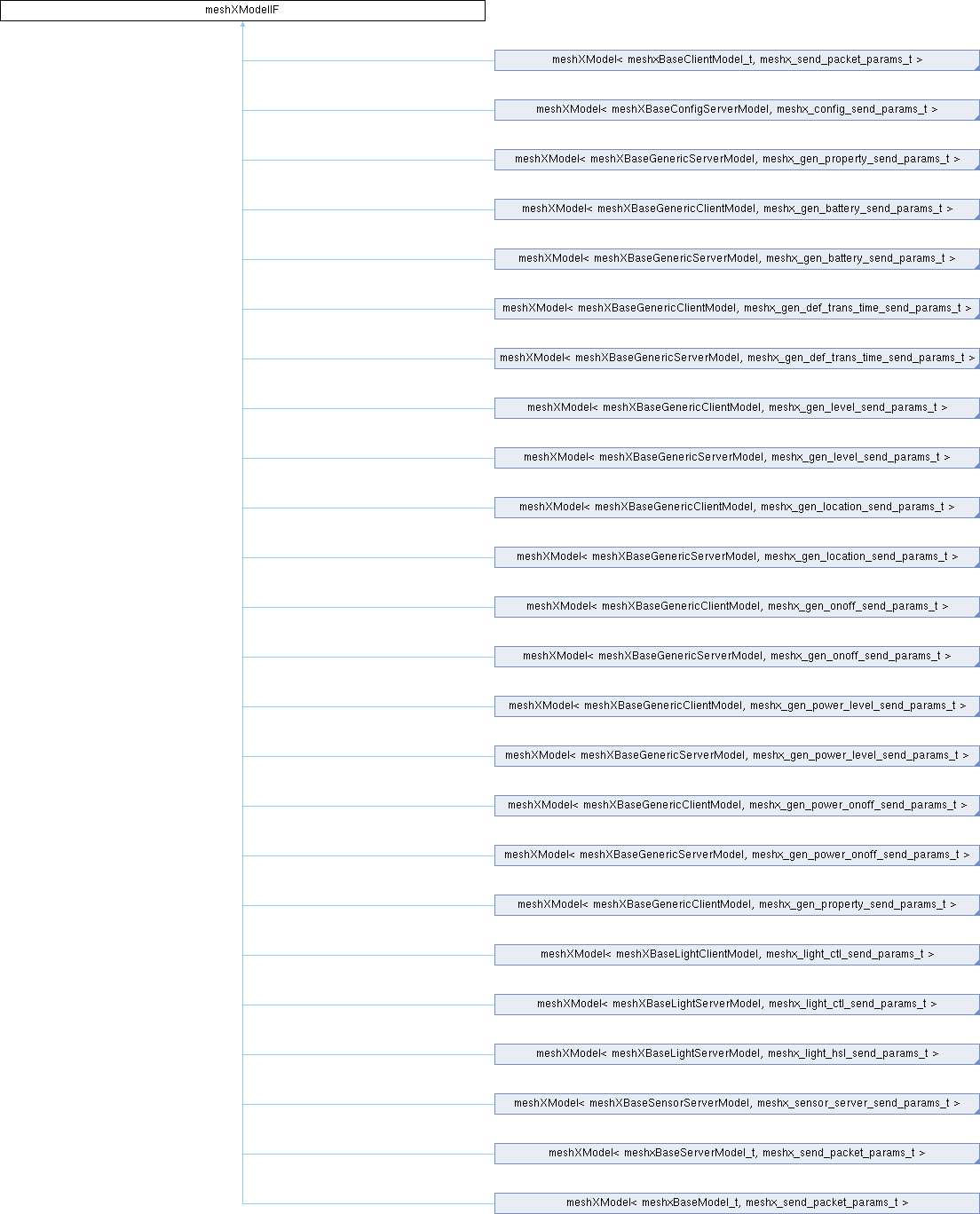

Inheritance diagram for meshXModelIF:

Public Member Functions
	meshXModelIF ()
	meshXModelIF (MESHX_MODEL *p_plat_model)
virtual	~meshXModelIF ()=default
virtual meshx_err_t	plat_model_create (MESHX_MODEL *p_plat_model_ptr=nullptr)=0
	Create logical model instance.
virtual meshx_err_t	plat_model_delete (void)=0
	Delete logical model instance.
virtual meshx_err_t	element_state_change_handle (void)=0
	Handle state change request from element.
virtual meshx_err_t	prepare_element_msg (meshx_ptr_t *msg_ptr, size_t *msg_size)=0
	Prepare message for element notification.
virtual void	on_baked (void)
	Called when the model's parent element is baked.
virtual void	set_plat_model (MESHX_MODEL *p_model)
	Set the platform-specific model instance.
MESHX_MODEL *	get_plat_model (void) const
	Get the platform-specific model instance.
meshx_ptr_t	get_pub_struct (void) const
	Get the publication structures.
meshx_ptr_t	get_gen_struct (void) const
	Get the generic structures.
void	set_pub_struct (meshx_ptr_t pub)
	Set the publication structures.
void	set_gen_struct (meshx_ptr_t gen)
	Set the generic structures.
void	set_parent_element (meshXElementIF *parent)
	Set the parent element for this model.
meshXElementIF *	get_parent_element (void) const
	Get the parent element of this model.
void	set_parent_element_state (meshx_ptr_t state)
	Set the parent element state pointer.
meshx_ptr_t	get_parent_element_state (void) const
	Get the parent element state pointer.
virtual uint16_t	get_model_id (void) const =0
	Get the model identifier.
virtual bool	is_initialized (void) const =0
	Check if the model is successfully initialized.

Private Attributes
MESHX_MODEL *	p_plat_model
meshx_ptr_t	p_plat_pub
meshx_ptr_t	p_plat_gen
meshXElementIF *	parent_element
meshx_ptr_t	p_parent_element_state

Constructor & Destructor Documentation

meshXModelIF() [1/2]

meshXModelIF::meshXModelIF ( )

inline

: p_plat_model(nullptr), p_plat_pub(nullptr), p_plat_gen(nullptr), parent_element(nullptr), p_parent_element_state(nullptr) { }

meshXModelIF() [2/2]

meshXModelIF::meshXModelIF ( MESHX_MODEL * p_plat_model )

inlineexplicit

: p_plat_model(p_plat_model), p_plat_pub(nullptr), p_plat_gen(nullptr), parent_element(nullptr), p_parent_element_state(nullptr) { }

~meshXModelIF()

virtual meshXModelIF::~meshXModelIF ( )

virtualdefault

Member Function Documentation

element_state_change_handle()

virtual meshx_err_t meshXModelIF::element_state_change_handle ( void )

pure virtual

Handle state change request from element.

Pure virtual function that derived classes must implement to handle state change requests from the parent element. The model validates the request, updates its internal state, and returns the result.

Returns

MESHX_SUCCESS on success, error code otherwise

Implemented in meshXConfigModel, meshXGenericAdminPropertyServerModel, meshXGenericBatteryClientModel, meshXGenericBatteryServerModel, meshXGenericDefTransTimeClientModel, meshXGenericDefTransTimeServerModel, meshXGenericLevelClientModel, meshXGenericLevelServerModel, meshXGenericLocationClientModel, meshXGenericLocationServerModel, meshXGenericManufacturerPropertyServerModel, meshXGenericOnOffClientModel, meshXGenericOnOffServerModel, meshXGenericPowerLevelClientModel, meshXGenericPowerLevelServerModel, meshXGenericPowerOnOffClientModel, meshXGenericPowerOnOffServerModel, meshXGenericPropertyClientModel, meshXGenericUserPropertyServerModel, meshXLightCTLClientModel, meshXLightCTLServerModel, meshXLightCTLSetupServerModel, meshXLightHSLServerModel, and meshXSensorServerModel.

get_gen_struct()

meshx_ptr_t meshXModelIF::get_gen_struct ( void ) const

inline

Get the generic structures.

Returns

Pointer to the generic structures

{ return p_plat_gen; }

get_model_id()

virtual uint16_t meshXModelIF::get_model_id ( void ) const

pure virtual

Get the model identifier.

Returns

Model ID value

Implemented in meshXModel< meshxBaseModel_t, meshx_send_packet_params_t >, meshXModel< meshxBaseClientModel_t, meshx_send_packet_params_t >, meshXModel< meshXBaseConfigServerModel, meshx_config_send_params_t >, meshXModel< meshXBaseGenericClientModel, meshx_gen_battery_send_params_t >, meshXModel< meshXBaseGenericClientModel, meshx_gen_def_trans_time_send_params_t >, meshXModel< meshXBaseGenericClientModel, meshx_gen_level_send_params_t >, meshXModel< meshXBaseGenericClientModel, meshx_gen_location_send_params_t >, meshXModel< meshXBaseGenericClientModel, meshx_gen_onoff_send_params_t >, meshXModel< meshXBaseGenericClientModel, meshx_gen_power_level_send_params_t >, meshXModel< meshXBaseGenericClientModel, meshx_gen_power_onoff_send_params_t >, meshXModel< meshXBaseGenericClientModel, meshx_gen_property_send_params_t >, meshXModel< meshXBaseGenericServerModel, meshx_gen_battery_send_params_t >, meshXModel< meshXBaseGenericServerModel, meshx_gen_def_trans_time_send_params_t >, meshXModel< meshXBaseGenericServerModel, meshx_gen_level_send_params_t >, meshXModel< meshXBaseGenericServerModel, meshx_gen_location_send_params_t >, meshXModel< meshXBaseGenericServerModel, meshx_gen_onoff_send_params_t >, meshXModel< meshXBaseGenericServerModel, meshx_gen_power_level_send_params_t >, meshXModel< meshXBaseGenericServerModel, meshx_gen_power_onoff_send_params_t >, meshXModel< meshXBaseGenericServerModel, meshx_gen_property_send_params_t >, meshXModel< meshXBaseLightClientModel, meshx_light_ctl_send_params_t >, meshXModel< meshXBaseLightServerModel, meshx_light_ctl_send_params_t >, meshXModel< meshXBaseLightServerModel, meshx_light_hsl_send_params_t >, meshXModel< meshXBaseSensorServerModel, meshx_sensor_server_send_params_t >, and meshXModel< meshxBaseServerModel_t, meshx_send_packet_params_t >.

get_parent_element()

meshXElementIF * meshXModelIF::get_parent_element ( void ) const

inline

Get the parent element of this model.

Returns

Pointer to the parent element interface

{ return parent_element; }

get_parent_element_state()

meshx_ptr_t meshXModelIF::get_parent_element_state ( void ) const

inline

Get the parent element state pointer.

Returns

Pointer to the parent element state

{ return p_parent_element_state; }

get_plat_model()

MESHX_MODEL * meshXModelIF::get_plat_model ( void ) const

inline

Get the platform-specific model instance.

Returns

Pointer to the platform model instance

{ return p_plat_model; }

get_pub_struct()

meshx_ptr_t meshXModelIF::get_pub_struct ( void ) const

inline

Get the publication structures.

Returns

Pointer to the publication structures

{ return p_plat_pub; }

is_initialized()

virtual bool meshXModelIF::is_initialized ( void ) const

pure virtual

Check if the model is successfully initialized.

Returns

true if initialized, false otherwise.

Implemented in meshXModel< meshxBaseModel_t, meshx_send_packet_params_t >, meshXModel< meshxBaseClientModel_t, meshx_send_packet_params_t >, meshXModel< meshXBaseConfigServerModel, meshx_config_send_params_t >, meshXModel< meshXBaseGenericClientModel, meshx_gen_battery_send_params_t >, meshXModel< meshXBaseGenericClientModel, meshx_gen_def_trans_time_send_params_t >, meshXModel< meshXBaseGenericClientModel, meshx_gen_level_send_params_t >, meshXModel< meshXBaseGenericClientModel, meshx_gen_location_send_params_t >, meshXModel< meshXBaseGenericClientModel, meshx_gen_onoff_send_params_t >, meshXModel< meshXBaseGenericClientModel, meshx_gen_power_level_send_params_t >, meshXModel< meshXBaseGenericClientModel, meshx_gen_power_onoff_send_params_t >, meshXModel< meshXBaseGenericClientModel, meshx_gen_property_send_params_t >, meshXModel< meshXBaseGenericServerModel, meshx_gen_battery_send_params_t >, meshXModel< meshXBaseGenericServerModel, meshx_gen_def_trans_time_send_params_t >, meshXModel< meshXBaseGenericServerModel, meshx_gen_level_send_params_t >, meshXModel< meshXBaseGenericServerModel, meshx_gen_location_send_params_t >, meshXModel< meshXBaseGenericServerModel, meshx_gen_onoff_send_params_t >, meshXModel< meshXBaseGenericServerModel, meshx_gen_power_level_send_params_t >, meshXModel< meshXBaseGenericServerModel, meshx_gen_power_onoff_send_params_t >, meshXModel< meshXBaseGenericServerModel, meshx_gen_property_send_params_t >, meshXModel< meshXBaseLightClientModel, meshx_light_ctl_send_params_t >, meshXModel< meshXBaseLightServerModel, meshx_light_ctl_send_params_t >, meshXModel< meshXBaseLightServerModel, meshx_light_hsl_send_params_t >, meshXModel< meshXBaseSensorServerModel, meshx_sensor_server_send_params_t >, and meshXModel< meshxBaseServerModel_t, meshx_send_packet_params_t >.

on_baked()

virtual void meshXModelIF::on_baked ( void )

inlinevirtual

Called when the model's parent element is baked.

Reimplemented in meshXModel< meshxBaseModel_t, meshx_send_packet_params_t >, meshXModel< meshxBaseClientModel_t, meshx_send_packet_params_t >, meshXModel< meshXBaseConfigServerModel, meshx_config_send_params_t >, meshXModel< meshXBaseGenericClientModel, meshx_gen_battery_send_params_t >, meshXModel< meshXBaseGenericClientModel, meshx_gen_def_trans_time_send_params_t >, meshXModel< meshXBaseGenericClientModel, meshx_gen_level_send_params_t >, meshXModel< meshXBaseGenericClientModel, meshx_gen_location_send_params_t >, meshXModel< meshXBaseGenericClientModel, meshx_gen_onoff_send_params_t >, meshXModel< meshXBaseGenericClientModel, meshx_gen_power_level_send_params_t >, meshXModel< meshXBaseGenericClientModel, meshx_gen_power_onoff_send_params_t >, meshXModel< meshXBaseGenericClientModel, meshx_gen_property_send_params_t >, meshXModel< meshXBaseGenericServerModel, meshx_gen_battery_send_params_t >, meshXModel< meshXBaseGenericServerModel, meshx_gen_def_trans_time_send_params_t >, meshXModel< meshXBaseGenericServerModel, meshx_gen_level_send_params_t >, meshXModel< meshXBaseGenericServerModel, meshx_gen_location_send_params_t >, meshXModel< meshXBaseGenericServerModel, meshx_gen_onoff_send_params_t >, meshXModel< meshXBaseGenericServerModel, meshx_gen_power_level_send_params_t >, meshXModel< meshXBaseGenericServerModel, meshx_gen_power_onoff_send_params_t >, meshXModel< meshXBaseGenericServerModel, meshx_gen_property_send_params_t >, meshXModel< meshXBaseLightClientModel, meshx_light_ctl_send_params_t >, meshXModel< meshXBaseLightServerModel, meshx_light_ctl_send_params_t >, meshXModel< meshXBaseLightServerModel, meshx_light_hsl_send_params_t >, meshXModel< meshXBaseSensorServerModel, meshx_sensor_server_send_params_t >, and meshXModel< meshxBaseServerModel_t, meshx_send_packet_params_t >.

{}

plat_model_create()

virtual meshx_err_t meshXModelIF::plat_model_create ( MESHX_MODEL * p_plat_model_ptr = nullptr )

pure virtual

Create logical model instance.

Pure virtual function that derived classes must implement to create a logical model instance on the platform. This is called during model initialization to set up the model's runtime state.

Returns

MESHX_SUCCESS if model created successfully, error code otherwise

Implemented in meshXClientModel< meshxBaseClientModel_t, meshx_send_packet_params_t >, meshXClientModel< meshXBaseGenericClientModel, meshx_gen_battery_send_params_t >, meshXClientModel< meshXBaseGenericClientModel, meshx_gen_def_trans_time_send_params_t >, meshXClientModel< meshXBaseGenericClientModel, meshx_gen_level_send_params_t >, meshXClientModel< meshXBaseGenericClientModel, meshx_gen_location_send_params_t >, meshXClientModel< meshXBaseGenericClientModel, meshx_gen_onoff_send_params_t >, meshXClientModel< meshXBaseGenericClientModel, meshx_gen_power_level_send_params_t >, meshXClientModel< meshXBaseGenericClientModel, meshx_gen_power_onoff_send_params_t >, meshXClientModel< meshXBaseGenericClientModel, meshx_gen_property_send_params_t >, meshXClientModel< meshXBaseLightClientModel, meshx_light_ctl_send_params_t >, meshXConfigModel, meshXGenericAdminPropertyServerModel, meshXGenericBatteryServerModel, meshXGenericClientPropertyServerModel, meshXGenericDefTransTimeServerModel, meshXGenericLevelServerModel, meshXGenericLocationServerModel, meshXGenericManufacturerPropertyServerModel, meshXGenericOnOffServerModel, meshXGenericPowerLevelServerModel, meshXGenericPowerOnOffServerModel, meshXGenericPowerOnOffSetupServerModel, meshXGenericUserPropertyServerModel, meshXLightCTLServerModel, meshXLightCTLSetupServerModel, meshXLightHSLServerModel, and meshXSensorServerModel.

plat_model_delete()

virtual meshx_err_t meshXModelIF::plat_model_delete ( void )

pure virtual

Delete logical model instance.

Pure virtual function that derived classes must implement to delete the logical model instance from the platform. This is called during model cleanup to release resources associated with the model.

Implemented in meshXClientModel< meshxBaseClientModel_t, meshx_send_packet_params_t >, meshXClientModel< meshXBaseGenericClientModel, meshx_gen_battery_send_params_t >, meshXClientModel< meshXBaseGenericClientModel, meshx_gen_def_trans_time_send_params_t >, meshXClientModel< meshXBaseGenericClientModel, meshx_gen_level_send_params_t >, meshXClientModel< meshXBaseGenericClientModel, meshx_gen_location_send_params_t >, meshXClientModel< meshXBaseGenericClientModel, meshx_gen_onoff_send_params_t >, meshXClientModel< meshXBaseGenericClientModel, meshx_gen_power_level_send_params_t >, meshXClientModel< meshXBaseGenericClientModel, meshx_gen_power_onoff_send_params_t >, meshXClientModel< meshXBaseGenericClientModel, meshx_gen_property_send_params_t >, meshXClientModel< meshXBaseLightClientModel, meshx_light_ctl_send_params_t >, meshXConfigModel, meshXGenericAdminPropertyServerModel, meshXGenericBatteryServerModel, meshXGenericClientPropertyServerModel, meshXGenericDefTransTimeServerModel, meshXGenericLevelServerModel, meshXGenericLocationServerModel, meshXGenericManufacturerPropertyServerModel, meshXGenericOnOffServerModel, meshXGenericPowerLevelServerModel, meshXGenericPowerOnOffServerModel, meshXGenericPowerOnOffSetupServerModel, meshXGenericUserPropertyServerModel, meshXLightCTLServerModel, meshXLightCTLSetupServerModel, meshXLightHSLServerModel, and meshXSensorServerModel.

prepare_element_msg()

virtual meshx_err_t meshXModelIF::prepare_element_msg ( meshx_ptr_t * msg_ptr, size_t * msg_size )

pure virtual

Prepare message for element notification.

Pure virtual function that derived classes must implement to prepare a message structure that will be sent to the parent element. The message must persist after this function returns.

Parameters

[out]	msg_ptr	Pointer to message structure (output parameter)
[out]	msg_size	Size of the message structure (output parameter)

Returns

MESHX_SUCCESS if message prepared successfully, error code otherwise

Implemented in meshXConfigModel, meshXGenericAdminPropertyServerModel, meshXGenericBatteryClientModel, meshXGenericBatteryServerModel, meshXGenericClientPropertyServerModel, meshXGenericDefTransTimeClientModel, meshXGenericDefTransTimeServerModel, meshXGenericLevelClientModel, meshXGenericLevelServerModel, meshXGenericLocationClientModel, meshXGenericLocationServerModel, meshXGenericLocationSetupServerModel, meshXGenericManufacturerPropertyServerModel, meshXGenericOnOffClientModel, meshXGenericOnOffServerModel, meshXGenericPowerLevelClientModel, meshXGenericPowerLevelServerModel, meshXGenericPowerLevelSetupServerModel, meshXGenericPowerOnOffClientModel, meshXGenericPowerOnOffServerModel, meshXGenericPowerOnOffSetupServerModel, meshXGenericPropertyClientModel, meshXGenericUserPropertyServerModel, meshXLightCTLClientModel, meshXLightCTLServerModel, meshXLightCTLSetupServerModel, meshXLightHSLServerModel, and meshXSensorServerModel.

set_gen_struct()

void meshXModelIF::set_gen_struct ( meshx_ptr_t gen )

inline

Set the generic structures.

Parameters

[in]

gen

Pointer to the generic structures

{ p_plat_gen = gen; }

set_parent_element()

void meshXModelIF::set_parent_element ( meshXElementIF * parent )

inline

Set the parent element for this model.

Parameters

[in]

parent

Pointer to the parent element interface

{ parent_element = parent; }

set_parent_element_state()

void meshXModelIF::set_parent_element_state ( meshx_ptr_t state )

inline

Set the parent element state pointer.

Parameters

[in]

state

Pointer to the parent element state

{ p_parent_element_state = state; }

set_plat_model()

virtual void meshXModelIF::set_plat_model ( MESHX_MODEL * p_model )

inlinevirtual

Set the platform-specific model instance.

Parameters

[in]

p_model

Pointer to the platform model instance

Reimplemented in meshXModel< meshxBaseModel_t, meshx_send_packet_params_t >, meshXModel< meshxBaseClientModel_t, meshx_send_packet_params_t >, meshXModel< meshXBaseConfigServerModel, meshx_config_send_params_t >, meshXModel< meshXBaseGenericClientModel, meshx_gen_battery_send_params_t >, meshXModel< meshXBaseGenericClientModel, meshx_gen_def_trans_time_send_params_t >, meshXModel< meshXBaseGenericClientModel, meshx_gen_level_send_params_t >, meshXModel< meshXBaseGenericClientModel, meshx_gen_location_send_params_t >, meshXModel< meshXBaseGenericClientModel, meshx_gen_onoff_send_params_t >, meshXModel< meshXBaseGenericClientModel, meshx_gen_power_level_send_params_t >, meshXModel< meshXBaseGenericClientModel, meshx_gen_power_onoff_send_params_t >, meshXModel< meshXBaseGenericClientModel, meshx_gen_property_send_params_t >, meshXModel< meshXBaseGenericServerModel, meshx_gen_battery_send_params_t >, meshXModel< meshXBaseGenericServerModel, meshx_gen_def_trans_time_send_params_t >, meshXModel< meshXBaseGenericServerModel, meshx_gen_level_send_params_t >, meshXModel< meshXBaseGenericServerModel, meshx_gen_location_send_params_t >, meshXModel< meshXBaseGenericServerModel, meshx_gen_onoff_send_params_t >, meshXModel< meshXBaseGenericServerModel, meshx_gen_power_level_send_params_t >, meshXModel< meshXBaseGenericServerModel, meshx_gen_power_onoff_send_params_t >, meshXModel< meshXBaseGenericServerModel, meshx_gen_property_send_params_t >, meshXModel< meshXBaseLightClientModel, meshx_light_ctl_send_params_t >, meshXModel< meshXBaseLightServerModel, meshx_light_ctl_send_params_t >, meshXModel< meshXBaseLightServerModel, meshx_light_hsl_send_params_t >, meshXModel< meshXBaseSensorServerModel, meshx_sensor_server_send_params_t >, and meshXModel< meshxBaseServerModel_t, meshx_send_packet_params_t >.

{ p_plat_model = p_model; }

set_pub_struct()

void meshXModelIF::set_pub_struct ( meshx_ptr_t pub )

inline

Set the publication structures.

Parameters

[in]

pub

Pointer to the publication structures

{ p_plat_pub = pub; }

Field Documentation

p_parent_element_state

meshx_ptr_t meshXModelIF::p_parent_element_state

private

Pointer to the parent element state

p_plat_gen

meshx_ptr_t meshXModelIF::p_plat_gen

private

generic structures

p_plat_model

MESHX_MODEL* meshXModelIF::p_plat_model

private

Pointer to the platform model

p_plat_pub

meshx_ptr_t meshXModelIF::p_plat_pub

private

publication structures

parent_element

meshXElementIF* meshXModelIF::parent_element

private

Pointer to the parent element interface

---

The documentation for this class was generated from the following file:

• meshx_model_class.hpp
