meshx_plat_ctl_status Union Reference

Light CTL status packet. More...

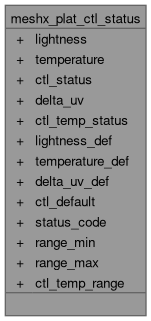

Collaboration diagram for meshx_plat_ctl_status:

Data Fields
struct {
uint16_t   lightness
uint16_t   temperature
}	ctl_status
struct {
uint16_t   temperature
uint16_t   delta_uv
}	ctl_temp_status
struct {
uint16_t   lightness_def
uint16_t   temperature_def
uint16_t   delta_uv_def
}	ctl_default
struct {
uint8_t   status_code
uint16_t   range_min
uint16_t   range_max
}	ctl_temp_range

Detailed Description

Light CTL status packet.

Definition at line 26 of file esp_light_srv_model.c.

Field Documentation

[struct]

struct { ... } meshx_plat_ctl_status::ctl_default

[struct]

struct { ... } meshx_plat_ctl_status::ctl_status

[struct]

struct { ... } meshx_plat_ctl_status::ctl_temp_range

[struct]

struct { ... } meshx_plat_ctl_status::ctl_temp_status

delta_uv

uint16_t meshx_plat_ctl_status::delta_uv

Delta UV value

Definition at line 36 of file esp_light_srv_model.c.

delta_uv_def

uint16_t meshx_plat_ctl_status::delta_uv_def

Default delta UV

Definition at line 42 of file esp_light_srv_model.c.

lightness

uint16_t meshx_plat_ctl_status::lightness

Lightness level

Definition at line 30 of file esp_light_srv_model.c.

lightness_def

uint16_t meshx_plat_ctl_status::lightness_def

Default lightness

Definition at line 40 of file esp_light_srv_model.c.

range_max

uint16_t meshx_plat_ctl_status::range_max

Maximum temperature range

Definition at line 48 of file esp_light_srv_model.c.

range_min

uint16_t meshx_plat_ctl_status::range_min

Minimum temperature range

Definition at line 47 of file esp_light_srv_model.c.

status_code

uint8_t meshx_plat_ctl_status::status_code

Status code

Definition at line 46 of file esp_light_srv_model.c.

temperature

uint16_t meshx_plat_ctl_status::temperature

Color temperature

Definition at line 31 of file esp_light_srv_model.c.

temperature_def

uint16_t meshx_plat_ctl_status::temperature_def

Default temperature

Definition at line 41 of file esp_light_srv_model.c.

---

The documentation for this union was generated from the following file:

• esp_light_srv_model.c
